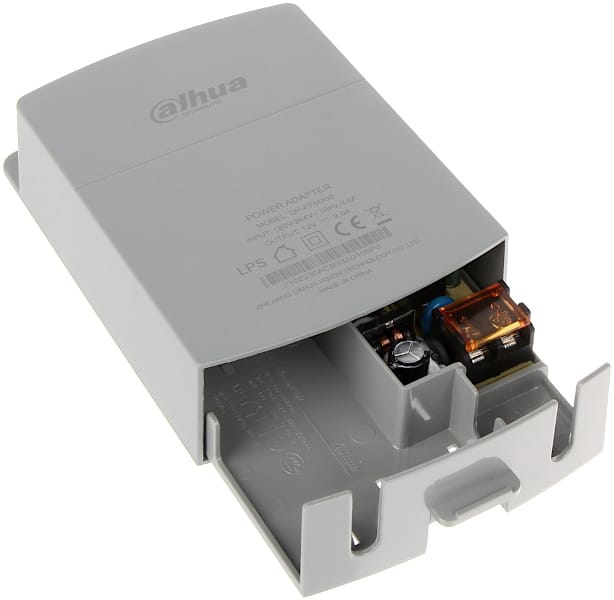

POWER SUPPLY PFM300 DAHUA

Name: POWER SUPPLY PFM300 DAHUA
Brand: Dahua
SKU: 522504
Price: 9.76 EUR
Availability: InStock

€9.76

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Dahua
Product code:: PFM300 / 6939554999079

Specification

Current efficiency of the power supply::	2 A

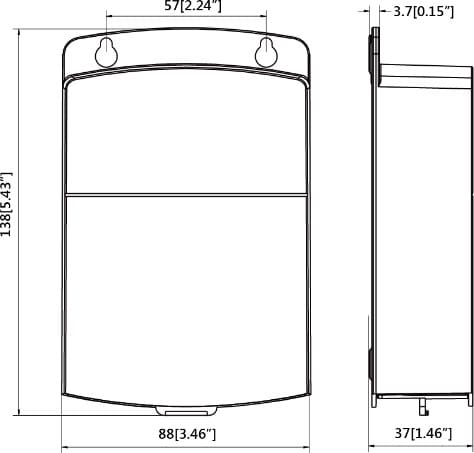

Dimensions::	140 x 89 x 37 mm
Housing type::	plastic
Manufacturer / brand::	DAHUA
Number of outputs::	1 pc.
Operating temperature::	-30 °C ... 70 °C
Output voltage::	12 VDC
Power supply type::	Pulse
Power supply::	24 watts (Printing)
Scales::	0.16 kg
Sealing::	IP23
Selected features::	Splash-proof housing
Supply voltage::	230 VAC
Type of power connectors::	2.1/5.5 mm Straight plug
Warranty::	3 years

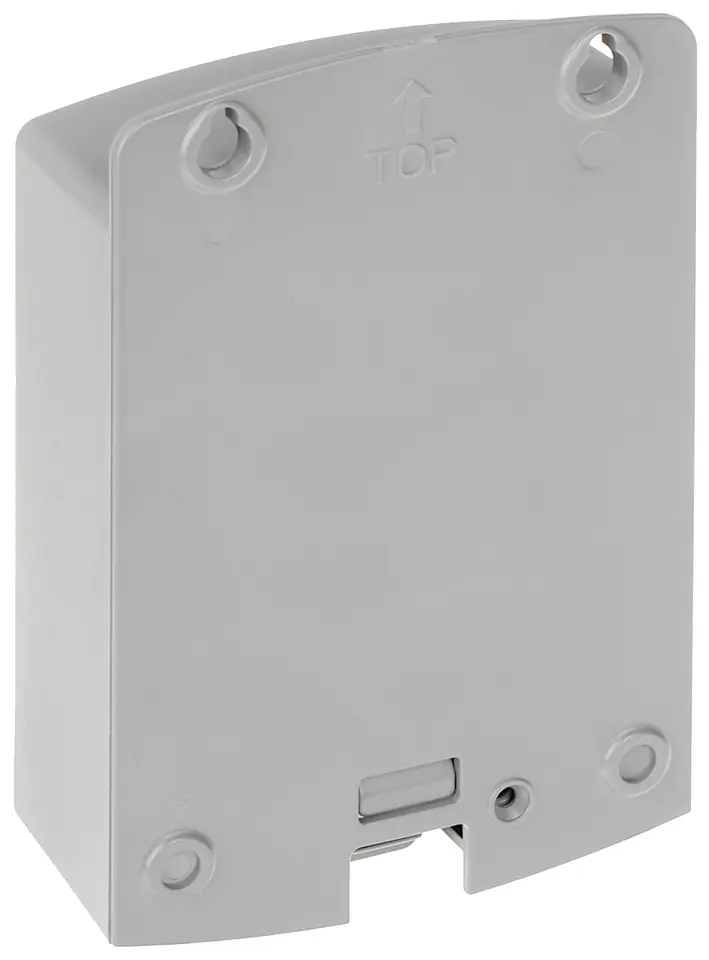

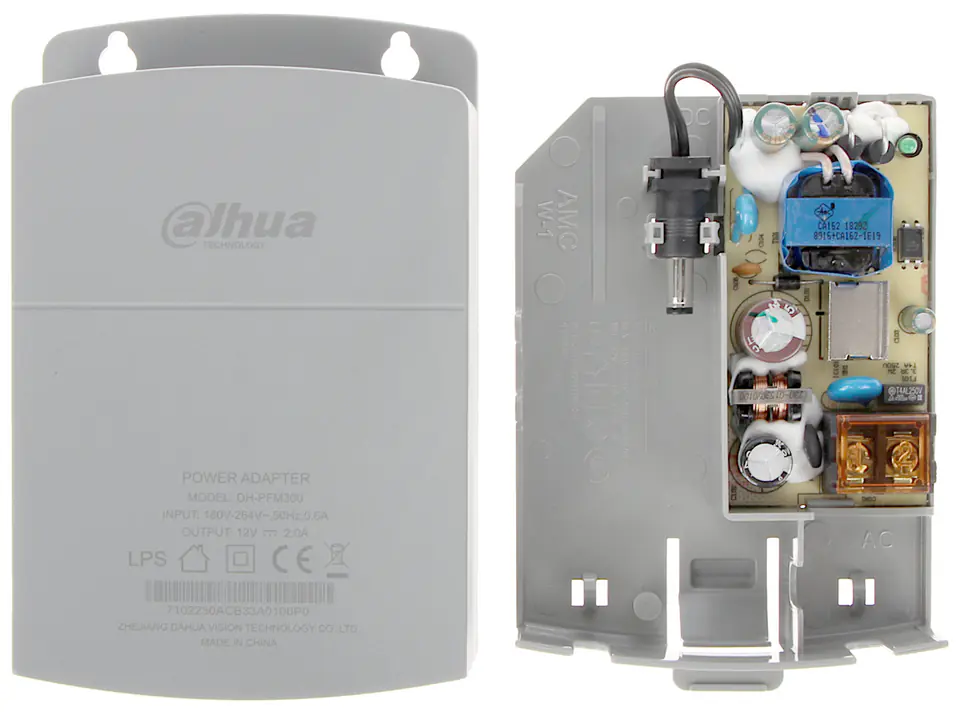

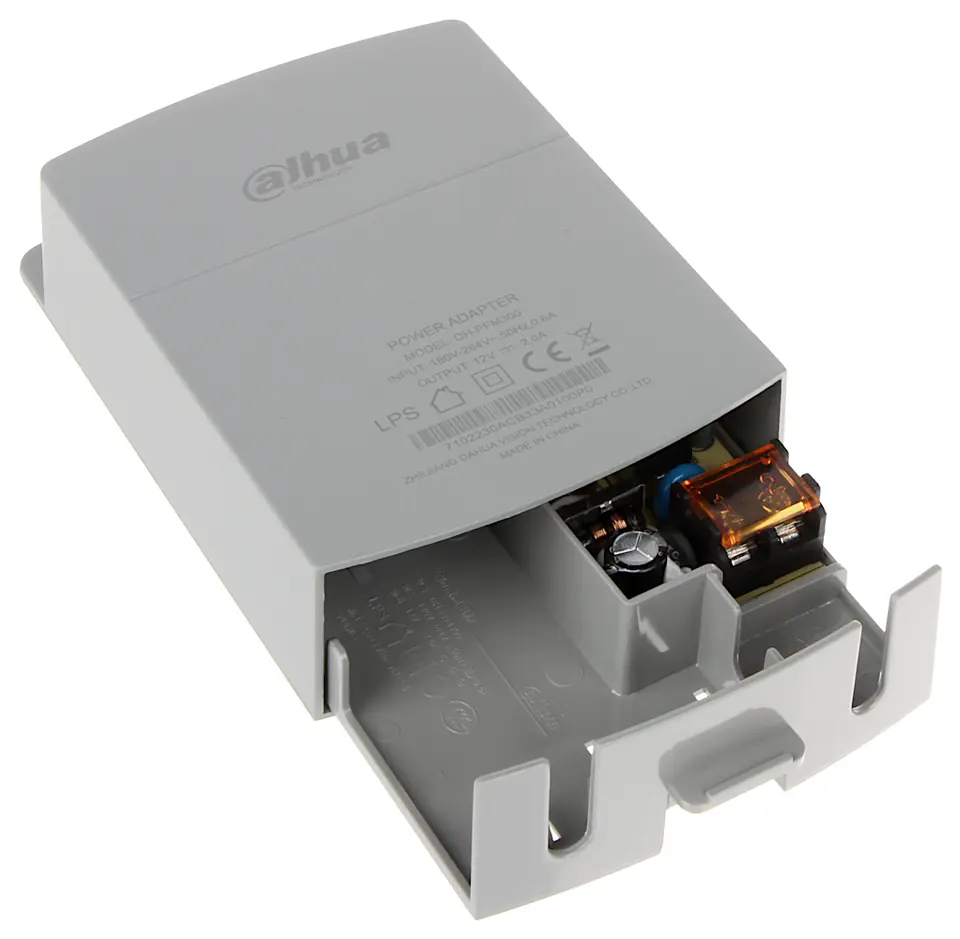

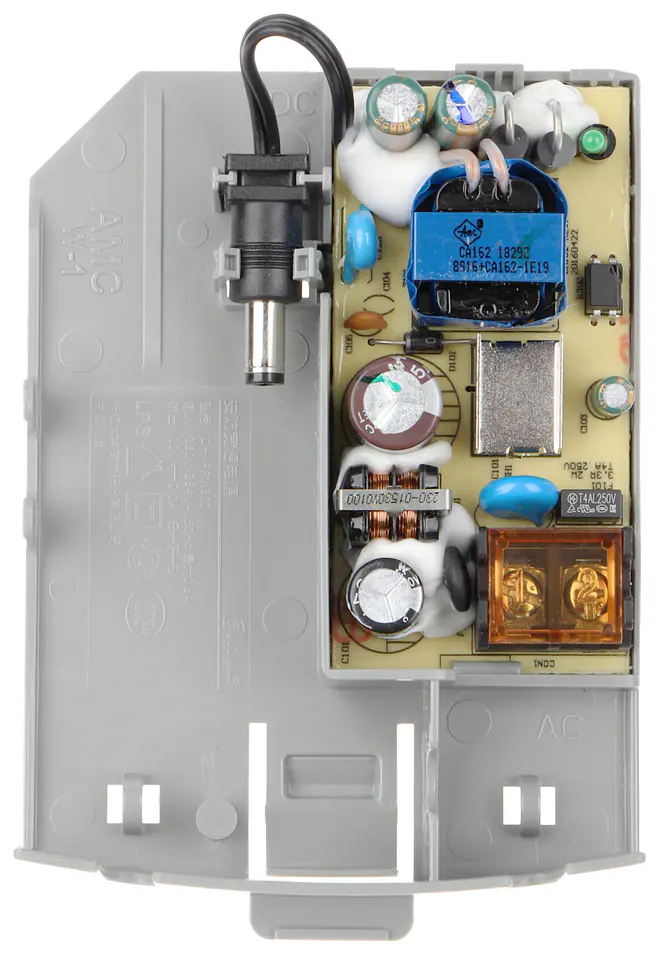

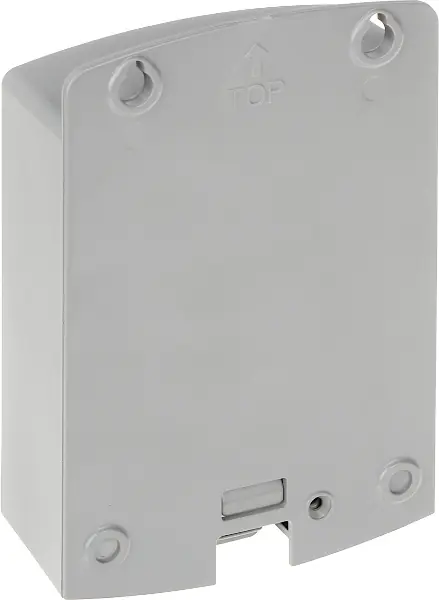

DAHUA switched-mode power supply in an aesthetic splash-proof housingCustomated for external installation on the wall (for IP23 it is recommended to mount under a roof)The camera and video power connector fits easily inside the power supply housingCorrect installation of the power supply is possible only in the vertical position, connectors down

Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Special attention should be paid to the proper cooling of the power supply during operation!

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
