Switch mode power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 60°C)
POWER SUPPLY MDR-100-12
€62.70
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- running out
- Product code:
- MDR-100-12 / 5901643191665
Share this product:
Specification

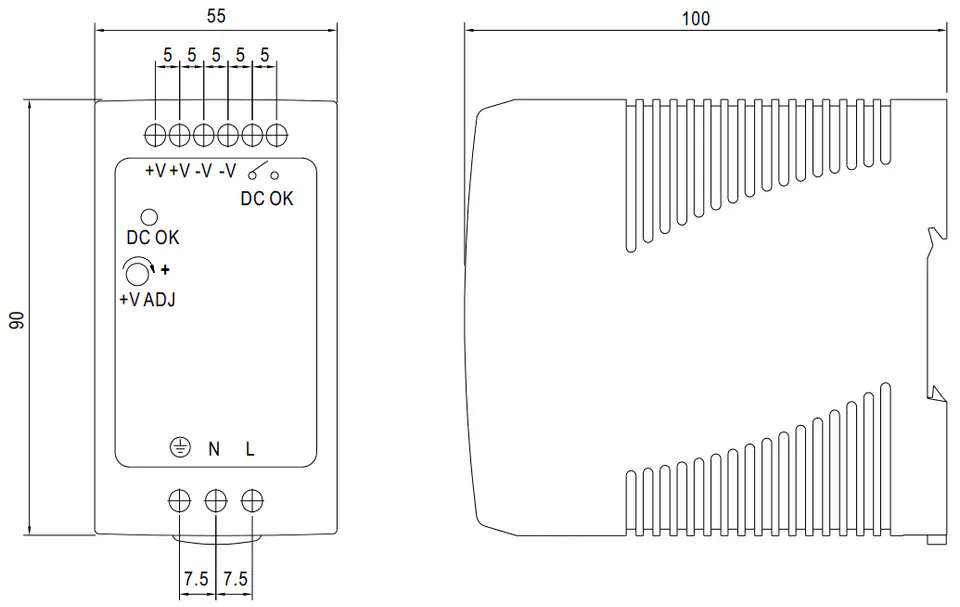

| Dimensions: | 55 x 100 x 90 mm |
|---|---|
| Efficiency: | 85 % |
| Enclosure type: | DIN |
| Mtbf (mean time between failures): | 346000 hrs |
| Number of outputs: | 1 pc |
| Operating temperature / relative humidity: | -10 °C ... 60 °C / < 95 % |
| Output voltage: | 12 volts DC |
| Output voltage adjustment: | 12 ... 15 volts |
| Power supply: | 90 watts (Printing) |
| Power supply current efficiency: | 7.5 amps |
| Scales: | 0.42 kg |
| Security: | Short-circuit surge protection Overload protection |
| Supply voltage: | 100 ... 240 VAC |
| Type of power supply: | Pulse |
| Vibration resistance: | IEC60068-2-6, 10 ... 500 Hz max. 2 G for 90 minutes |
| Voltage tolerance: | ± 1 % |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
