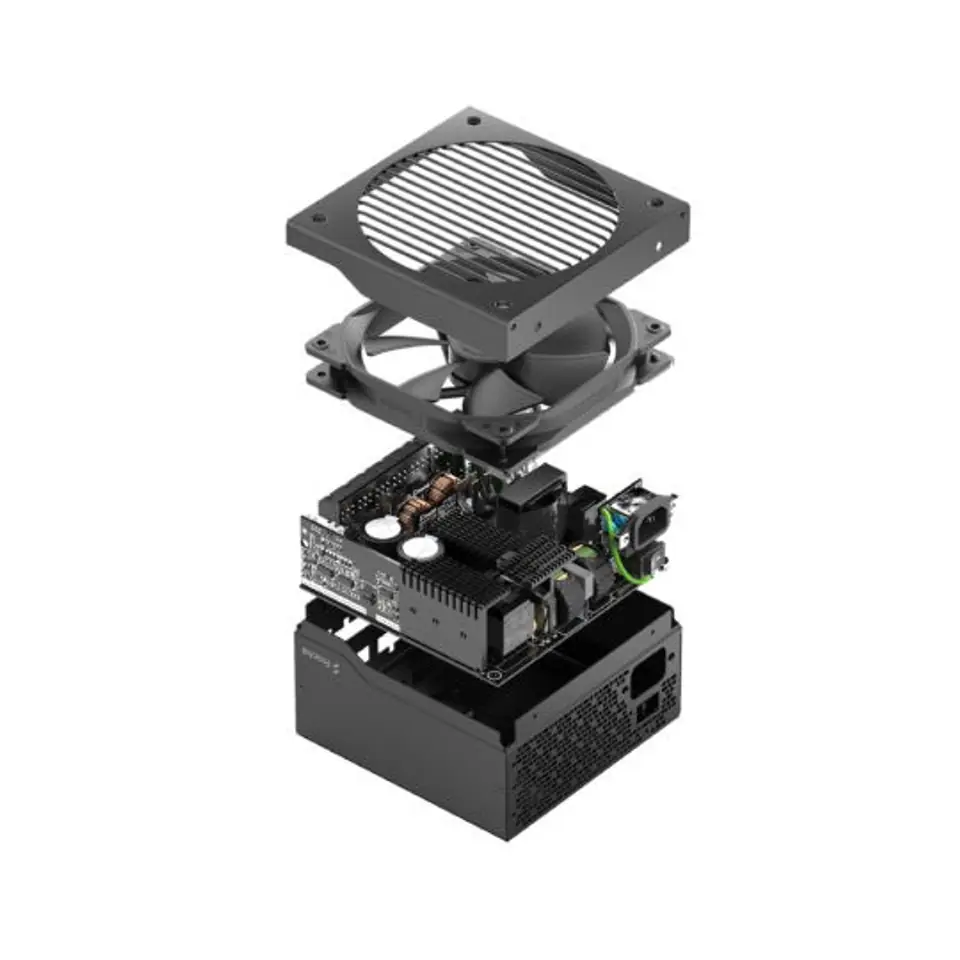

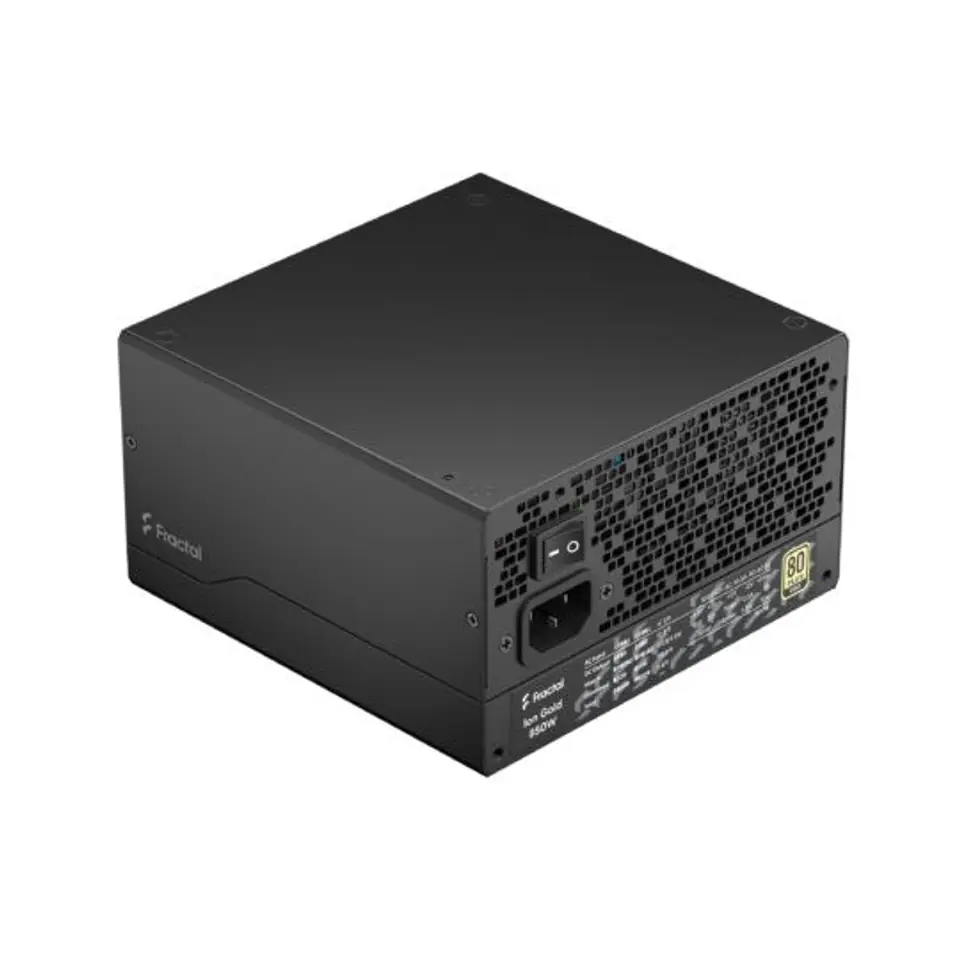

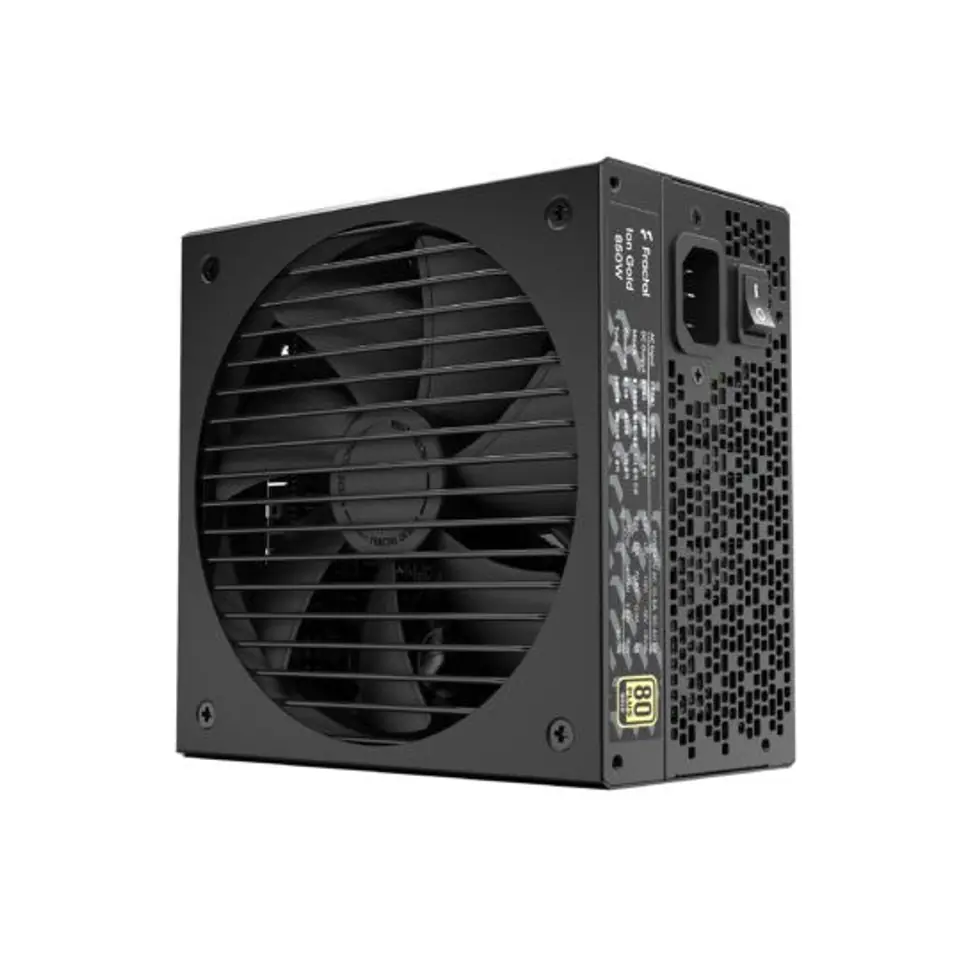

Ion Gold ATX is a high-performance power supply, equipped with a great performance 140mm Dynamic series fan and an attractive design. Created specifically for anyone looking for a high-quality power supply as standard with a competitive price, Ion Gold is packed with capabilities. It is fully modular for less clutter, easy to install thanks to a depth of 150 mm, and comes with a 7-year warranty.

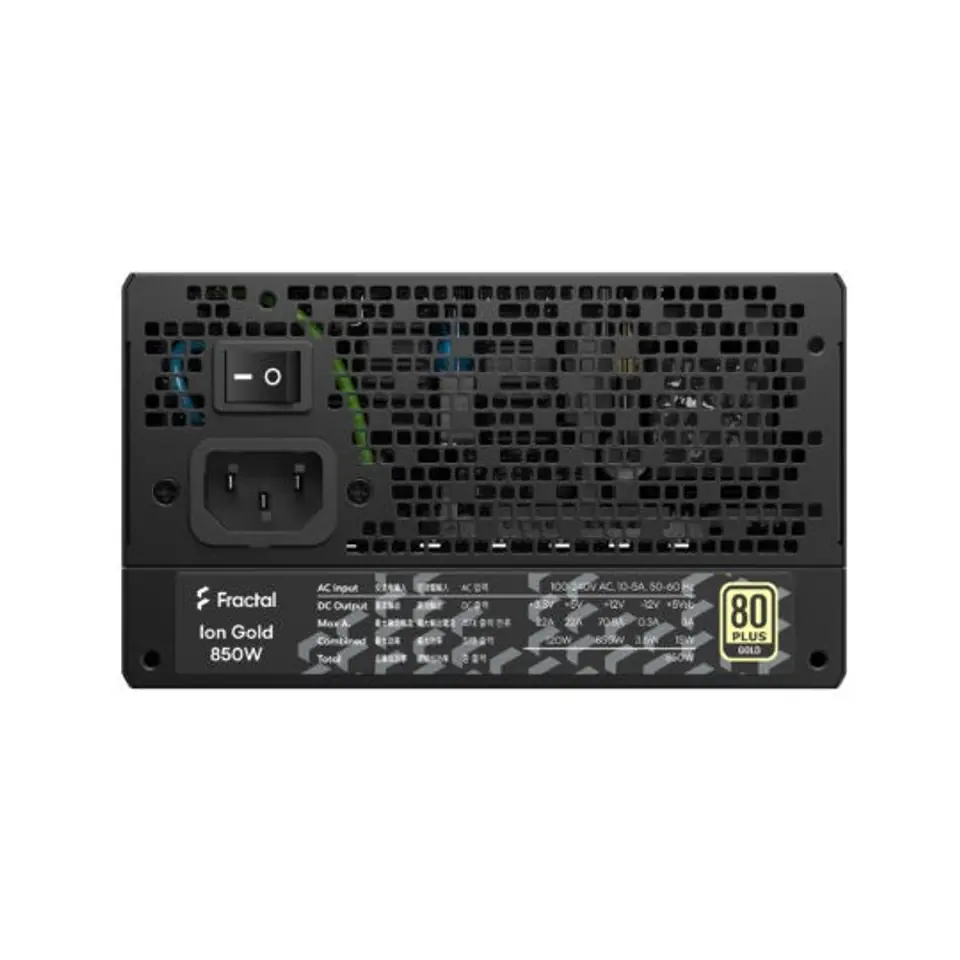

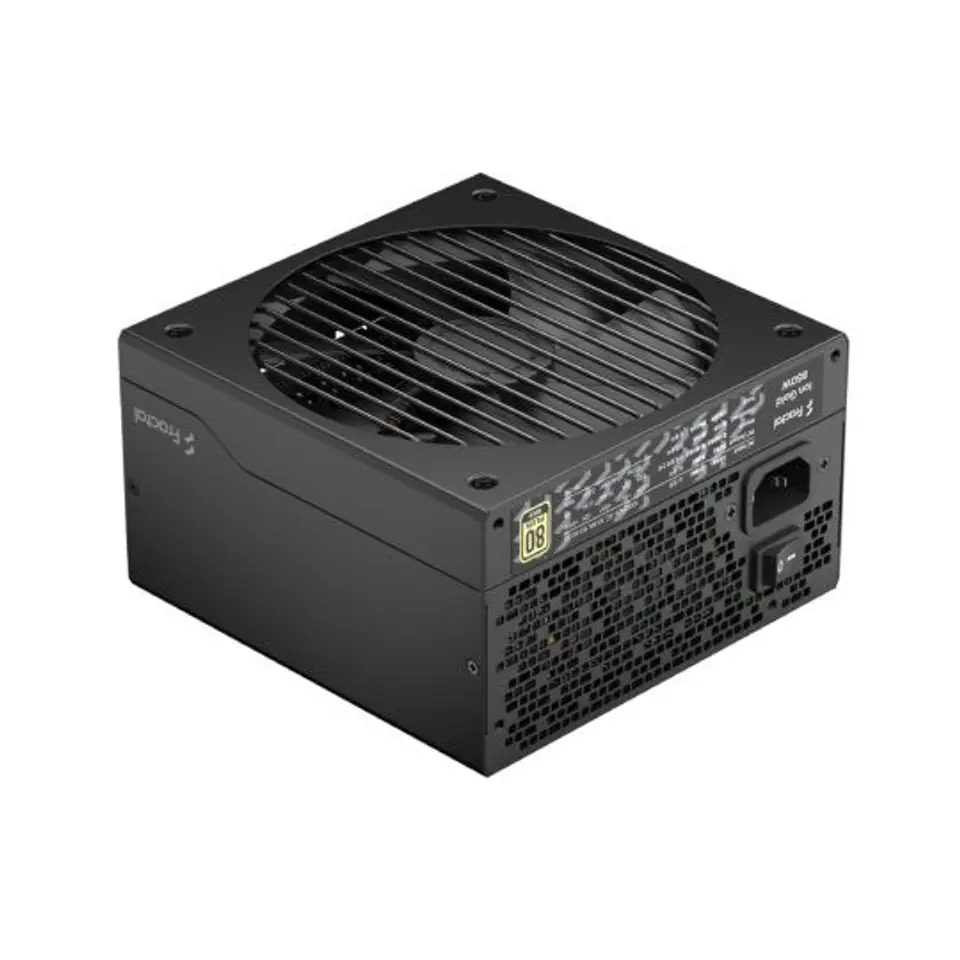

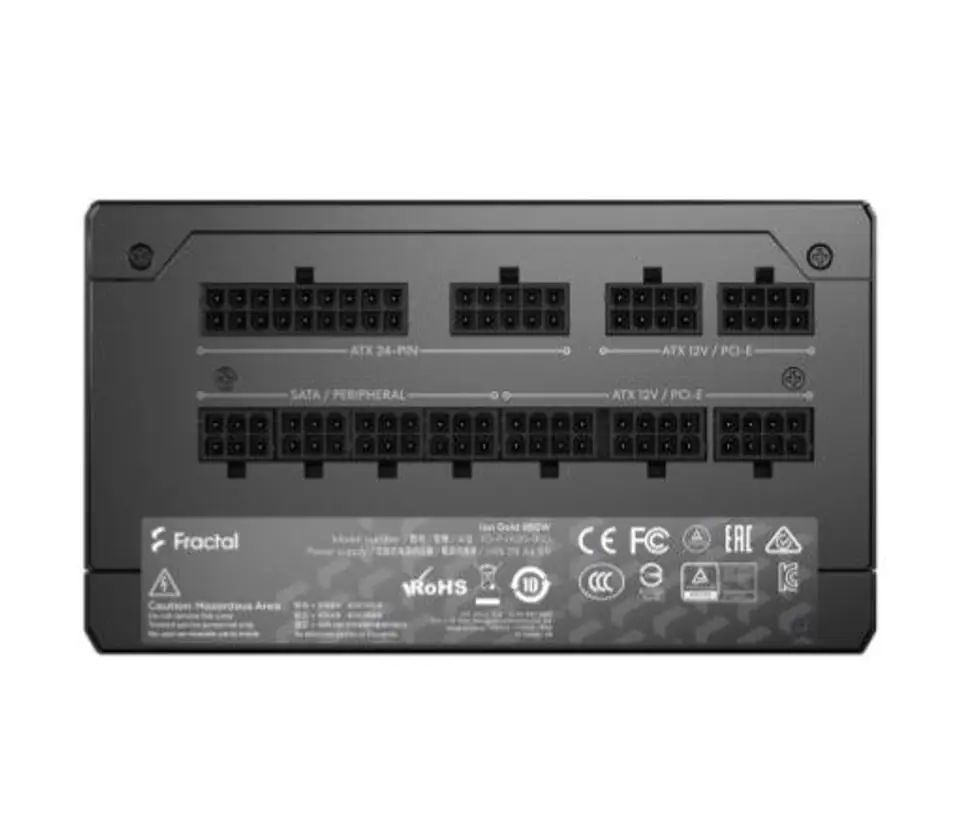

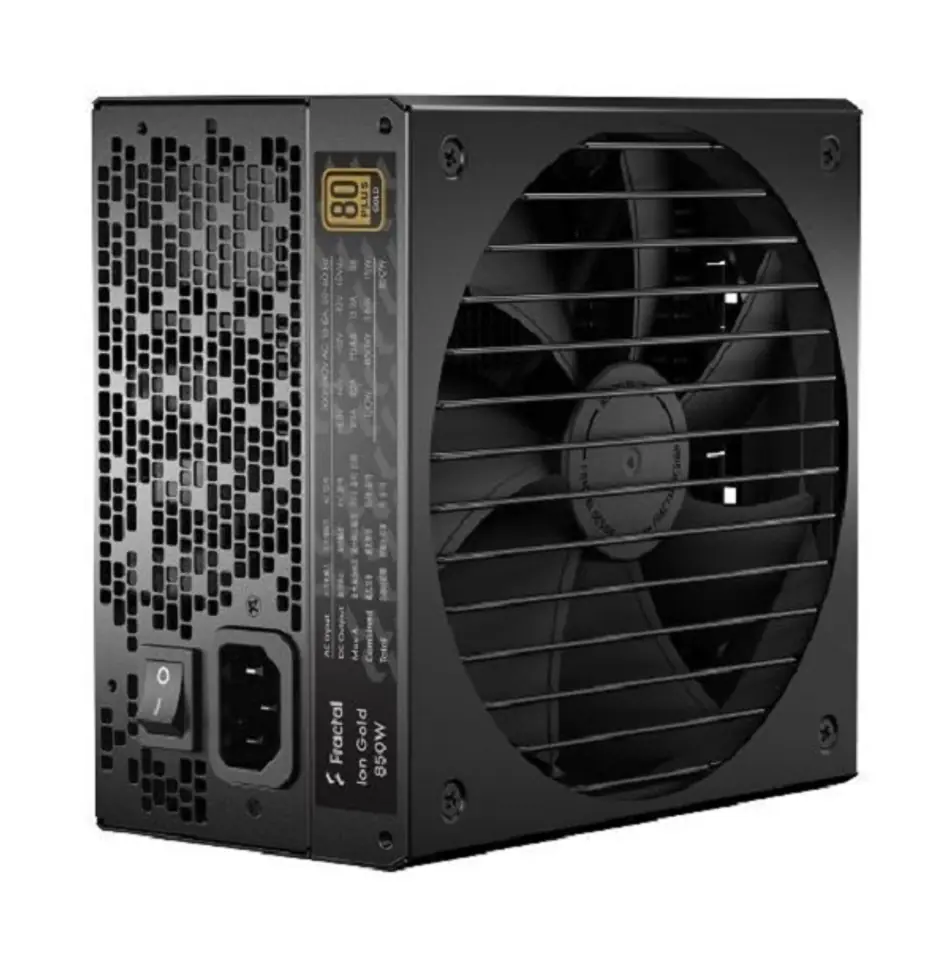

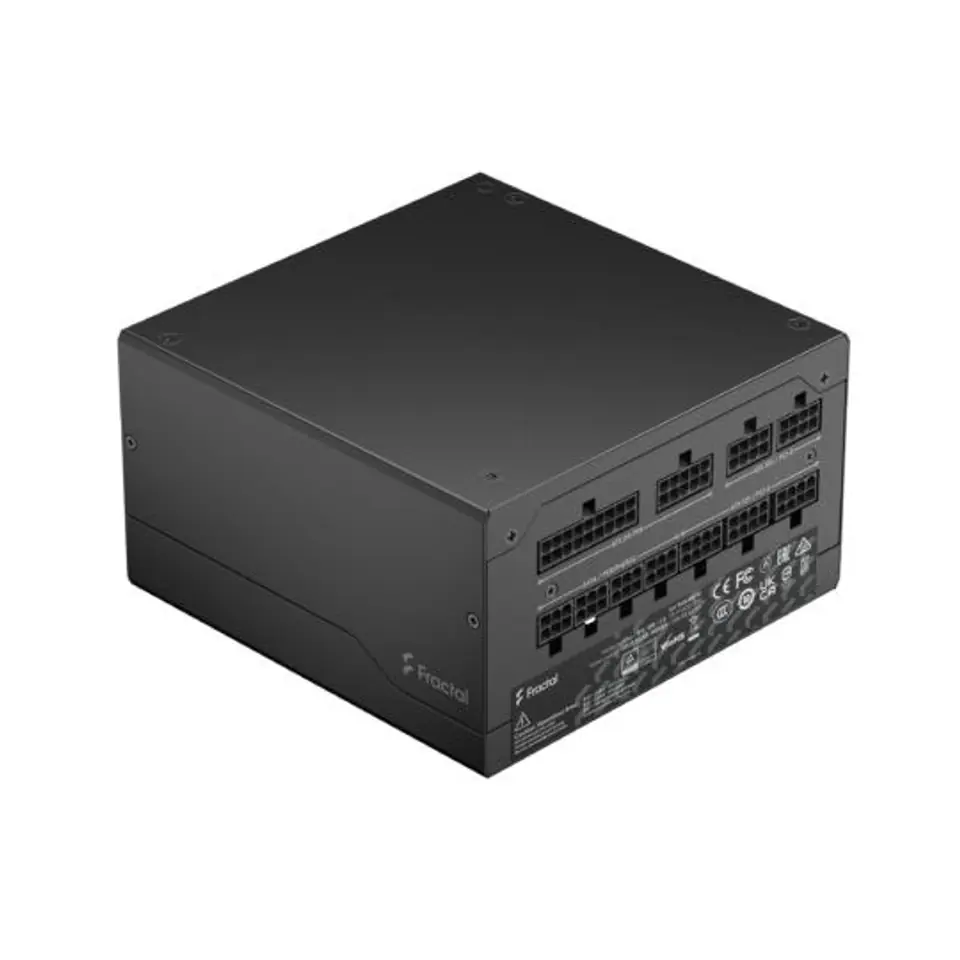

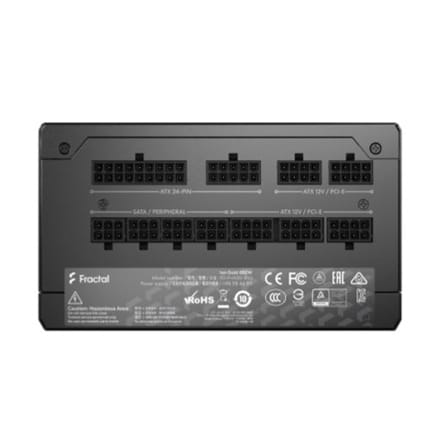

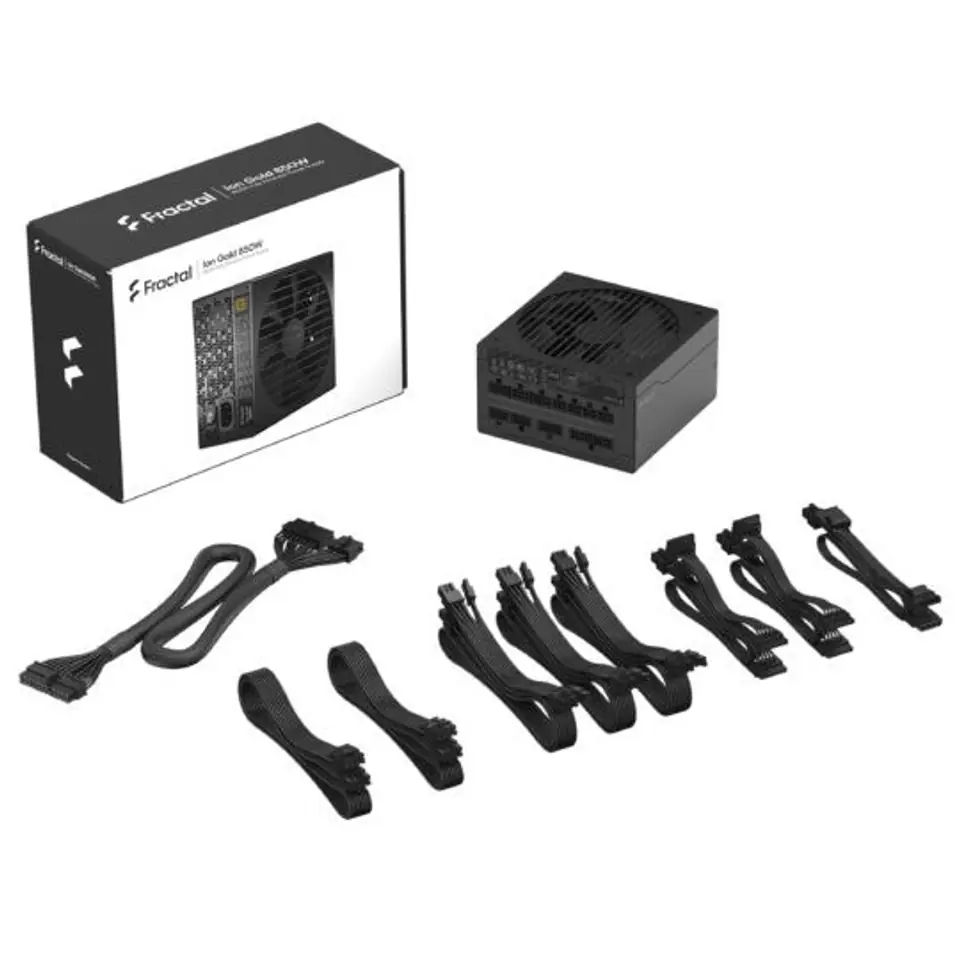

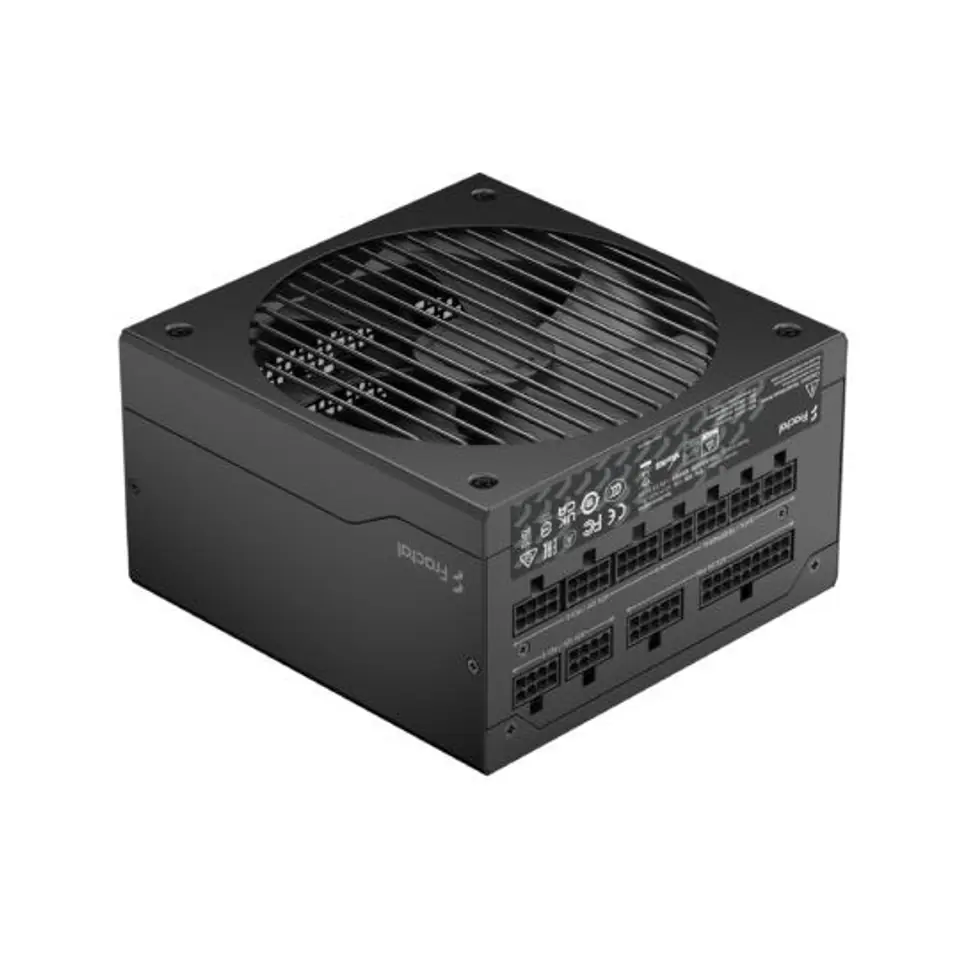

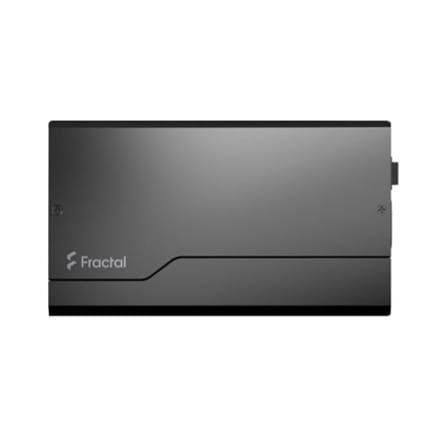

Power supply Ion Gold 850W 80+ PLUS GOLD Full modular black
This product is not available
- Availability:
- expected delivery
- Brand:
- Fractal Design
- Product code:
- FD-P-IA2G-850-EU / 7340172702801
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx power connector (24-pin): | Yes |
| Atx version: | 2.52 |
| Bearing technology: | FDB |
| Cables included: | AC |

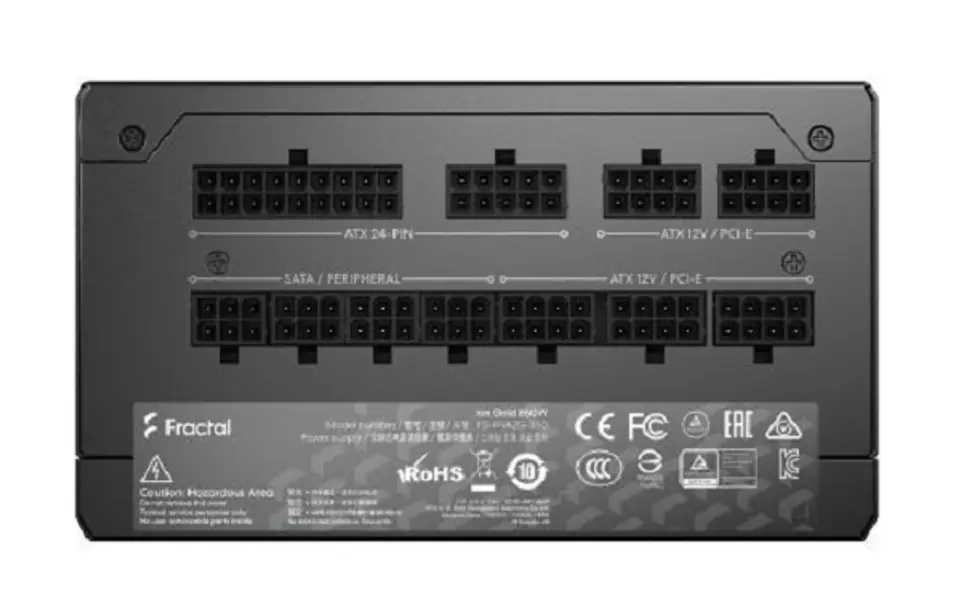

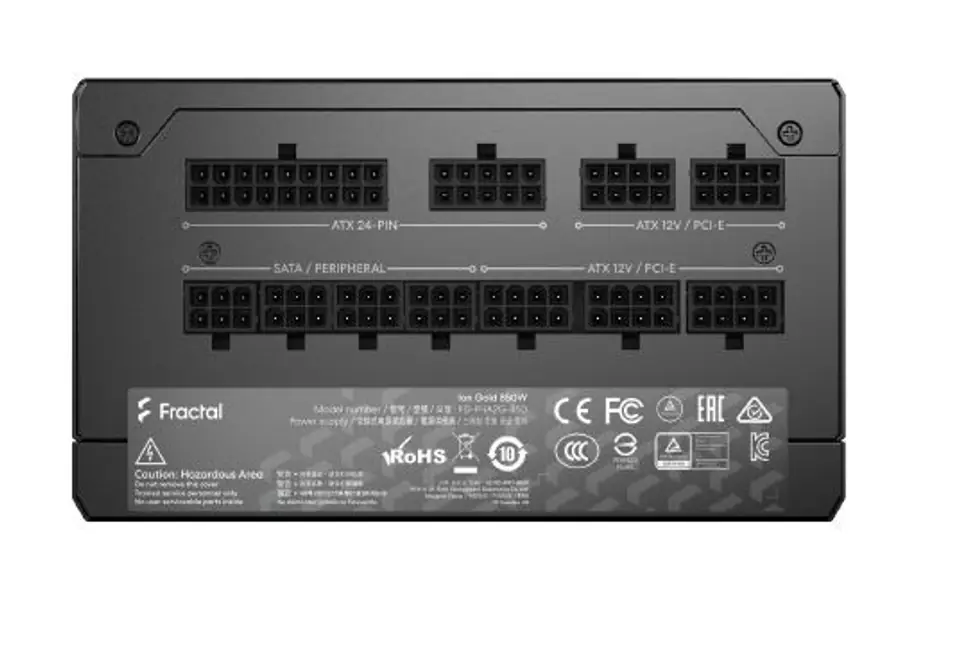

| Cabling type: | Fully-Modular |
| Combined power (+5v): | 120 W |
| Depth: | 150 mm |
| Eps power connector (8-pin): | Yes |
| Eps version: | 2.92 |

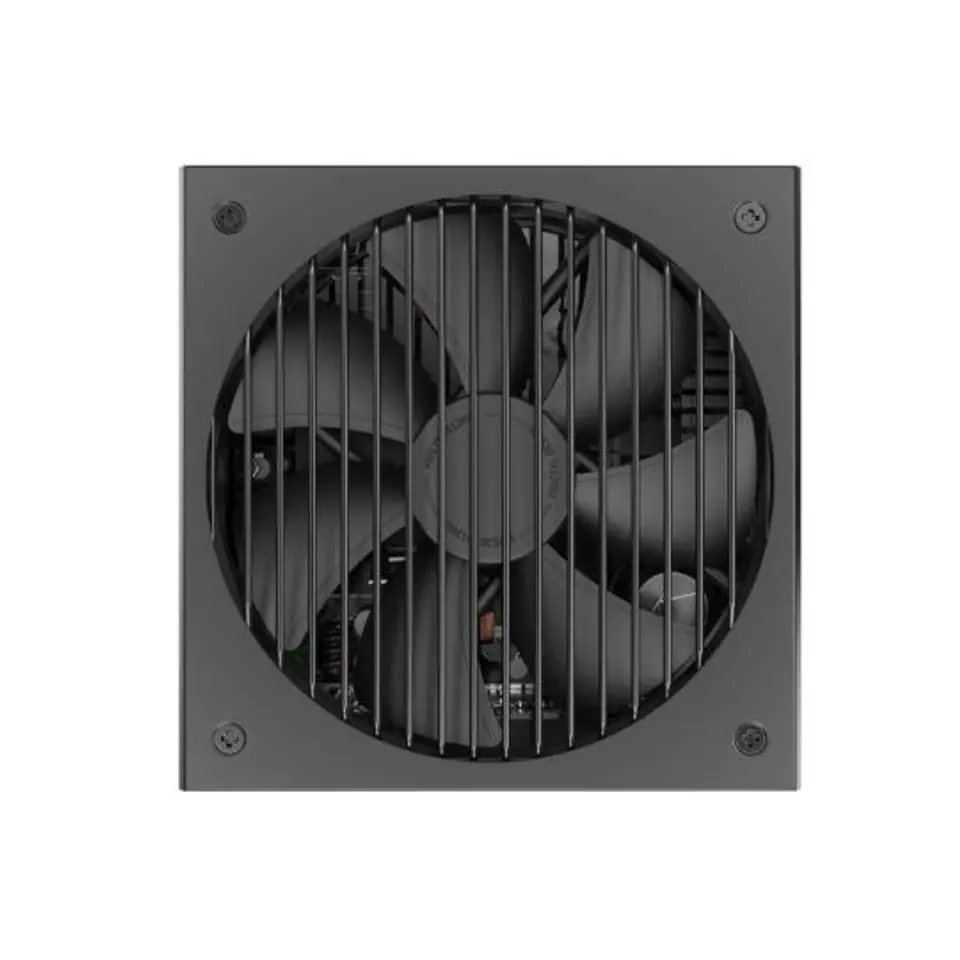

| Fan diameter: | 14 cm |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Input current: | 10 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 70.8 A |
| Max output current (+3.3v): | 22 A |
| Max output current (+5v): | 22 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 50 cm |
| Motherboard power connector: | 24-pin ATX |
| Number of sata power connectors: | 8 |
| On/off switch: | Yes |
| Package depth: | 300 mm |
| Package height: | 210 mm |
| Package weight: | 2.81 kg |
| Package width: | 110 mm |
| Pci express power connectors (8-pin): | 6 |
| Peripheral (molex) power cable length: | 150, 500 |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Power protection features: | Over power, Short circuit, Over voltage, Overheating, Under voltage, Over current |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 500 mm, 150 |
| Sustainability certificates: | RoHS |
| Total power: | 850 W |
| Weight: | 2.41 kg |
| Width: | 150 mm |
