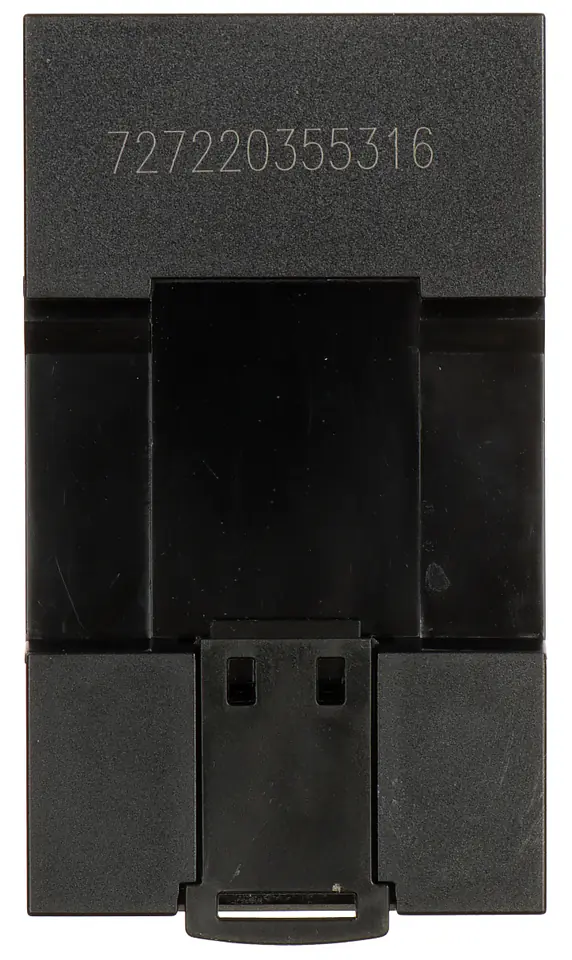

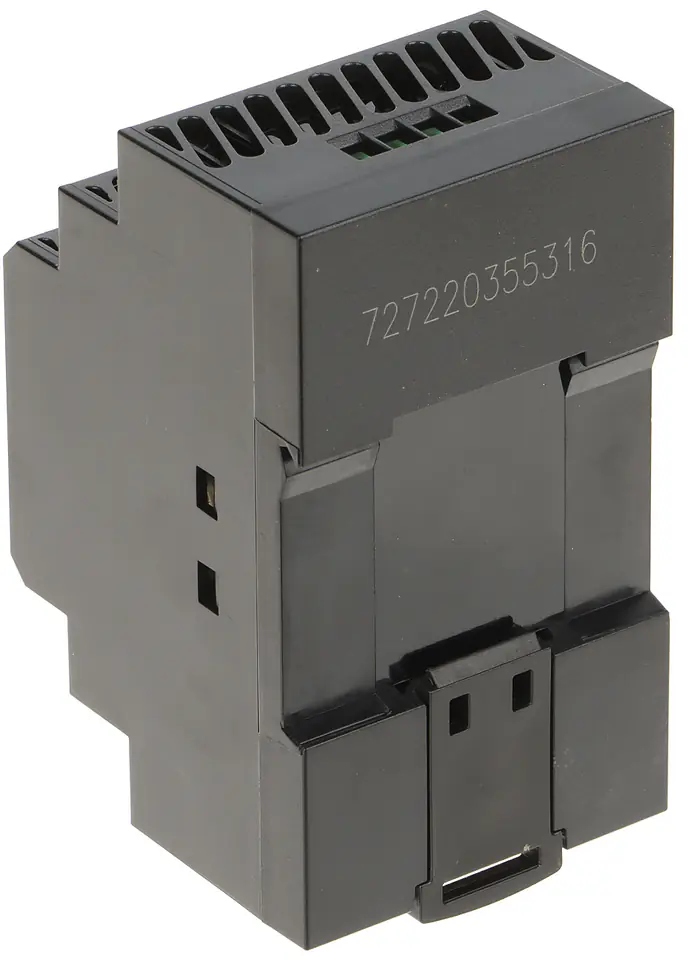

Switch mode power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)

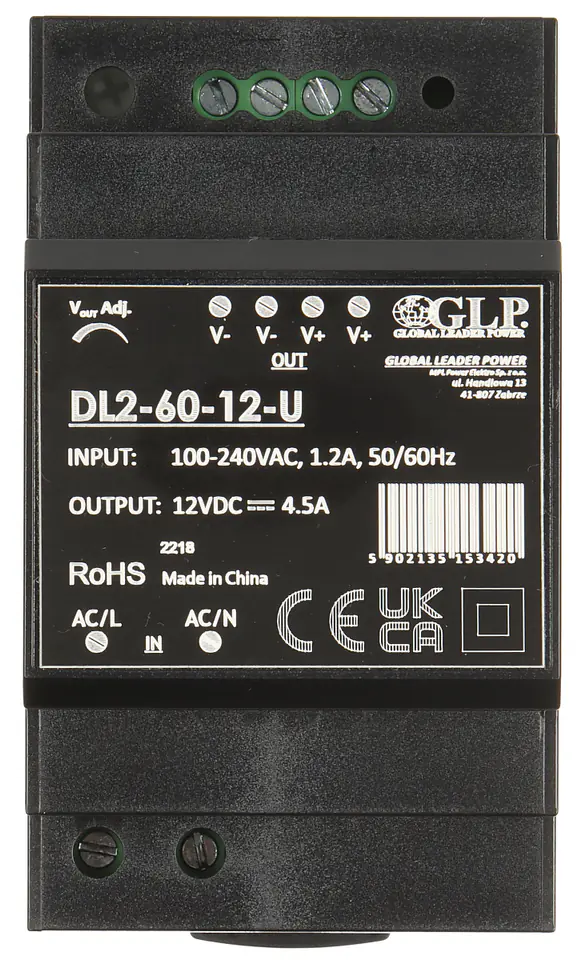

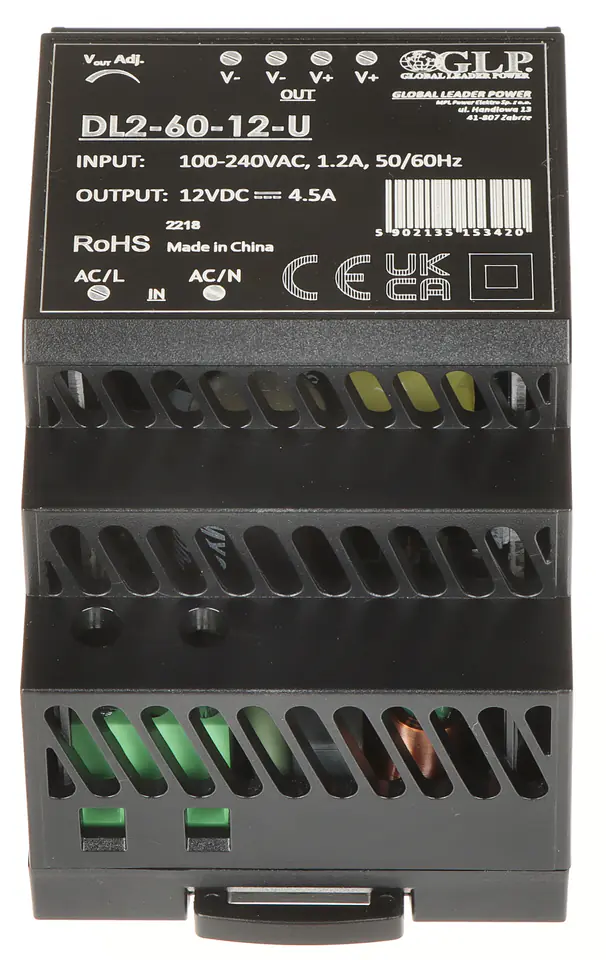

POWER SUPPLY FOR SWITCHING MODE DL2-60-12-U
€22.38
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- DL2-60-12-U / 5902135153420
Share this product:
Specification

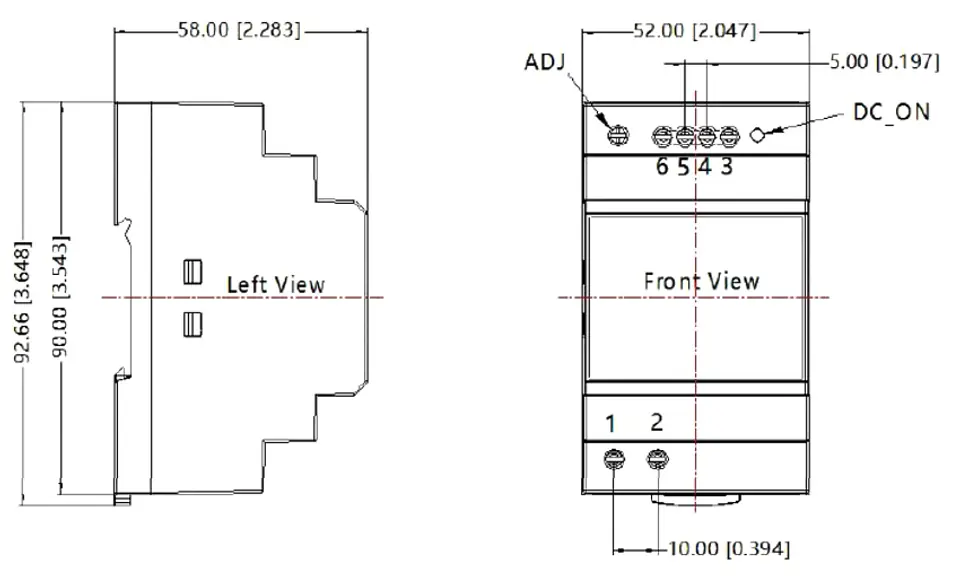

| Dimensions: | 92.7 x 52 x 58 mm |
|---|---|
| Efficiency: | 88 % |
| Enclosure type: | DIN |
| Number of outputs: | 2 pcs. |
| Operating temperature / relative humidity: | -40 °C ... 70 °C / 10 ... 95 % |
| Output voltage: | 12 volts DC |
| Output voltage adjustment: | 10.8 ... 13.8 VDC |
| Power supply: | 54 watts (Printing) |
| Power supply current efficiency: | 4.5 A |
| Scales: | 0.17 kg |
| Security: | Short circuit overload suppression surge protector |
| Supply voltage: | 85 ... 264 volts AC 120 ... 370 VDC |
| Type of power supply: | Pulse |
| Warranty: | 3 years |
