Switch mode power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)

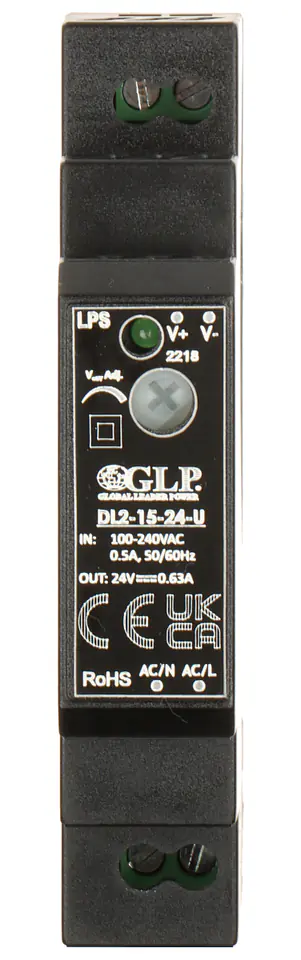

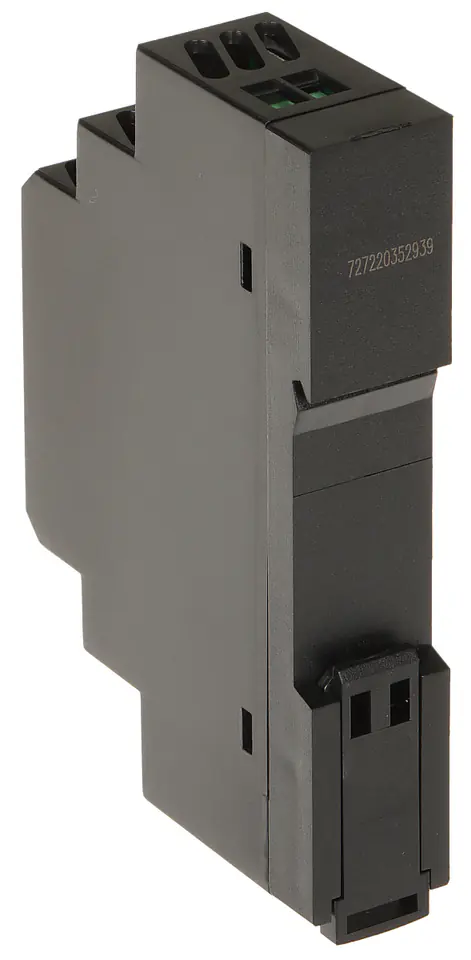

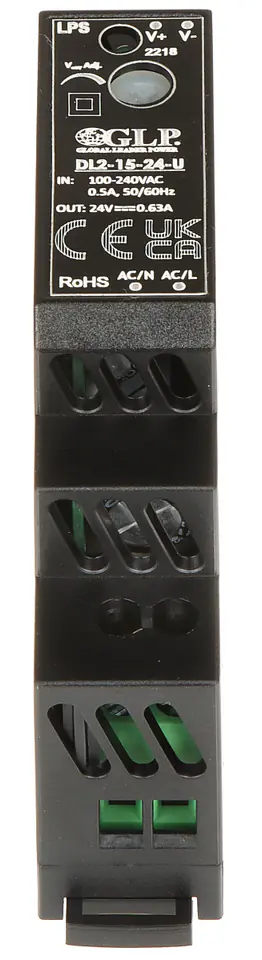

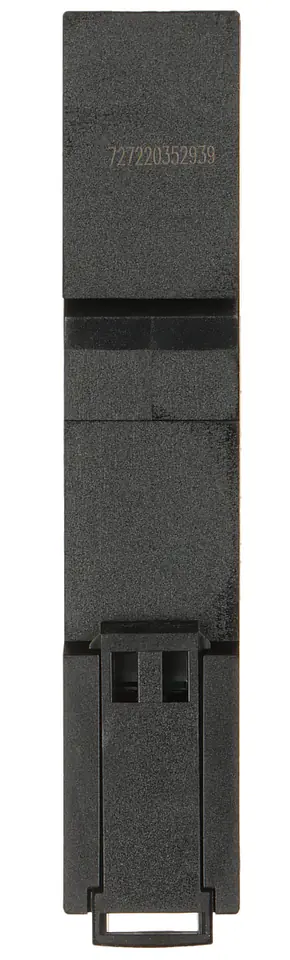

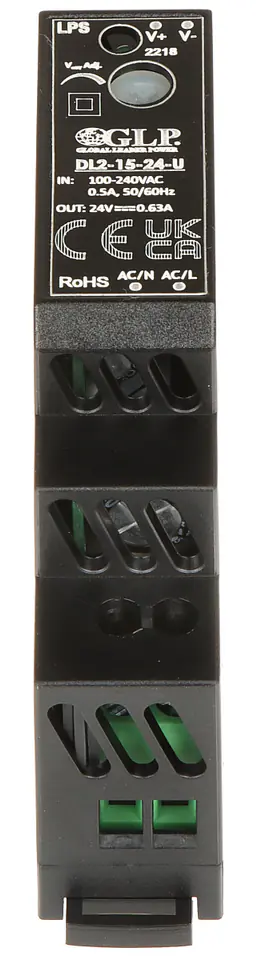

POWER SUPPLY FOR SWITCHING MODE DL2-15-24-U
€15.51
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- DL2-15-24-U / 5902135153345
Share this product:
Specification

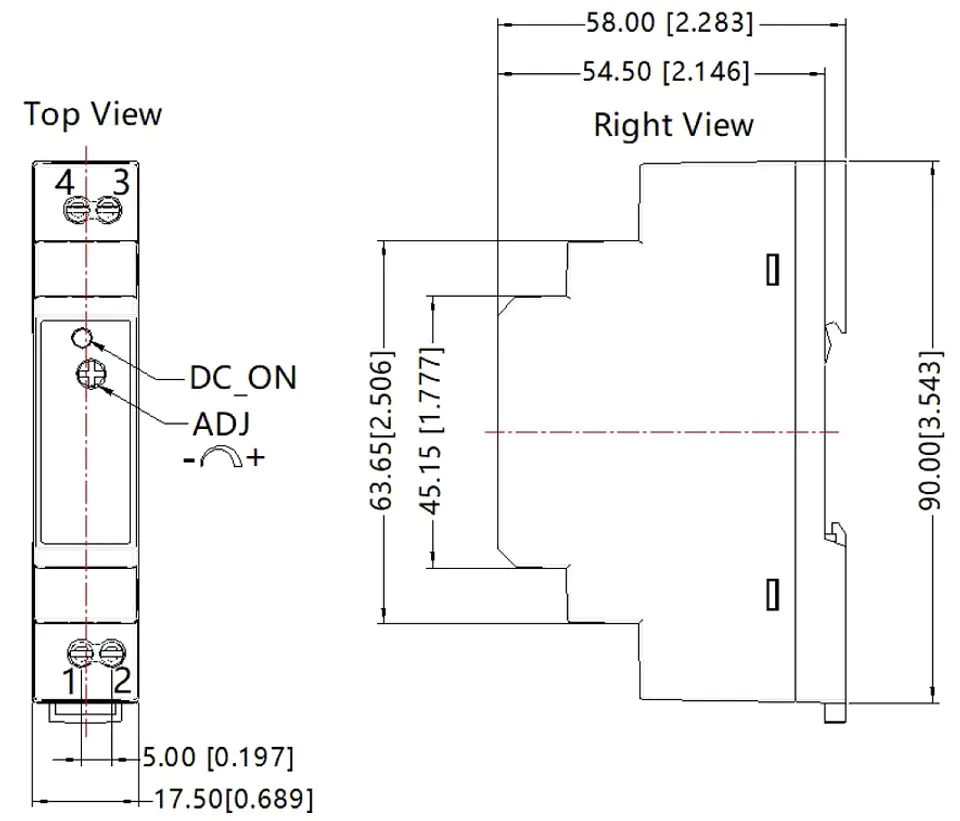

| Dimensions: | 90 x 17.5 x 58 mm |
|---|---|
| Efficiency: | 86 % |
| Enclosure type: | DIN |
| Number of outputs: | 1 pc |
| Operating temperature / relative humidity: | -40 °C ... 70 °C / 10 ... 95 % |
| Output voltage: | 24 volts DC |
| Output voltage adjustment: | 21.6 ... 29 VDC |
| Power supply: | 15.1 watts |
| Power supply current efficiency: | 0.63 A |
| Scales: | 0.06 kg |
| Security: | Short circuit overload suppression surge protector |
| Supply voltage: | 85 ... 264 volts AC 120 ... 370 VDC |
| Type of power supply: | Pulse |
| Warranty: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
