The power supply is designed for LED lighting systems, m.in individual diodes, slats, LED strips, light bulbs, modules, hoses or neon signs, equipped with brackets that allow attachment to the wall or ceiling. It is characterized by a waterproof (IP67), tight, metal casing, which allows use in conditions with increased humidity, e.g. outside the building. Constant output voltage regardless of the permissible load, protection: short-circuit, overload, voltage.

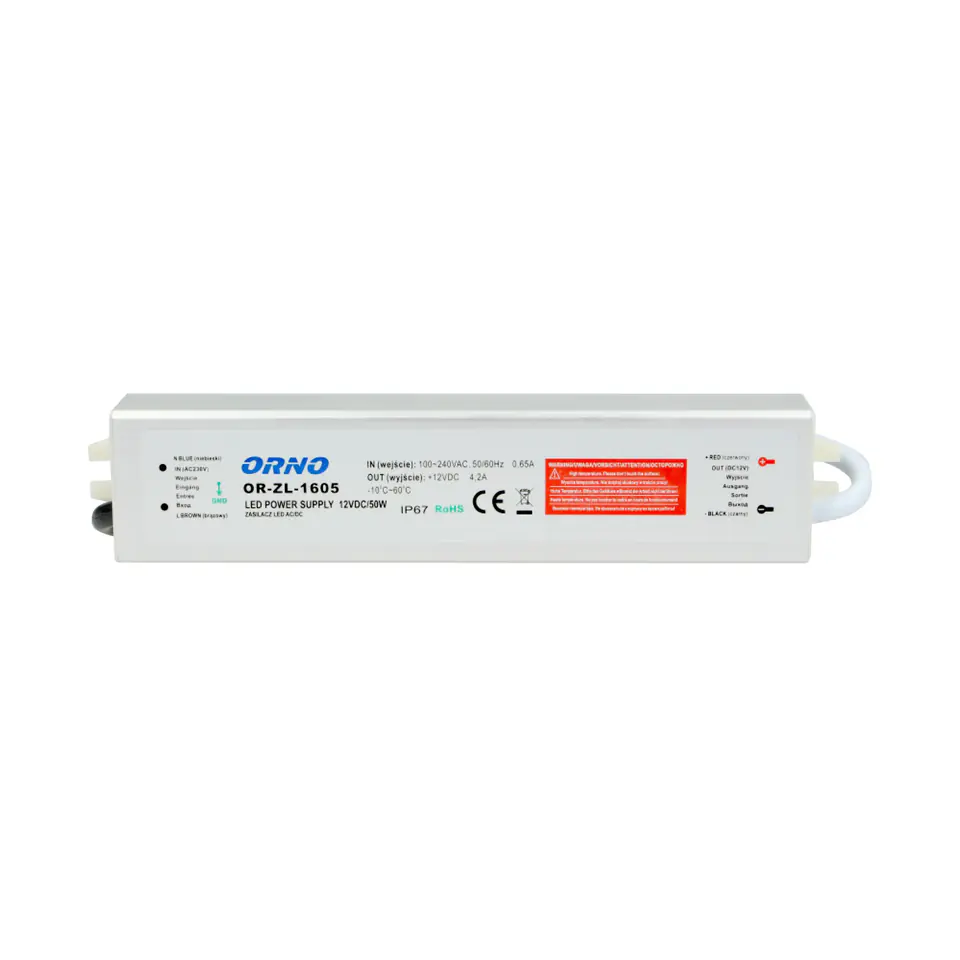

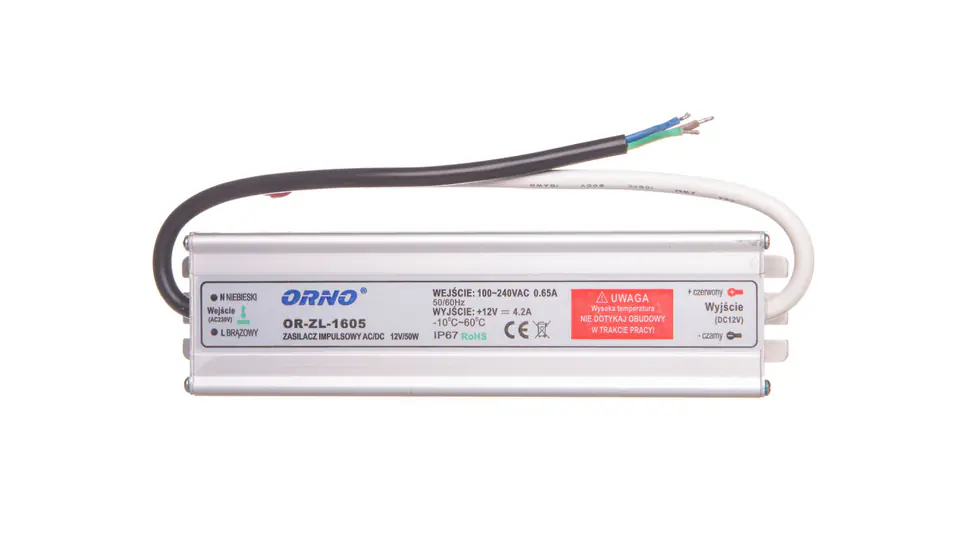

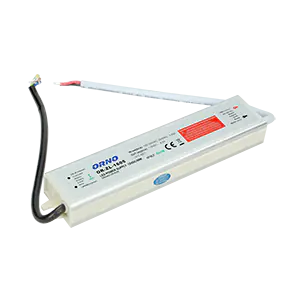

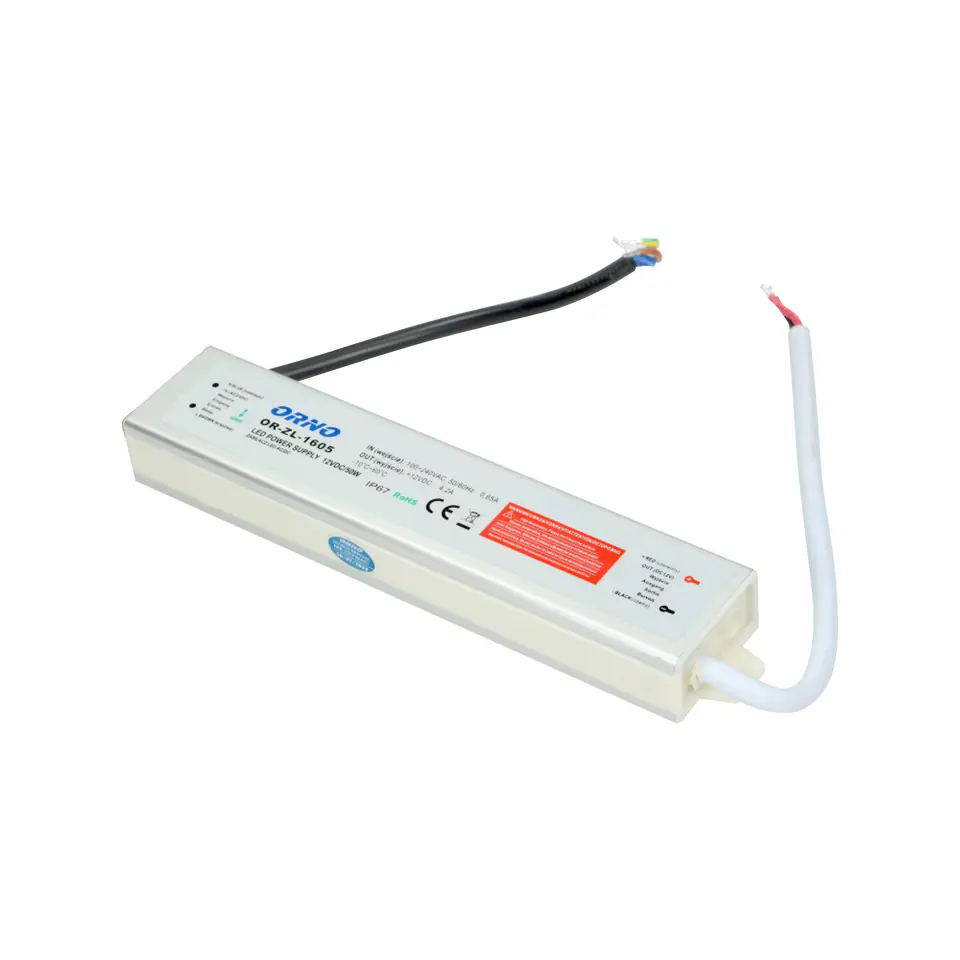

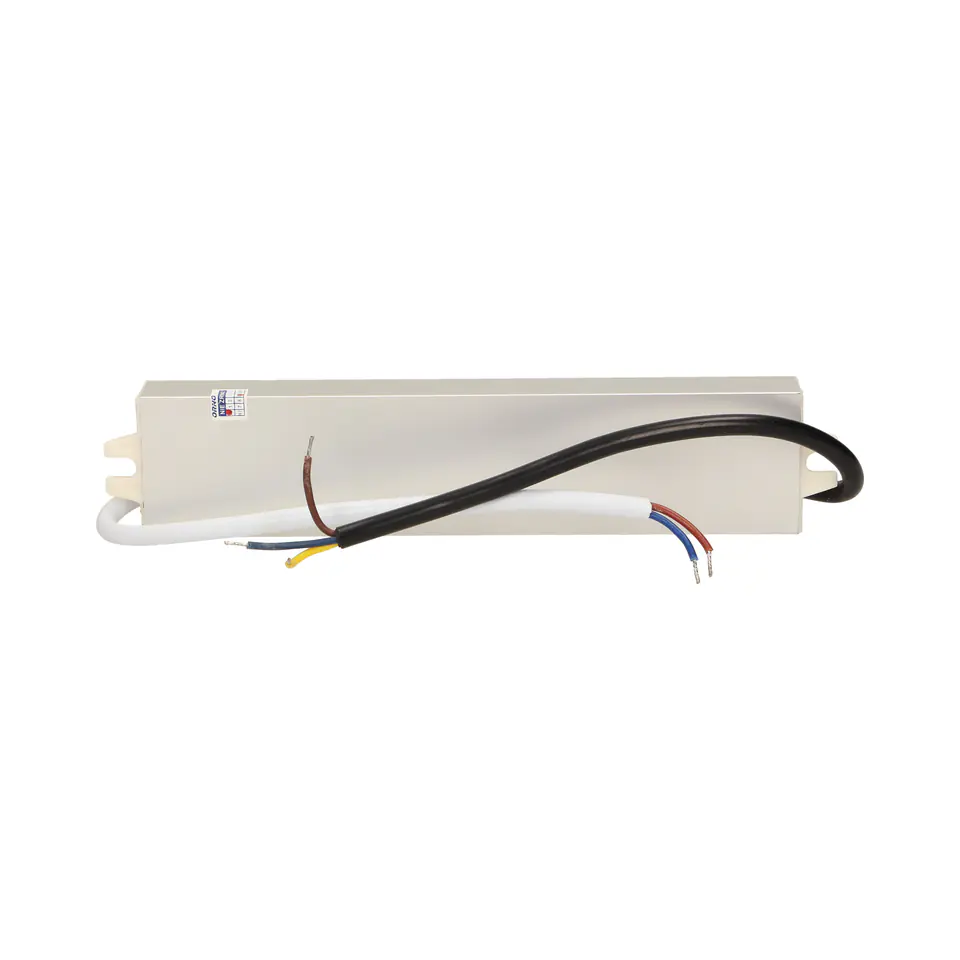

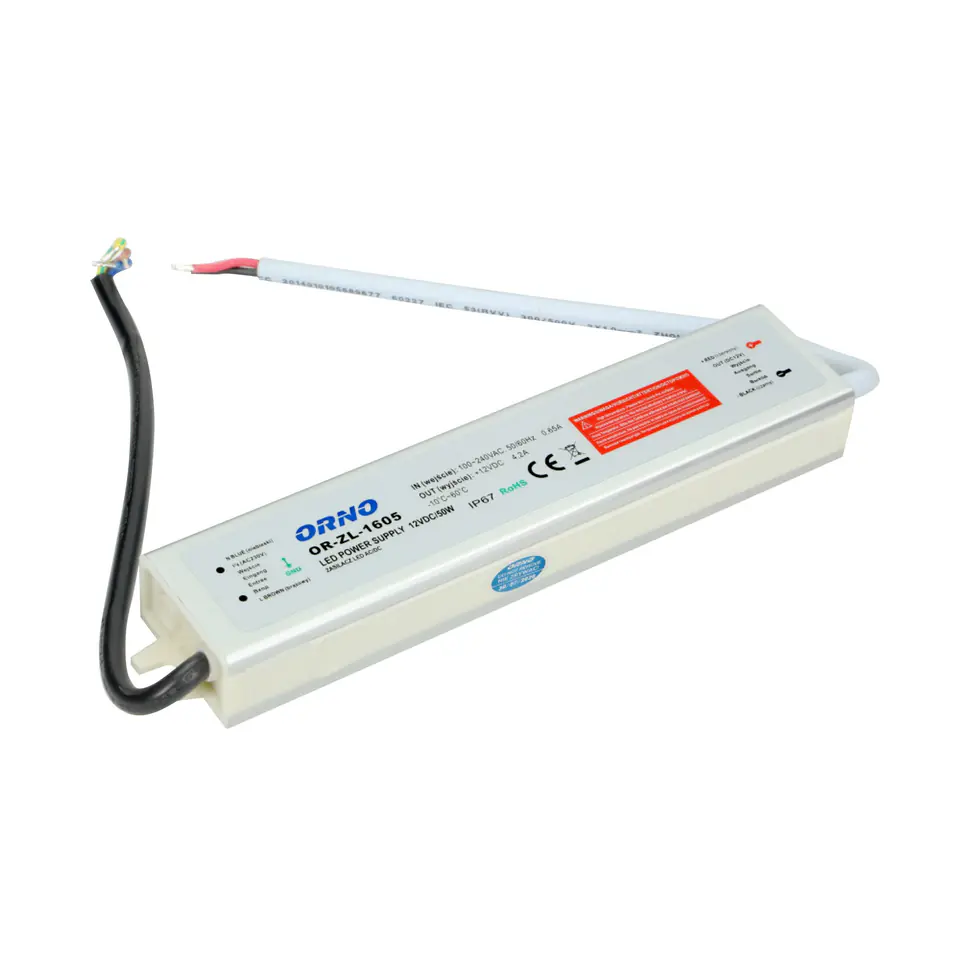

Power supply for LED 12VDC 50W, IP67
€21.37
Shipping from warehouse: A2
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Orno
- Product code:
- OR-ZL-1605 / 5901752482777
Share this product:
Specification
| Degree of protection (ip): | IP67 |
|---|---|
| Depth [mm]: | 35 |
| Height [mm]: | 50 |
| Maximum output current 1 [a]: | 4.1600 |
| Modular version: | No |
| Output power [w]: | 50 |
| Output voltage 1 [v] from: | 12 |
| Output voltage 1 [v] to: | 12 |
| Output voltage setting range: | No |
| Possibility of direct mounting: | No |
| Rail mountable: | No |
| Rated supply voltage for ac 50 hz [v] from: | 90 |
| Rated supply voltage for ac 50 hz [v] up to: | 265 |
| Short circuit resistance: | Yes |
| Stabilized: | No |
| Stabilized output voltage: | No |
| Suitable for safety-related applications: | No |
| Type of supply voltage: | AC |
| Wall mountable: | Yes |
| Width [mm]: | 190 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
