Switch mode power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)
POWER SUPPLY DRP-024V240W-1BN
€113.21
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 18 - Tue, Nov 19
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- DELTA ELECTRONICS
- Product code:
- DRP-024V240W-1BN / 5902887031830
Share this product:
Specification

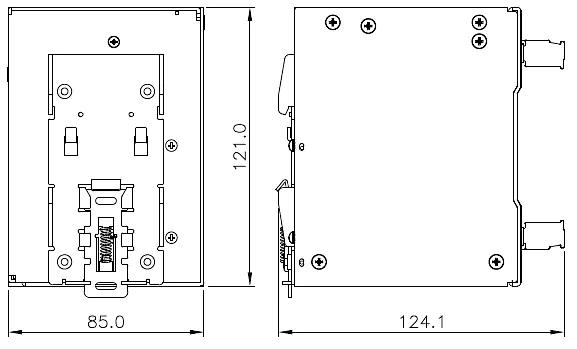

| Dimensions: | 85 x 121 x 124 mm |
|---|---|
| Efficiency: | > 90 % |
| Enclosure type: | DIN |
| Mtbf (mean time between failures): | 500000 hrs |
| Number of outputs: | 2 pcs. |
| Operating temperature / relative humidity: | -20 °C ... 85 °C / < 95 % |
| Output voltage: | 24 volts DC |
| Output voltage adjustment: | 24 ... 28 volts |
| Power supply: | 240 watts (Printing) |
| Power supply current efficiency: | 10 amps |
| Scales: | 0.96 kg |
| Security: | Short-circuit surge protection Overload protection |
| Supply voltage: | 86 ... 264 VAC |
| Type of power supply: | Pulse |
| Vibration resistance: | IEC60068-2-6, 10 ... 150 Hz max. 3 G for 60 minutes |
| Voltage tolerance: | ± 2 % |
| Warranty: | 5 years |
