POWER SUPPLY 12V/3A/5.5*P100

€669.03
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Thu, Nov 28
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
12V/3A/5.5*P100 /

Specification

Ac input frequency:50 / 60 Hz
Average operating efficiency:87.4 %
Dimensions:110 x 50 x 30 mm
Enclosure type:Desktop
In the package:100 pcs. Price per pack
Input voltage:100 - 240 VAC
Low load efficiency (10%):81.0 %
Model id:12V/3A/5.5*P100
Number of outputs:1 pc
Output:3.0 A
Output power:36.0 watts
Output voltage:12.0 VDC

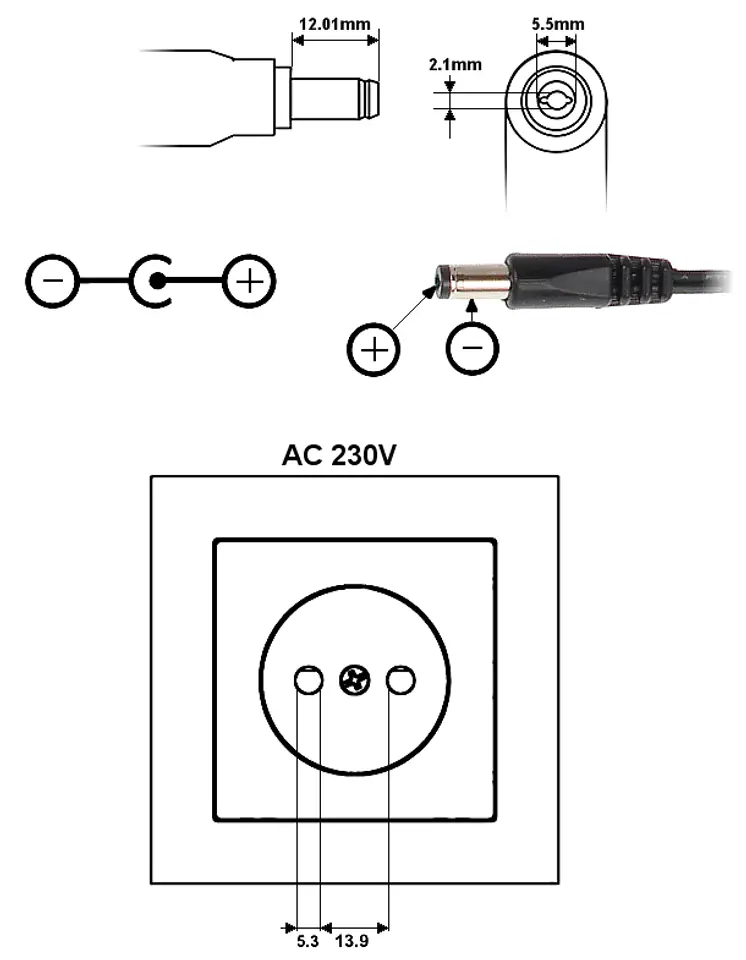

Power connector type:230 V CEE 7/16 12 V - 2.1/5.5 mm Straight plug
Power consumption in no-load condition:< 0.10 W
Scales:0.26 kg
Security:Overload
Type of power supply:Pulse
Warranty:2 years

Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current

Particular attention should be paid to the proper cooling of the power supply during operation!

Ecodesign-compliant power supply (ErP Directive 2009/125/EC and its Implementing Regulation 278/2009 on external power supplies)The device meets, among other things, the requirements of average efficiency and no-load power consumption

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
