| Ac input frequency:: | 50 / 60 Hz |
|---|---|
| Average operating efficiency:: | 87.4 % |
| Dimensions:: | 110 x 50 x 30 mm |
| Efficiency at low load (10%):: | 81.0 % |
| Housing type:: | Desktop |
| Input voltage:: | 100 - 240 VAC |
| Model identifier:: | 12V/3A/5.5 |
| Number of outputs:: | 1 pc. |
| Output power:: | 36.0 watts |
| Output voltage:: | 12.0 VDC |
| Output:: | 3.0 A |
| Power consumption in no-load state:: | < 0.10 W |
| Power supply type:: | Pulse |
| Scales:: | 0.26 kg |
| Security:: | Overload |

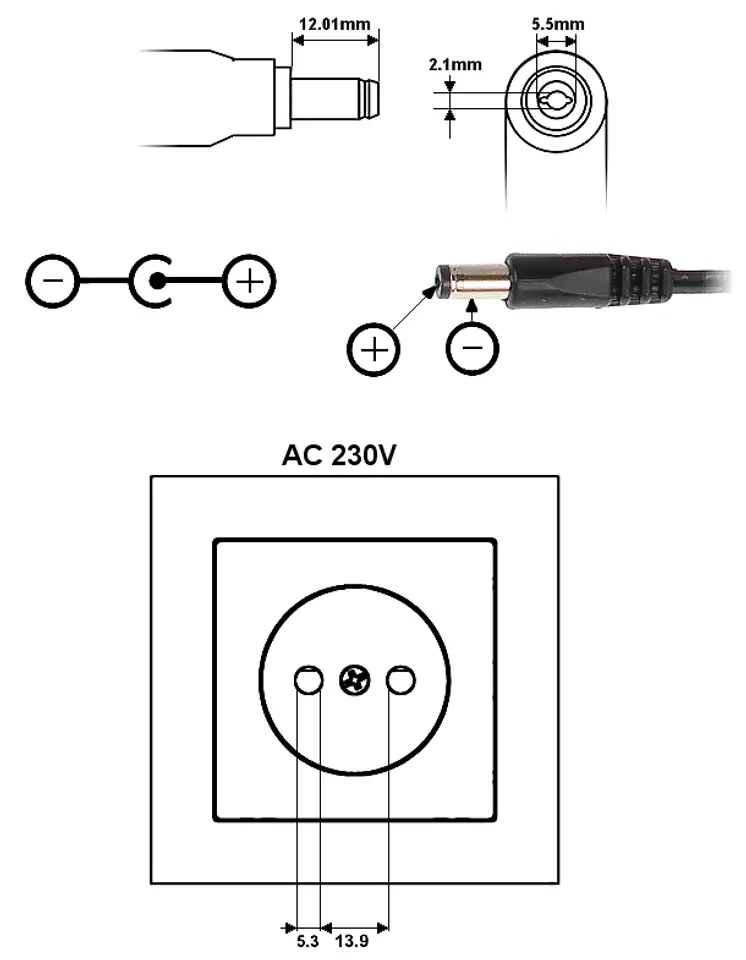

| Type of power connectors:: | 230 V CEE 7/16 12 V - 2.1/5.5 mm Straight plug |
| Warranty:: | 2 years |
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Special attention should be paid to the proper cooling of the power supply during operation!
Ecodesign-compliant power supply (ErP Directive 2009/125/EC and its Implementing Regulation 278/2009 for external power supplies)The device meets, among other things, the requirements of average efficiency and energy consumption in the no-load state
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
