POWER CONNECTOR WITH FILTER LZ-4/FL

€27.86

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: LZ-4/FL / 5902887048777

Specification

-50 °c ... 55 °c:	Operating temperature:
< 95 %:	Permissible relative humidity:
> 47 v:	Ground protection voltage (vein-ground):
0.125 kg:	Scales:
1.5 a:	Max. single output current:
116 x 90 x 36 mm:	Dimensions:
12 vdc15 vdc:	Maximum supply voltage:
15 ns:	Surge arrester operation time:
2:	Number of power inputs:
3 years:	Warranty:
4:	Number of power outputs:
4 x 1.5 a polymer fuse:	Type of protection:
5 ka (t= 8/20μs):	Maximum discharge current:
6 a terminal block:	Maximum supply current:
Delta:	Manufacturer / Brand:
Input : 2.1/5.5 mm socket / cable clampout : cable terminals:	Type of power connectors:
Interference filter:	Built-in filter:
Intermediate, through a cable clamp:	Ground:
Plastic:	Housing Type:
Voltage separation short-circuit protection surge protection diode indicator:	Selected features:

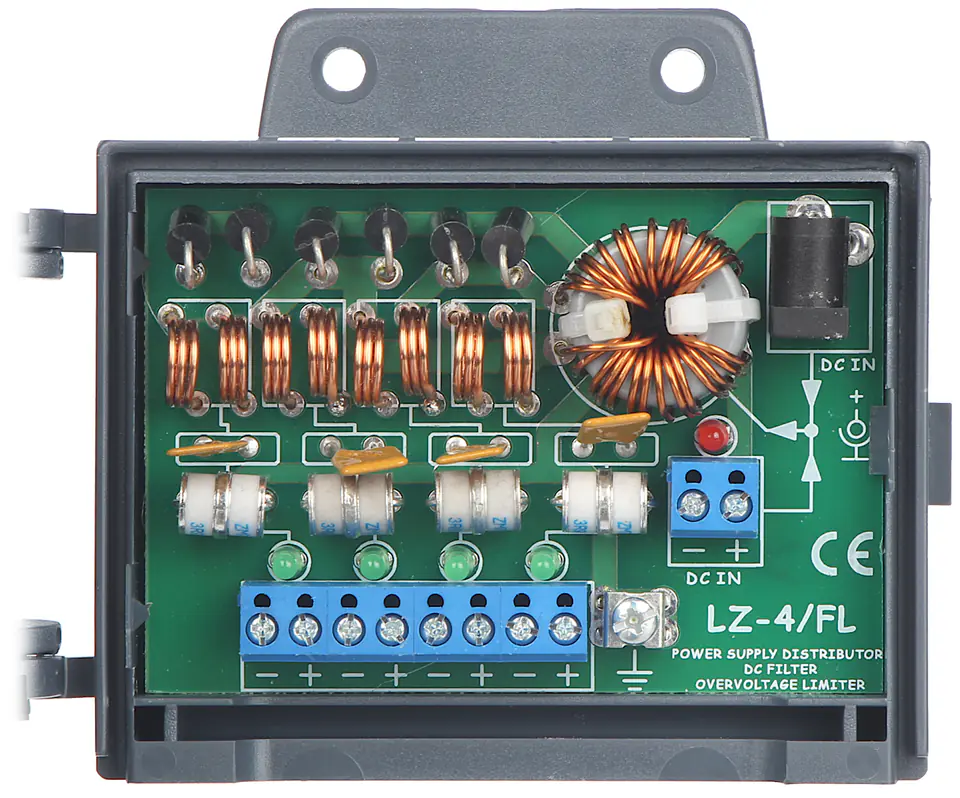

LZ-4/FL is a passive element and is used for power distributionIn addition, it uses a filter that eliminates interference introduced by switching power supplies and a power surge arrester

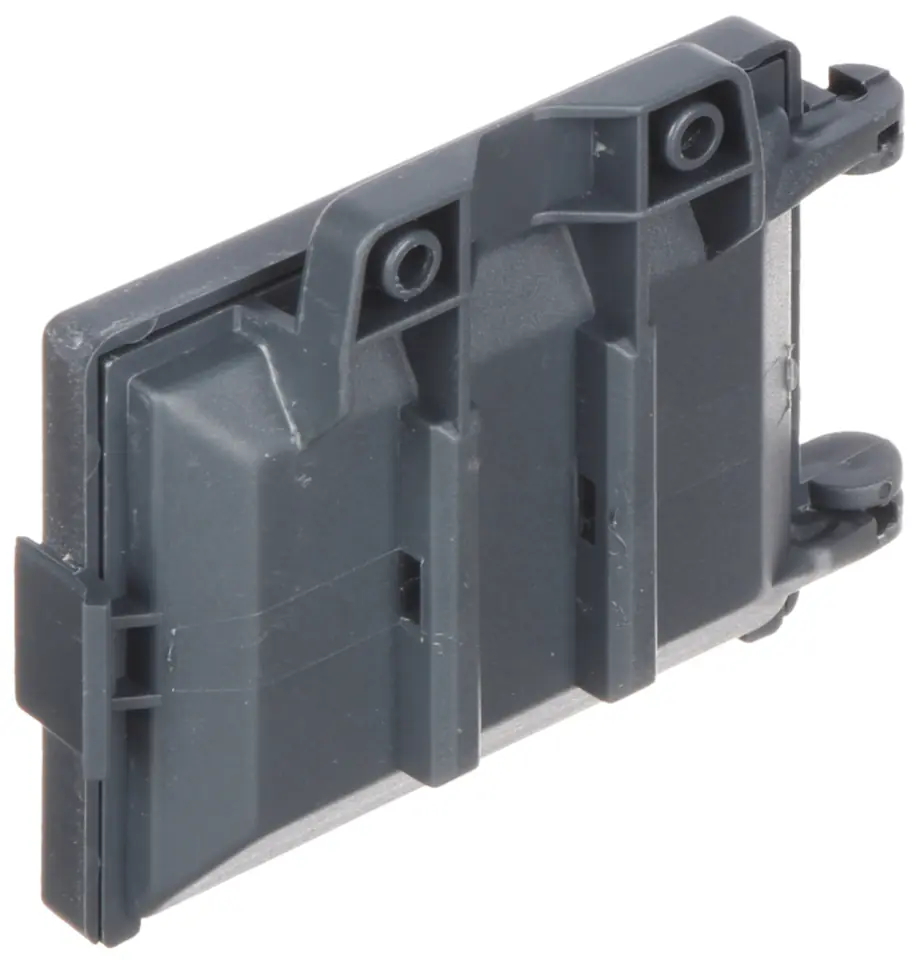

The housing allows you to mount the LZ-4 / FL using screws to the wall or a cable tie to the mast (band, screws are not included)

For more than 4 receivers, you can connect the receivers in parallel at the same terminalTherefore, the built-in filter, the maximum current that we can use to power the devices cannot exceed 6A

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
