POWER CONNECTOR WITH FILTER LZ-1/FDC

€11.49
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Delta
Product code:
LZ-1/FDC / 5902887044717

Specification

-50 °c ... 55 °c:Operating temperature:
< 95 %:Permissible relative ambient humidity:
0  ... 24 v dc (typically 12v):Maximum supply voltage:
0.086 kg:Scales:
116 x 90 x 36 mm:Dimensions:
2:Number of power inputs:
3 years:Warranty:
6 a:Max. Single output current:
6 a terminal block 4 a socket 5.5/2.1:Maximum supply current:
8:Number of power outputs:
Anti-interference filter:Built-in filter:
Delta:Manufacturer / Brand:
Input : 2.1/5.5 mm socket / cable clampoutput : cable terminals:Power connector type:

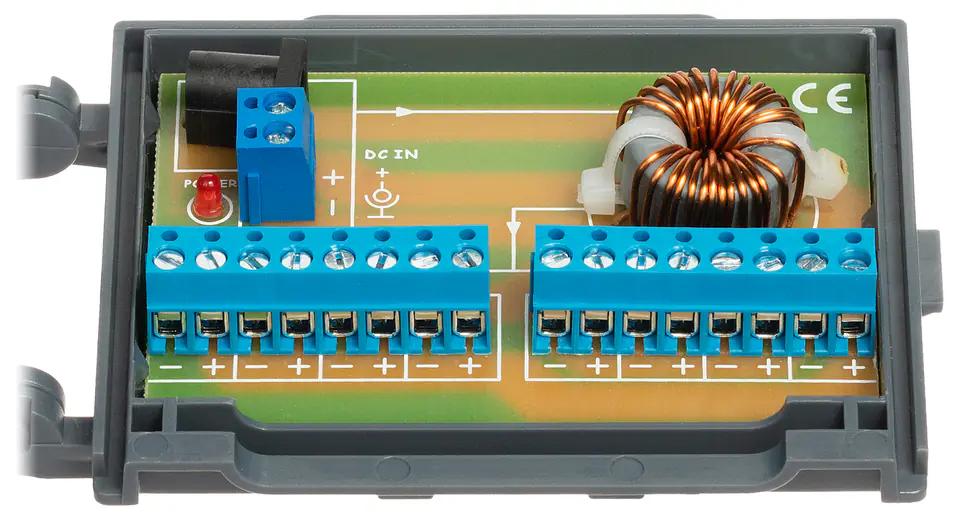

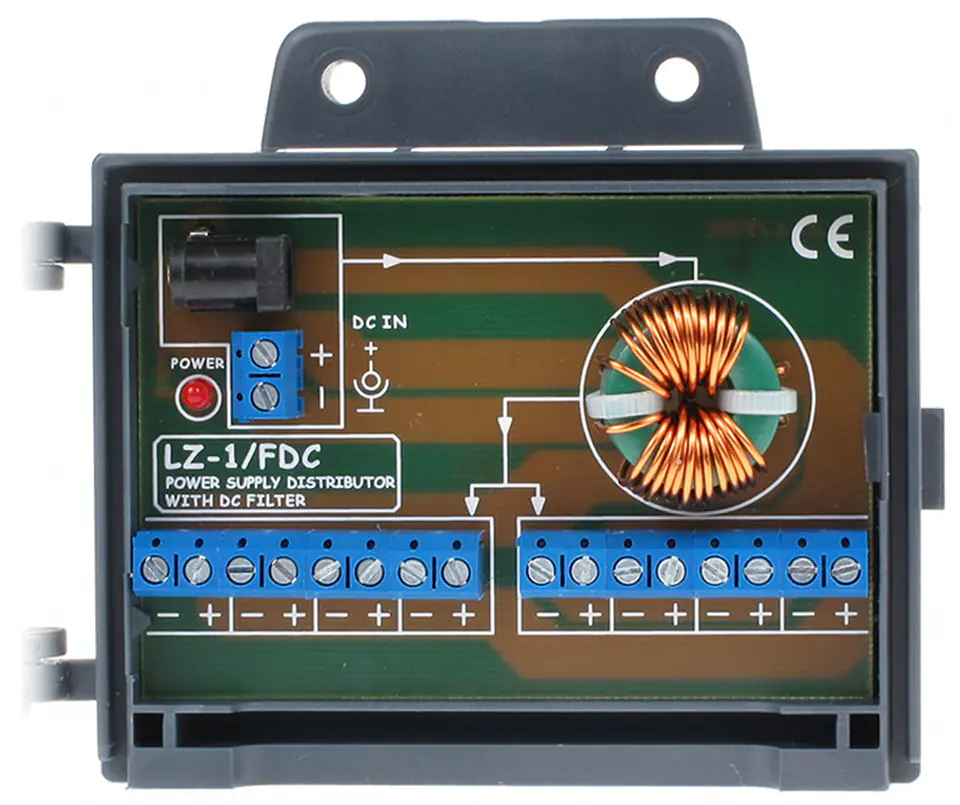

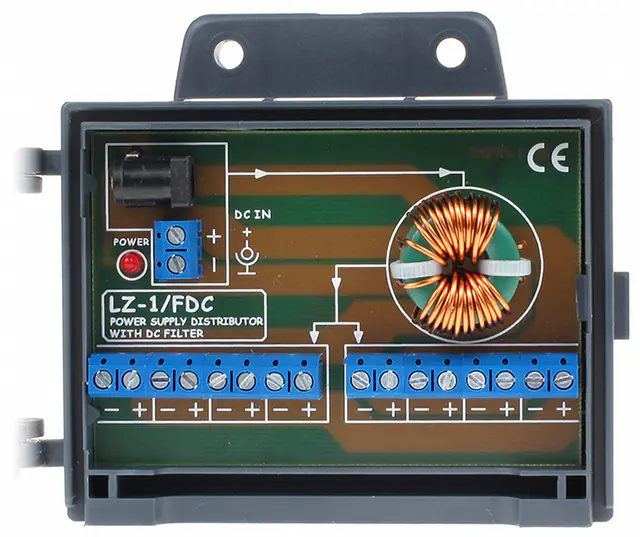

LZ-1/FDC is a passive element and is used for power distributionIn addition, it uses a filter that eliminates interference introduced by switched-mode power supplies

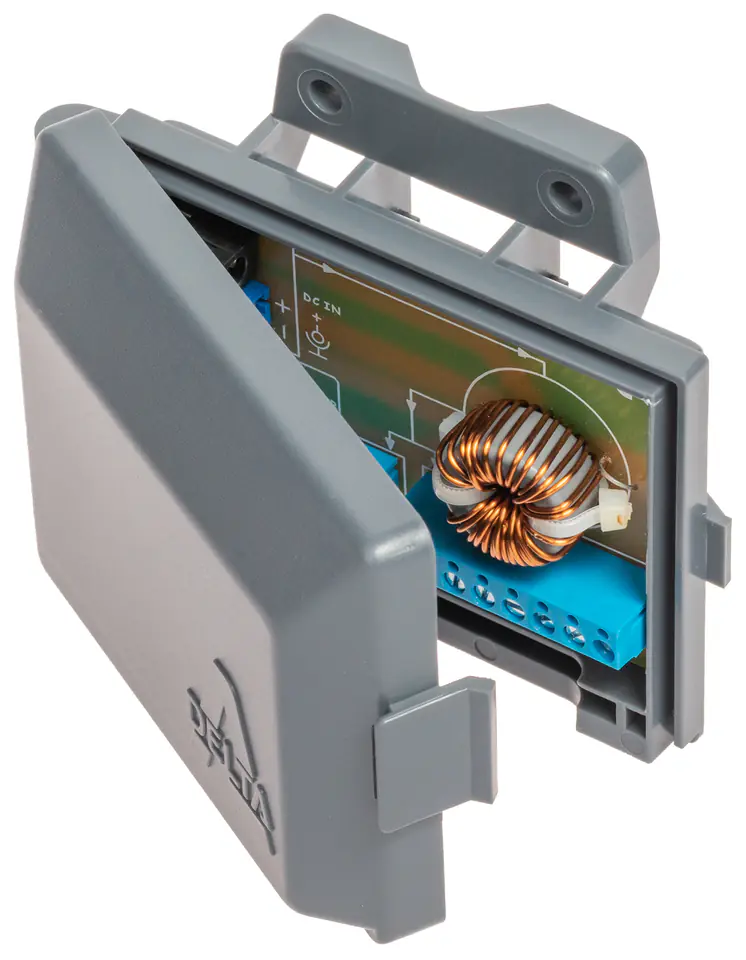

The housing allows you to mount the LZ-1/FDC with screws to the wall or a cable tie to the mast (band, screws not included)

If there are more than 8 receivers, you can connect receivers in parallel at the same terminal

Due to the built-in filter, the maximum current that we can use to power the devices cannot exceed 6A
