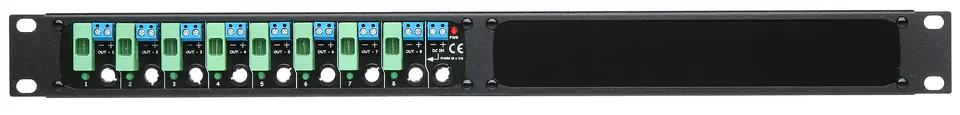

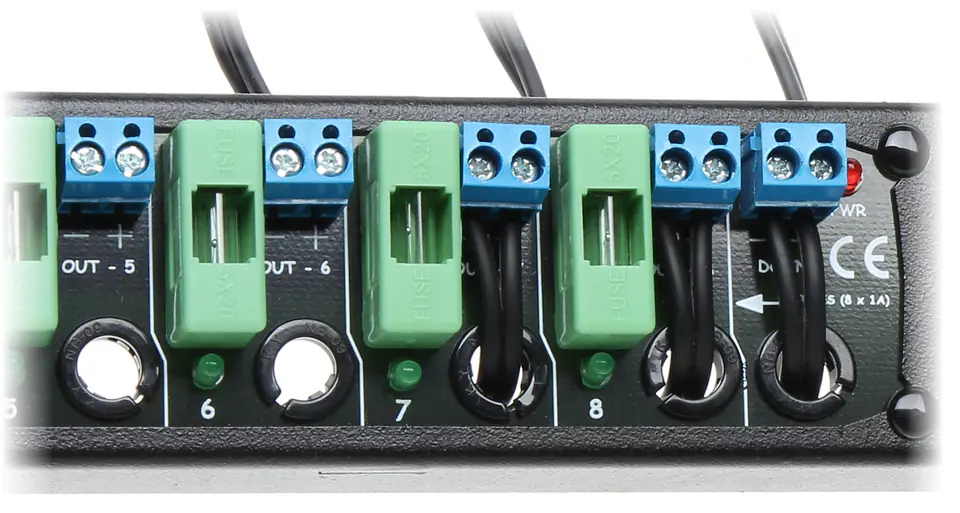

LZ-8P/R19 is a passive device that helps to branch the power supply from one or more power supplies Each of the power inputs and outputs has a separate cable pass-through
If necessary, individual slats can be connected to each other in parallel
-50 °c ... 55 °c: | Operating temperature: |
---|---|
< 95 %: | Permissible relative humidity: |
0.28 kg: | Scales: |
1: | Number of power inputs: |
1 a: | Max. single output current: |
24 vdc (typically 12v): | Maximum supply voltage: |
3 years: | Warranty: |
483 x 44 x 33 mm: | Dimensions: |
8: | Number of power outputs: |
8 a: | Maximum supply current: |
8 x 1 a fuse fuse time-lag (5/20mm): | Type of protection: |
Delta: | Manufacturer / Brand: |
Input : cable terminalsexference : cable terminals: | Type of power connectors: |
Rack 19", 1 u: | Housing Type: |
LZ-8P/R19 is a passive device that helps to branch the power supply from one or more power supplies Each of the power inputs and outputs has a separate cable pass-through
If necessary, individual slats can be connected to each other in parallel
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
