| -50 °c ... 55 °c: | Operating temperature: |
|---|---|
| < 95 %: | Permissible relative humidity: |
| 0 ... 24 vdc (typically 12v): | Maximum supply voltage: |
| 0.060 kg: | Scales: |
| 1 a: | Max. single output current: |
| 110 x 41 x 35 mm: | Dimensions: |
| 2: | Number of power inputs: |
| 3 years: | Warranty: |
| 8: | Number of power outputs: |
| 8 a terminal block 4 a socket 5.5/2.1: | Maximum supply current: |
| 8 x 1 a fuse fuse time-lag (5/20mm): | Type of protection: |
| Delta: | Manufacturer / Brand: |

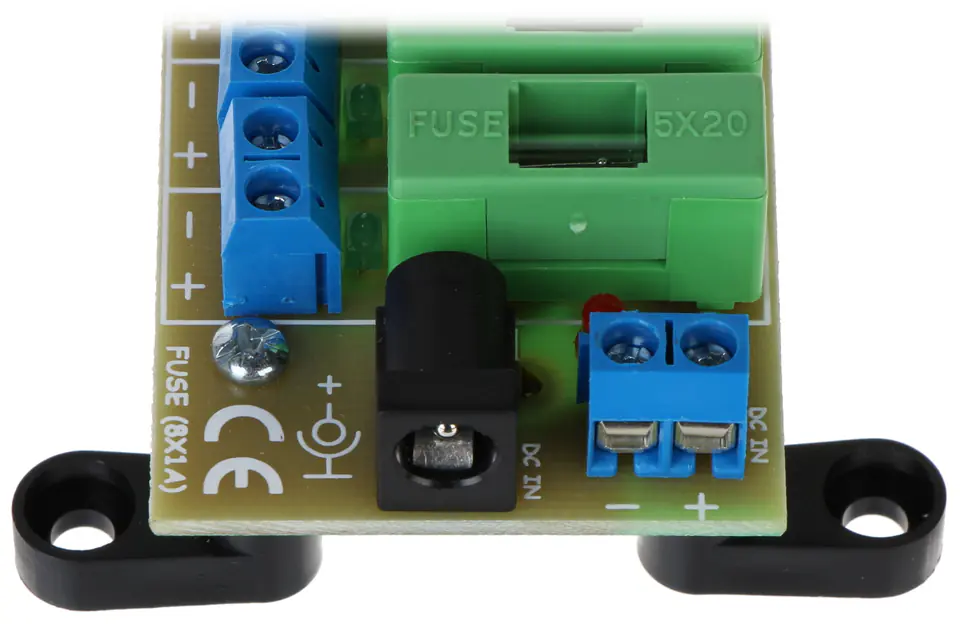

| Input : 2.1/5.5 mm socket / cable clampout : cable terminals: | Type of power connectors: |

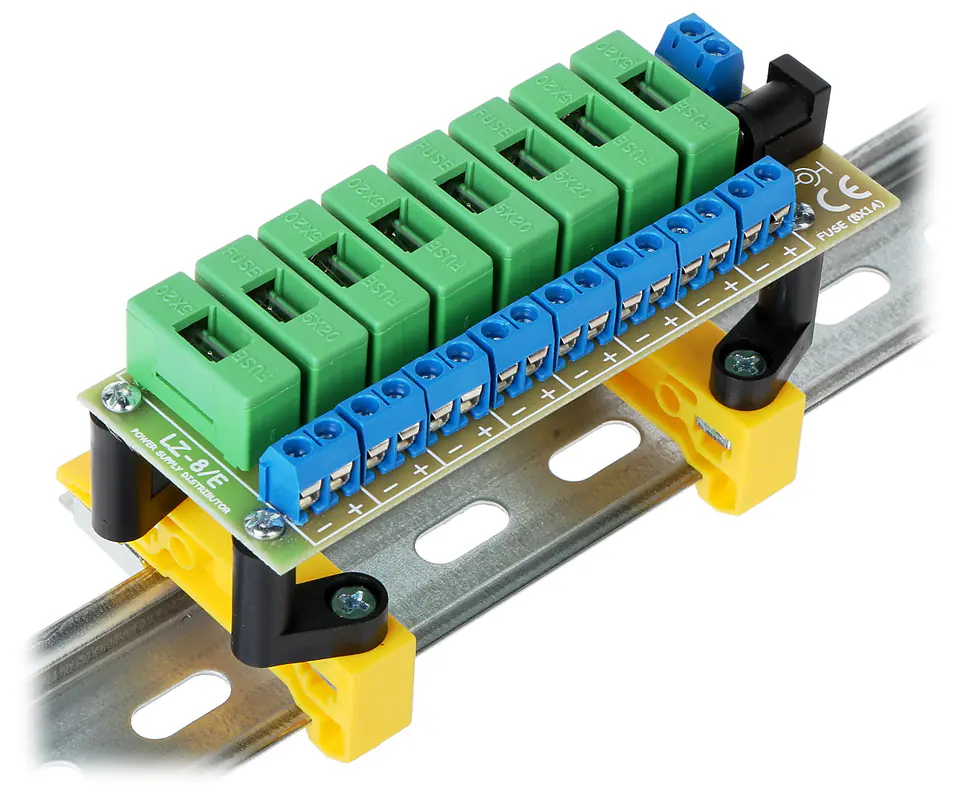

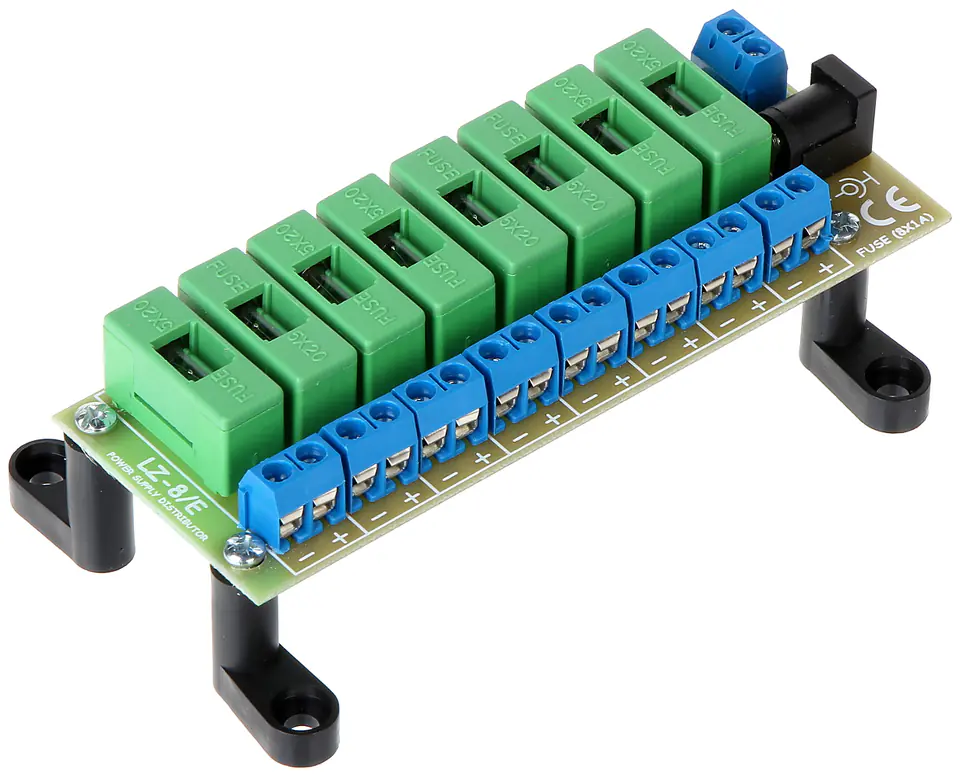

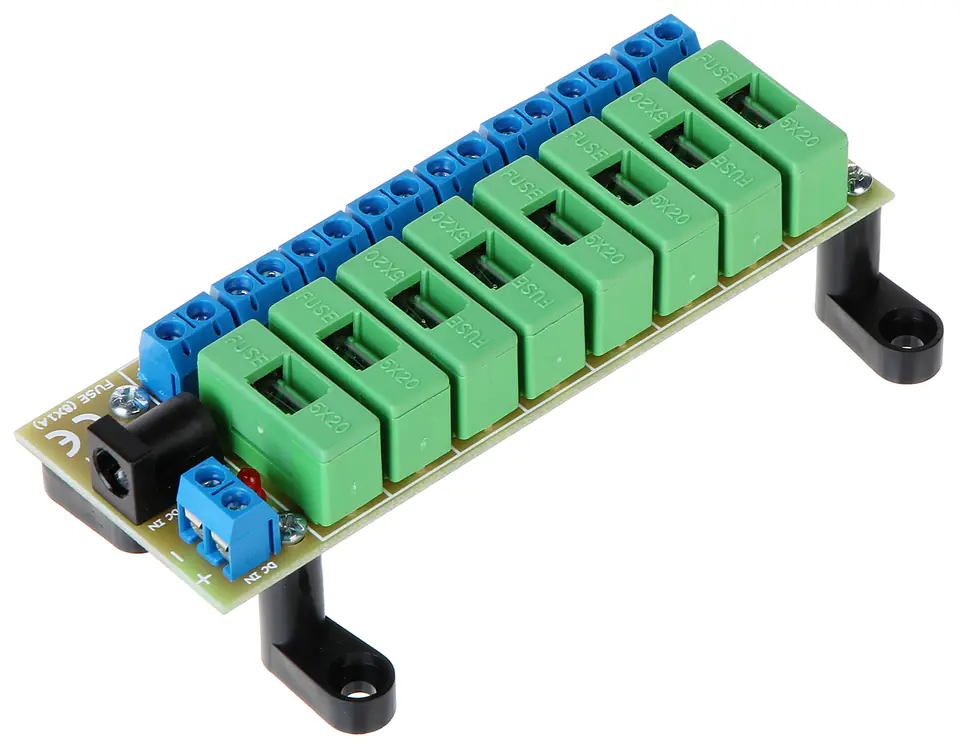

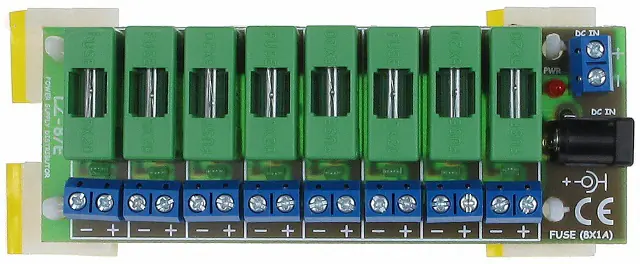

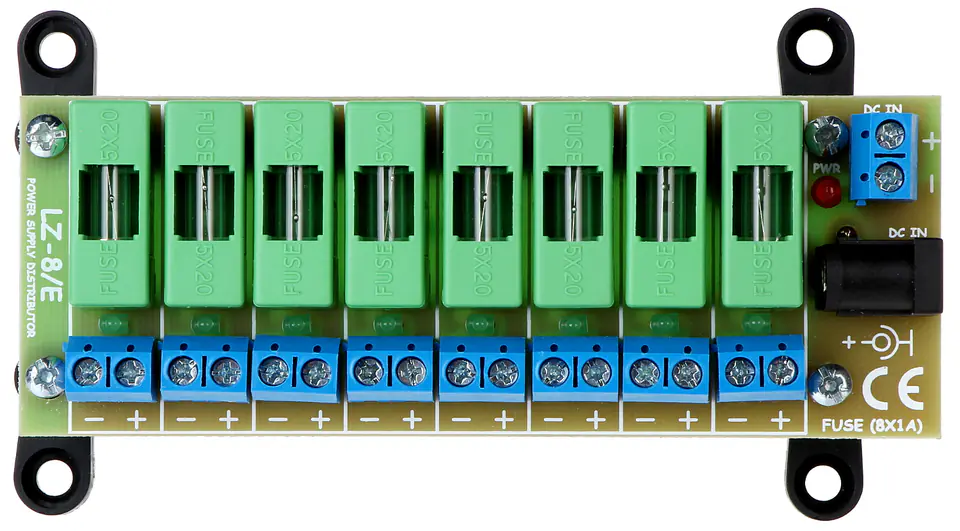

LZ-8/E is a passive element and is used for power distribution

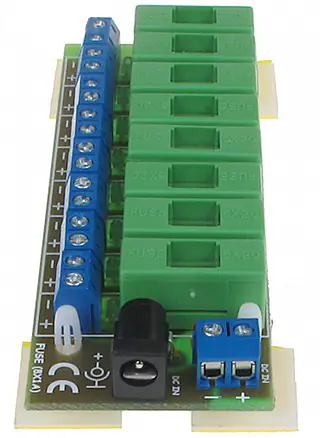

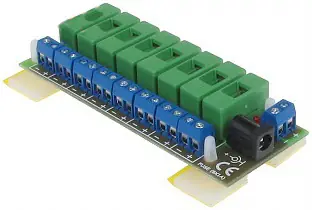

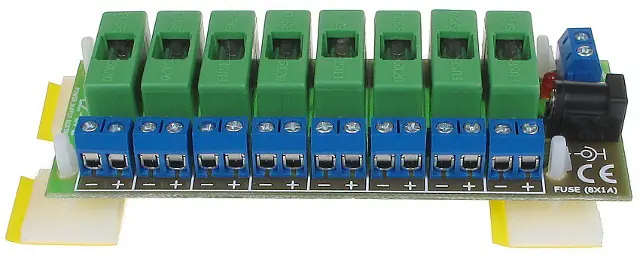

Self-adhesive spacers allow easy installation of the circuit board.
An indisputable advantage of using LZ-8 / E for monitoring systems with power supply from a central point is additional tamper protectionIn the absence of individual protection for each current path, it is enough for an intruder to cause a short circuit for one camera, and the entire system will be deprived of power
