POWER CONNECTOR LZ-6/POL-G

€13.24

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: LZ-6/POL-G / 5902887048784

Specification

-50 °c ... 55 °c:	Operating temperature:
< 95 %:	Permissible relative humidity:
0.090 kg:	Scales:
1.5 a:	Max. single output current:
120 x 91 x 37 mm:	Dimensions:
2:	Number of power inputs:
24 vdc (typically 12v):	Maximum supply voltage:
3 years:	Warranty:
6:	Number of power outputs:
6 x 1.5 a polymer fuse:	Type of protection:
Delta:	Manufacturer / Brand:
Input : 2.1/5.5 mm socket / cable terminalsout : 2.1/5.5 mm sockets:	Type of power connectors:
Terminal block 9 a terminal block 4 a socket 5.5/2.1:	Maximum supply current:

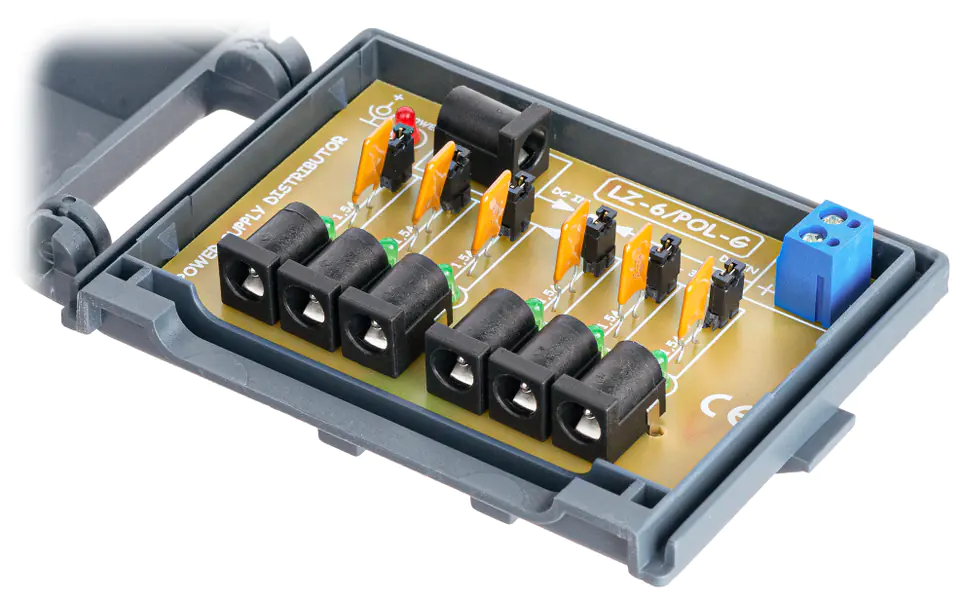

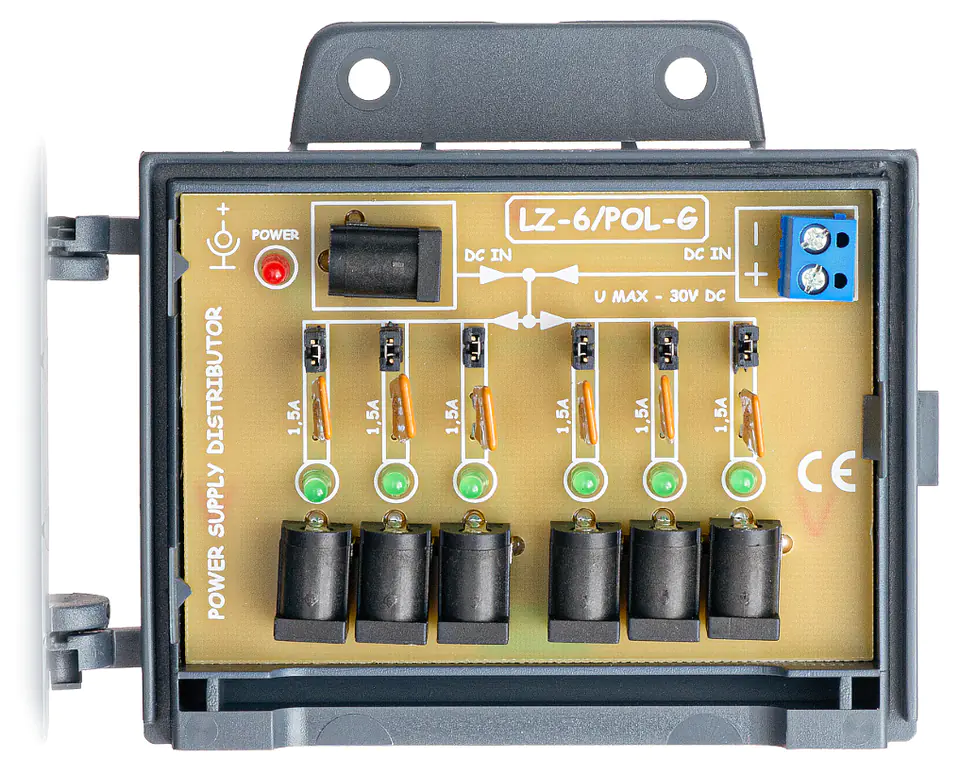

LZ-6/POL-G is a passive element and is used for power distribution

The housing allows you to mount the LZ-6/POL-G using screws to the wall or a cable tie to the mast (band, screws are not included)

The undeniable advantage of using LZ-6 / POL-G for monitoring systems with power supply from a central point is additional tamper protectionIn the absence of individual protection for each current path, it is enough for an intruder to cause a short circuit for one camera, and the entire system will be deprived of power

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
