POWER CONNECTOR LZ-6/POL

€11.33

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: LZ-6/POL / 5902887044700

Specification

-50 °c ... 55 °c:	Operating temperature:
< 95 %:	Permissible relative ambient humidity:
0.099 kg:	Scales:
1.5 a:	Max. Single output current:
120 x 91 x 37 mm:	Dimensions:
2:	Number of power inputs:
24 v dc (typically 12v):	Maximum supply voltage:
3 years:	Warranty:
6:	Number of power outputs:
6 x 1.5 a polymer fuse:	Type of protection:
9 a terminal block 4 a socket 5.5/2.1:	Maximum supply current:
Delta:	Manufacturer / Brand:
Input : 2.1/5.5 mm socket / cable terminalsoutput : cable terminals:	Power connector type:

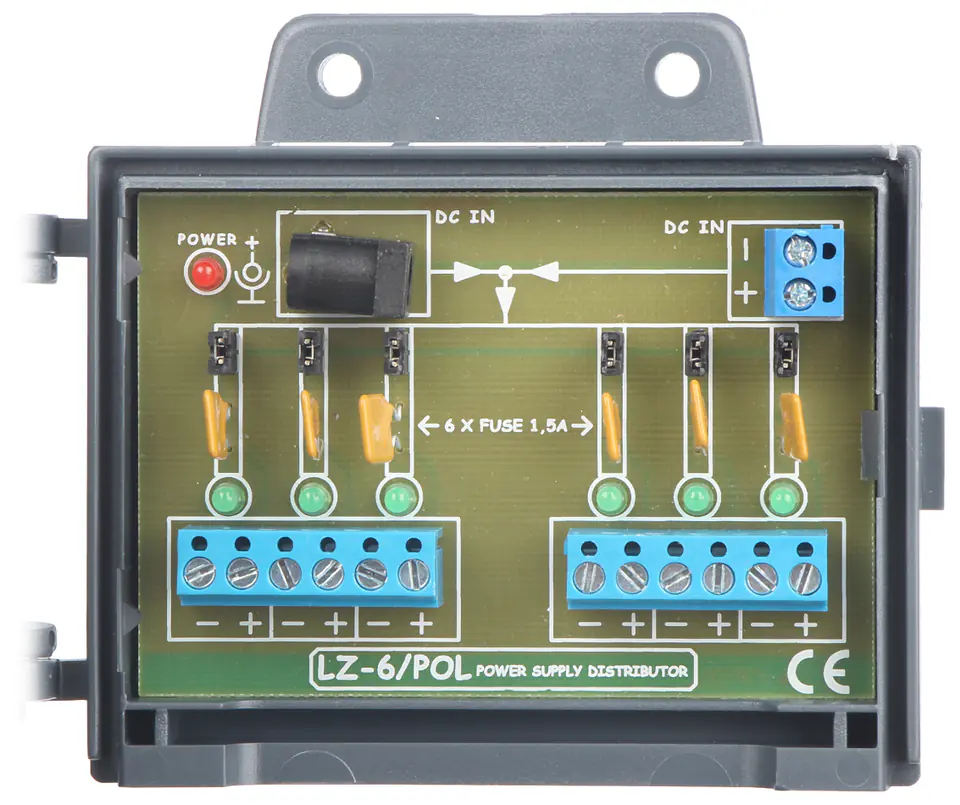

LZ-6/POL is a passive element and is used for power distribution

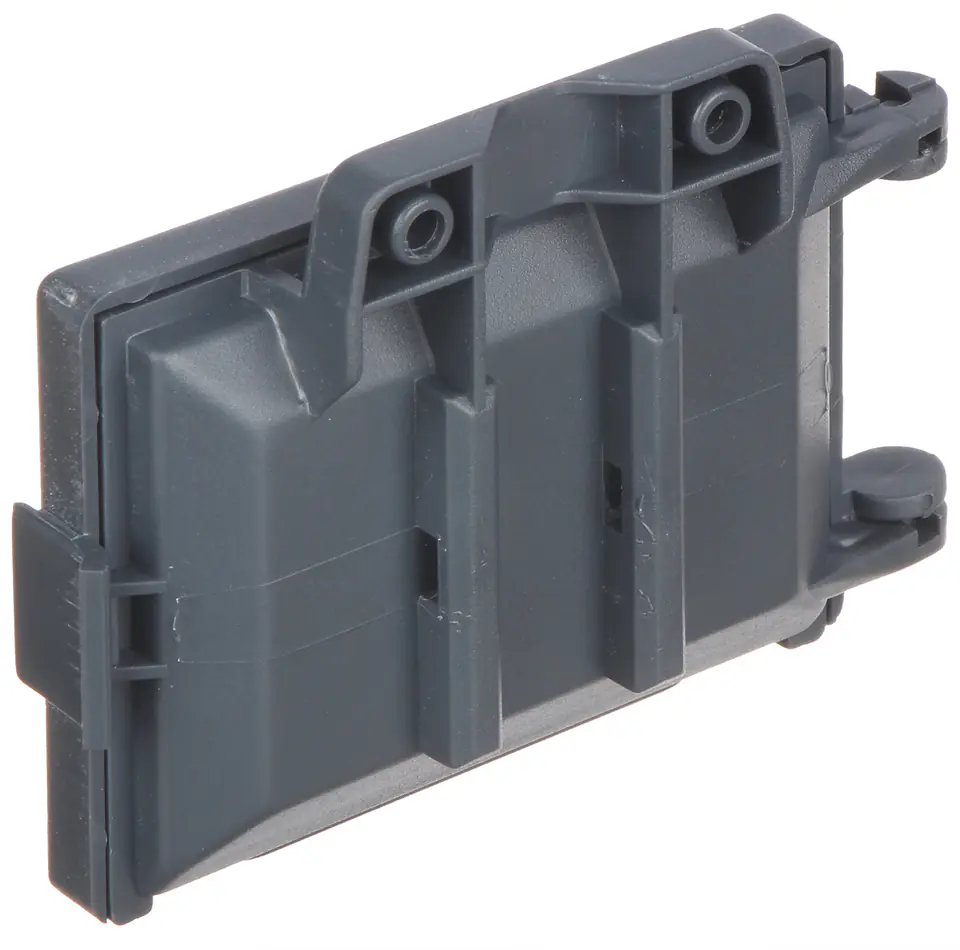

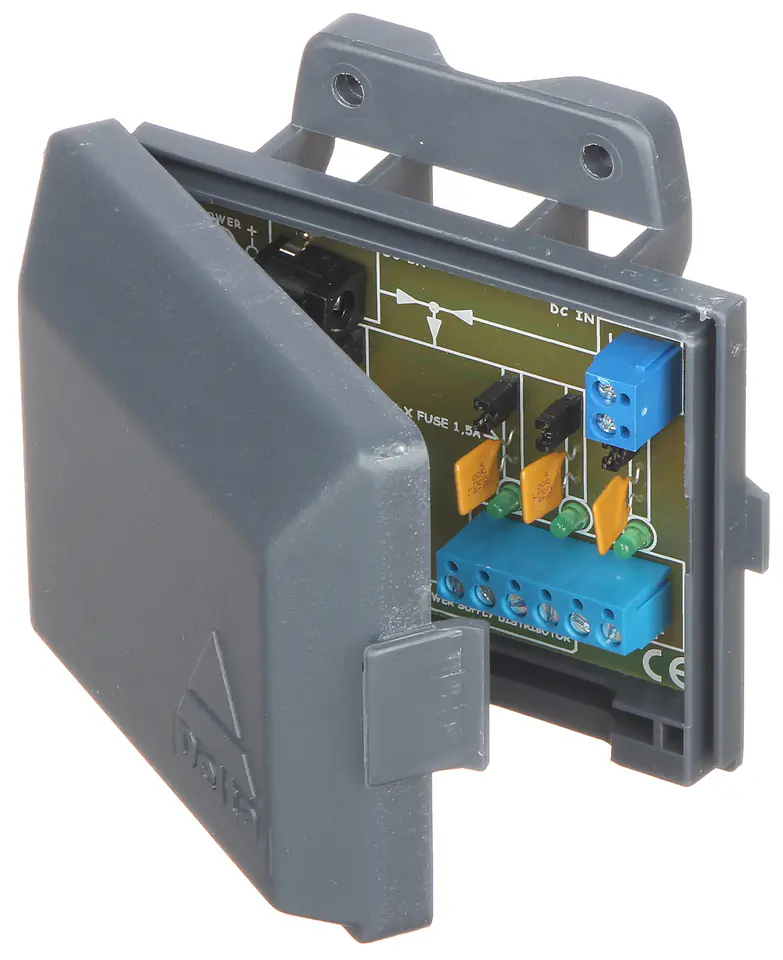

The housing allows you to mount the LZ-6/POL with wall screws or a cable tie to the mast (band, screws not included)

An unquestionable advantage of using LZ-6/POL in monitoring systems with power supply from a central point is additional tamper protection. In the absence of individual protection for each current path, it is enough for an intruder to cause a short circuit for one camera, and the entire system will be deprived of power supply

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
