POWER CONNECTOR LZ-6

€8.27

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: LZ-6 / 5902887041983

Specification

-50 °c ... 55 °c:	Operating temperature:
< 95 %:	Permissible relative humidity:
0 ... 24 vdc (typically 12v):	Maximum supply voltage:
0.099 kg:	Scales:
120 x 91 x 37 mm:	Dimensions:
2:	Number of power inputs:
6:	Number of power outputs:
6 a terminal block 4 a socket 5.5/2.1:	Maximum supply current:

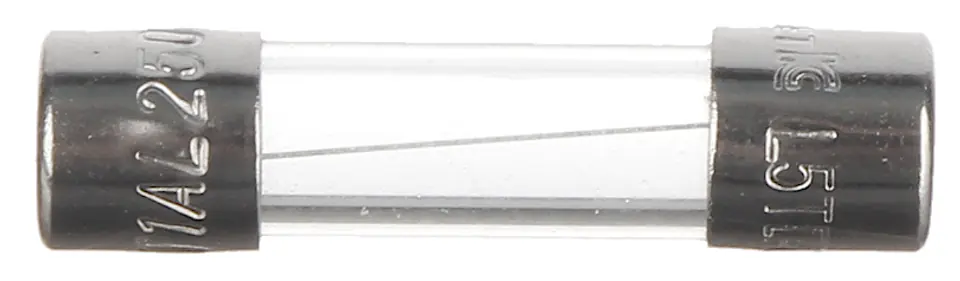

6 x 1 a fuse fuse time-lag (5/20mm):	Type of protection:
Delta:	Manufacturer / Brand:
Input : 2.1/5.5 mm socket / cable terminalsexference : cable terminals:	Type of power connectors:
Lifetime warranty:	Warranty:

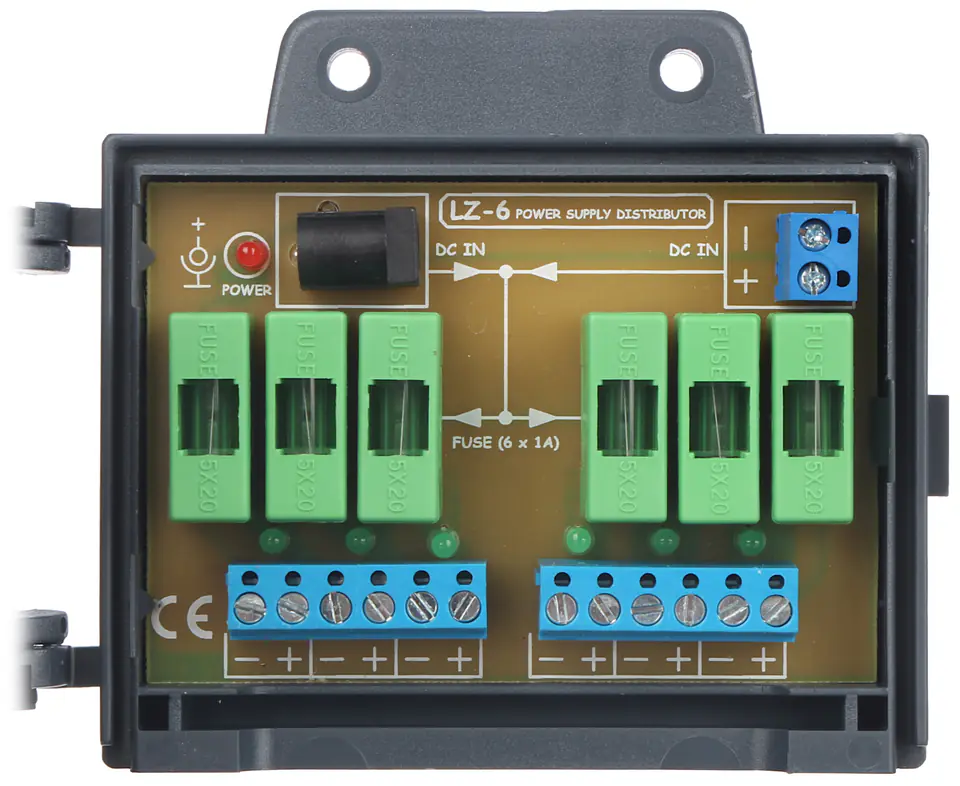

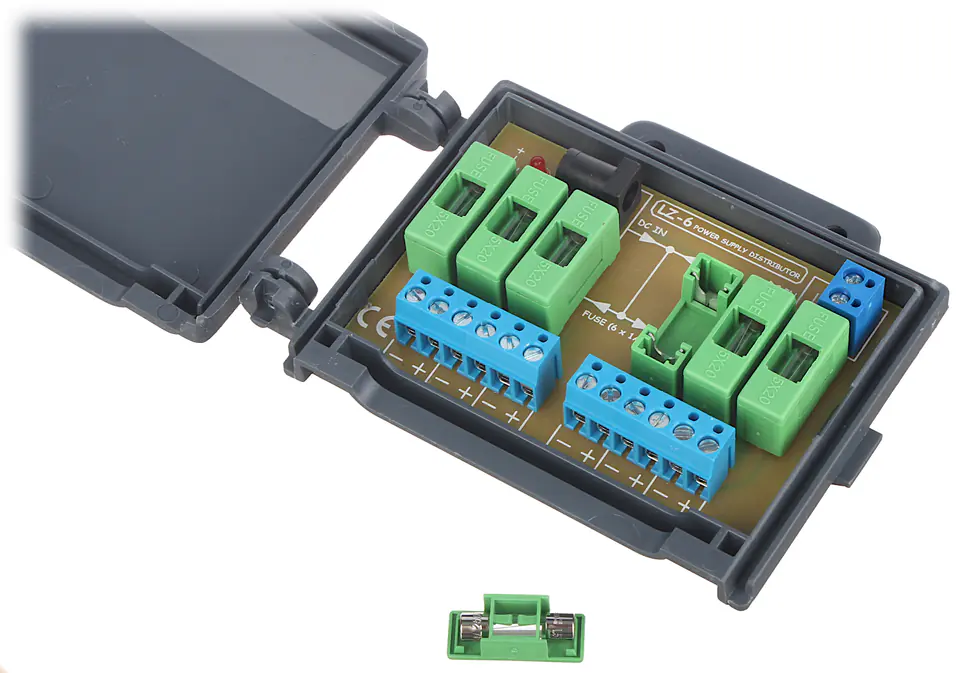

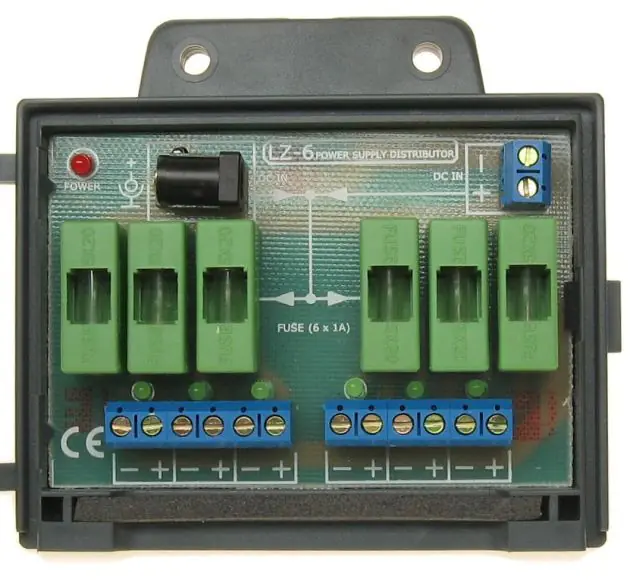

LZ-6 is a passive element and is used to distribute power supply

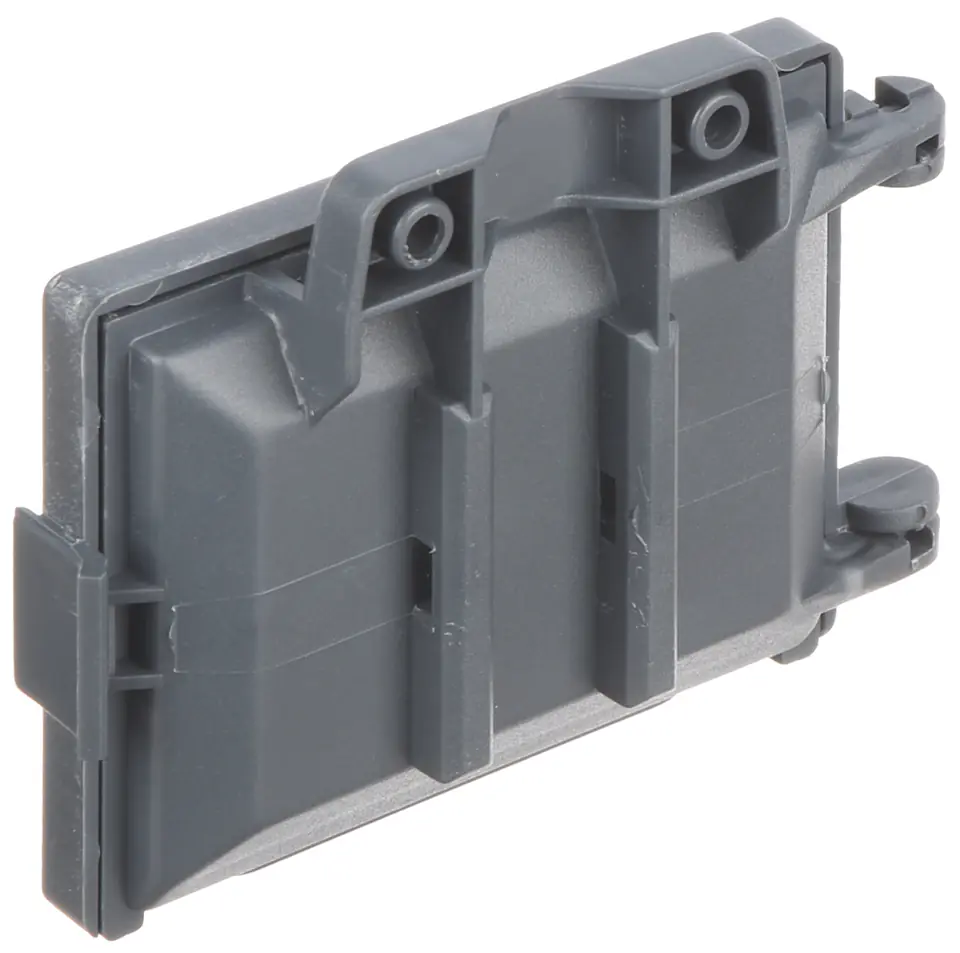

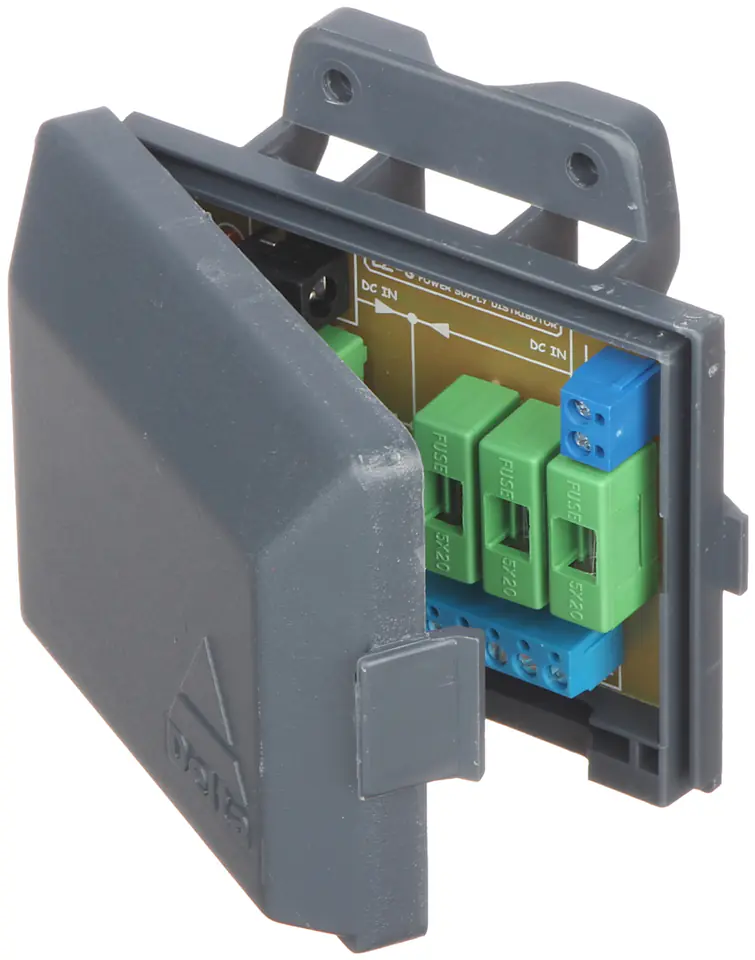

The housing allows you to mount the LZ-6 with screws to the wall or a cable tie to the mast (band, screws are not included)

The unquestionable advantage of using LZ-6 for monitoring systems with power supply from a central point is additional tamper protectionIn the absence of individual protection for each current path, it is enough for an intruder to cause a short circuit for one camera, and the entire system will be deprived of power

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
