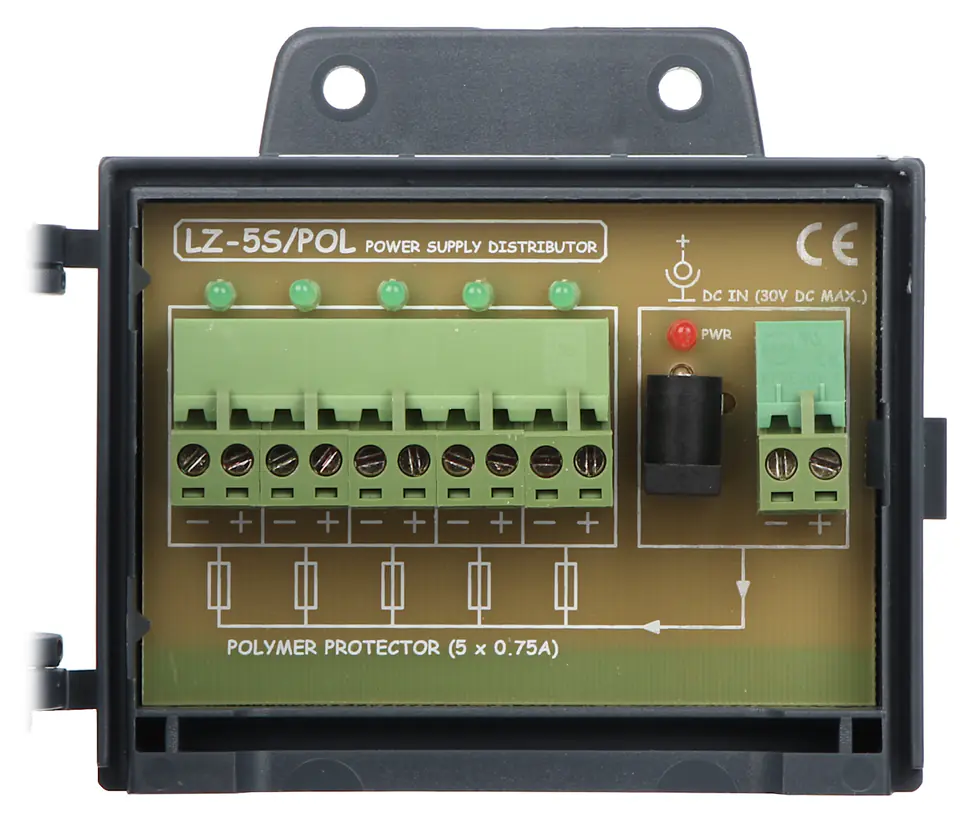

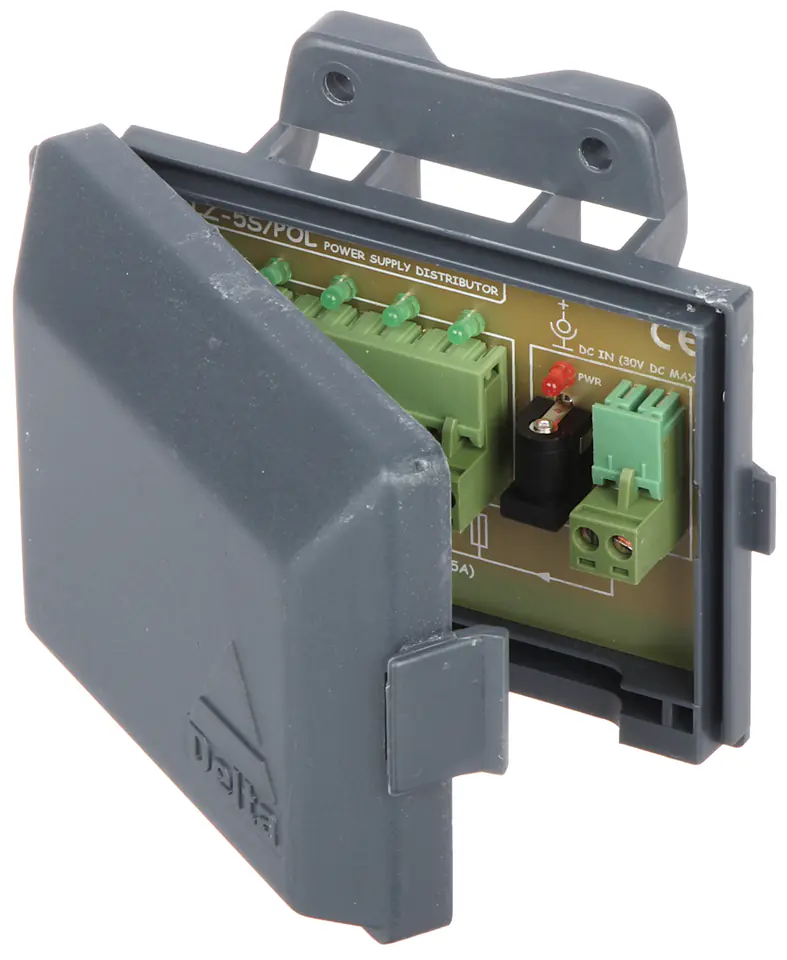

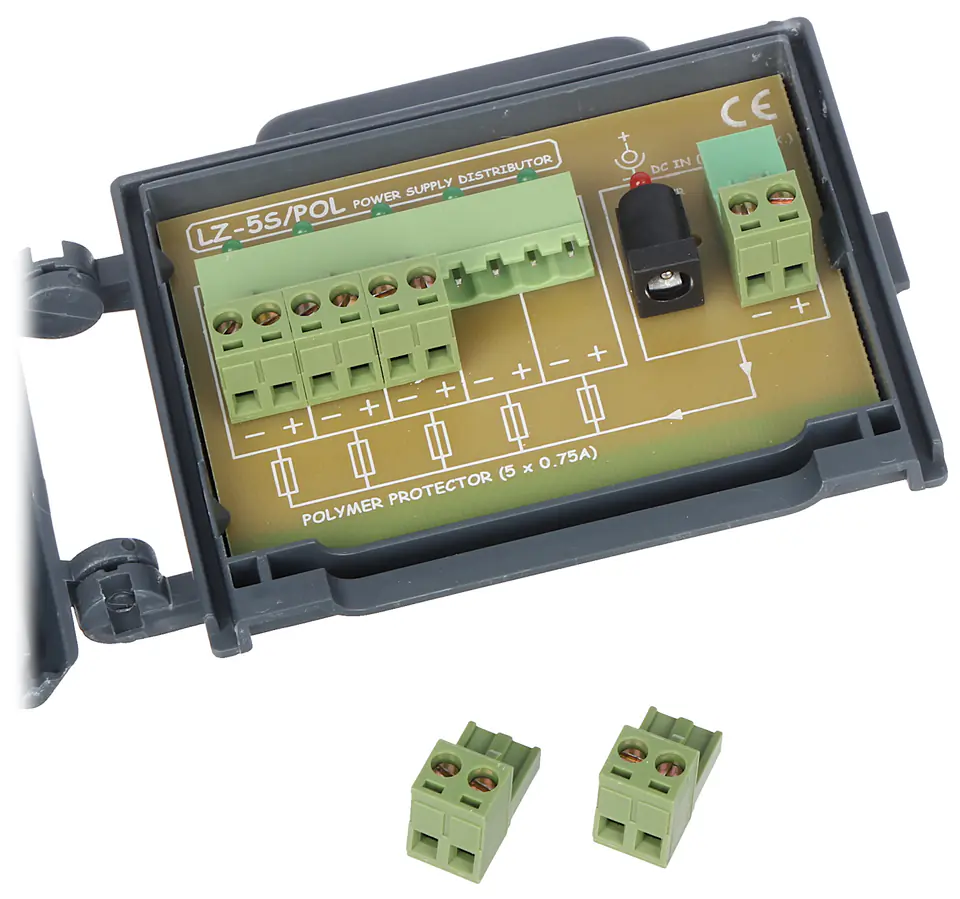

POWER CONNECTOR LZ-5S/POL

€11.52

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Dec 30 - Tue, Dec 31

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: LZ-5S/POL / 5902887045028

Specification

-50 °c ... 55 °c:	Operating temperature:
< 95 %:	Permissible relative humidity:
0.097 kg:	Scales:
120 x 91 x 37 mm:	Dimensions:
2:	Number of power inputs:
3 years:	Warranty:
30 v dc (typically 12 v):	Maximum supply voltage:
5:	Number of power outputs:
5 x 0.75 a polymer fuse:	Type of protection:
6 a terminal block 4 a socket 5.5/2.1:	Maximum supply current:
750 ma:	Max. single output current:
Delta:	Manufacturer / Brand:
Input : 2.1/5.5 mm socket / cable terminal (disjoint)output : cable terminals (disjoint):	Type of power connectors:

LZ-5S/POL is a passive element and is used for power distribution

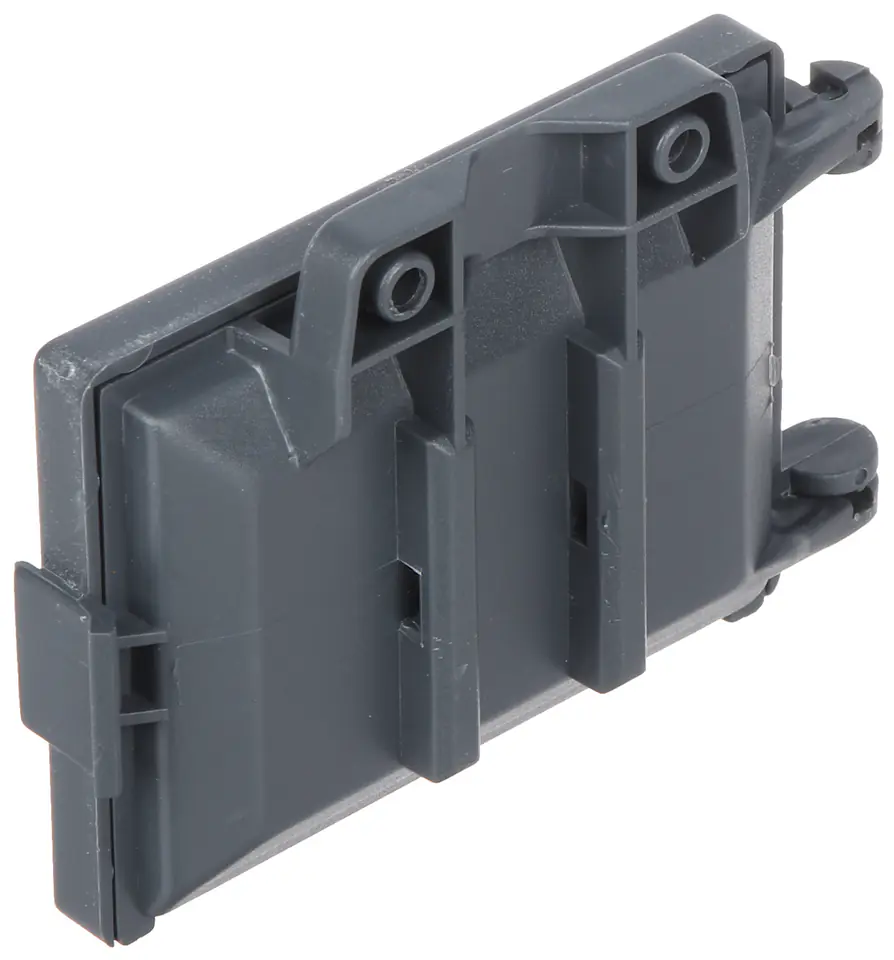

The housing allows you to mount the LZ-5S/POL using wall screws or a cable tie to the mast (band, screws not included)

The unquestionable advantage of using LZ-5S/POL for monitoring systems with power supply from a central point is additional tamper protectionIn the absence of individual protection for each current path, it is enough for an intruder to cause a short circuit for one camera, and the entire system will be deprived of power

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
