POWER CONNECTOR LZ-4/POL

€9.68
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Delta
Product code:
LZ-4/POL / 5902887041990

Specification

-50 °c ... 55 °c:Operating temperature:
< 95 %:Permissible relative ambient humidity:
0.090 kg:Scales:
1:Number of power inputs:
10 amps:Maximum supply current:
120 x 91 x 37 mm:Dimensions:
2.5 a:Max. Single output current:
24 v dc (typically 12v):Maximum supply voltage:
3 years:Warranty:
4:Number of power outputs:
4 x 2.5 a polymer fuse:Type of protection:
Delta:Manufacturer / Brand:
Input : cable terminalsoutput : cable terminals:Power connector type:

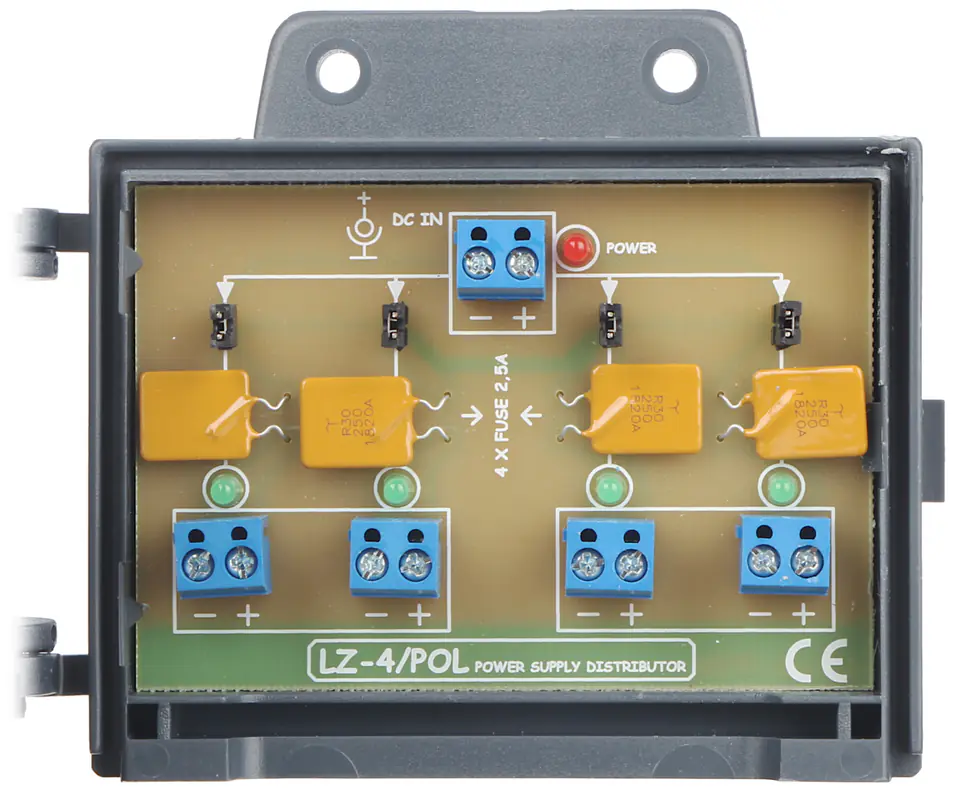

LZ-4/POL is a passive element and is used for power distribution

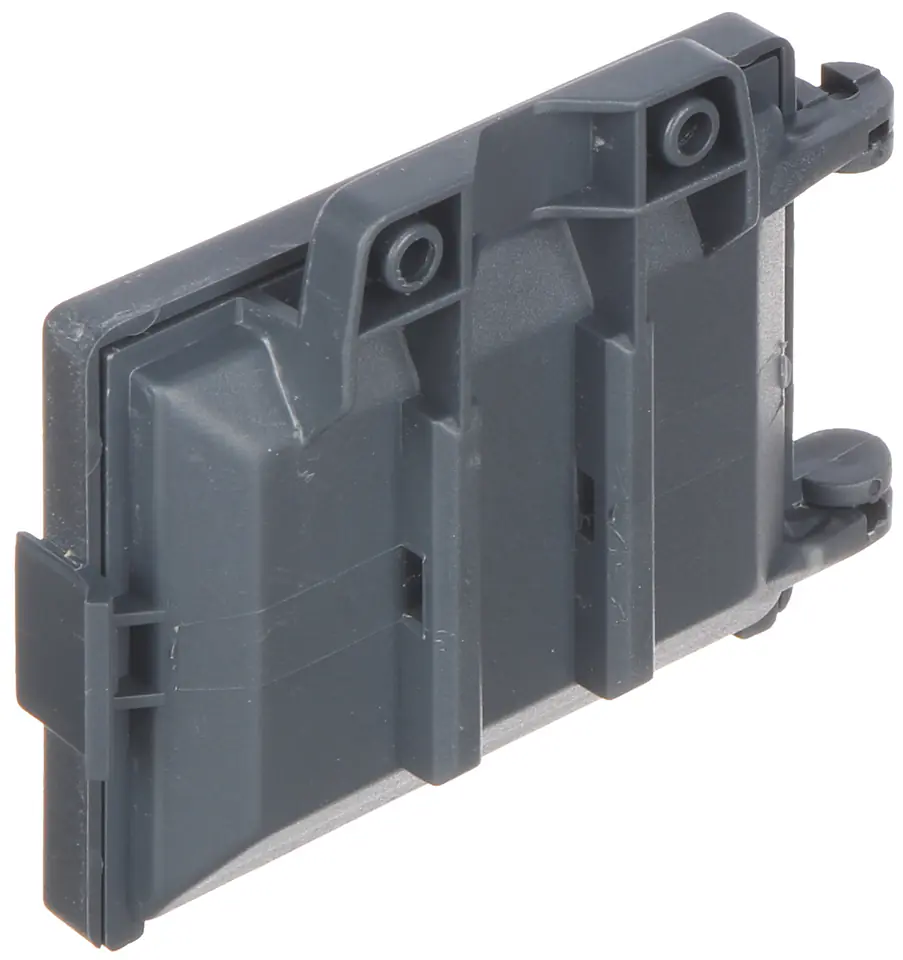

The housing allows you to mount the LZ-4/POL with screws to the wall or a cable tie to the mast (band, screws not included)

An unquestionable advantage of using LZ-4/POL in monitoring systems with power supply from a central point is additional tamper protection. In the absence of individual protection for each current path, it is enough for an intruder to cause a short circuit for one camera, and the entire system will be deprived of power supply

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
