LZ-16/POL/R19 is a passive device that helps to branch the power supply from one or more power supplies of higher power

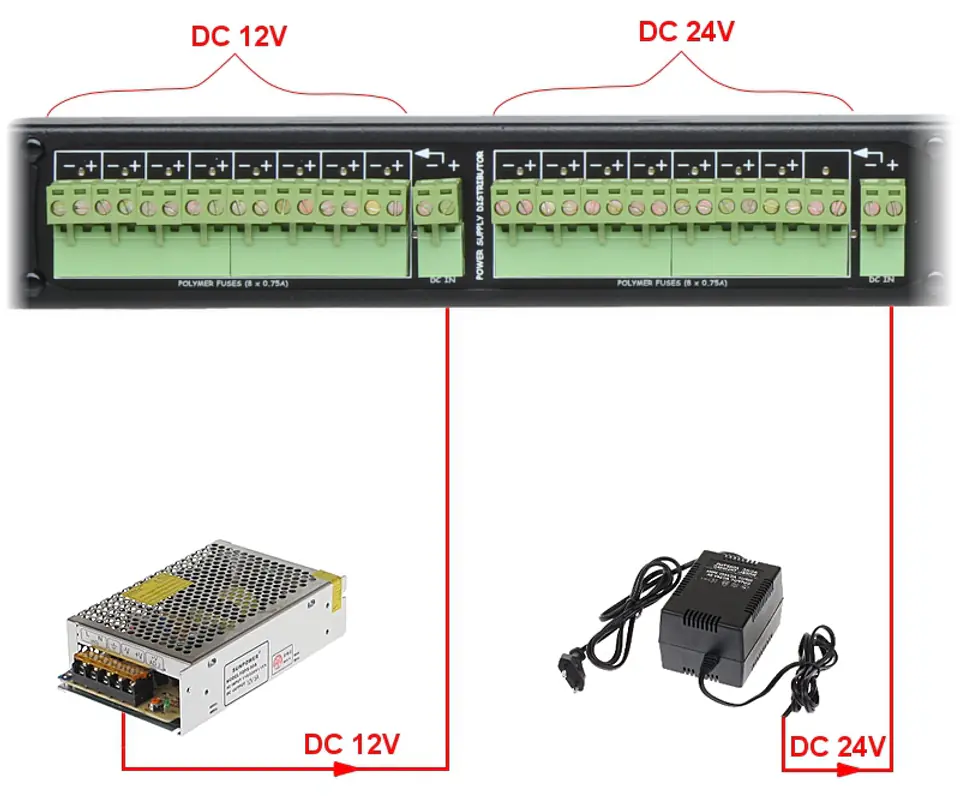

If necessary, individual slats can be connected to each other in parallel

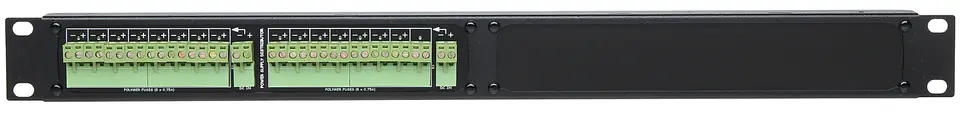

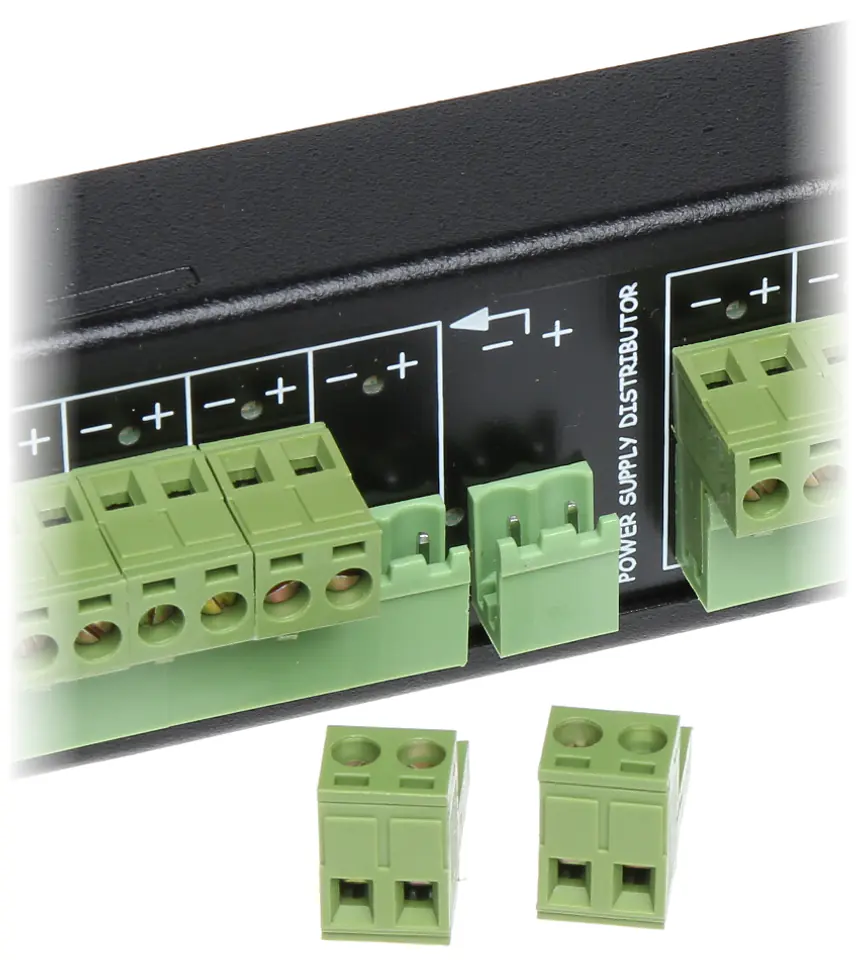

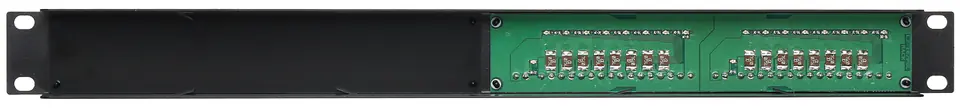

POWER CONNECTOR LZ-16/POL/R19
€43.35
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- LZ-16/POL/R19 / 5902887039829
Share this product:
Specification
| Dimensions:: | 482 x 44 x 36 mm |
|---|---|
| Housing type:: | Rack 19" |
| Manufacturer / brand:: | DELTA |
| Max. single output current:: | 0.75 A |
| Maximum supply current:: | 6 A (for a single skirting board) |
| Maximum supply voltage:: | 24 VDC (typically 12V) |
| Number of power inputs:: | 2 (one for each 8-output strip) |
| Number of power outputs:: | 16 (2 x 8 outputs) |
| Operating temperature:: | -50 °C ... 55 °C |
| Permissible relative humidity:: | < 95 % |
| Scales:: | 0.3 kg |
| Type of power connectors:: | Input : Cable TerminalsExference : Cable Terminals |
| Type of protection:: | 16 x 0.75 A - Polymer fuse |
| Warranty:: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
