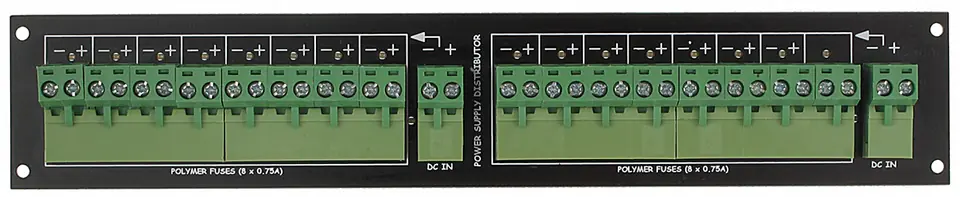

LZ-16/POL/R is a passive device, helping to branch the power supply from one or more power supplies of higher power
If necessary, the individual slats can be connected in parallel
Dimensions: | 216 x 40 x 18 mm |
---|---|
Enclosure type: | Płytka PCB |
Max. single output current: | 0.75 A |
Maximum supply current: | 5 A (for single strip) |
Maximum supply voltage: | 24 V DC (typically 12V) |
Number of power inputs: | 2 (one for each 8-output strip) |
Number of power outputs: | 16 (2 x 8 outputs) |
Operating temperature: | -50 °C ... 55 °C |
Permissible relative ambient humidity: | < 95 % |

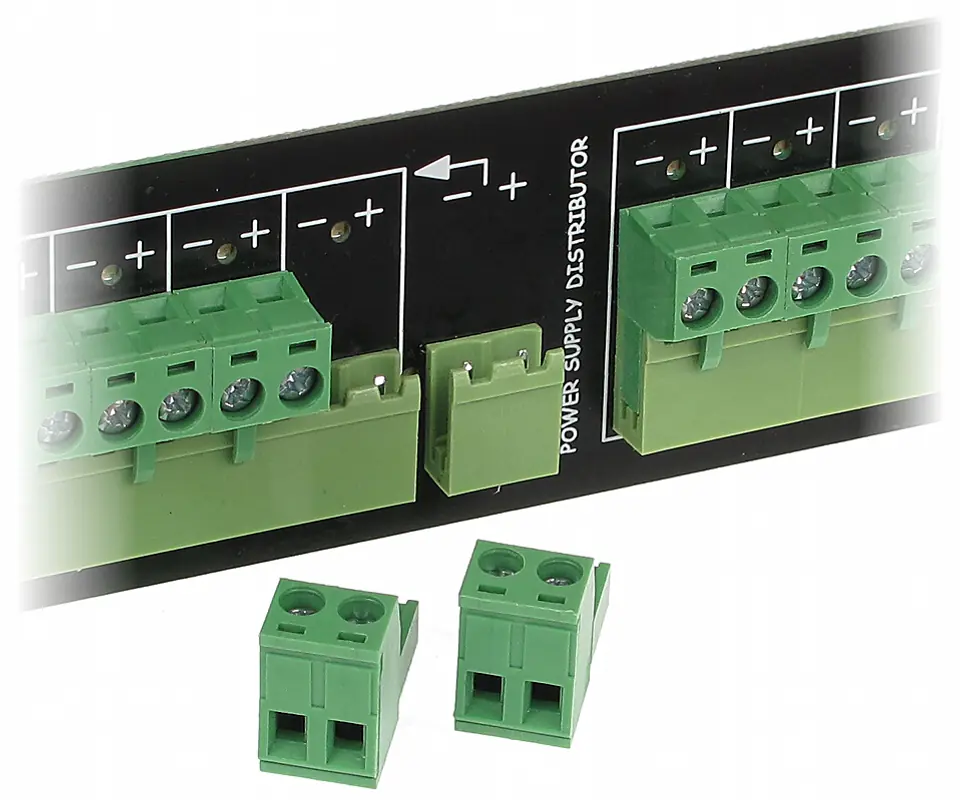

Power connector type: | Input : Cable terminalsOutput : Cable terminals |
Producer / brand: | DELTA |
Scales: | 0.1 kg |

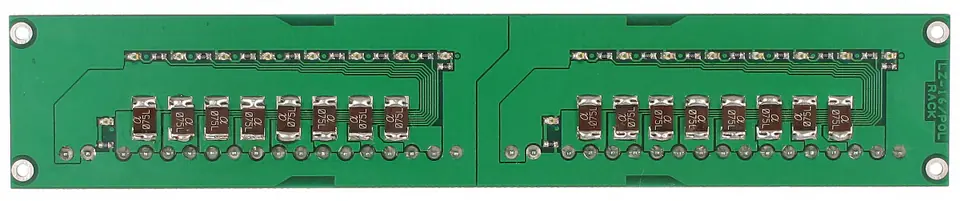

Type of protection: | 16 x 0.75 A - Polymer fuse |
Warranty: | 3 years |

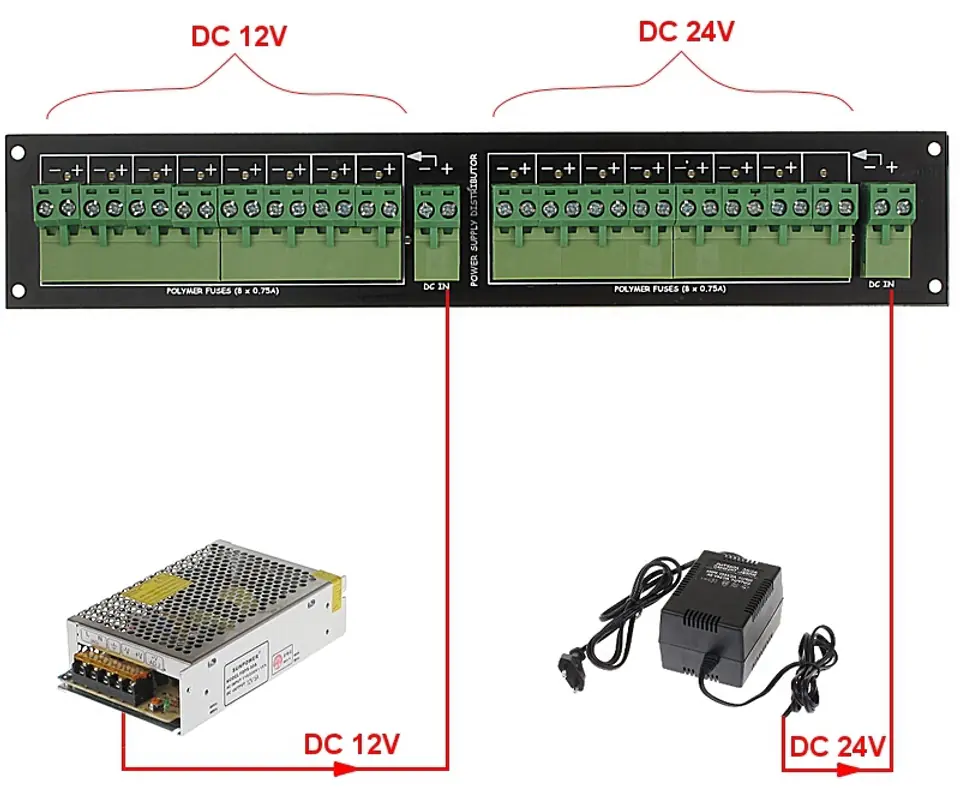

LZ-16/POL/R is a passive device, helping to branch the power supply from one or more power supplies of higher power
If necessary, the individual slats can be connected in parallel
