LZ-12C/R19 is a passive device, helping to branch power supplies from one or more power supplies

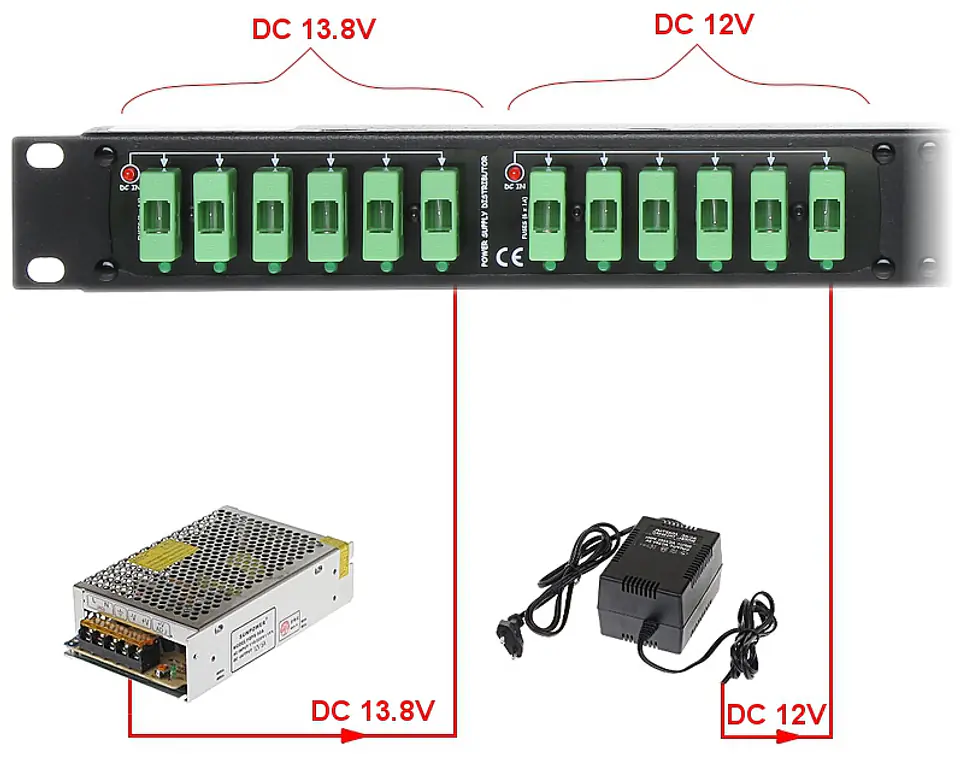

If necessary, the individual slats can be connected in parallel
POWER CONNECTOR LZ-12C/R19
€44.06
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- LZ-12C/R19 / 5902887044632
Share this product:
Specification
| Dimensions: | 482 x 45 x 64 mm |
|---|---|
| Enclosure type: | 19" RACK, 1U |
| Max. single output current: | 1 A |
| Maximum supply current: | 5 A (for single strip) |
| Maximum supply voltage: | 24 V DC (typically 12V) |
| Number of power inputs: | 2 (one for each 6-output strip) |
| Number of power outputs: | 12 (2 x 6 outputs) |
| Operating temperature: | -50 °C ... 55 °C |
| Permissible relative ambient humidity: | < 95 % |
| Power connector type: | Input : Cable terminalsOutput : Cable terminals |
| Producer / brand: | DELTA |
| Scales: | 0.34 kg |
| Type of protection: | 12 x 1 A Fuse, time-lag (5/20mm) |
| Warranty: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
