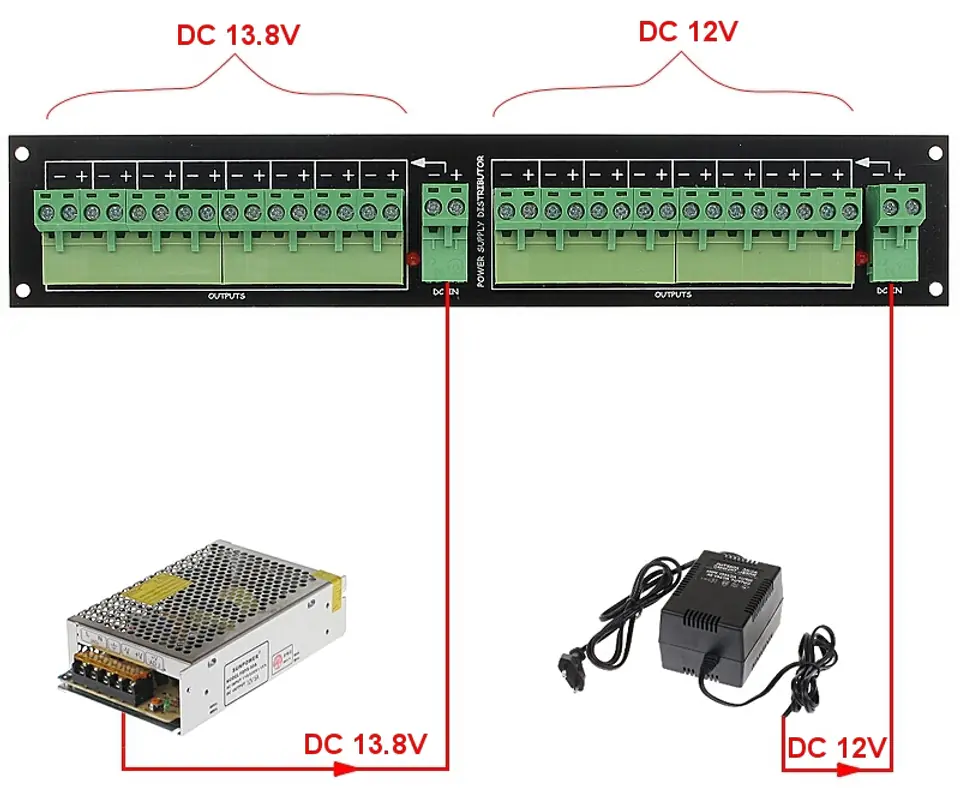

LZ-10/POL/R19 is a passive device that helps to branch the power supply from one or more power supplies of higher power
If necessary, individual slats can be connected to each other in parallel

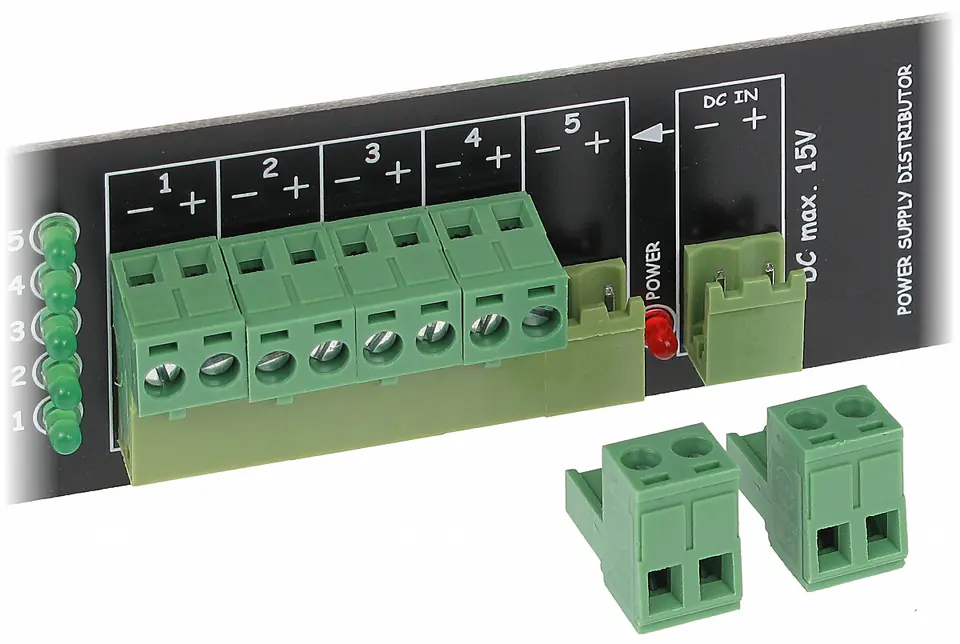

POWER CONNECTOR LZ-10/POL/R19
€35.36
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- LZ-10/POL/R19 / 5902887048722
Share this product:
Specification
| Dimensions:: | 482 x 41 x 40 mm |
|---|---|
| Housing type:: | RACK 19", 1U |
| Manufacturer / brand:: | DELTA |
| Max. single output current:: | 2.5 A |
| Maximum supply current:: | 12.5 A (for a single skirting board) |
| Maximum supply voltage:: | 15 V DC (typically 12 V) |
| Number of power inputs:: | 2 (one for each 5-output strip) |
| Number of power outputs:: | 10 (2 x 5 outputs) |
| Operating temperature:: | -50 °C ... 55 °C |
| Permissible relative humidity:: | < 95 % |
| Scales:: | 0.280 kg |
| Type of power connectors:: | Input : Cable TerminalsExference : Cable Terminals |
| Type of protection:: | 10 x 2.5 A - Polymer fuse |
| Warranty:: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
