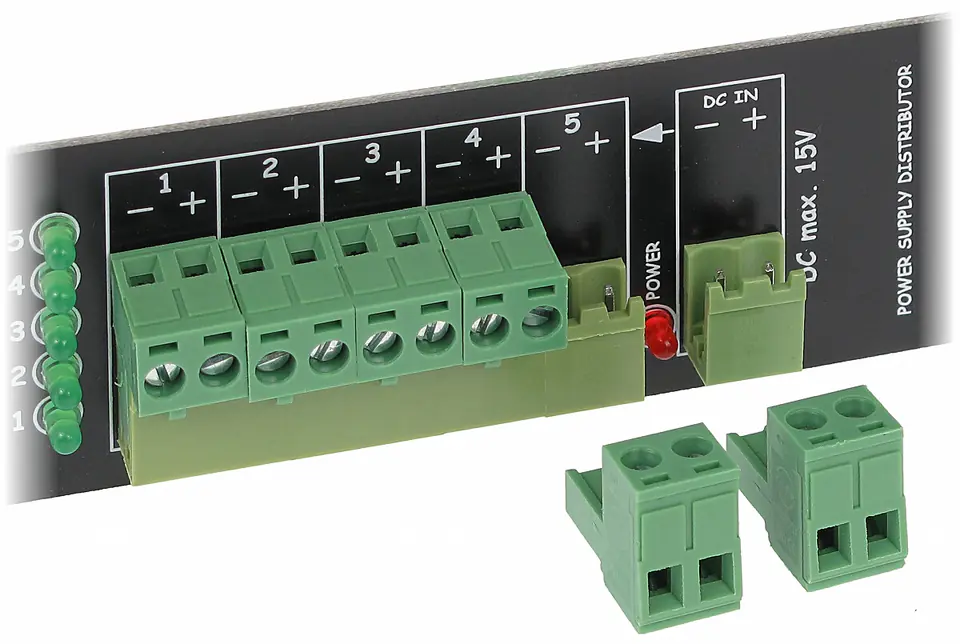

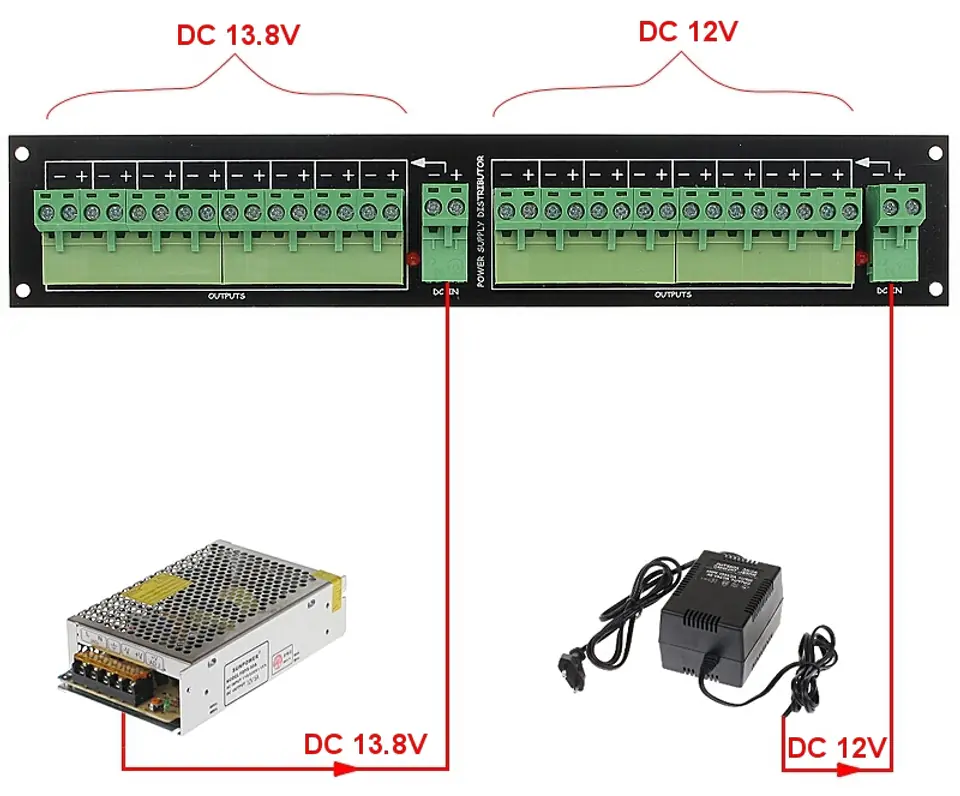

LZ-10/POL/R is a passive device that helps to branch the power supply from one or more power supplies
If necessary, individual slats can be connected to each other in parallel

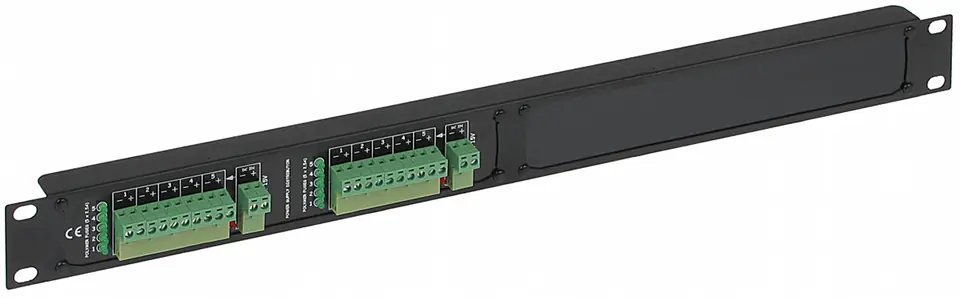

POWER CONNECTOR LZ-10/POL/R
€17.34
Shipping from warehouse: D4
Estimated shipping: Mon, Dec 30 - Tue, Dec 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- LZ-10/POL/R / 5902887048715
Share this product:
Specification
| Dimensions:: | 216 x 40 x 20 mm |
|---|---|

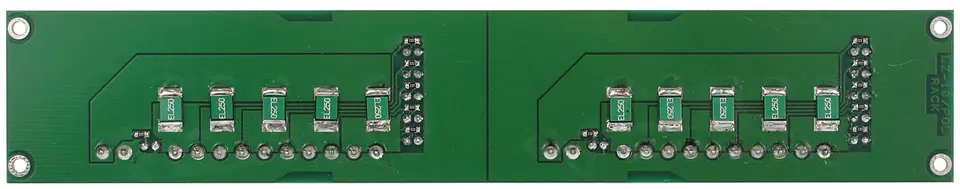

| Housing type:: | Płytka PCB |
| Manufacturer / brand:: | DELTA |
| Max. single output current:: | 2.5 A |
| Maximum supply current:: | 12.5 A (for a single skirting board) |
| Maximum supply voltage:: | 15 V DC (typically 12 V) |

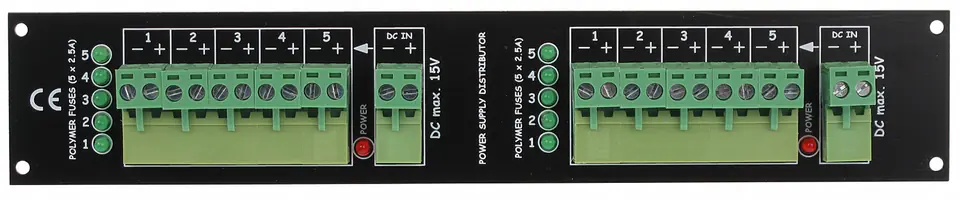

| Number of power inputs:: | 2 (one for each 5-output strip) |
| Number of power outputs:: | 10 (2 x 5 outputs) |
| Operating temperature:: | -50 °C ... 55 °C |
| Permissible relative humidity:: | < 95 % |
| Scales:: | 0.08 kg |
| Type of power connectors:: | Input : Cable TerminalsExference : Cable Terminals |
| Type of protection:: | 10 x 2.5 A - Polymer fuse |
| Warranty:: | 3 years |
