LZ-1/DIN is a passive element and is used for power distribution
If there are more than 4 receivers, you can connect the receivers in parallel at the same terminal

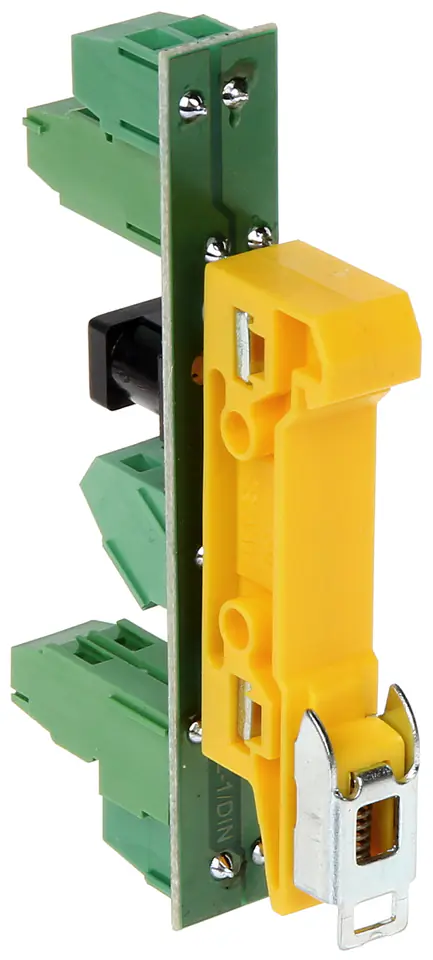

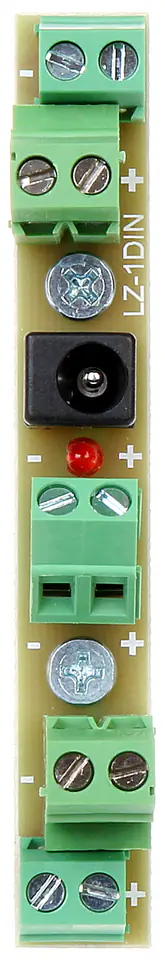

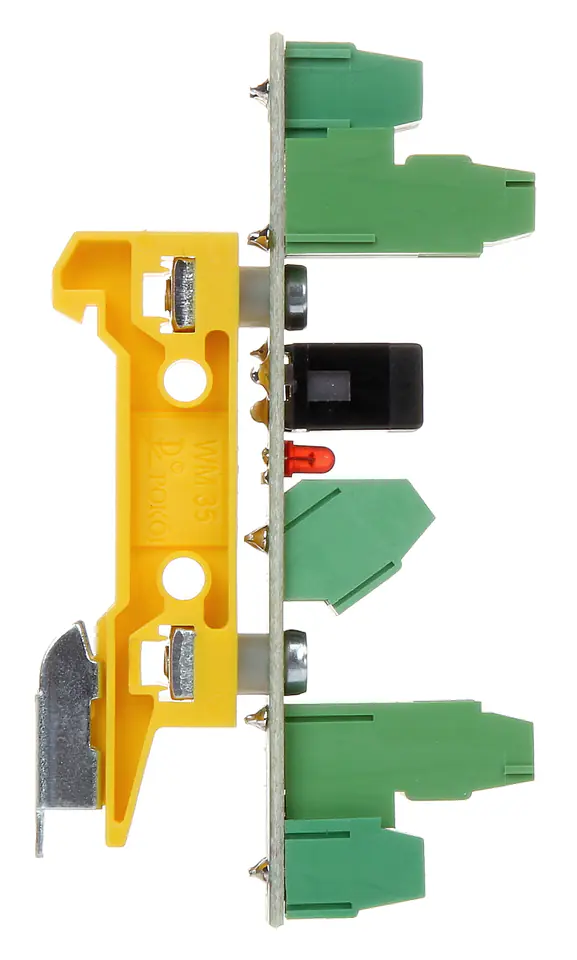

POWER CONNECTOR LZ-1/DIN
€9.97
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- LZ-1/DIN / 5902887023866
Share this product:
Specification
| -50 °c ... 55 °c: | Operating temperature: |
|---|---|
| 0.025 kg: | Scales: |
| 2: | Number of power inputs: |
| 24 v dc (typically 12v): | Maximum supply voltage: |
| 3 years: | Warranty: |
| 4: | Number of power outputs: |
| 4 a socket 5.5/2.1 6 a cable terminals: | Maximum supply current: |
| 6 a: | Max. Single output current: |
| 90 x 50 x 13 mm: | Dimensions: |
| Delta: | Manufacturer / Brand: |
| Input : 5.5/2.1 socket, cable terminalsoutput : cable terminals: | Power connector type: |
| Led - input voltage: | Selected features: |
| Pcb, din rail mounting, ts-35: | Housing Type: |
