| -50 °c ... 55 °c: | Operating temperature: |
|---|---|
| < 95 %: | Permissible relative ambient humidity: |
| 0.086 kg: | Scales: |
| 1: | Number of power inputs: |
| 116 x 90 x 36 mm: | Dimensions: |
| 24 v dc (typically 12v): | Maximum supply voltage: |
| 4 a: | Max. Single output current: |
| 8: | Number of power outputs: |
| Delta: | Manufacturer / Brand: |
| Input socket 5.5/2.1output : terminal block: | Power connector type: |
| Lifetime warranty: | Warranty: |

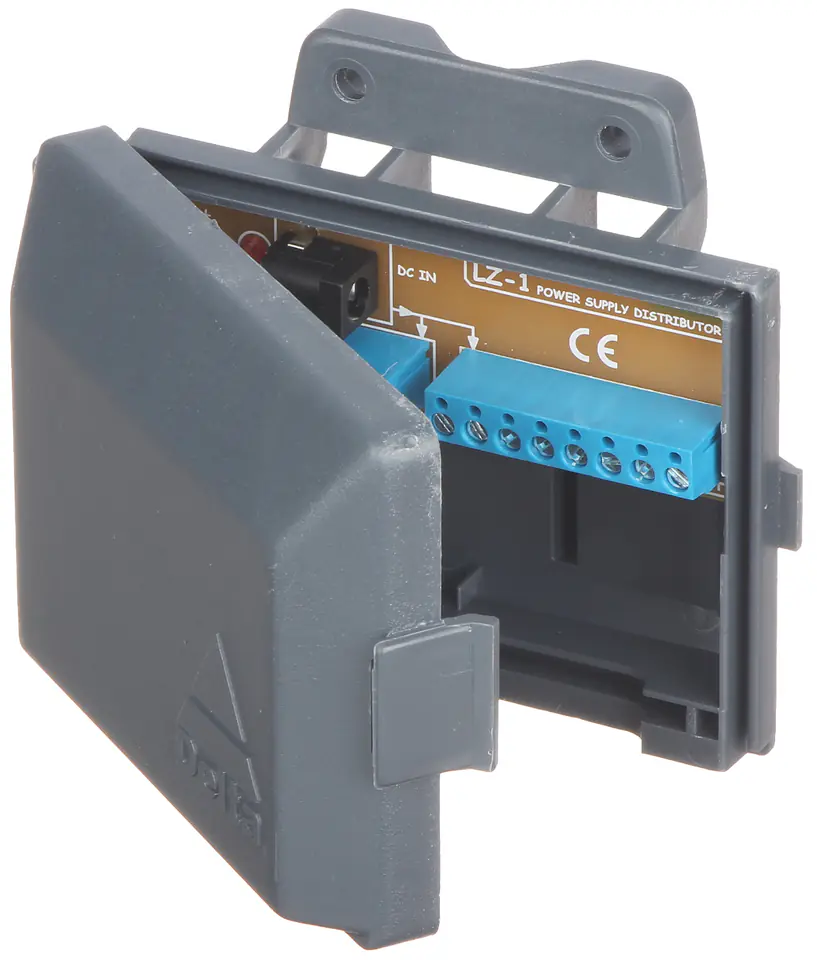

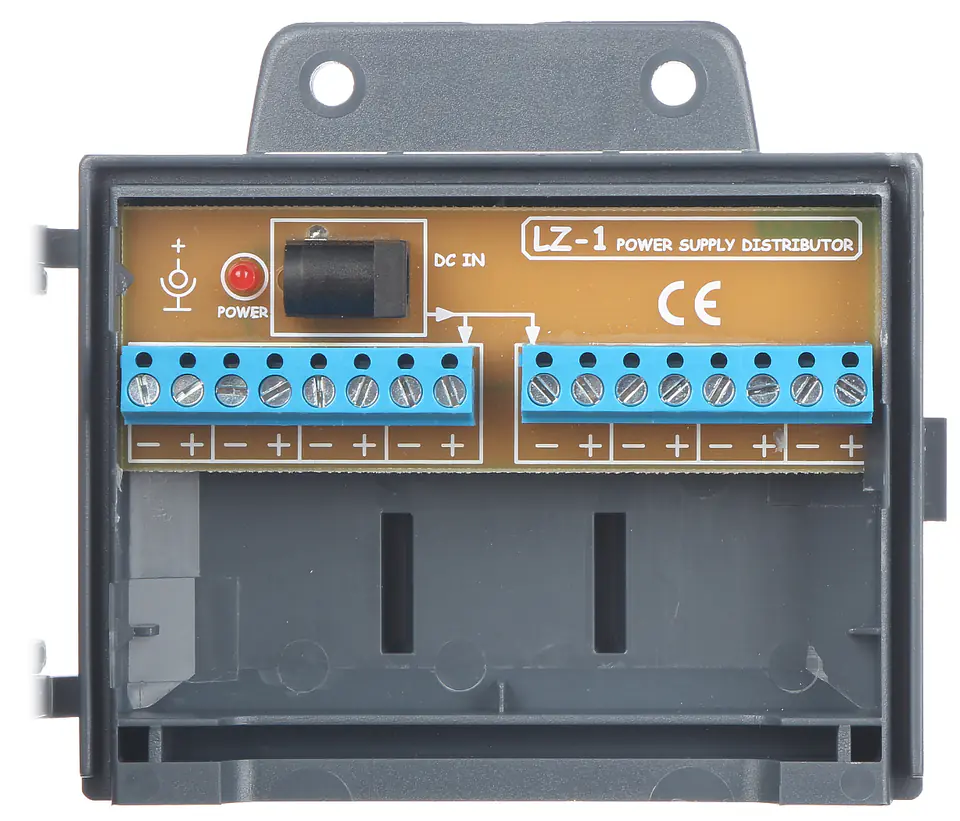

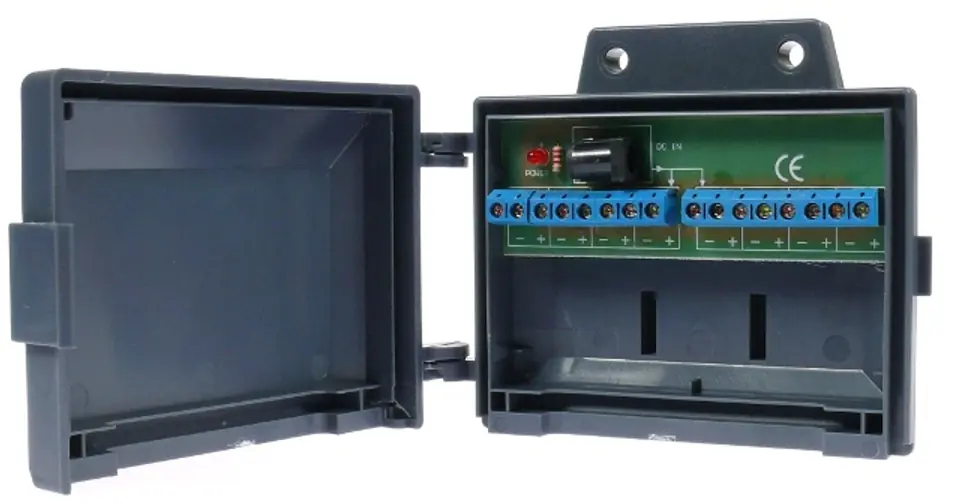

LZ-1 is a passive element and is used for power distribution

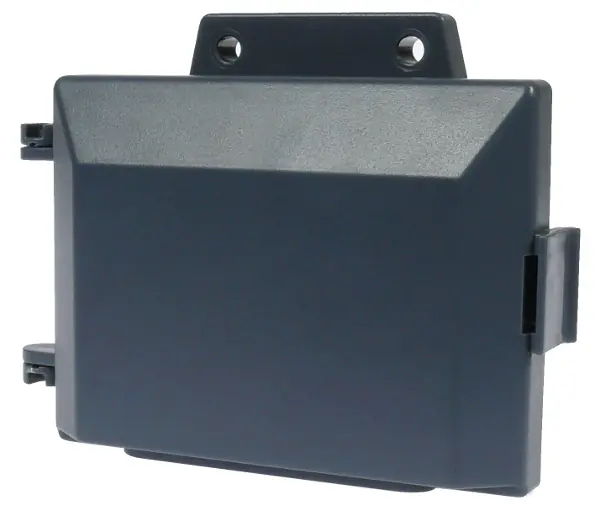

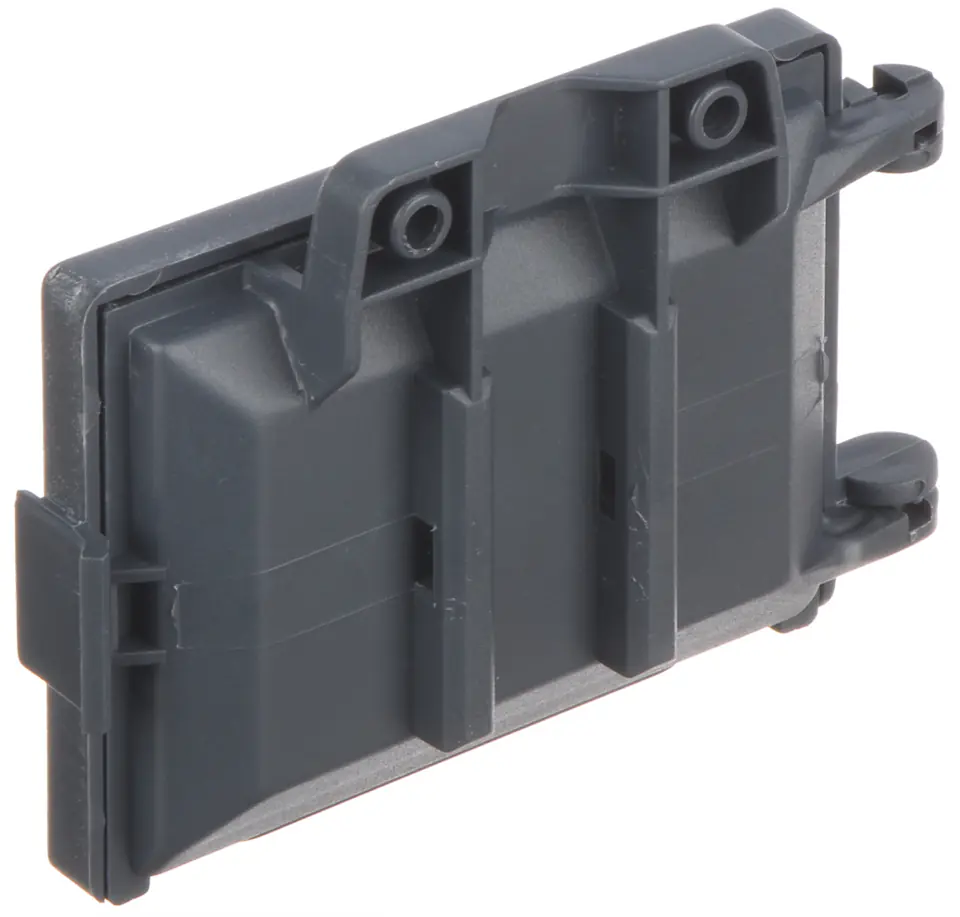

The housing allows you to mount the LZ-1 with screws to the wall or with a cable tie to the mast (band, screws not included)In the case of more than 8 receivers, you can connect the receivers in parallel at the same terminal
