AWZ-579 is a passive element and is used for power distributionThe undisputed advantage of using AWZ-579 for monitoring systems with power supply from a central point is additional tamper protection

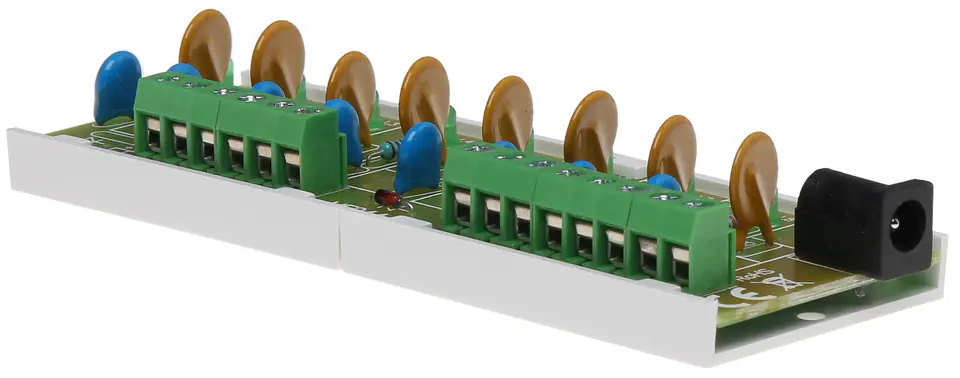

POWER CONNECTOR AWZ-579
€9.24
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- AWZ-579 / 5906881447017
Share this product:
Specification
| -10 °c ... 50 °c: | Operating temperature: |
|---|---|
| 0.05 kg: | Scales: |
| 1 a: | Max. single output current: |
| 124 x 43 x 22 mm: | Dimensions: |
| 2: | Number of power inputs: |
| 2 years: | Warranty: |
| 30 v dc (typically 12 v): | Maximum supply voltage: |
| 8: | Number of power outputs: |
| 8 a: | Maximum supply current: |
| 8 x 1 a - ptc polymer fuse: | Type of protection: |
| Input - socket 5.5/2.1, cable terminalsextrait - cable terminals: | Type of power connectors: |
| Plastic: | Housing Type: |
| Protection : short-circuit, surge protector, overload diode indicator: | Selected features: |
| Pulsar: | Manufacturer / Brand: |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
