| -10 °c ... 50 °c: | Operating temperature: |
|---|---|
| 0.04 kg: | Scales: |
| 0.5 a: | Max. Single output current: |
| 2: | Number of power inputs: |
| 2 a terminal block: | Maximum supply current: |
| 2 years: | Warranty: |
| 30 v dc (typically 12v): | Maximum supply voltage: |
| 4: | Number of power outputs: |
| 4 x 0.5 a fuse: | Type of protection: |
| 80 x 43 x 21 mm: | Dimensions: |
| Input : 5.5/2.1 socket, cable terminalsoutput : cable terminals: | Power connector type: |
| Plastic: | Housing Type: |
| Protection : short circuit, overvoltage, overload led indicator: | Selected features: |
| Pulsar: | Manufacturer / Brand: |

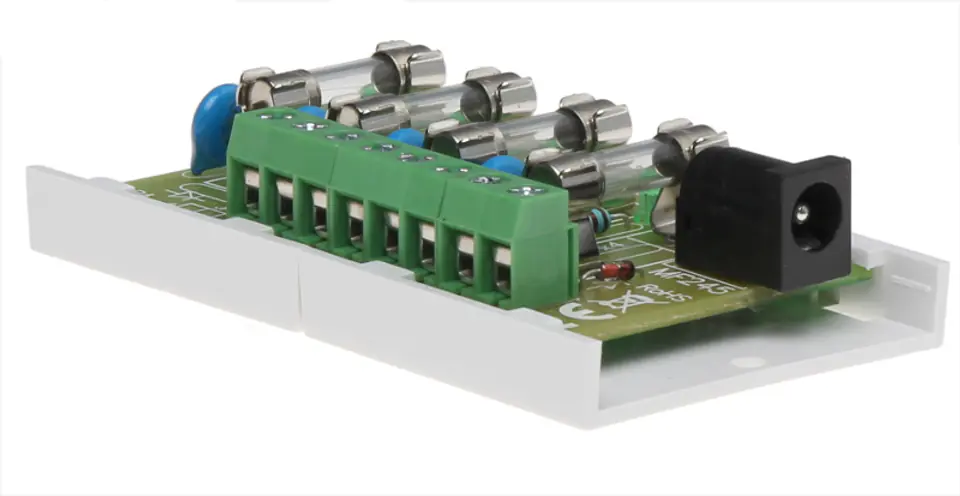

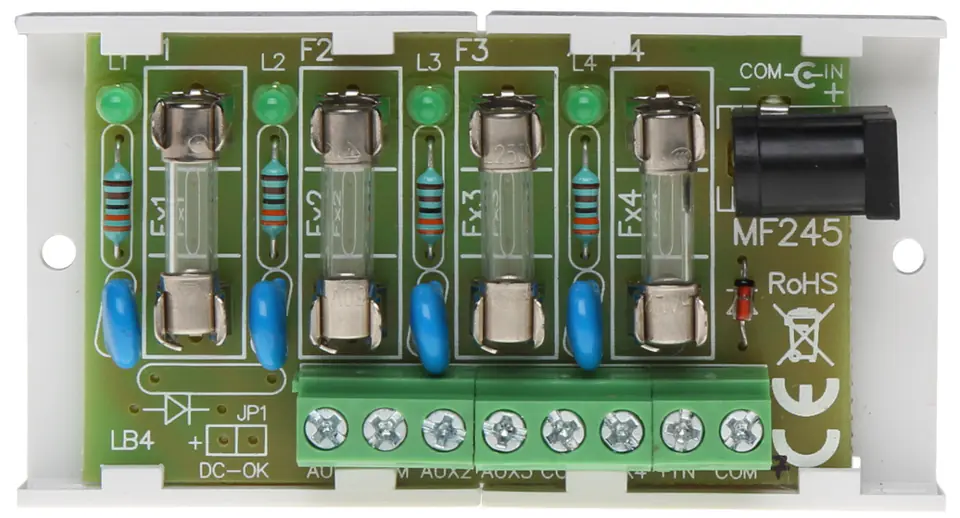

AWZ-576 is a passive element and is used for power distributionAn unquestionable advantage of using AWZ-576 in monitoring systems with power supply from a central point is additional tamper protection
If there are more than 4 receivers, you can connect the receivers in parallel at the same terminal
