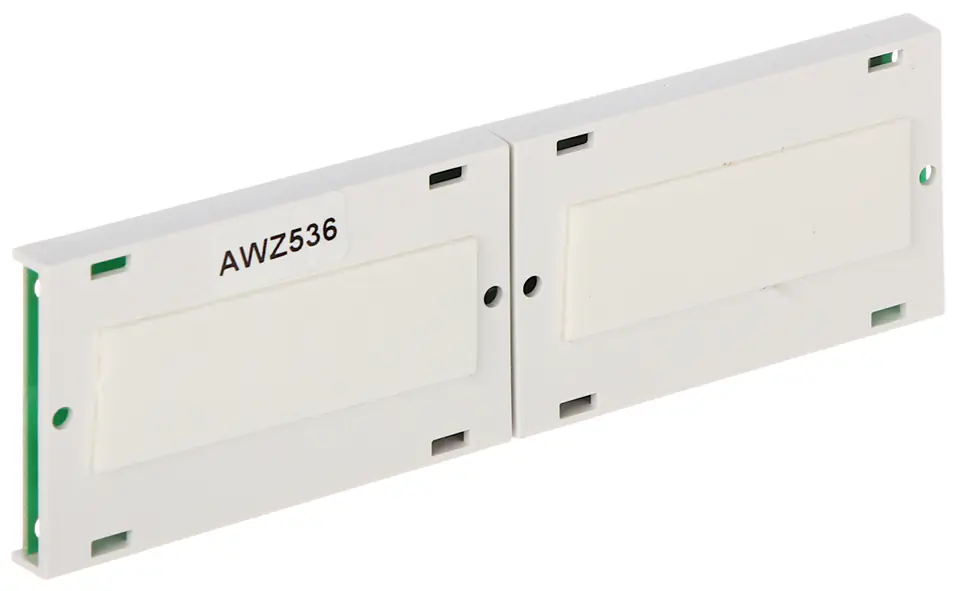

POWER CONNECTOR AWZ-536

€31.01

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Dec 30 - Tue, Dec 31

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: AWZ-536 / 5906881446669

Specification

-10 °c ... 50 °c:	Operating temperature:
< 95 %:	Permissible relative humidity:
0.07 kg:	Scales:
1:	Number of power inputs:
1 a:	Max. single output current:
10 ... 30 v dc (typically 12v)10 ... 24 v ac:	Maximum supply voltage:
140 x 43 x 29 mm:	Dimensions:
2 years:	Warranty:
5:	Number of power outputs:
5 a cable clamps:	Maximum supply current:
5 x 1 a fuse fuse time-lag (5/20mm):	Type of protection:
Aw output (failure) - oc type 50ma, led signaling of failure of at least one output:	Selected features:
Input : cable terminalsexference : cable terminals:	Type of power connectors:
Pulsar:	Manufacturer / Brand:

AWZ-536 is used to distribute power from one power supply of higher power

The unquestionable advantage of using AWZ-536 for monitoring systems with power supply from a central point is additional tamper protectionIn the absence of individual protection for each current path, it is enough for an intruder to cause a short circuit for one camera, and the entire system will be deprived of power supply.

In the event of a failure of one of the outputs, the AW output and the LAW LED are switched on. AW output can be used for remote control of LB5/AW status, e.g. external optical signaling
