| -10 °c ... 50 °c: | Operating temperature: |
|---|---|
| 0.05 kg: | Scales: |
| 1.5 a: | Max. single output current: |
| 100 x 43 x 18 mm: | Dimensions: |
| 2 years: | Warranty: |
| 24 v ac/dc (typically 12 v): | Maximum supply voltage: |
| 4: | Number of power inputs: |
| 4 x 1.5 a fuse: | Type of protection: |
| 6 a terminal block: | Maximum supply current: |
| Input : cable terminalsexference : cable terminals: | Type of power connectors: |
| Plastic: | Housing Type: |
| Protection : short-circuit, surge protector, overload diode indicator: | Selected features: |
| Pulsar: | Manufacturer / Brand: |

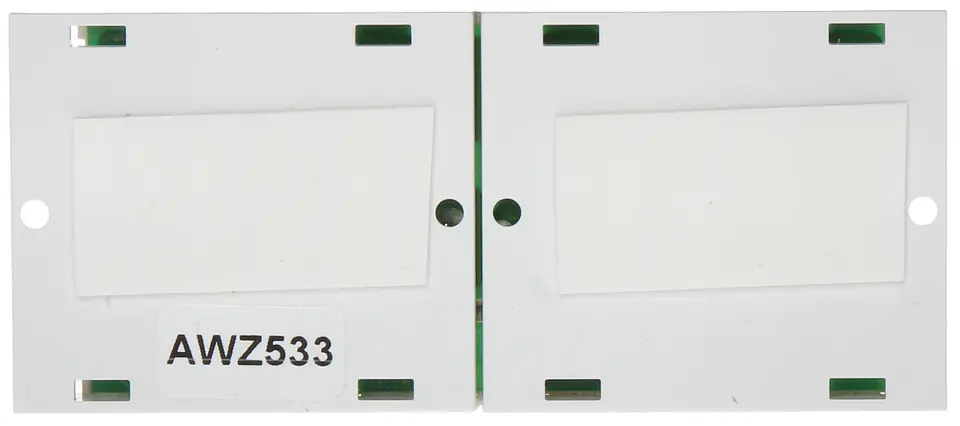

AWZ-533 is a passive element and is used for power distributionThe undisputed advantage of using AWZ-533 for monitoring systems with power supply from a central point is additional tamper protection
For more than 4 receivers, the receivers can be connected in parallel at the same terminal
