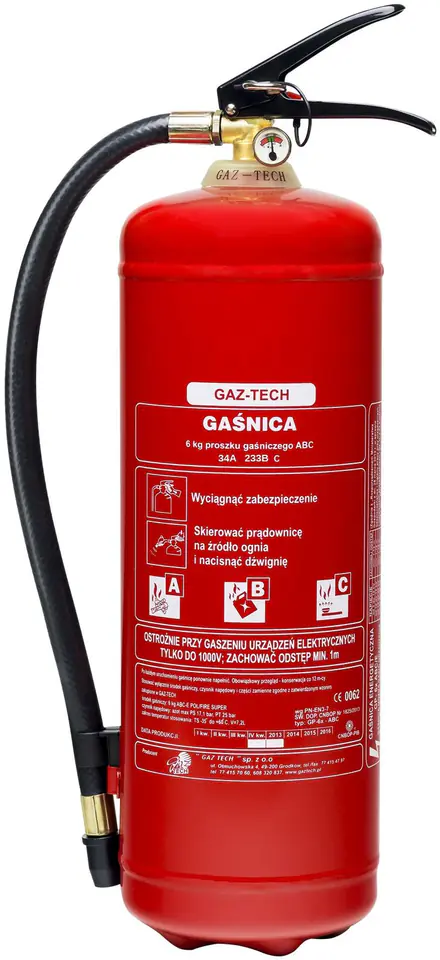

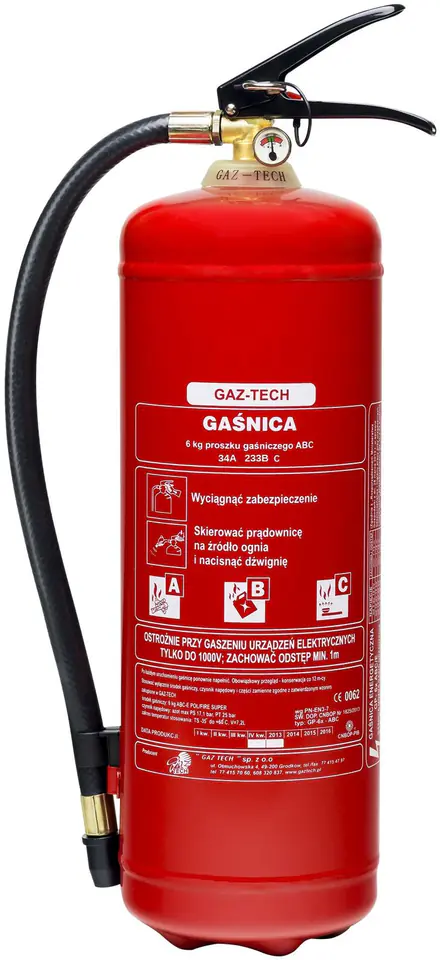

Powder Fire Extinguisher 6 kg ABC
A - combustible solids, glowing
B - liquid substances forming flames
C - flammable gases
Distinctive features of the fire extinguisher :
durable steel tank, mechanically cleaned by shot blasting, covered with a durable varnish coating
brass, quick-open valve enabling proper dosing of the extinguishing agent by temporarily interrupting it
valve equipped with a pressure gauge to control the pressure in the fire extinguisher
possibility of numerous refilling of extinguishing agent in service plants
foot hanger that is an integral part of the fire extinguisher - allows it to be placed or hung
ease and reliability in operation and operation
Basic technical data :
- scope of application: A, B, C
- mass of extinguishing agent: 6.0 kg
- working medium: Nitrogen N 2
- minimum operating time: 15 s
- test pressure of the tank: 25 bar
- working pressure of the fire extinguisher: 14 – 16 bar
- total weight of the fire extinguisher: 9.4 kg
- maximum voltage: extinguished object 245 000 V
- fire extinguisher height: 540 mm
- tank diameter: 150 mm
The fire extinguisher can be used in the underground of mines - CSRG Technical Opinion No. 25/2010
The fire extinguisher is manufactured in accordance with the conditions of the latest PN-EN-3-7 standard. It has all the necessary approvals and certificates.
