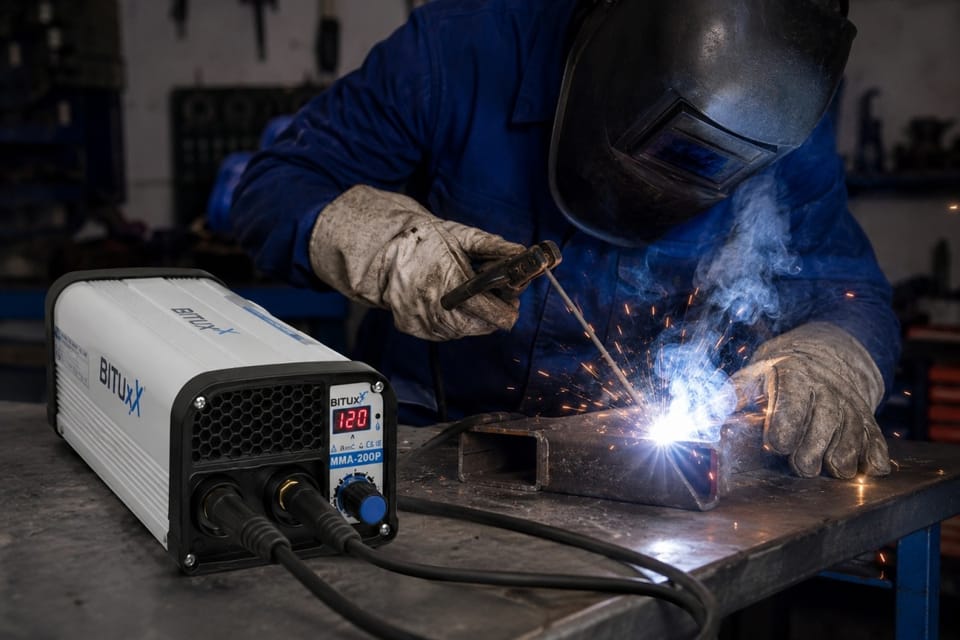

With the Bituxx Inverter welding machine you can easily weld materials such as steel, stainless steel, aluminum or castings.

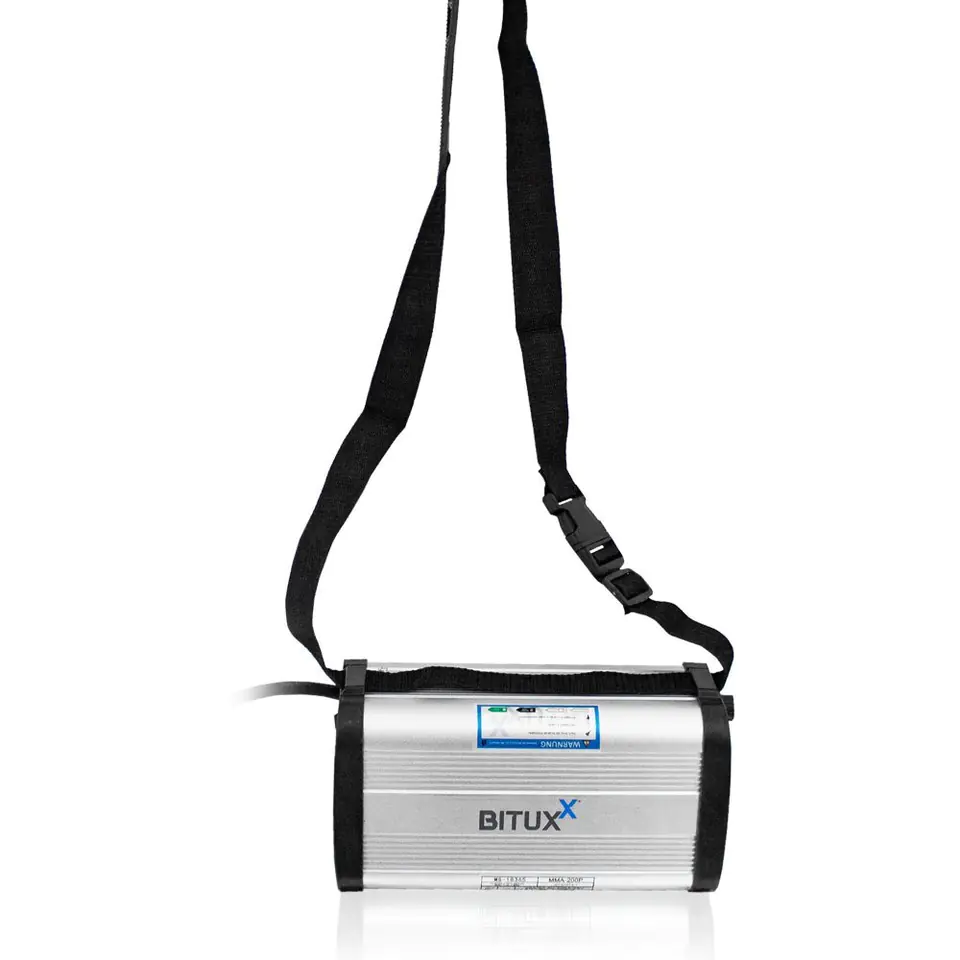

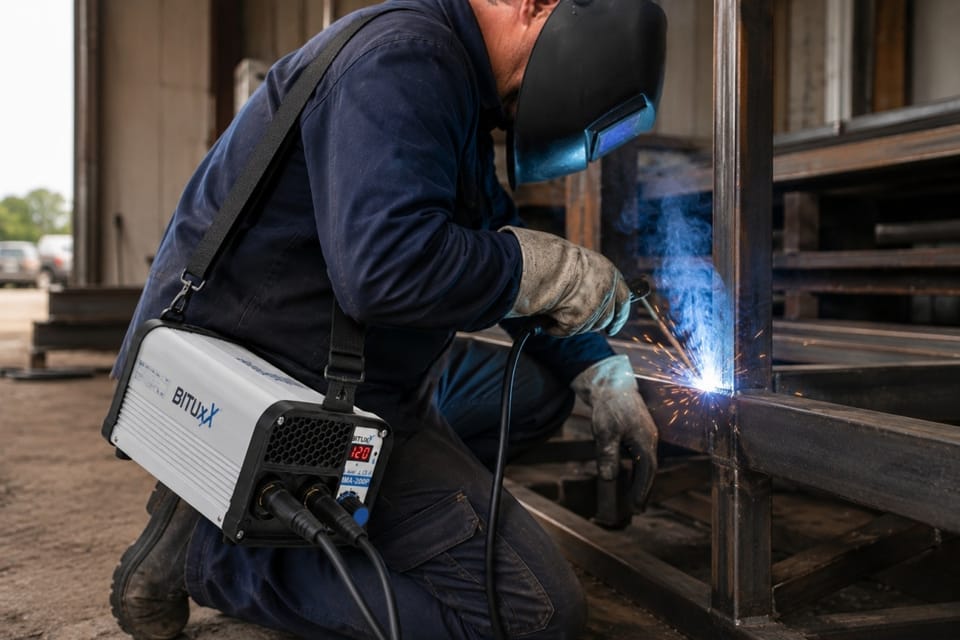

Thanks to the innovative IGBT inverter technology, the welding machine is extremely lightweight and can be easily transported with a carrying belt. The maximum output power of 200 amps ensures that a stable arc is always generated.

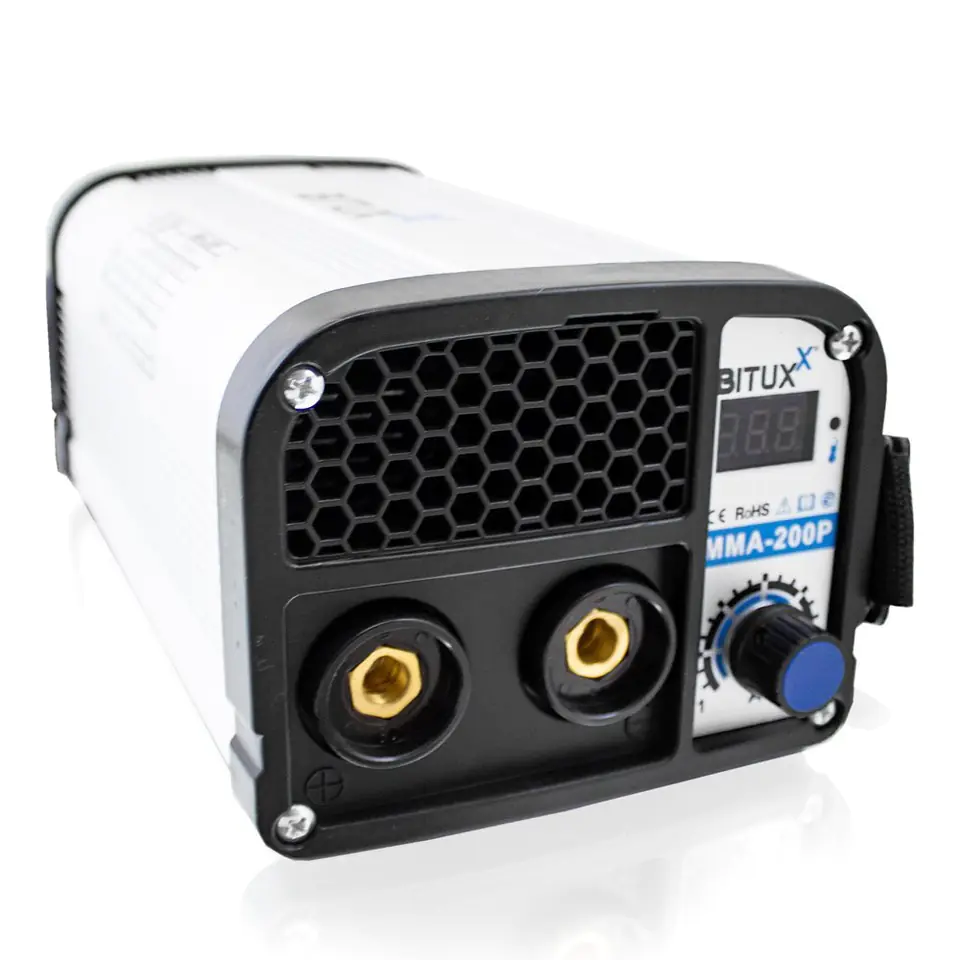

The machine can be smoothly adjusted, and the current welding performance can be read on the digital display. Includes welding cover and wire brush with hammer.

TECHNICAL SPECIFICATIONS:

• Input voltage: AC 230V,


• Input power: 9.4 kVA,

• Input current: 42.8A,


• Rated power: 200A/28V,


• Operating current range: 10-200A,

• Open circuit voltage: 70,

• Nominal duty cycle: 35% at 40°C,


• Efficiency: 85%,

• Power factor: 0.9,


• Protection: IP21S,


• Insulation class: F,

• Dimensions (LxWxH): approx. 260 x 140 x 110 mm,

• Weight: 2,8kg.

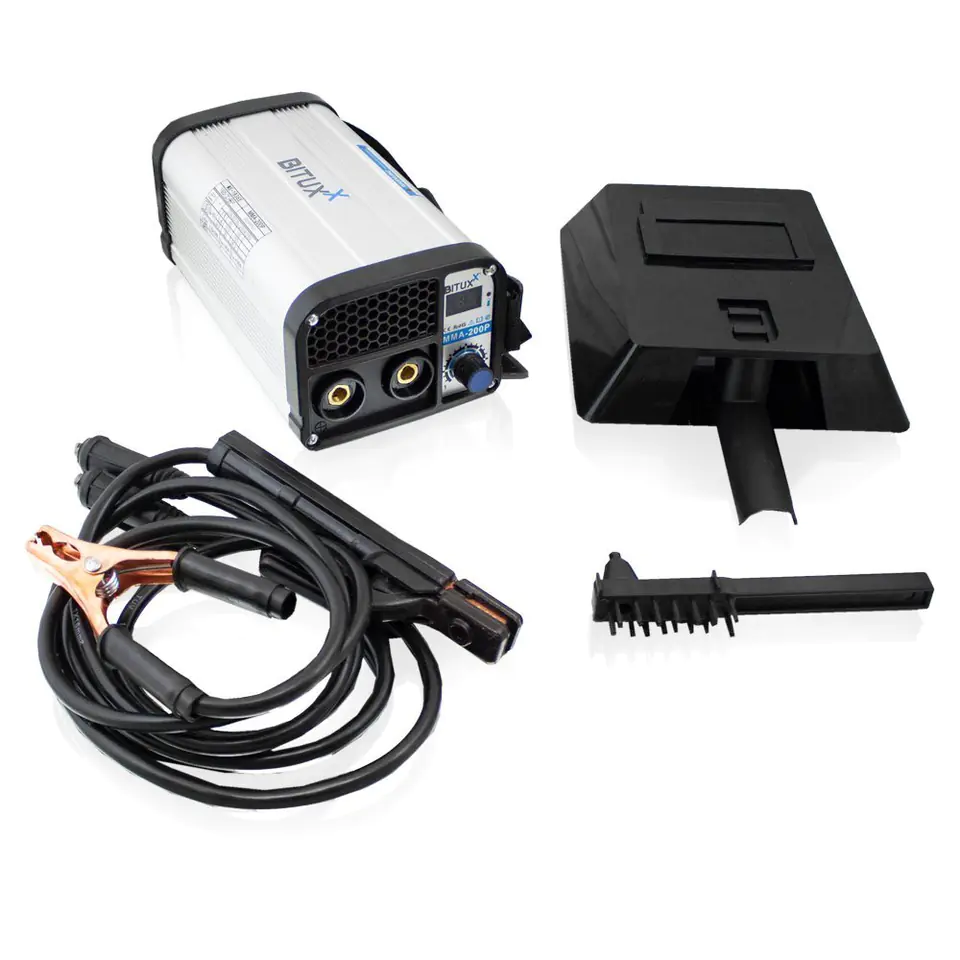

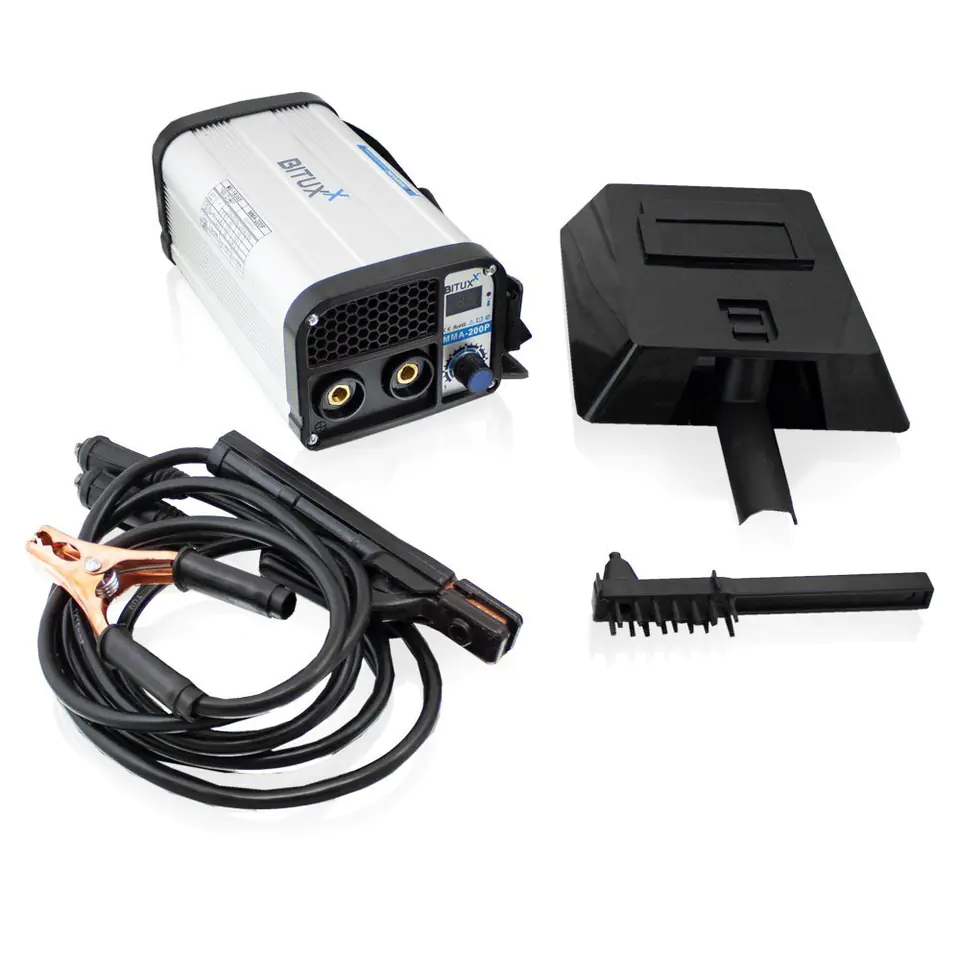

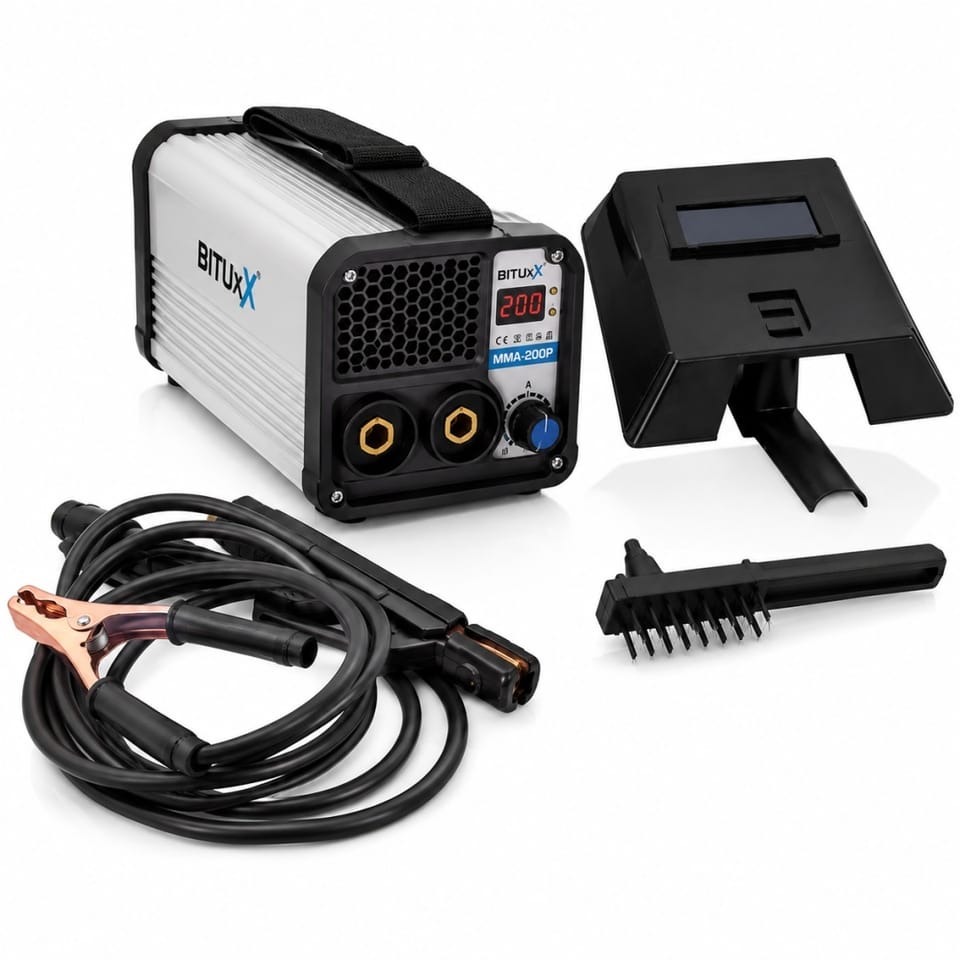

SCOPE OF DELIVERY:

• 1x inverter welding machine,

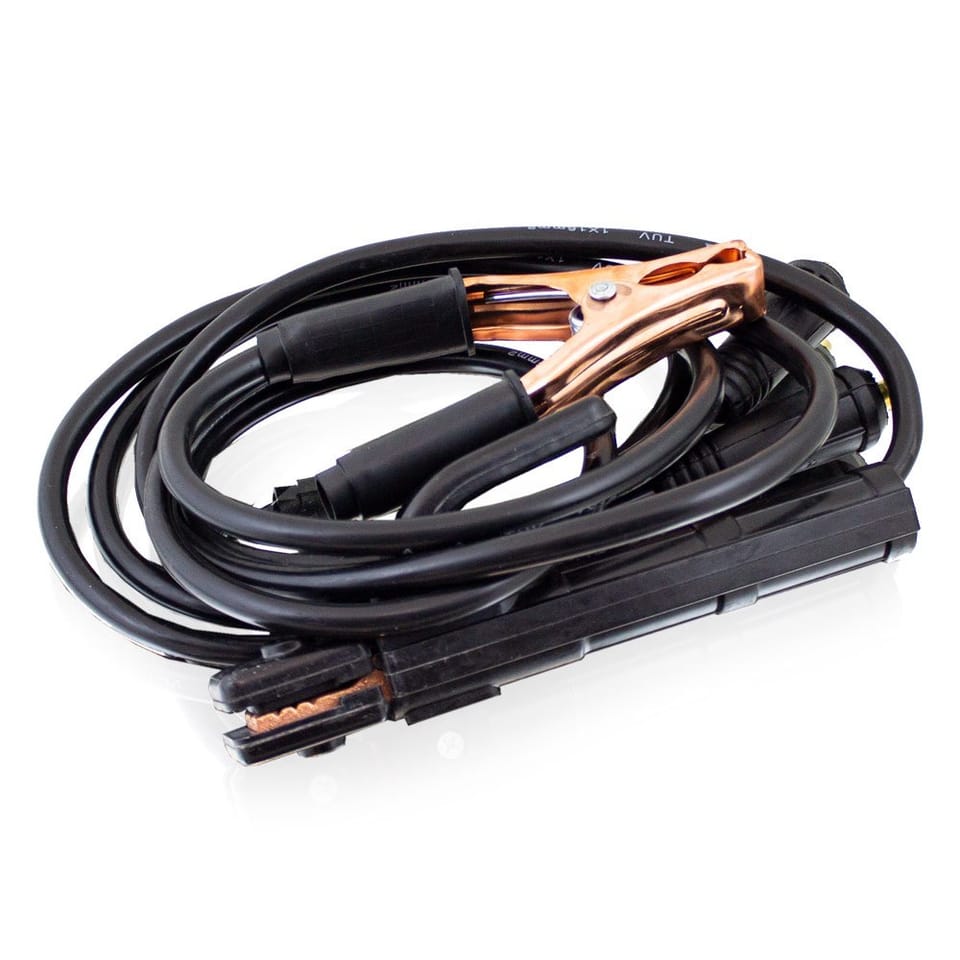

• 1x welding cable with 2m electrode holder,

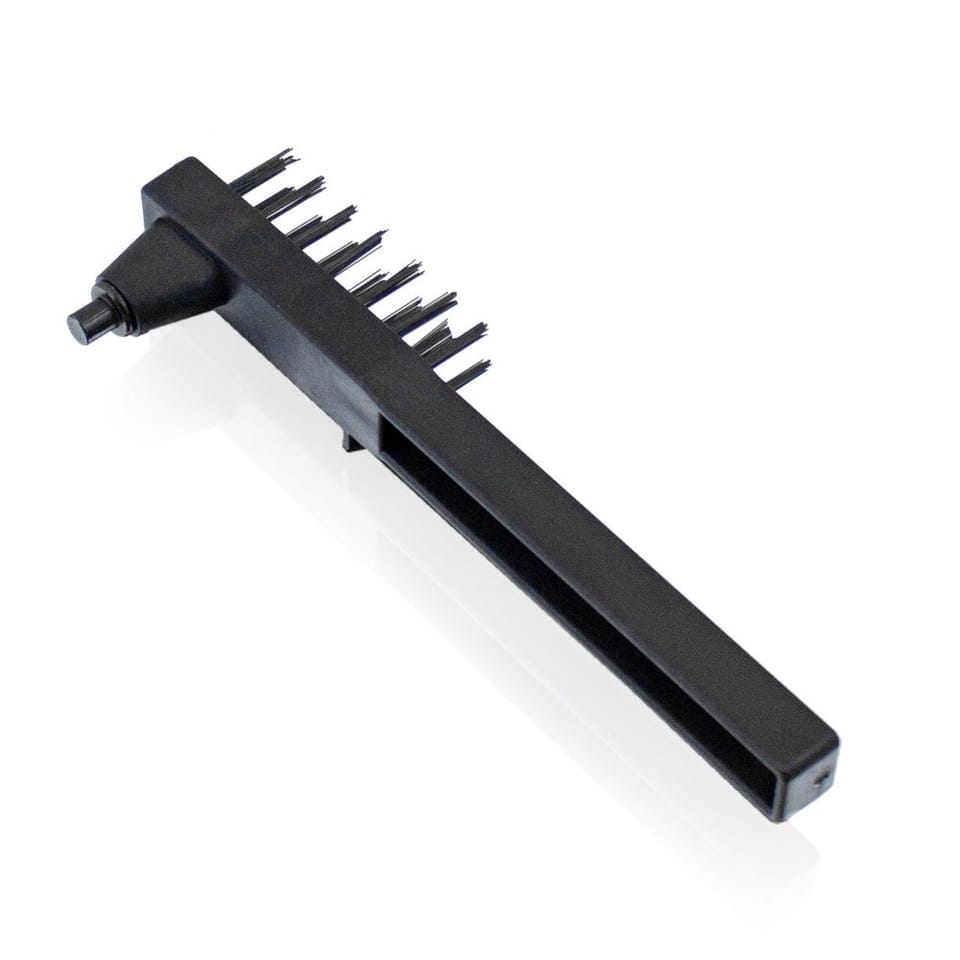

• 1x wire brush with hammer,

• 1x grounding wire with terminal 2m,

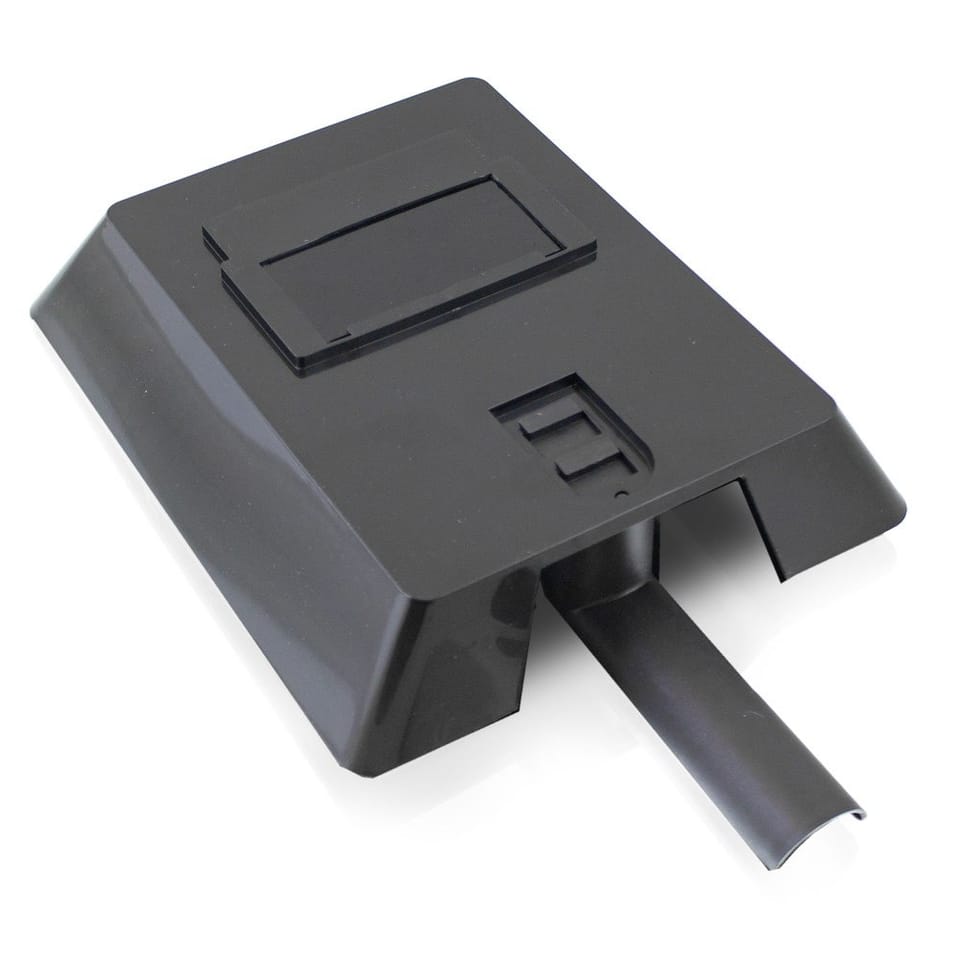

• 1x welding mask with handle.
