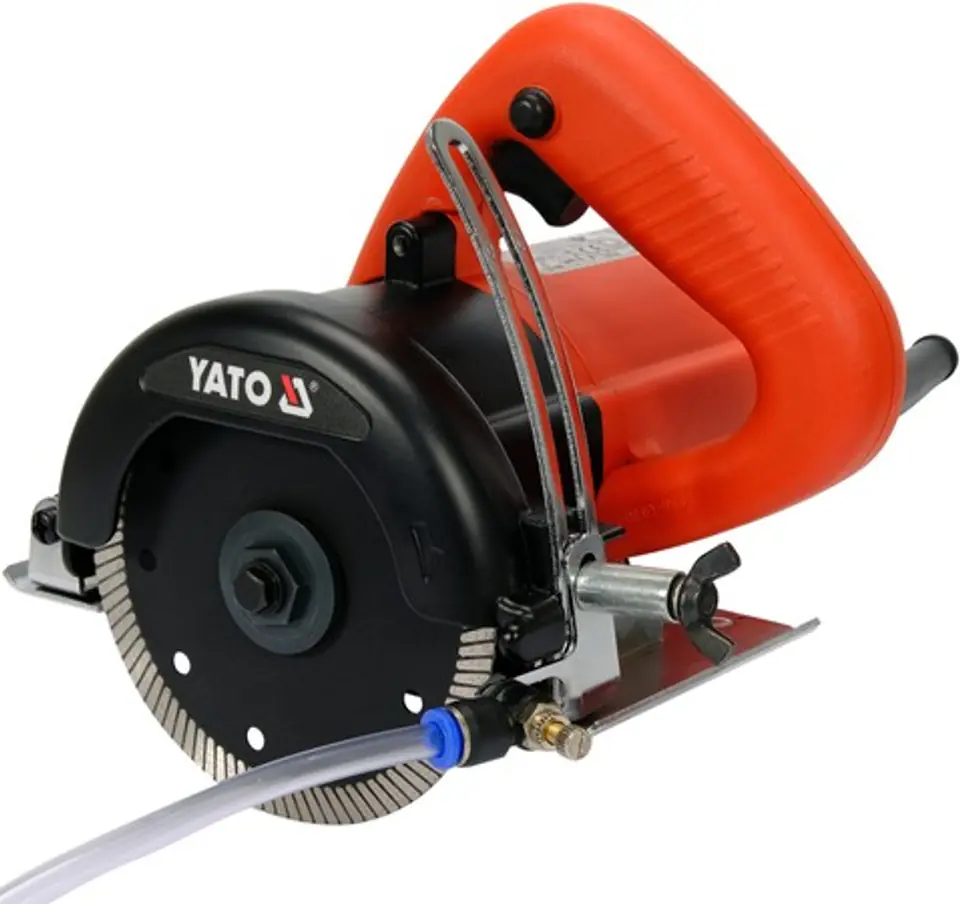

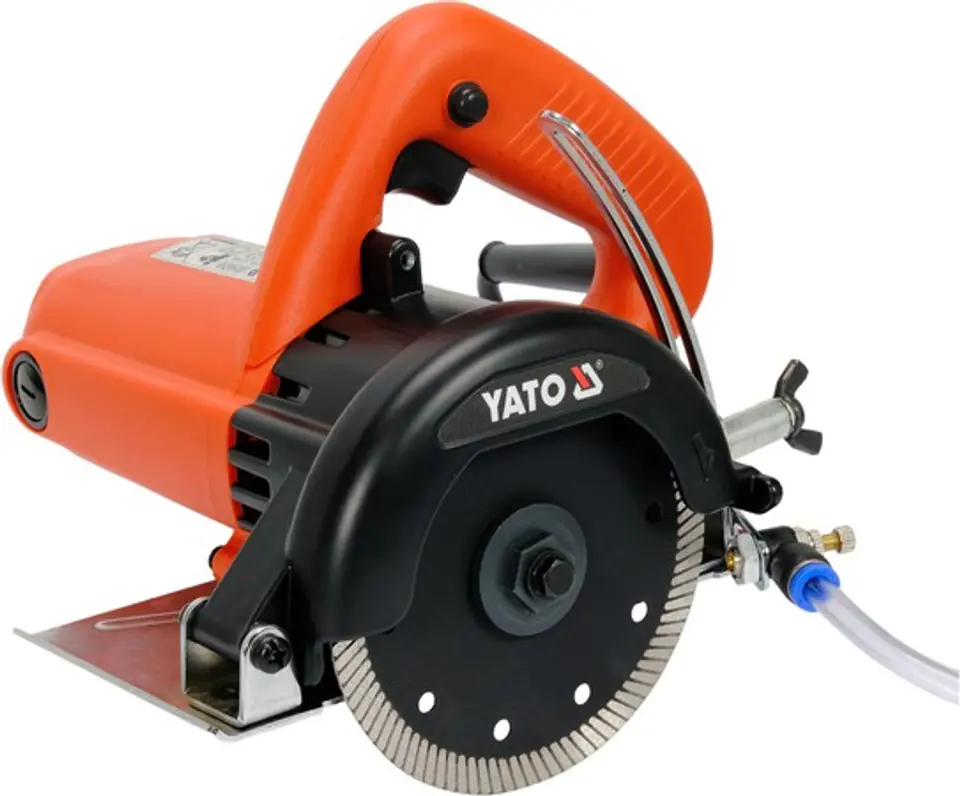

PORCELAIN TILE CUTTER 1400W, 125MM

Specifications:

Brand: Yato
Symbol: YT-82159
Series: GRE
Application: gres|natural stone|furrowing in concrete
Kit contents: cutter |cutting disc|water connection
Type of work: dry|wet
RPM: 12000 min?1
Weight: 3.29 kg
Voltage: 220-230V a.c.
Power: 1400 W
Breaker: yes|residual current
Protection class: IPX0
Frequency: 50Hz
Dial outer diameter: 125 mm
Dial inner diameter: 22.2 mm
Max. Dial thickness: 1.6 mm
Electrical insulation class: II
Sound Pressure: 102.6 ± 3.0 dB(A)
Sound power: 113.6 ± 3.0 dB(A)
Vibration: 5.753 ± 1.5 m/s2
Temperature resistance of the winding:200 °C
Spindle thread size: M8



The motor used with high power and resistance to temperature and dust, allows you to use the machine to cut also natural stone or furrow in concrete. The blade size is 125mm x 22.23, thanks to which the equipment is widely available and gives the possibility of optimal adjustment to the material being cut.

The water spray is adjustable , and its diameter fits the 18V YT-86211 hydronet, as well as garden sprayers. Thanks to this feature, there is no dust in the air, cutting is faster and less wear on the blade, in addition, the edge of the material does not get jagged.

The base plate is even and rigid which ensures easy longitudinal cutting, the machine has the ability to work with a parallel cutting guide.
The high rotational speed of 12000 rpm affects the preservation of the unjagged cutting edge.
The rotor and stator windings are copper and can withstand high temperatures up to 200°C
Good visibility of the cutting line and a secure grip guarantee machining accuracy.
The device is made of high quality materials to ensure durability during work in difficult conditions – dust, high temperature and load caused by the processing of composite porcelain tiles and granite,

Power: 1400W
Revolutions 12000 rpm
Dry/wet operation
125mm x 22.2mm blade (Turbo diamond, YT-59982 dry/wet cut)

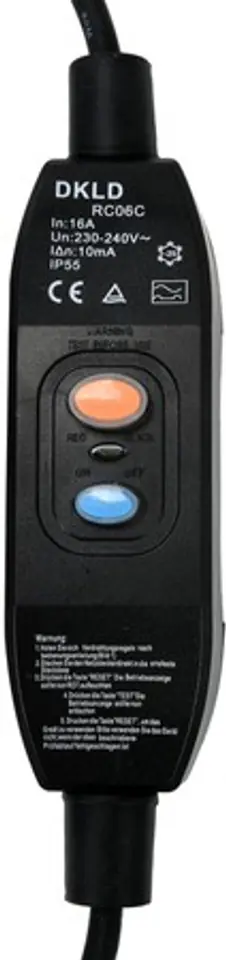

Residual current circuit breaker
Adjustable water spray
Copper rotor and stator
Motor resistance to 200 ° C
Rubber cable does not break when it is cold
Equal and rigid cutter foot
Adjustable cutting depth (max 38mm)
Disc disassembly/assembly keys included
Dust-protected switch


**
