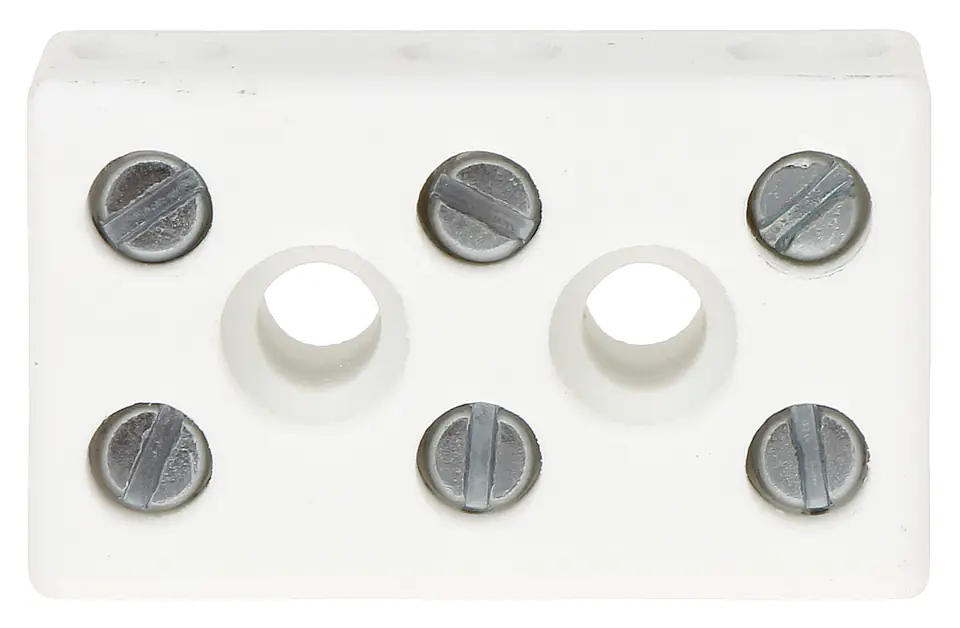

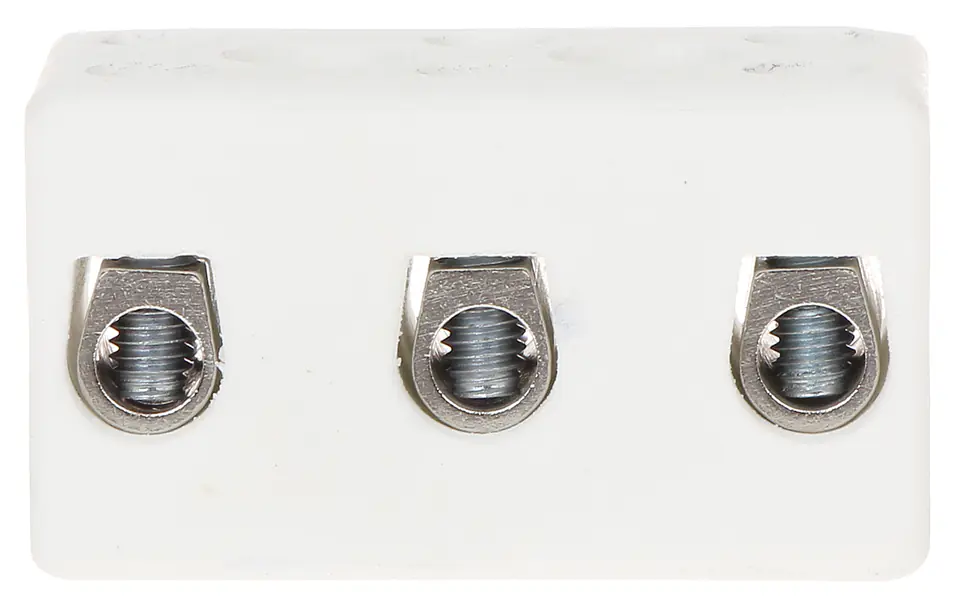

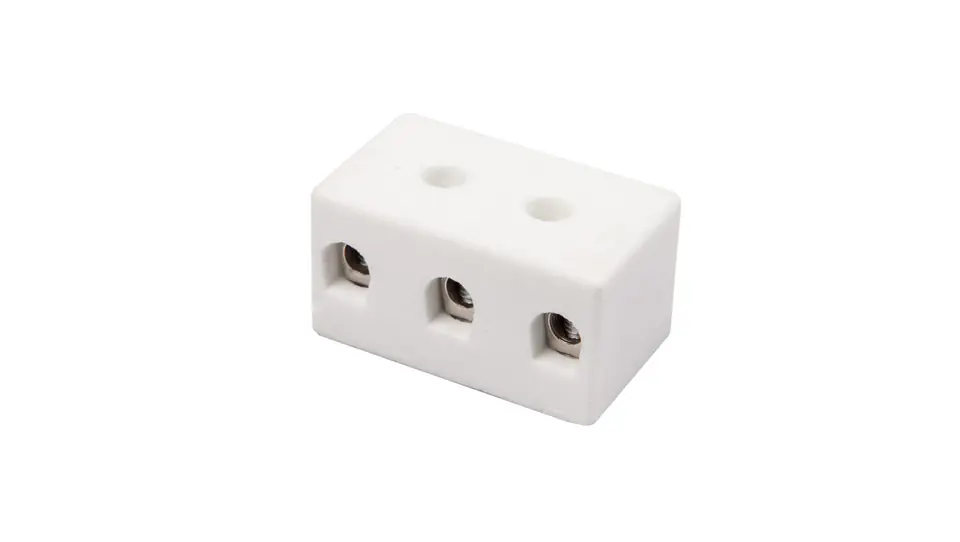

Porcelain thread fitting 10mm2 3-track white CPO-15A-3P 80723516
€3.43
Shipping from warehouse: D4
Estimated shipping: Fri, Dec 27 - Mon, Dec 30
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Simet
- Product code:
- 80723516 / 5907813217517
Share this product:
Specification
| Colour: | White |
|---|---|
| Connection position: | Side / side |
| Cross-section of the connected cable without sleeve terminal [mm2] from: | 10 |
| Cross-section of the connected cable without sleeve terminal [mm2] to: | 10 |
| Cross-section of the connected multicore cable [mm2] from: | 10 |
| Cross-section of the connected multicore cable [mm2] to: | 10 |
| Cross-section of the connected single-wire cable [mm2] from: | 10 |
| Cross-section of the connected single-wire cable [mm2] to: | 10 |
| Distance between hole axes [mm]: | 14 |
| Electrical connection type 1: | Screw connection |
| Electrical connection type 2: | Screw connection |
| Height at the lowest mounting method [mm]: | 20 |
| Length [mm]: | 21 |
| Mounting method: | Other |
| Number of poles: | 3 |
| Number of terminals per pole: | 2 |
| Operating temperature range [°c] from: | -40 |
| Operating temperature range [°c] to: | 45W |
| Rated current in [a]: | 57 |
| Rated voltage [v]: | 450 |
| Type of insulating material: | Ceramics |
| Width / size of pitch [mm]: | 36 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
