Noyafa NF-8209S LAN cable tester with advanced features

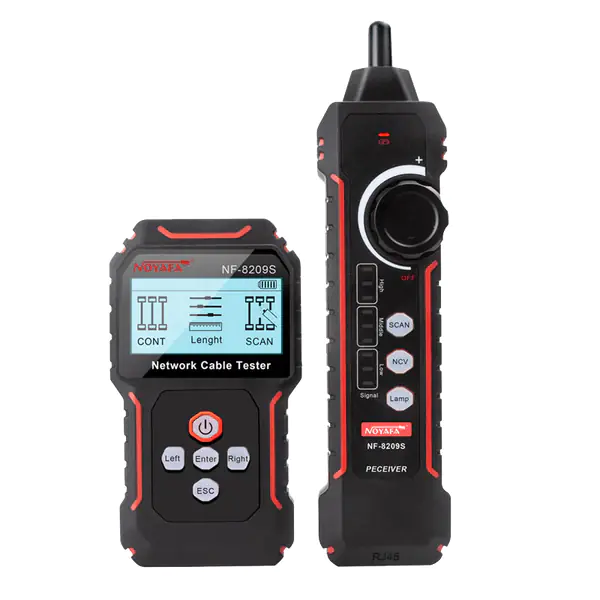

Diagnostic device for network cables with LED display. The NF-8209S is a new generation offering digital and analog signaling in a single network toner and probe. It has three . modes for cable tracking options such as digital mode, analog mode, and PoE mode. This means that it is equipped with the most powerful cable location technologies for any work environment. It also includes cable length measurement, cable fault testing, PoE testing, hub flashing, and NCV function, all of which make it an indispensable tool for wiring engineers. It tests the correctness of the connection by detecting such damage as an open, short circuit, inverted pairs. In addition, it is equipped with a signal generator and a pair finder, thanks to which it allows you to search for a specific wire in the tangle of cables. By connecting the tester to the switch, the router allows by lighting the LED at the RJ45 socket to easily identify the network termination.
- 3 cable tracking modes - digital, analog and PoE. In digital or analog mode, the tone generator sends strong, clear tones to help you find cables faster. If the cable you want to identify is connected to a PoE switch, PoE scan mode will make cable tracking more precise.

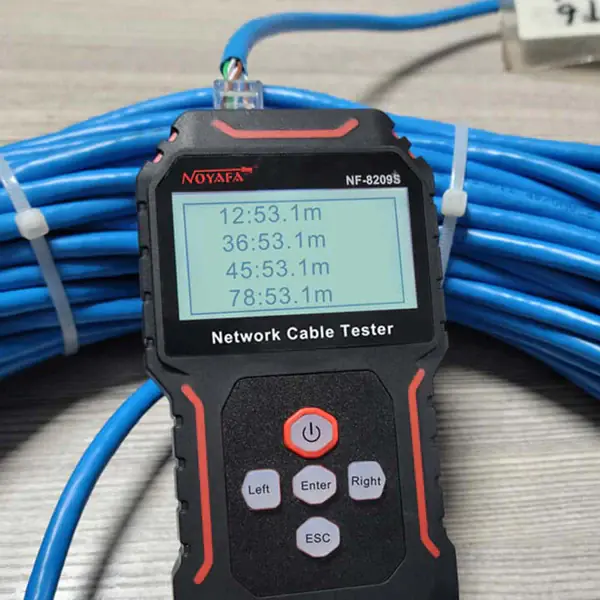

- 3 Cable testing capabilities — connection map, length, and PoE. The NF-8209 allows you to test the connection map and check 5 common connection problems, including open, short, crossed, separated and inverted pairs, measurement of LAN cable lengths in the range of 2.5 m - 500 m, testing information about PoE devices such as PoE voltage, polarity and power mode, PSE type (AF or AT standard).

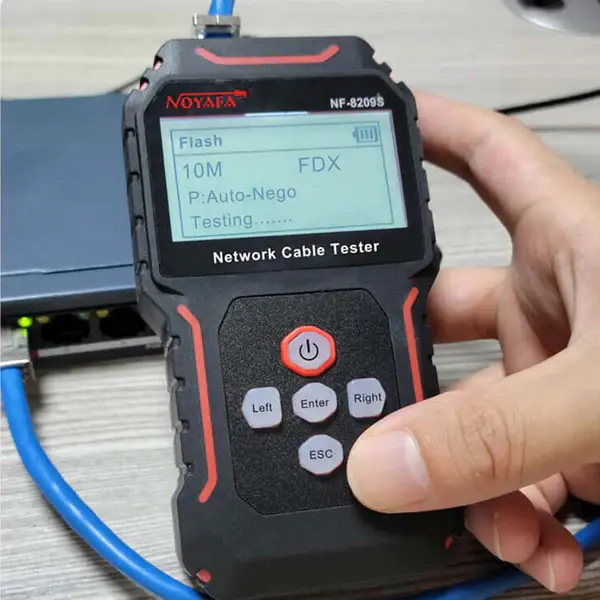

- Testing flash port and switch details. Port flashing allows you to locate network ports by flashing the port light on switches or routers and provides information about the connected switch, such as its speed, transmission mode, and protocol.
- Graphic LCD display 128x64 points. The NF-8209 cable locator is equipped with a bright and easily recognizable LCD display, which greatly simplifies its use. Any cable issues can be easily identified and tracked by looking at the tester's visual and well-lit display.

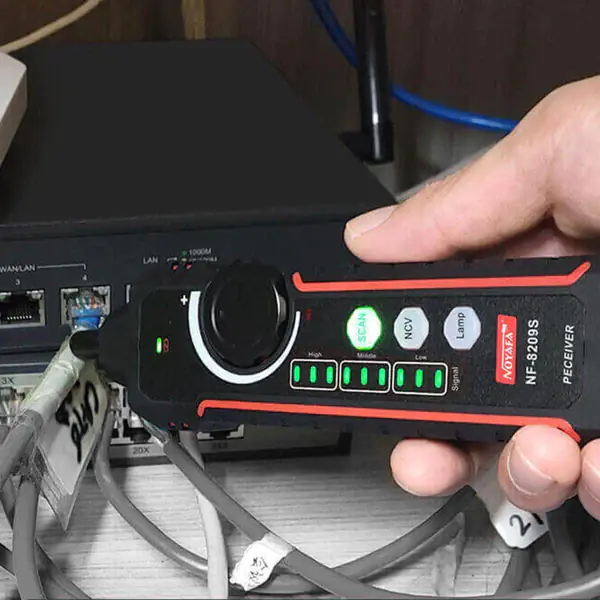

- Non-contact voltage detection (NCV). The receiver (tone probe) can be used to detect the presence of alternating voltage.
- Quickly locate target cable - Two scanning modes, analog and digital, can be switched at any time, with anti-interference probe, adjustable sensitivity, tone generator and LED light, so that the receiver can quickly and accurately locate the target cable in many different complex environments.

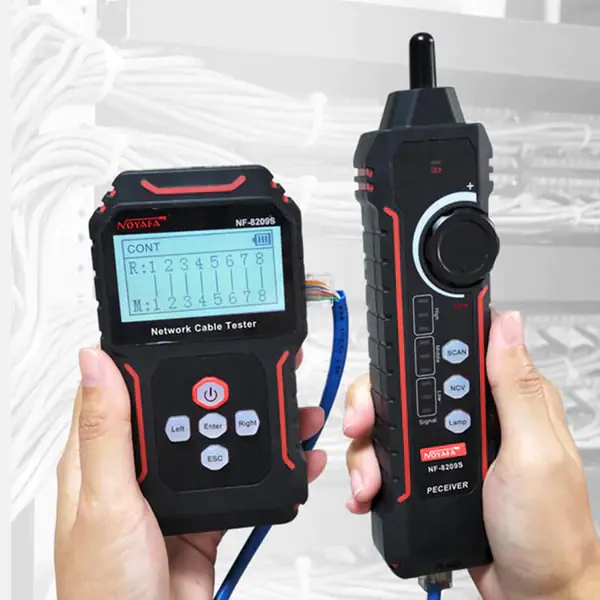

- Ethernet continuity test – analyze CAT5 CAT6 line errors (STP and UTP), such as normal, open circuit, short circuit and crossing, and see the results immediately.
- Accurately measure cable length - measure the length of a network cable from 2.5 m to 500 m.
- Port flashing test - Identify the network port using a flashing port light on the hub or switch. Available for 10M/100M/1000M hub/switch.
- PoE Testing- Identify which pins supply power and detect how much voltage, and identify which type of PSE (AT/AF standard)
- Works safely - Non-contact voltage tester (NCV) detects AC voltage (70V-1000V ) without interfering with the electrical installation, ensuring maximum safety and convenience.
- Rechargeable battery - The mains tester can be charged via USB-C cable, and the lithium battery provides long-lasting power
- Other function - Plug terminal quality control
- Model: NF-8209S
- Route map: yes
- Test range: maximum range 600 m) Clamping: determines
- response speed ≤ 1 second
- Test Type: 8 cores
- Length: yes (test range from 2 to 500 m)
- Accuracy: ±1.6 m
- Location of damage: yes
- Scanning: Yes
- Dual cable scanning mode: AC filter and non-AC filter
- Max. signal voltage: 5V+/-1.0V pp(audio file)
- Frequency: 455KHz
- Maximum range: 600m (RJ45)/ 400m (RJ11)
- POE: Yes
- Test range: DC 5~60V standard / custom PoE switch
- Power core/jumper method: end jumper/middle jumper/8-pin power supply/unknown
- PSE type: IEEE 802.3af/at,custom
- port flashing/link test: yes
- Full duplex/half-duplex recognition: yes
- Auto-negotiation/No negotiation: Yes
- Switch Type: 10M/100M/1000M
- Auto shutdown time: Yes
- Adjustable sensitivity: Yes
- Lamp: Yes
- LCD display: 128*64 Dot matrix with backlight
- Power supply: 3.7V 1400mAh lithium
- Battery voltage protection
- DC48V 5mA
- Maximum working current: <150mA
- NCV: AC 70V~1000V 50/60Hz
- Automatic power off at low power consumption: 150min /30min/60min/OFF
- Charging method: DC 5V 1A Type-C
- Operating temperature/humidity: 32~122°F (0~50°C)/90% non-condensing
- Storage temperature: 14~122°F (-10~50°C)
- Dimensions: 125mm * 70mm * 32mm
Contents
- 1x transmitter
- 1x receiver
- 1x RJ45 network cable,
- 1x RJ11 phone line
- 1x crocodile clip / RJ45
- 1x USB-C charging cable
- 1x headphones
- 1x User manual
