POE SWITCH XPOE-3-11A 3-PORT ATTE

Name: POE SWITCH XPOE-3-11A 3-PORT ATTE
Brand: ATTE
SKU: 520677
Price: 47.76 EUR
Availability: InStock

€47.76

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Thu, Nov 14 - Mon, Nov 18

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: ATTE
Product code:: XPOE-3-11A / 5902143691242

Specification

Basic switching rj-45 ethernet ports quantity:	3
Basic switching rj-45 ethernet ports type:	Fast Ethernet (10/100)
Baud::	10 / 100 Mbps : 1 LAN Port + 2 LAN & PoE Ports
Depth:	23 mm

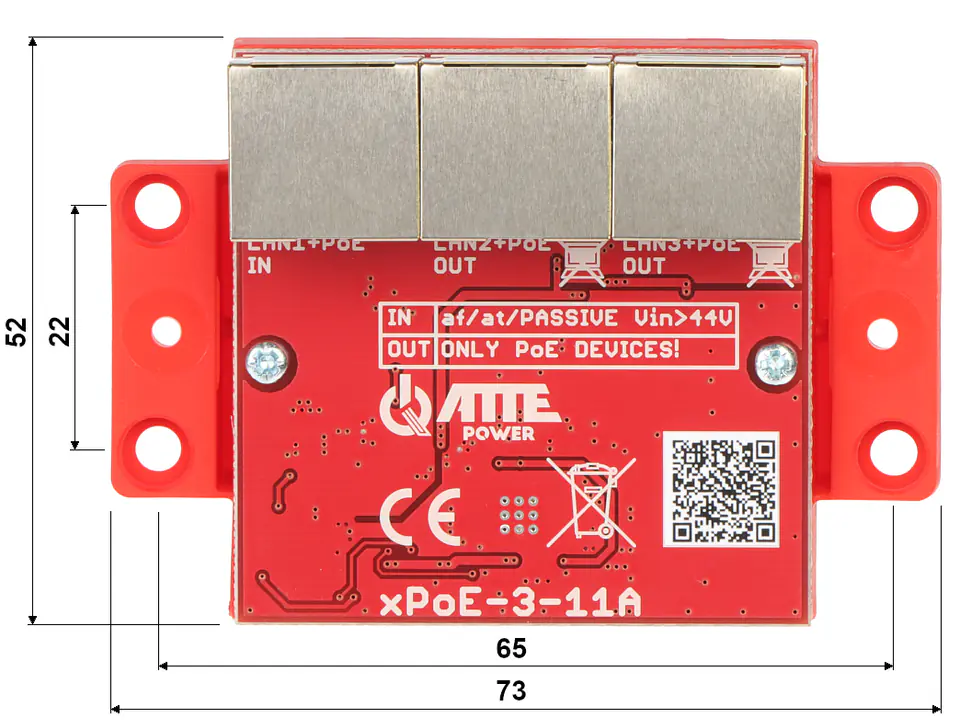

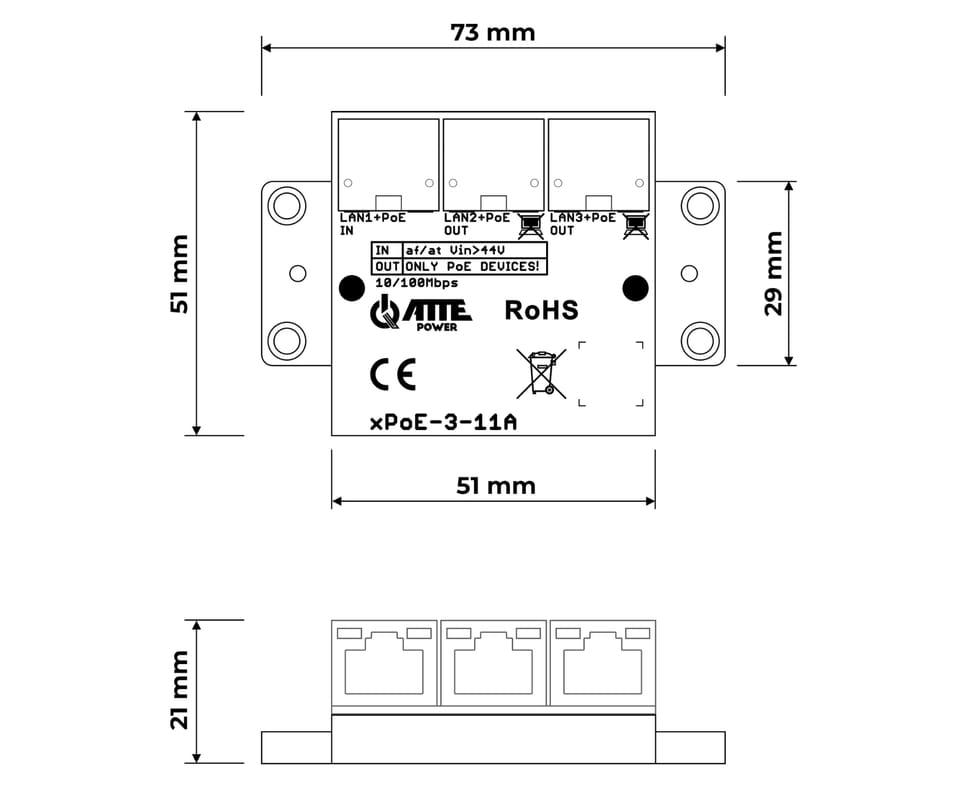

Dimensions::	51 x 51 x 23 mm
Height:	51 mm
International protection (ip) code:	IP20
Lan ports::	1 x RJ45 10/100 Base-T + Power Input : PoE (802.3af/at) / Passive PoE, 2 x RJ45 10/100 Base-T + Passive PoE
Leds::	LAN, PoE
Manufacturer / brand::	ATTE
Maximum input voltage:	56 V
Maximum output power::	50 W @ PoE port
Maximum total power::	50 watts
Mounting kit:	Yes
Mounting options:	Control or metering cabinet, TH-35 rail
Networking standards:	IEEE 802.3af, IEEE 802.3at
Number of poe out ports:	2
Number of poe-in ports:	1
Operating temperature (t-t):	-25 - 65 °C
Poe-in power consumption:	40 W
Power consumption (typical):	0.5 W
Power consumption::	< 0.5 W
Power over ethernet (poe):	Yes
Power over ethernet (poe) ports quantity:	3
Power over ethernet (poe) type supported:	Passive PoE
Power::	35 ... 56 V DC - Passive PoE @ LAN 1 44 ... 56 V - PoE (802.3af/at) @ LAN 1
Product colour:	Red
Scales::	0.04 kg

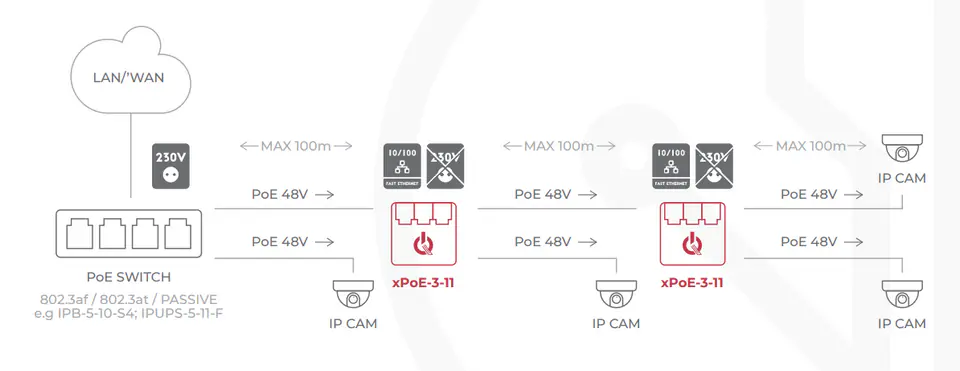

Selected features::	Switch powered by PoE in accordance with the IEEE 802.3af/at standard or via Passive PoE from ATTE devices Possibility of cascading The device can act as a LAN extender and PoE power supply The PoE output voltage is equal to the input voltage Sequential start of PoE out outputs
Warranty::	3 years
Weight:	42 g
Width:	73 mm

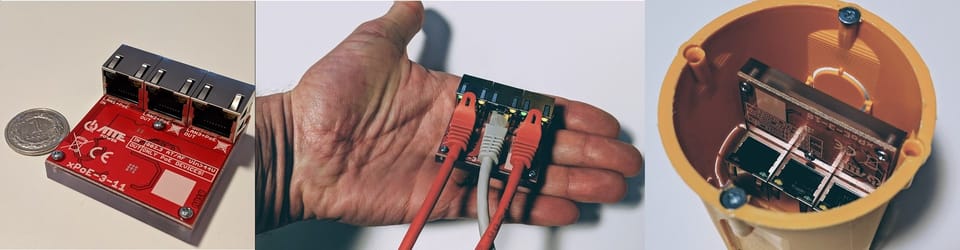

The small dimensions of the device allow for convenient installation in an electrical box or camera holderThe possibility of PoE power supply, in accordance with the 802.3at standard, makes the device even more versatile and easier to install

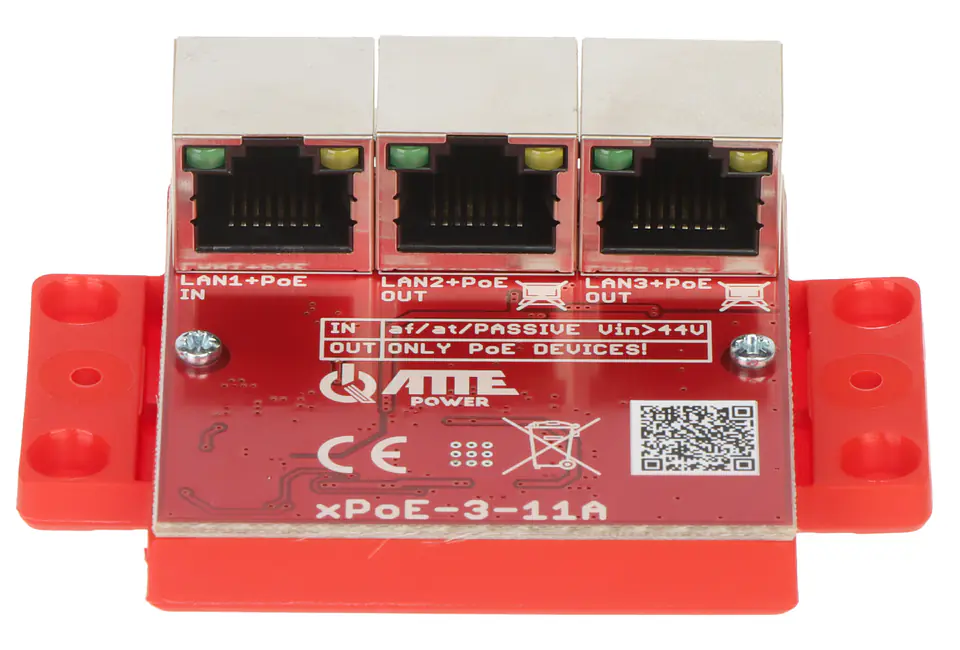

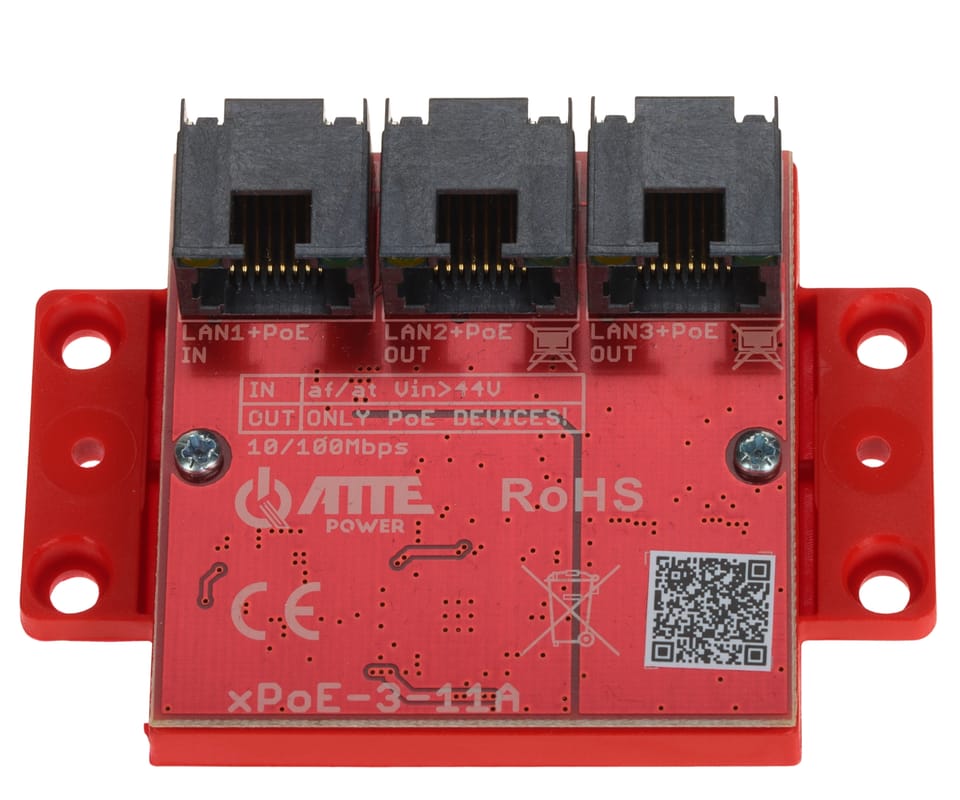

LAN port 1 acts as an Uplink port and PoE power input (standard: 802.3af, 802.3at or Passive PoE)LAN ports 2, LAN 3 allow you to power connected devices via Passive PoE

Remark! In order to power PoE 802.3af/at compliant devices, the input voltage must not be lower than 44V DCFor LAN 2, LAN 3 ports, do not connect devices that are not powered by PoE

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
