| Baud: | 10 / 100 / 1000 Mbps : 2 x Uplink Port, 10 / 100 Mbps : 8 x LAN & PoE Port |
|---|---|
| Dimensions: | 455 x 405 x 150 mm |
| Lan ports: | 2 x RJ45 10/100/1000 Base-T - Uplink, 8 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE |
| Leds: | AC, DC, CHARGING, PoE, Gigabit Ethernet |
| Maximum output power: | 40 W @ Passive PoE - LAN1 Ports... LAN8, 30 W @ PoE (802.3af/at) - LAN1 ports ... LAN8 |
| Maximum total power: | 60 watts (Printing) |
| Operating modes: | Standard : 100 m @ 10/100 Mbps - LAN1 ports ... LAN8 |
| Power: | 190 ... 260 VAC |
| Producer / brand: | ATTE |
| Scales: | 4.40 kg |

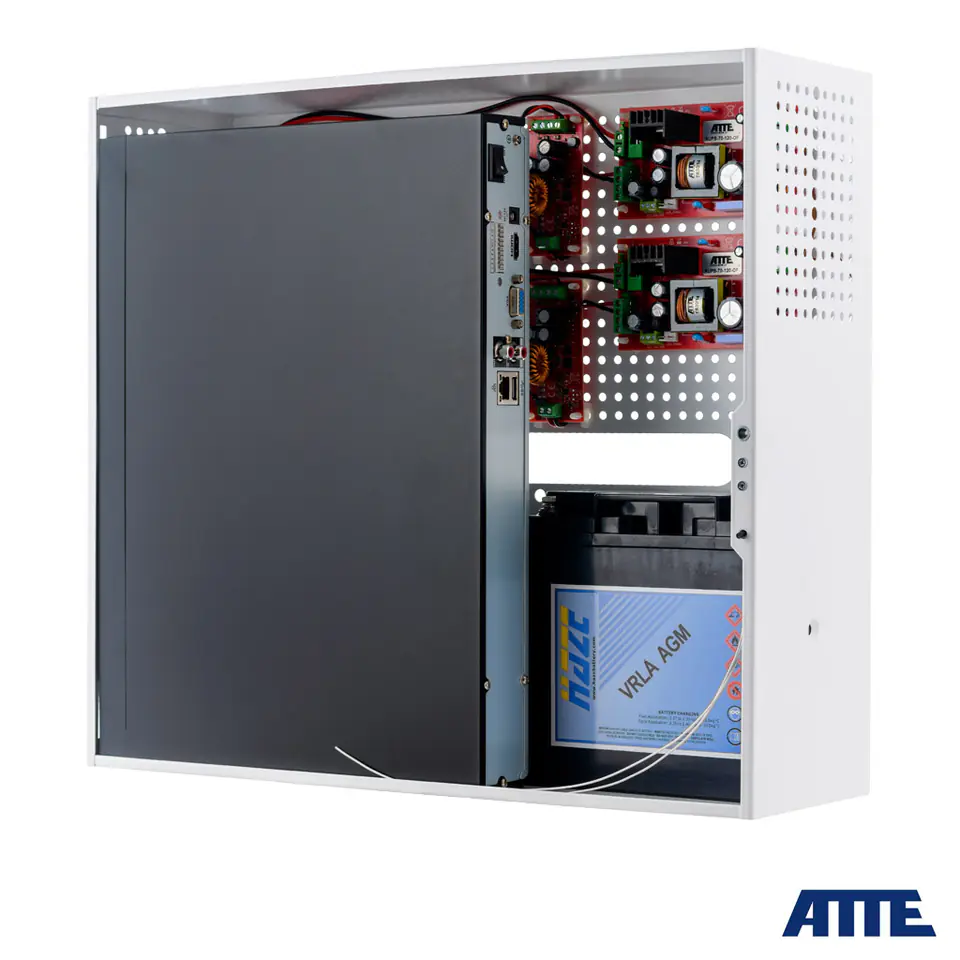

| Selected features: | 4K UHD Support Ability to independently turn PoE power on and off for each of the LAN ports 1 ... LAN 8 Modular design streamlines service tasks and enables quick, easy system expansion Raster module mounting system makes it easy to expand the device with more modules 2 x Space for battery : 12 V / 18 Ah Place for recorder (NVR) Battery charging current: 1 A / 2 A - (set by jumper JP1) Battery - Protection against reverse polarity connection, Deep discharge protection of the battery OC type technical outputs signaling fading voltage at the output of the power supply (OUF) and loss of voltage in the 230V network (ACF) Thermal protection of the power supply: 130 °C Overload protection LAN & PoE ports - Short-circuit protection, Surge protector Switch indicating the opening of the TAMPER enclosure Protection class: IP20 |
| Warranty: | 3 years |
8-Port PoE switch in Buffer Power Supply Enclosure8 ports supports Power over Ethernet (PoE)

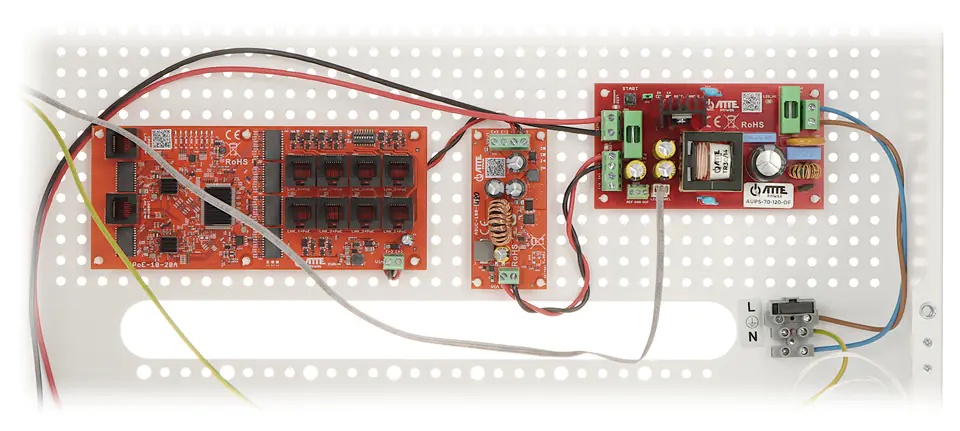

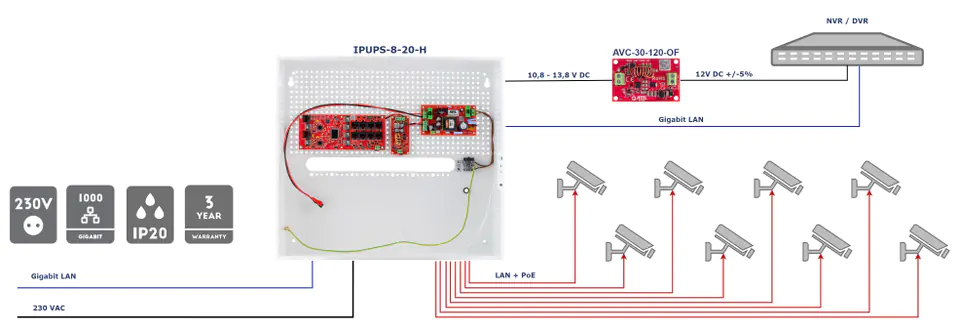

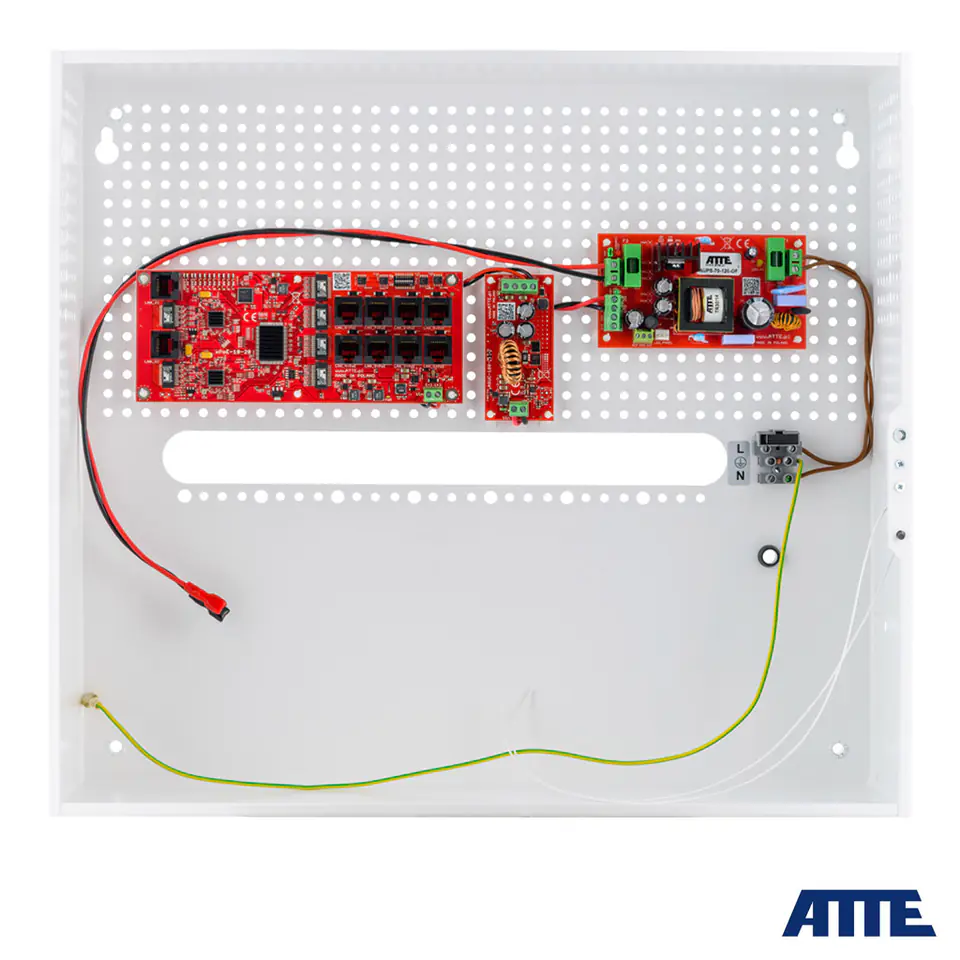

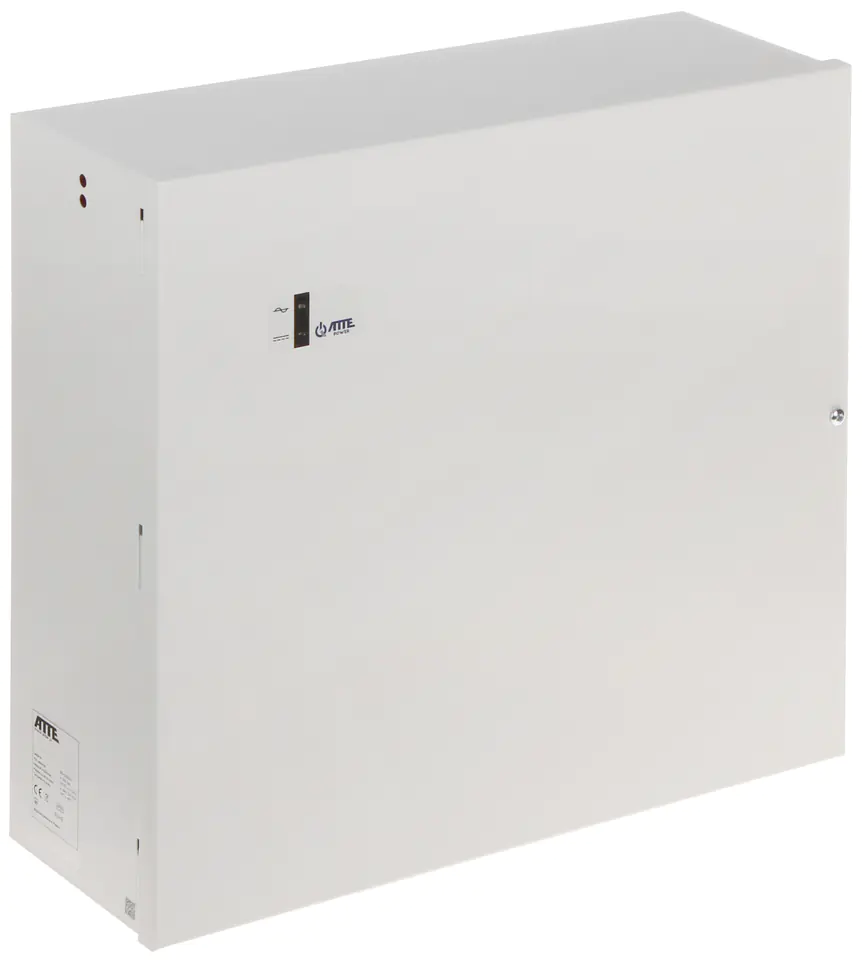

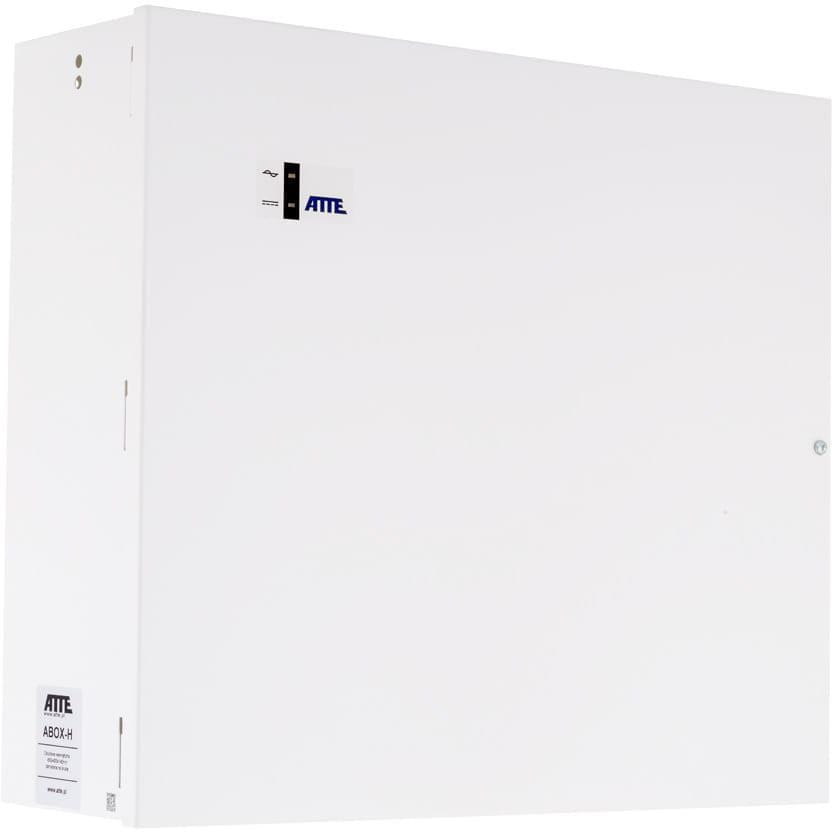

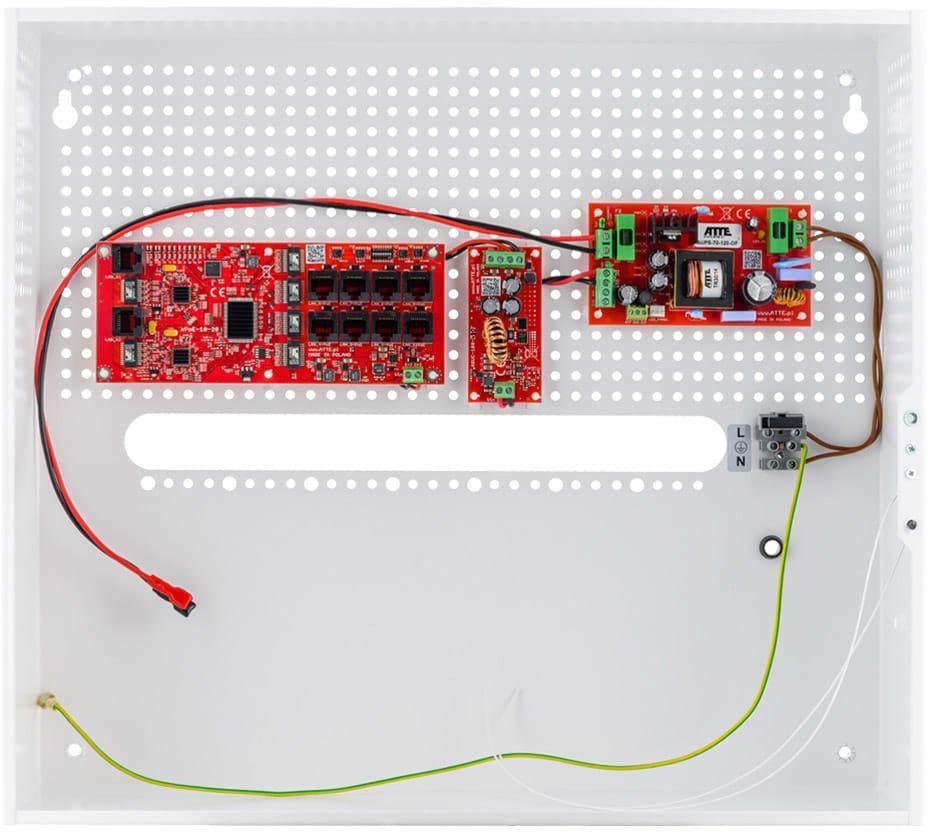

The IPUPS-8-20-H set consists of the XPOE-10-20A-OF switch module, the AUPS-70-120-OF buffer power supply module and the ASUC-100-480-OF voltage converter module enclosed in an ABOX-H internal housing with space for 2 18Ah batteriesBuffer power supplies are designed to work with maintenance-free batteries (gel or AGM) with a nominal voltage of 12V
