| Baud: | 10 / 100 Mbps : 1 x Uplink Port, 10 / 100 Mbps : 5 x LAN & PoE Port |
|---|---|
| Dimensions: | 325 x 305 x 100 mm |
| Lan ports: | 1 x RJ45 10/100 Base-T - Uplink, 5 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE |
| Leds: | AC, DC, CHARGING, PoE |
| Maximum output power: | 40 W @ Passive PoE - LAN1 Ports... LAN4, 60 W @ Passive PoE - LAN5 port, 30 W @ PoE (802.3af/at) - LAN1 ports ... LAN5 |
| Maximum total power: | 60 watts (Printing) |
| Operating modes: | Standard : 100 m @ 10/100 Mbps - LAN1 ports ... LAN6 Long Range: 280 m @ 10 Mbps - LAN1 ports ... LAN4 ; 100 m @ 10/100 Mbps - LAN5, LAN6 ports |
| Power: | 190 ... 260 VAC |
| Producer / brand: | ATTE |
| Scales: | 2.4 kg |
| Selected features: | Ability to independently turn PoE power on and off for each of the LAN ports 1 ... LAN 5 Modular design streamlines service tasks and enables quick, easy system expansion Raster module mounting system makes it easy to expand the device with more modules Battery space : 12 V / 18 Ah Battery charging current : 1 A / 2 A - (set by jumper JP1) Battery - Protection against reverse polarity connection, Deep discharge protection of the battery OC type technical outputs signaling power loss at the output of the power supply (OUF) and voltage loss in the 230V network (ACF) Thermal protection of the power supply: 130 °C Overload protection LAN & PoE ports - Short-circuit protection, Surge protector Switch indicating the opening of the TAMPER enclosure Protection class: IP20 |
| Warranty: | 3 years |

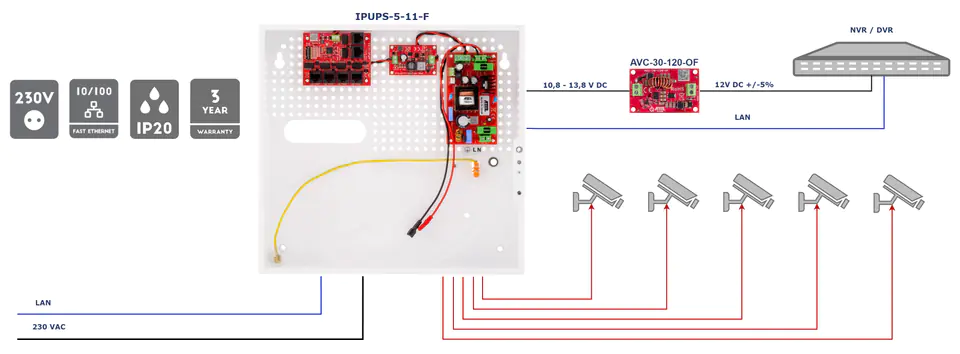

5-Port PoE switch in Buffer Power Supply Enclosure5 ports supports Power over Ethernet (PoE)

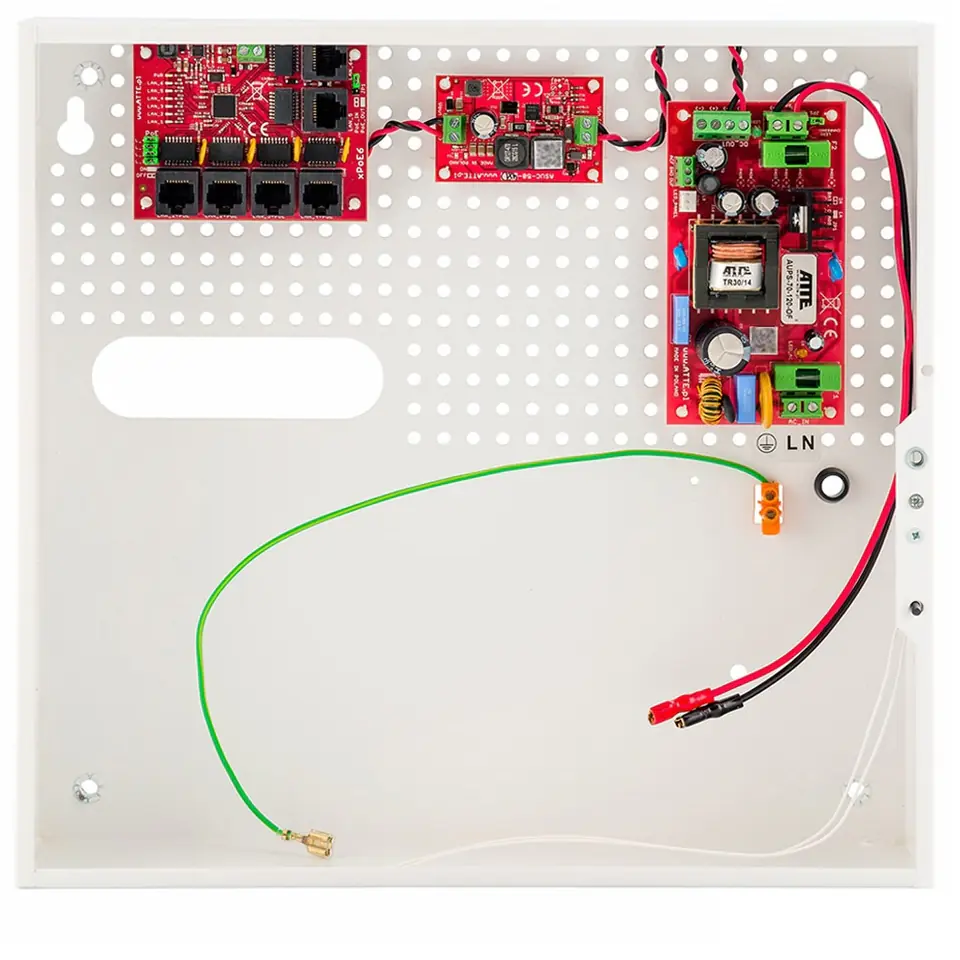

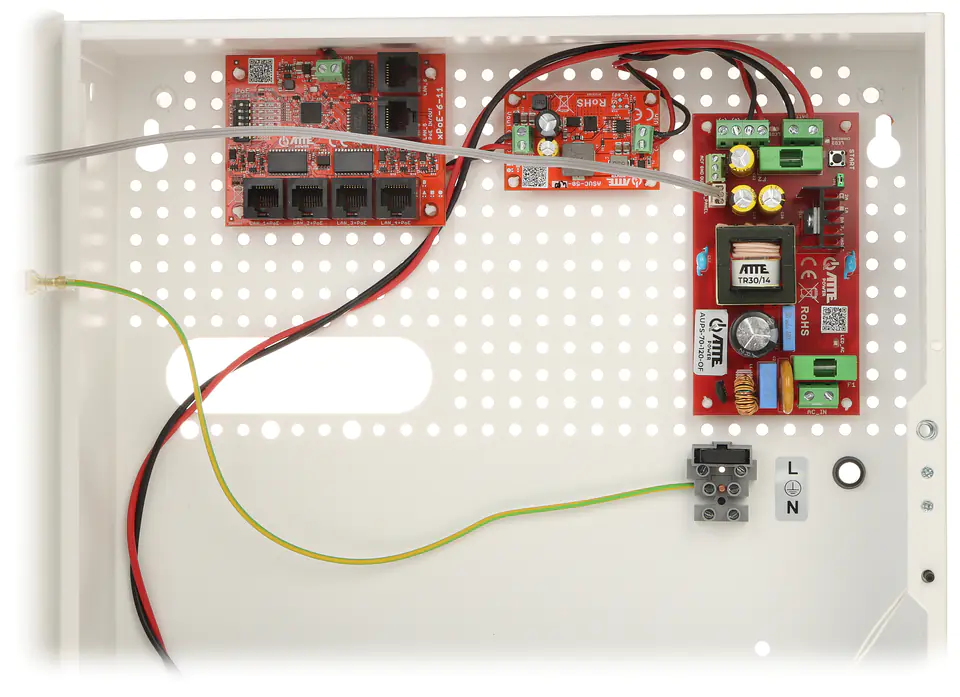

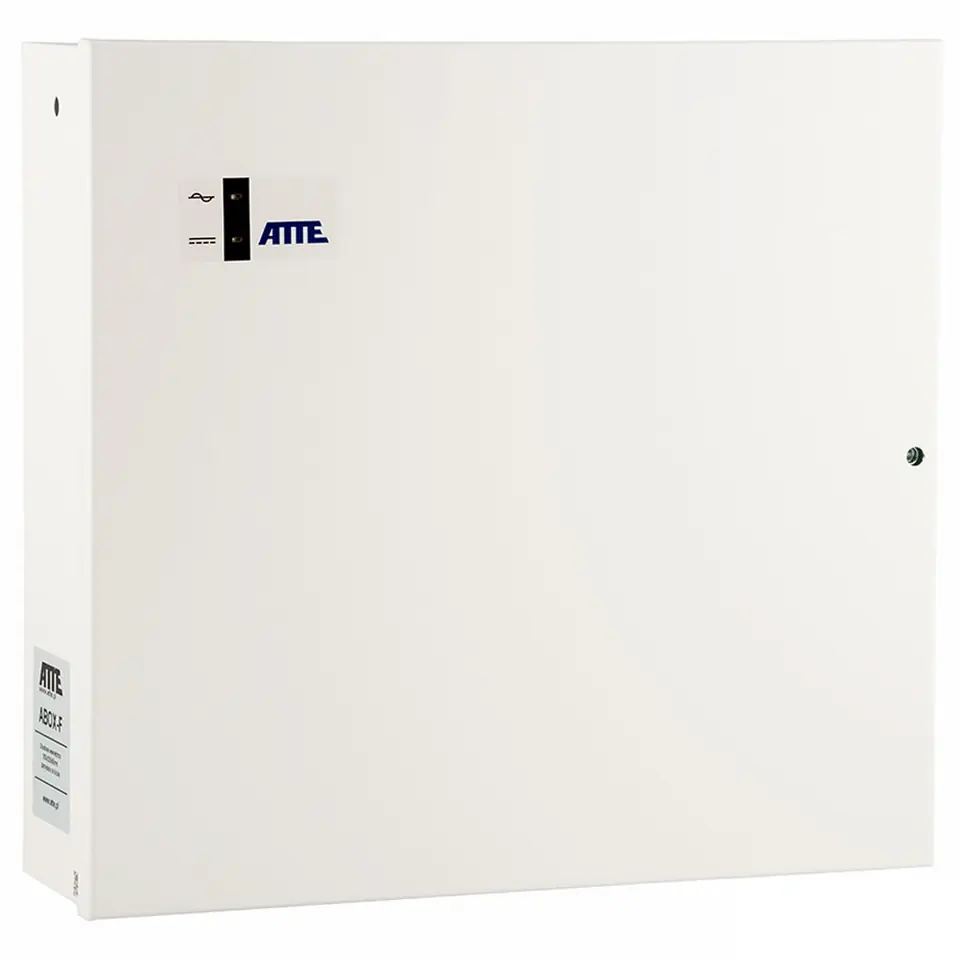

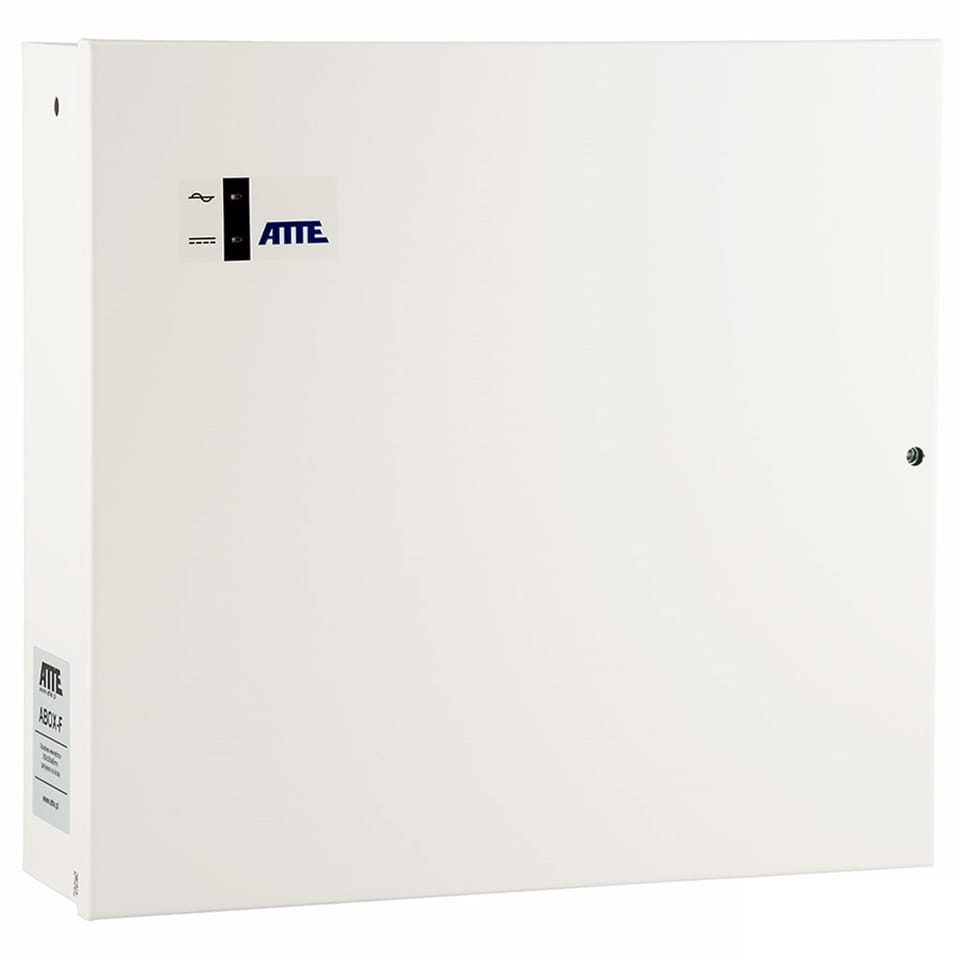

The IPUPS-5-11-F set consists of the XPOE-6-11-OF switch module, the AUPS-70-120-OF buffer power supply module and the ASUC-50-480-OF voltage converter module enclosed in an ABOX-F internal housing with space for a 18Ah batteryBuffer power supplies are designed to work with maintenance-free batteries (gel or AGM) with a nominal voltage of 12V
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
