| Baud: | 10 / 100 / 1000 Mbps : 2 x 10 / 100 Mbps Uplink port : 16 x LAN & PoE port |
|---|---|
| Dimensions: | 455 x 405 x 150 mm |
| Lan ports: | 2 x RJ45 10/100/1000 Base-T - Uplink 16 x RJ45 10/100 Base-T, PoE 802.3af/at / Passive PoE |
| Leds: | 2 x 230V AC IN, 2 x 12V DC OUT, 2 x 48V DC OUT, 2 x CHARGING, 20 x LAN, 4 x Gigabit Ethernet |
| Maximum output power: | 40 W @ Passive PoE - LAN & PoE ports, 30 W @ PoE (802.3af/at) - LAN & PoE ports |
| Maximum total power: | 130 watts (Printing) |
| Power: | 230 VAC |
| Producer / brand: | ATTE |
| Scales: | 4.7 kg |
| Selected features: | Ability to independently turn PoE power on and off for each of the LAN ports 1 ... LAN 8 Modular design streamlines service tasks and enables quick, easy system expansion Raster module mounting system makes it easy to expand the device with more modules 2 x Space for battery : 12 V / 18 Ah Battery charging current : 1 A / 2 A - (set by jumper JP1) OC type technical outputs signaling voltage loss at the output of the power supply (OUF) and loss of voltage in the 230V network (ACF) Deep battery discharge protection Thermal protection Power supply: 130 °C Switch indicating opening of the TAMPER enclosure |
| Warranty: | 2 years |
16-Port Internal PoE switch with Buffer Power Supply16 ports supports Power over Ethernet (PoE)

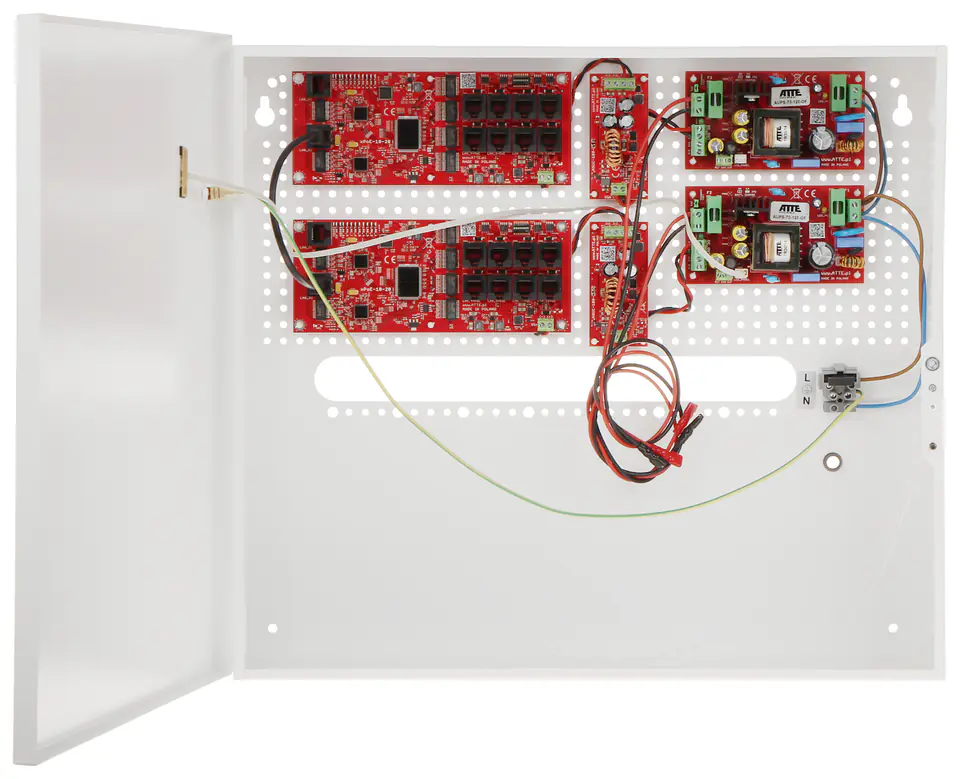

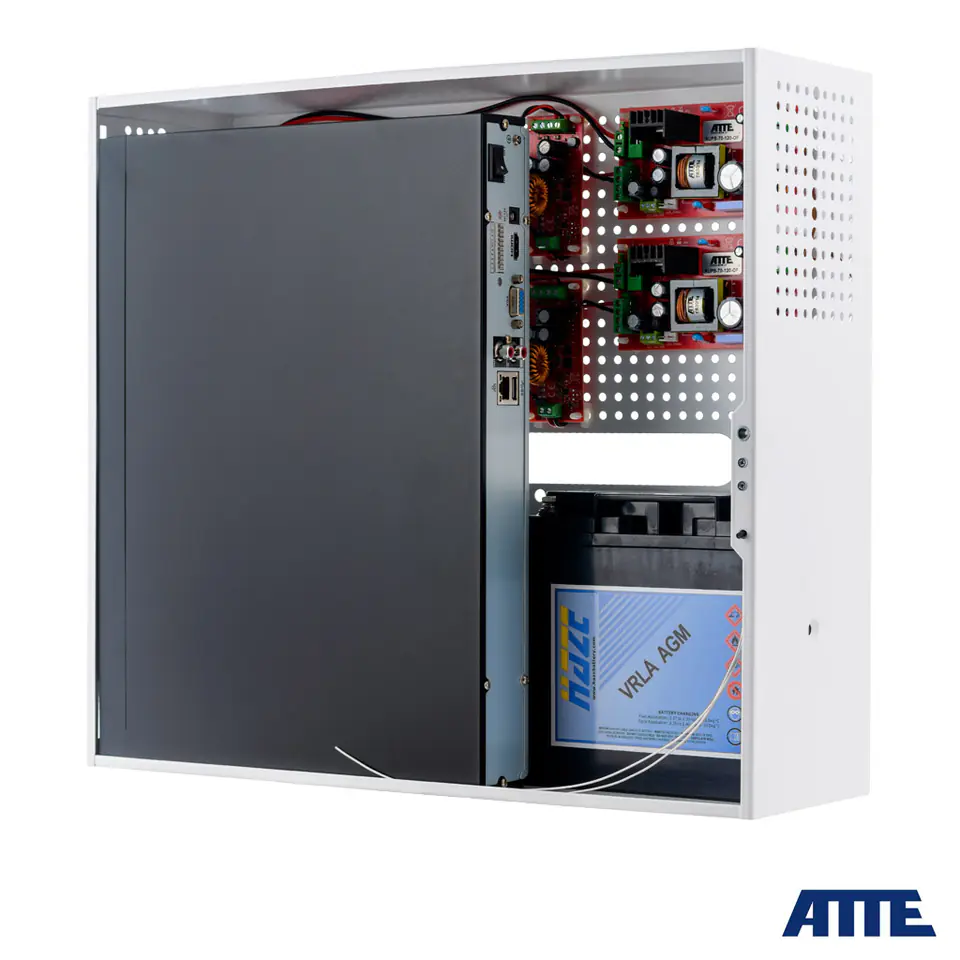

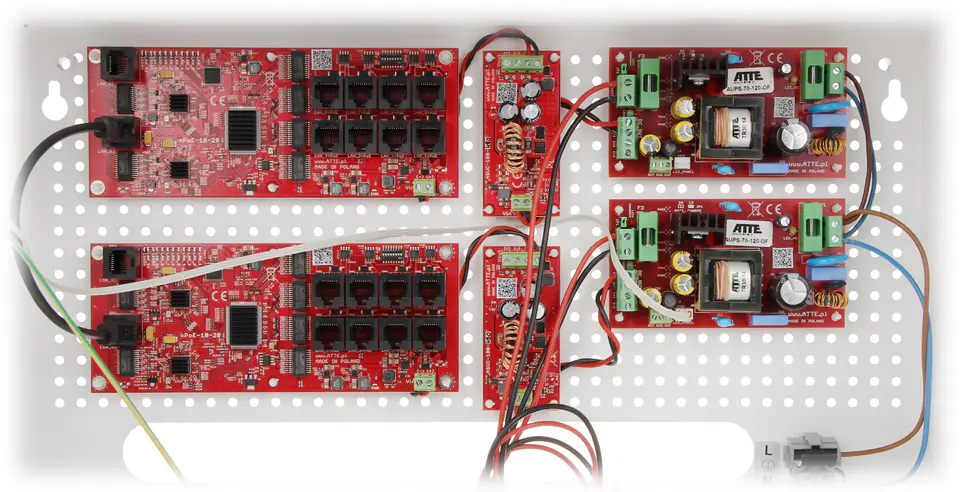

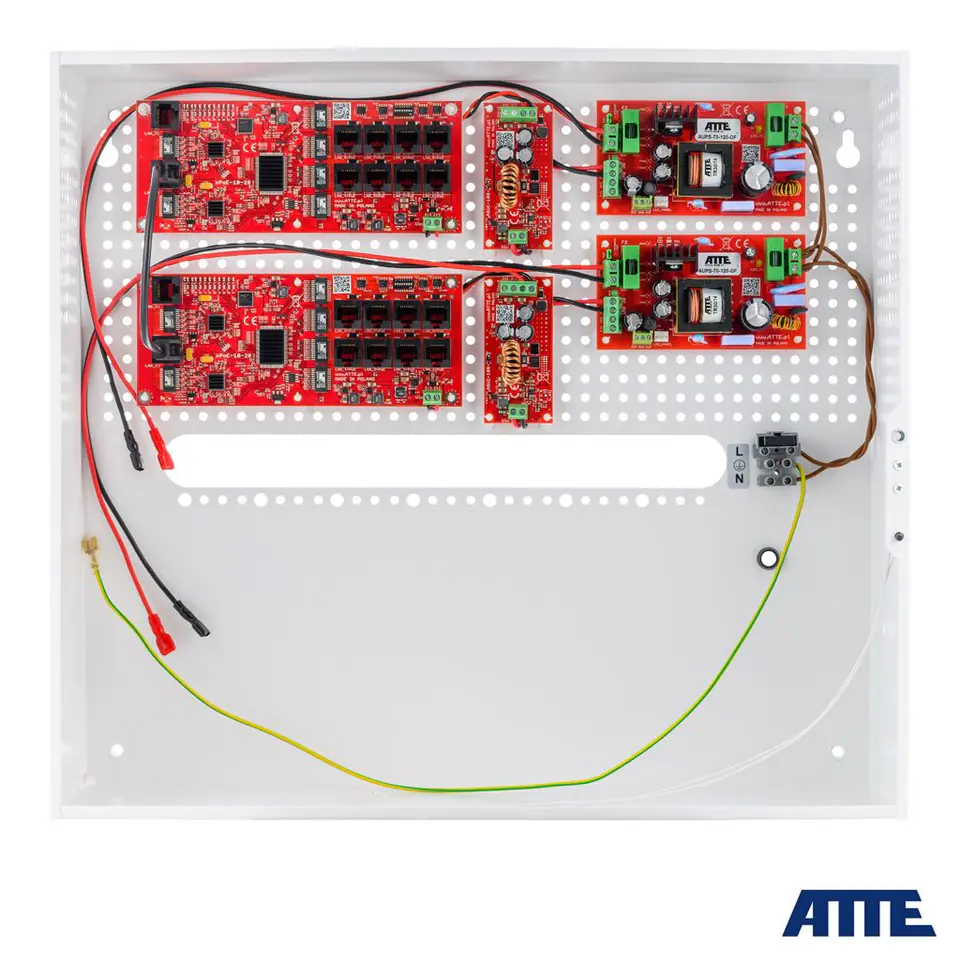

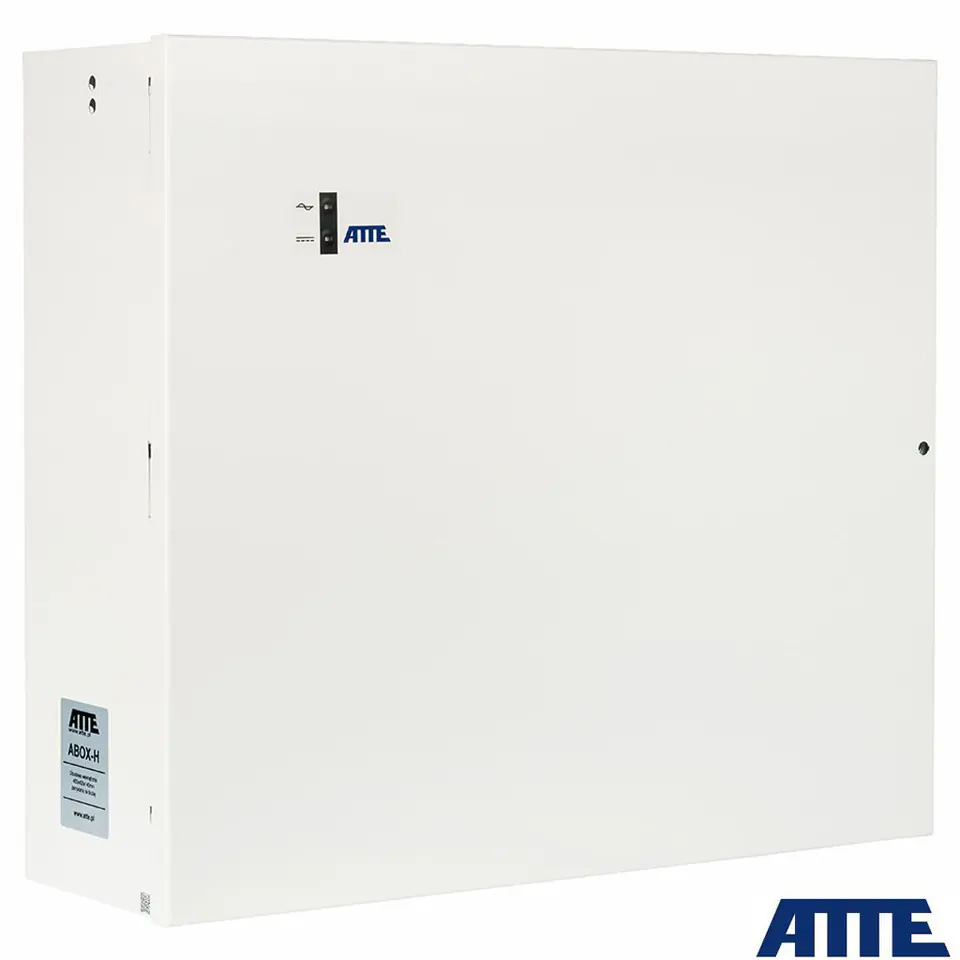

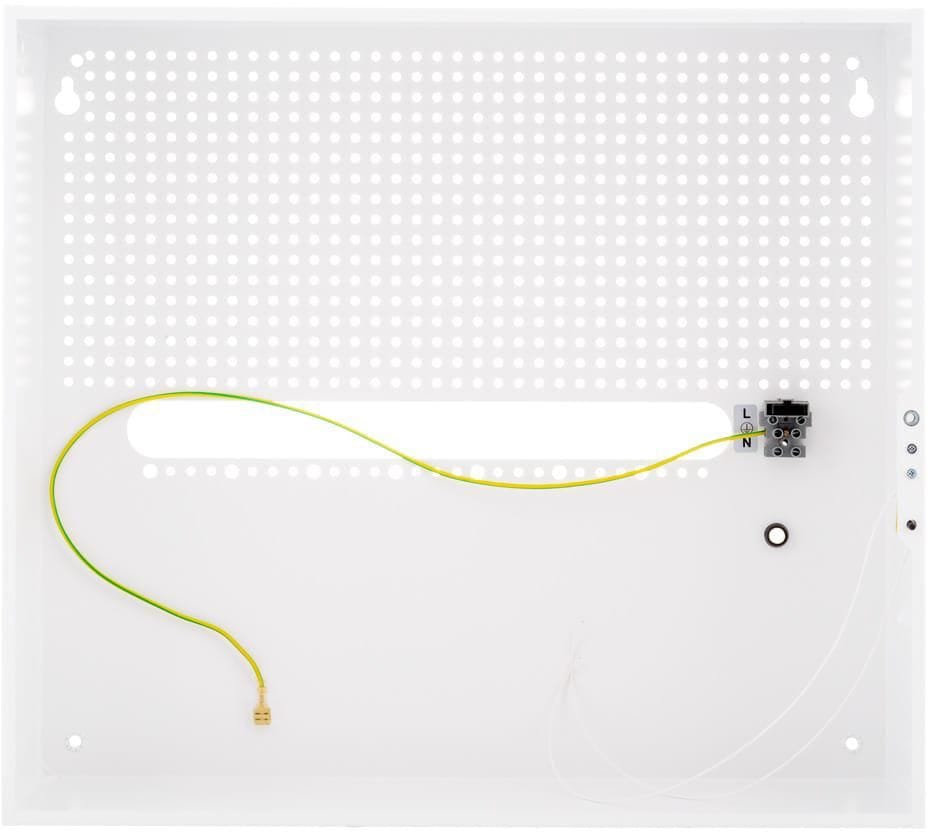

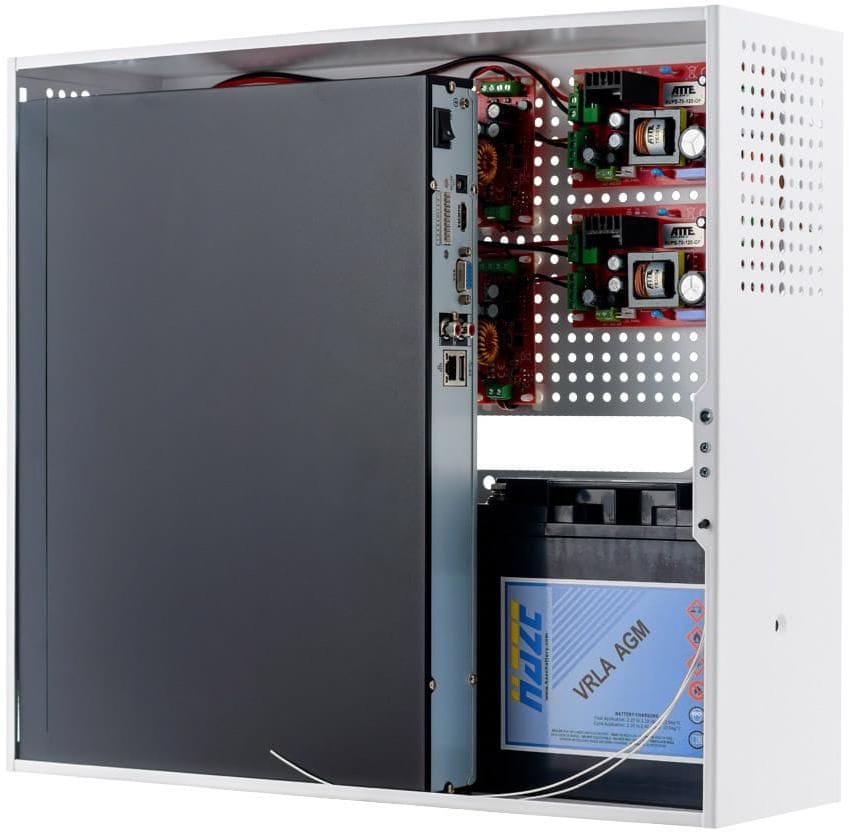

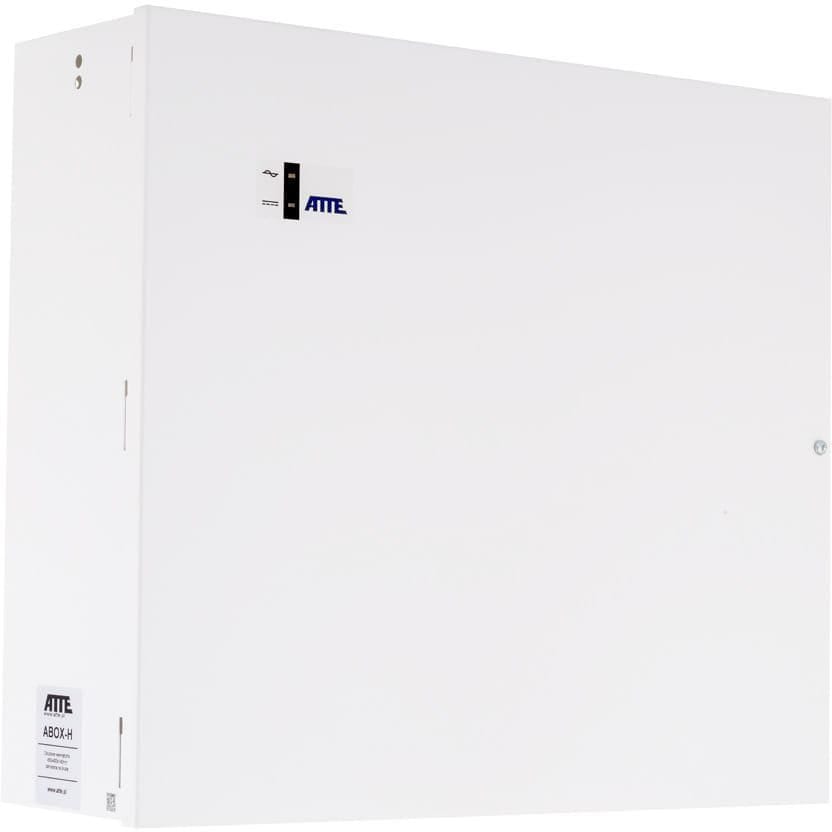

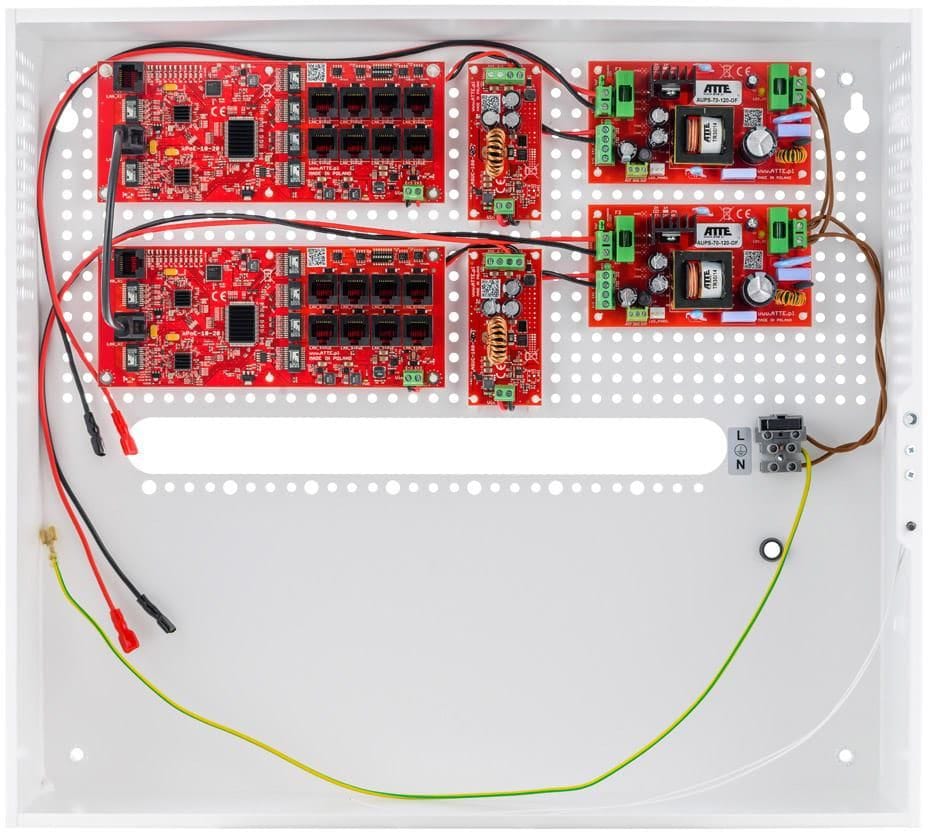

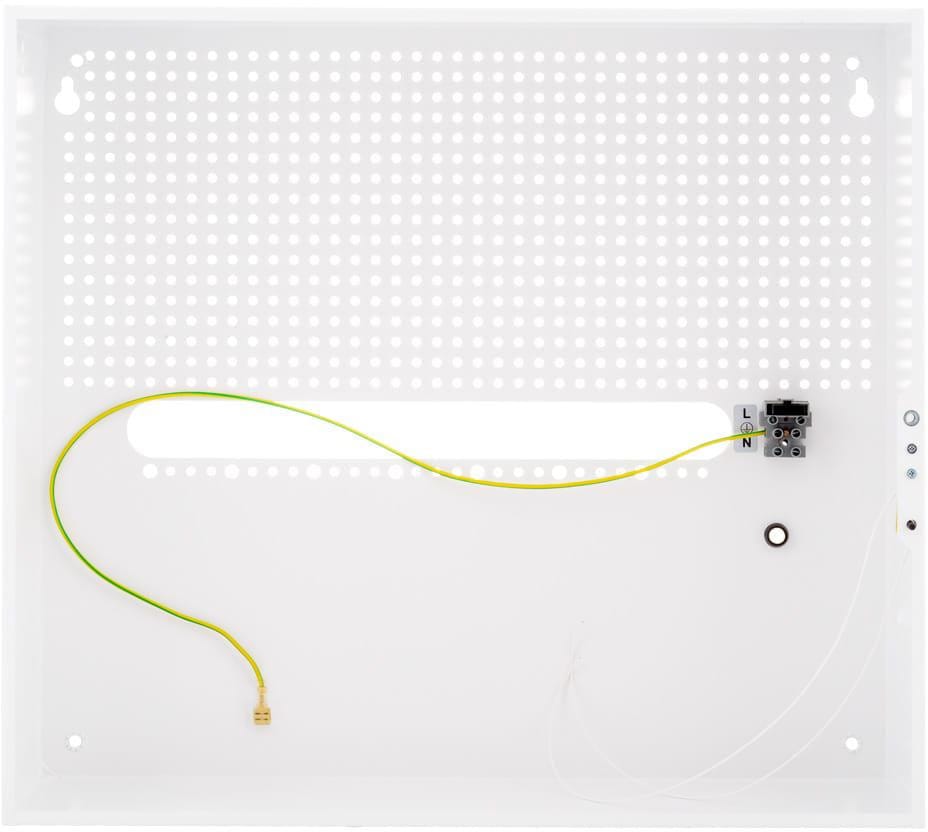

The IPUPS-16-20-H set consists of 2 XPOE-10-20-OF switch modules, 2 AUPS-70-120-OF buffer power supply modules and 2 ASUC-50-480-OF voltage converter modules enclosed in an ABOX-H internal housing with space for 2 18Ah batteriesBuffer power supplies are designed to work with maintenance-free batteries (gel or AGM) with a nominal voltage of 12V
