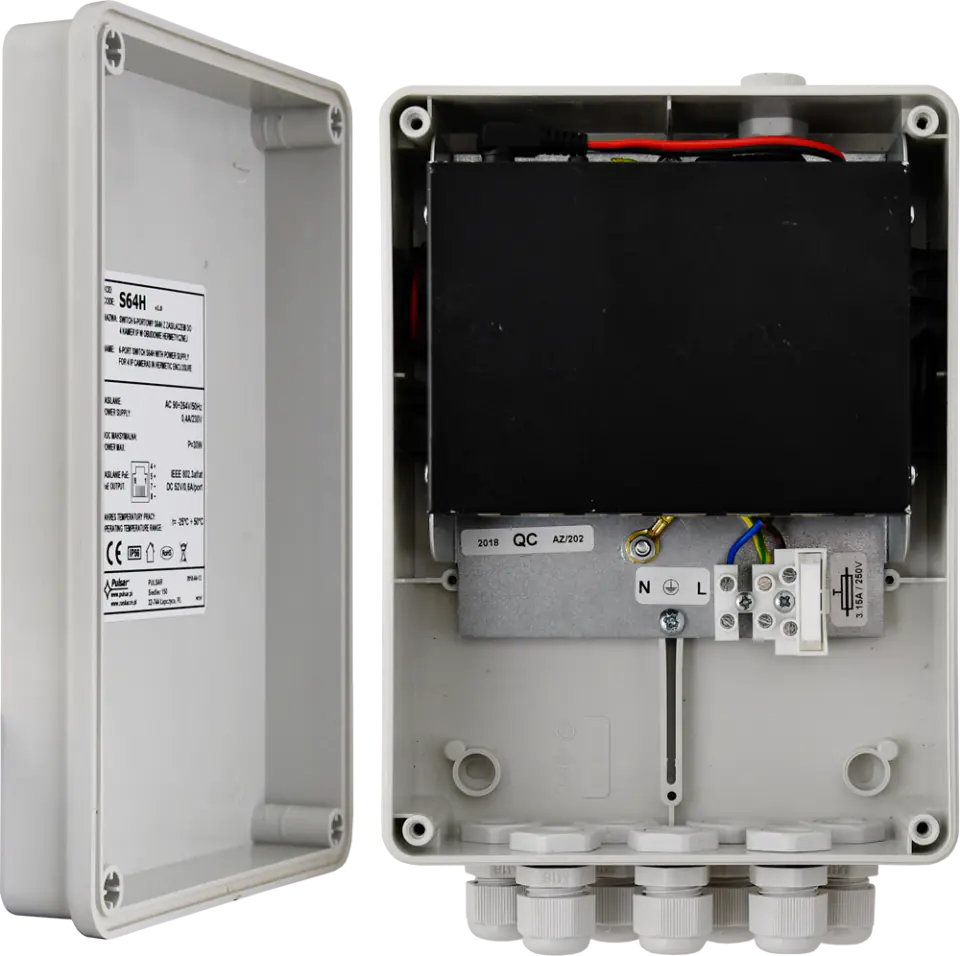

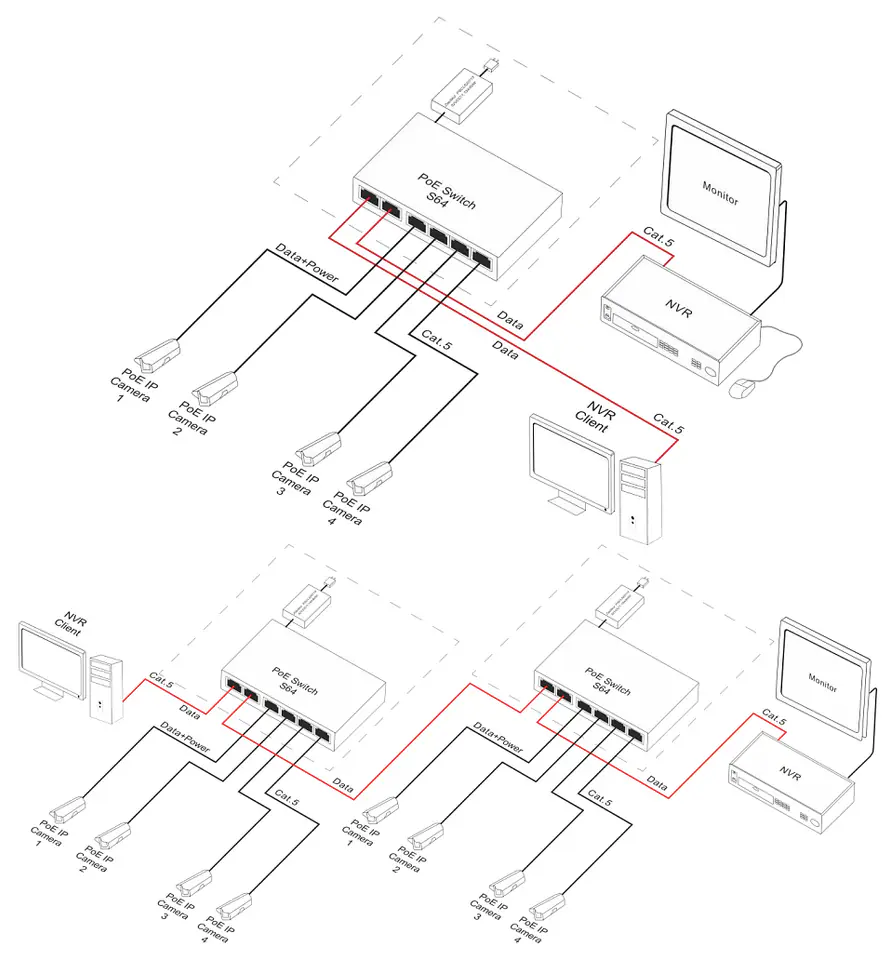

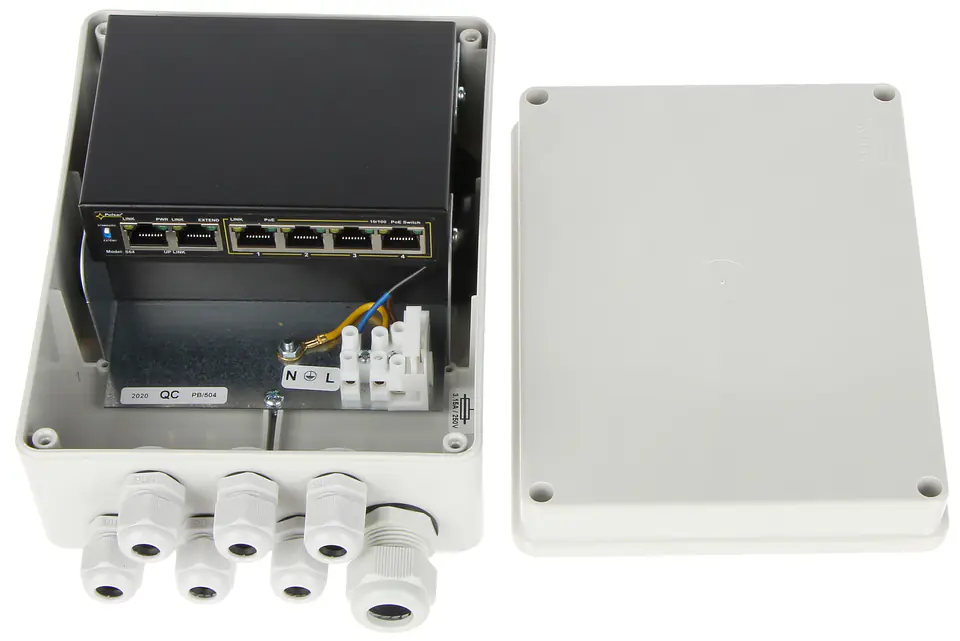

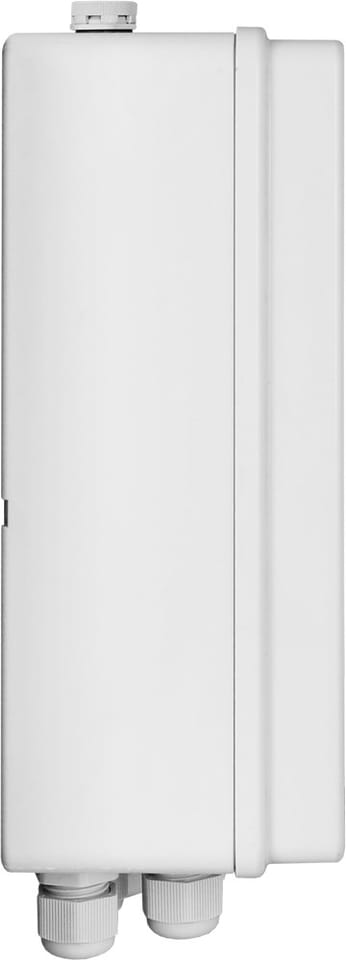

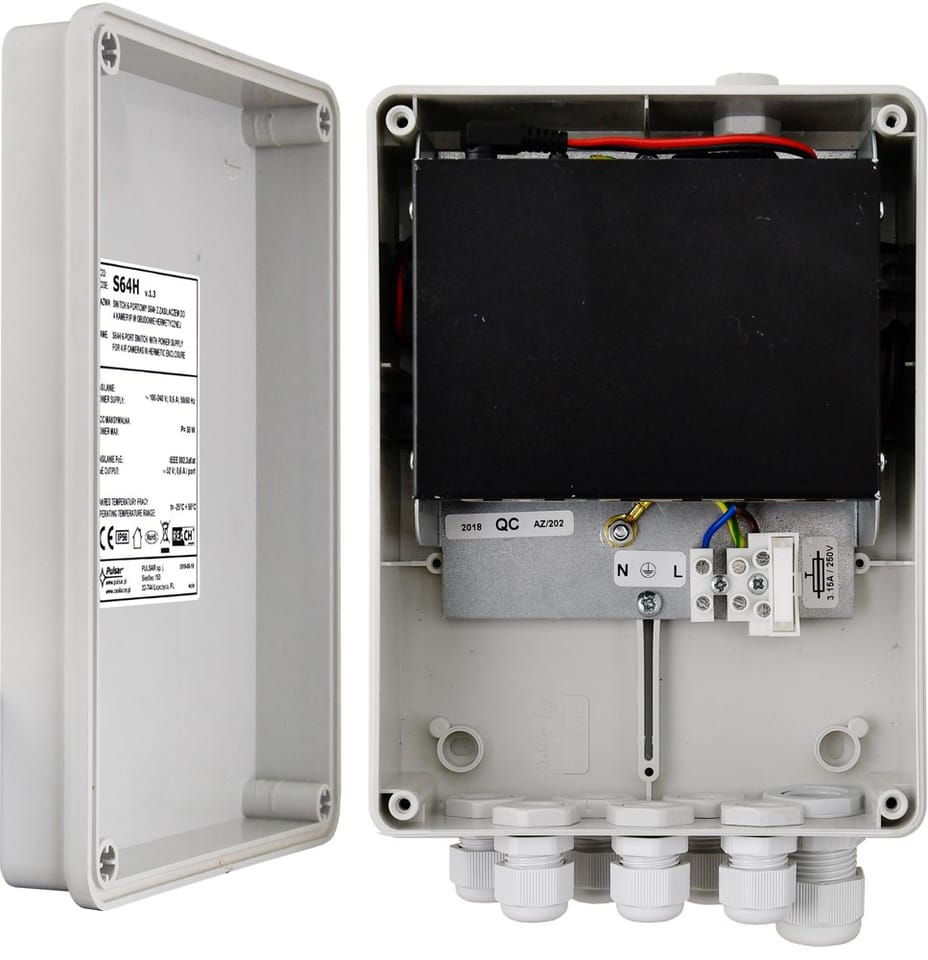

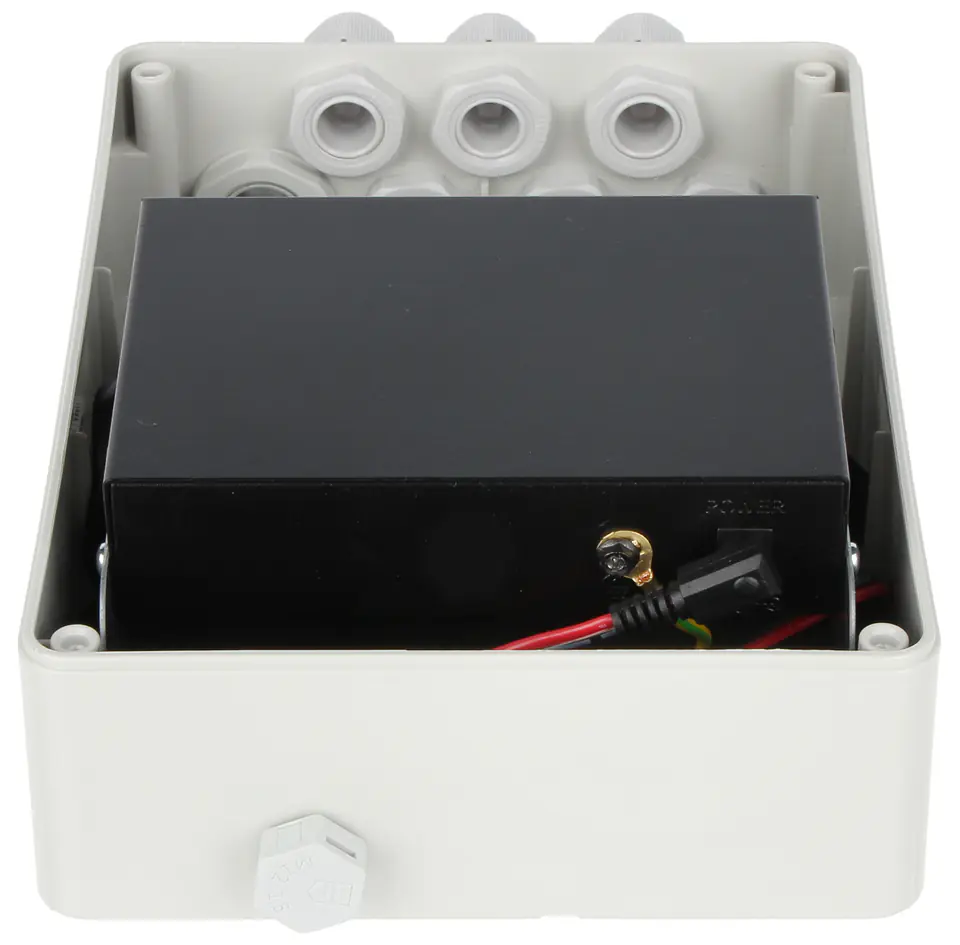

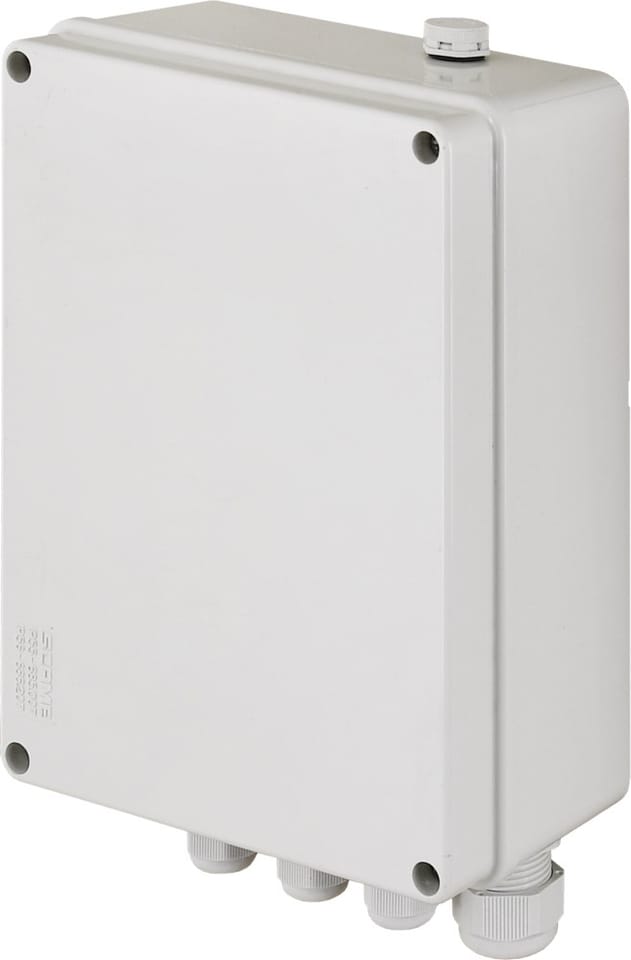

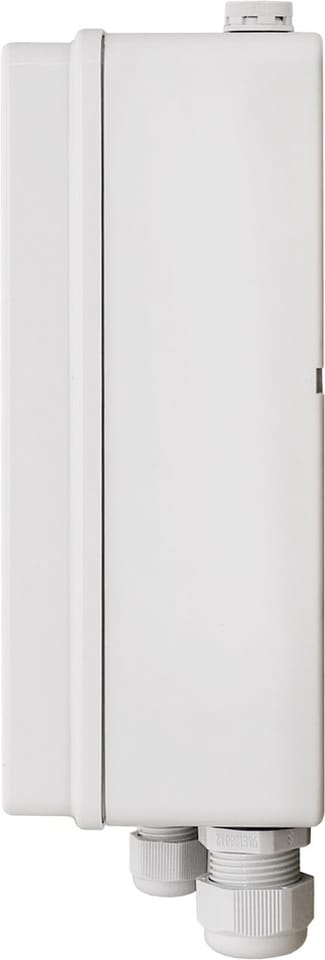

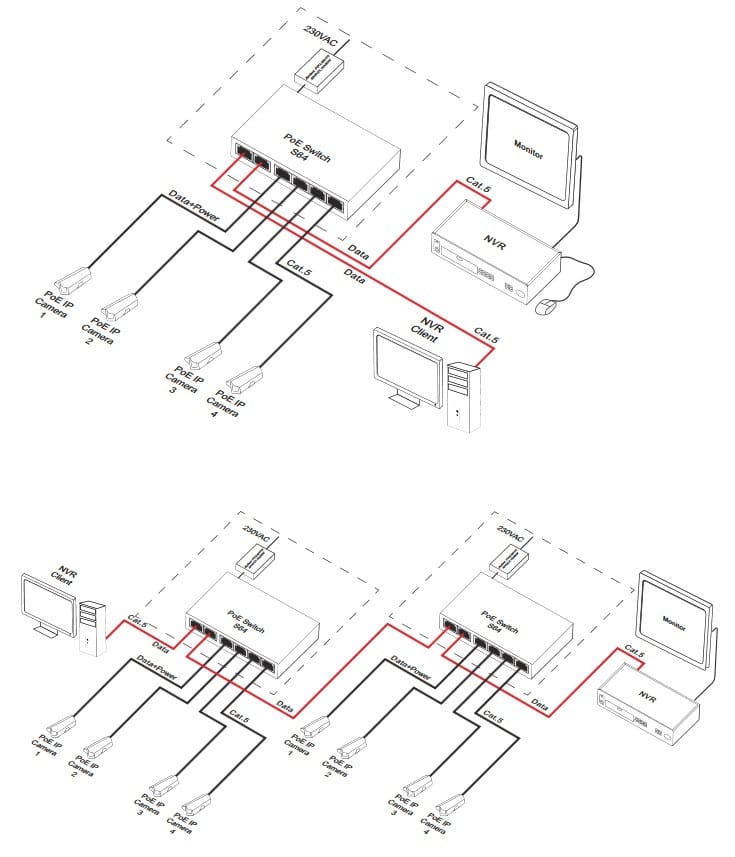

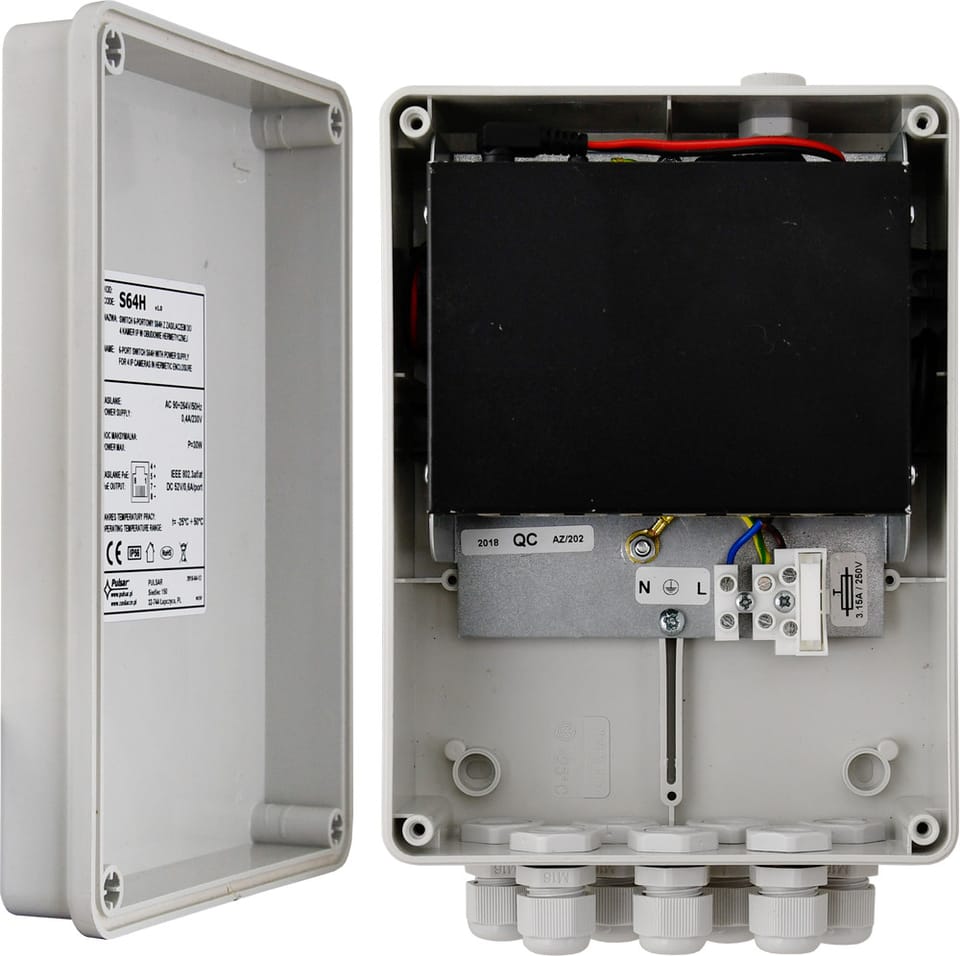

Switch S-64H is designed to power IP cameras operating in IEEE 802.3af/at standardThe device together with the power supply is enclosed in a housing with IP56 protection classFour ports support Power over Ethernet (PoE) function
POE SWITCH S-64H 4-PORT PULSAR
€101.41
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- S-64H / 5902135312384
Share this product:
Specification
| Basic switching rj-45 ethernet ports quantity: | 6 |
|---|---|
| Baud: | 10 / 100 Mbps - 4 LAN & PoE, 10 / 100 Mbps - 2 uplink ports |

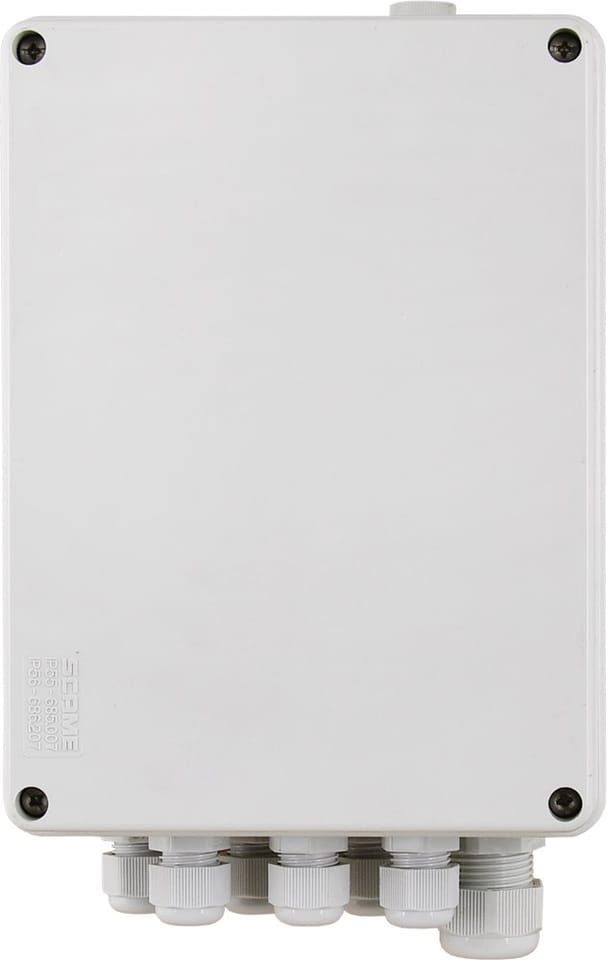

| Case: | Plastic, IP56 |
| Certificates: | CE |
| Connectivity technology: | Wired |
| Dimensions: | 148 x 240 x 80 mm |
| Dimensions (wxdxh): | 146 x 78 x 196 mm |

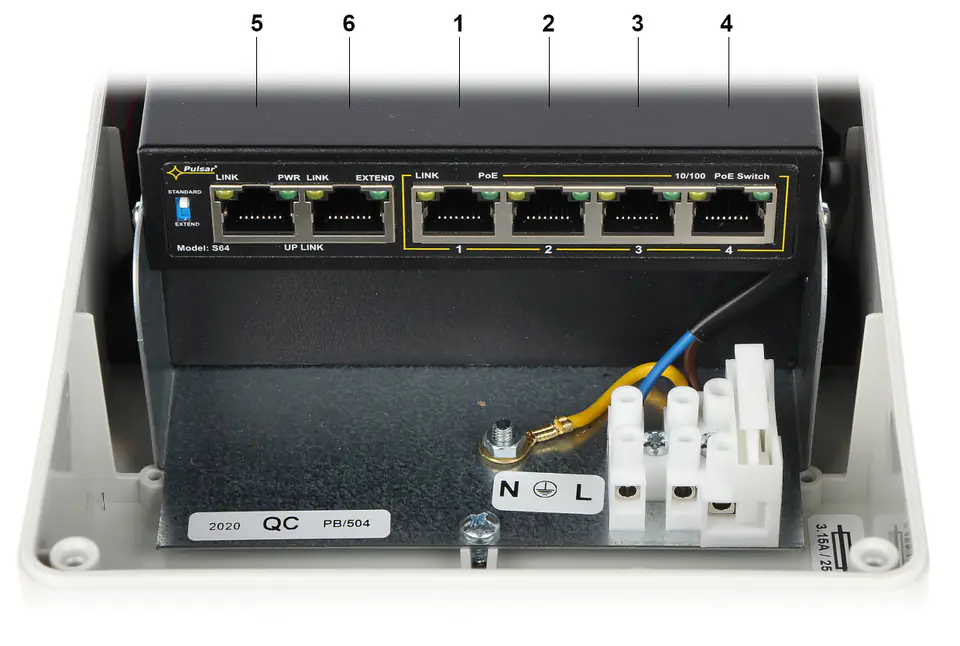

| Lan ports: | 4 x RJ45 10/100 Base-TX - PoE (802.3af/at), 2 x RJ45 10/100 Base-TX - Uplink ports |
| Mac address table: | 1k |
| Maximum data transfer rate: | 0.1 Gbit/s |
| Maximum output power: | 30W/PoE port |
| Maximum total power: | 60 watts (Printing) |
| Networking standards: | IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3 |
| Operating modes: | Extend On : 250 m, 10 Mbps @ UTP Cat. 5e, 6 Extend Off : 100 m, 100 Mbps @ UTP Cat. 5e, 6 |
| Power: | 52 V DC / 1.15 A (power adapter included) |
| Power consumption (typical): | 30 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 4 |
| Producer / brand: | PULSAR |
| Protective housing: | Yes |
| Scales: | 1.25 kg |

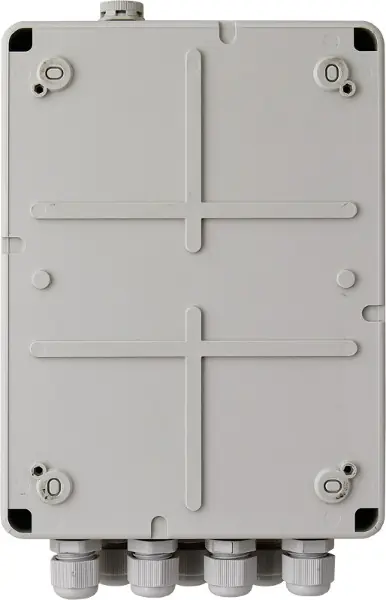

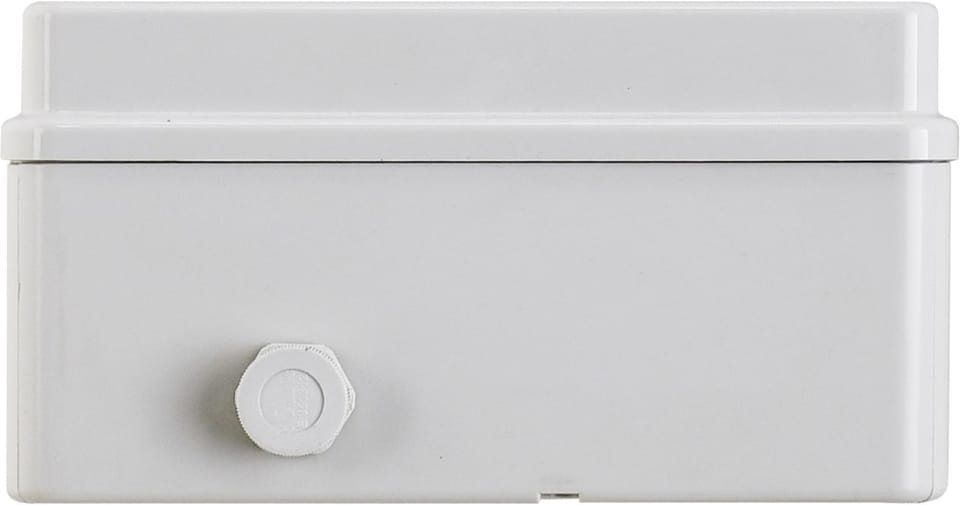

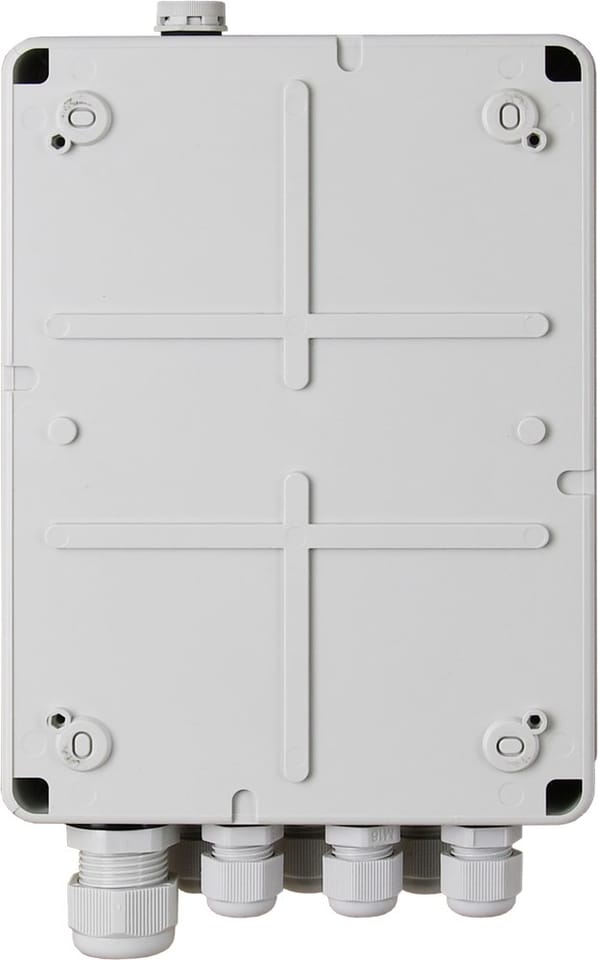

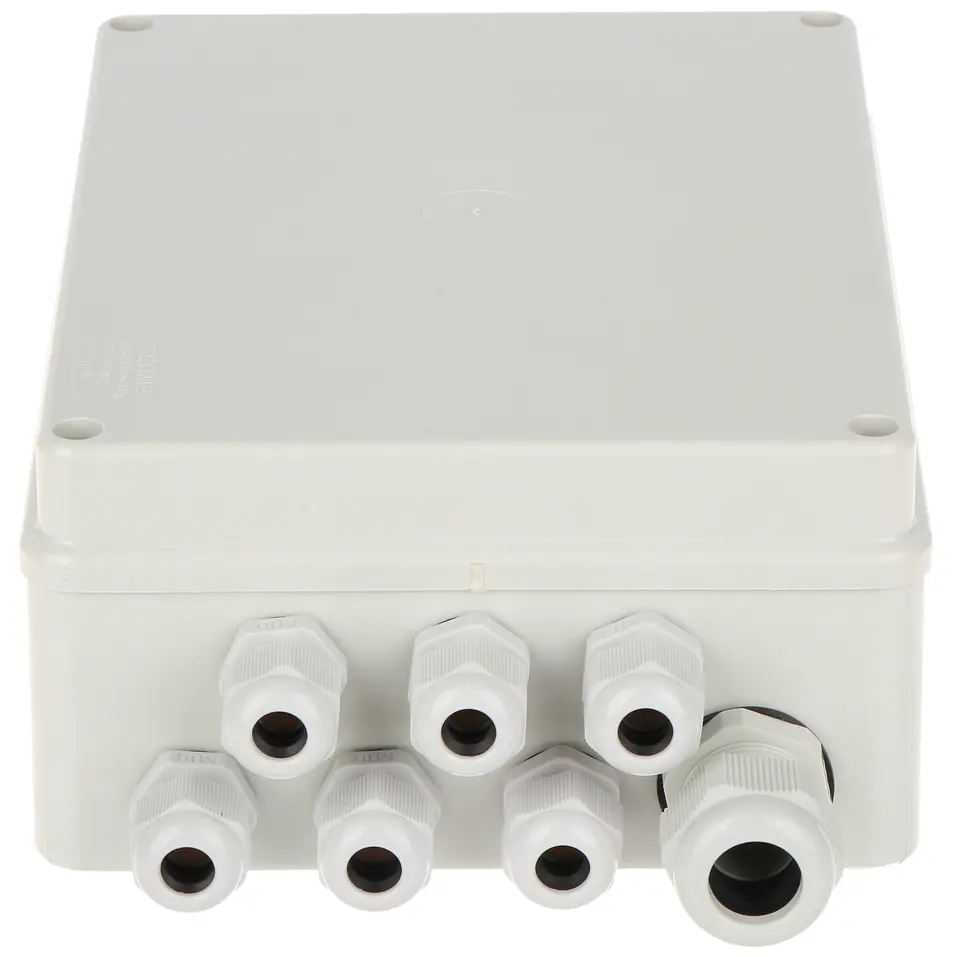

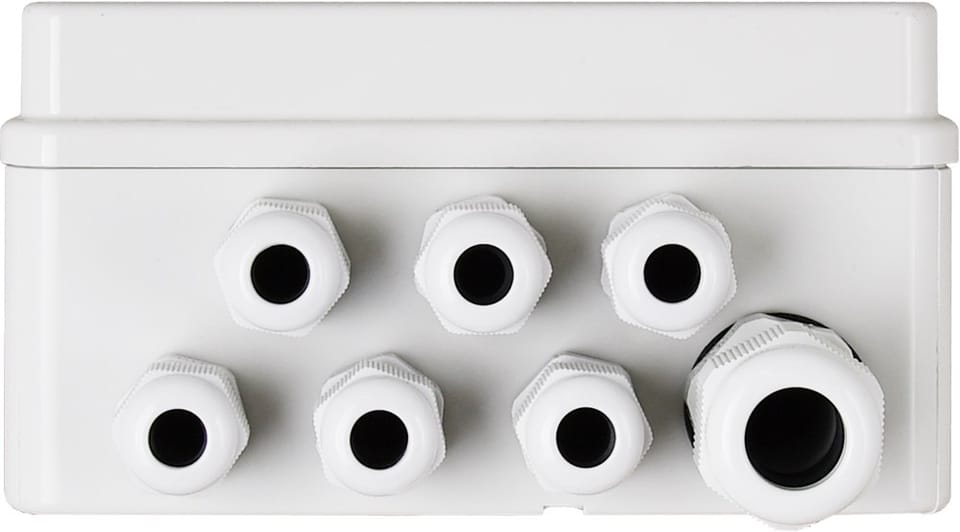

| Selected features: | Cable glands are placed on the housing: 6 pcs. Ø 4 ... 8 mm 1 pc Ø 10 ... 14 mm |
| Switch type: | Unmanaged |
| Warranty: | 2 years |
