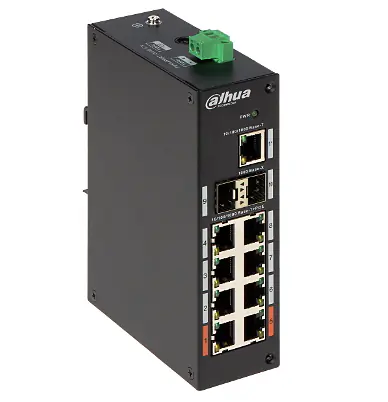

PoE Switch PFS3211-8GT-120-V2 is an industrial type device that provides smooth network transmission at 10 / 100 / 1000 Mbps
Remark! The SFP port requires the purchase of an SFP module, which is available in our offer
Baud:: | Ethernet - 10 Mbps Full Duplex Fast Ethernet - 100 Mbps Full Duplex Gigabit Ethernet - 1000 Mbps Full Duplex |
---|---|
Certificates:: | CE |
Dimensions:: | 150 x 110 x 42 mm |
Housing type:: | DIN |

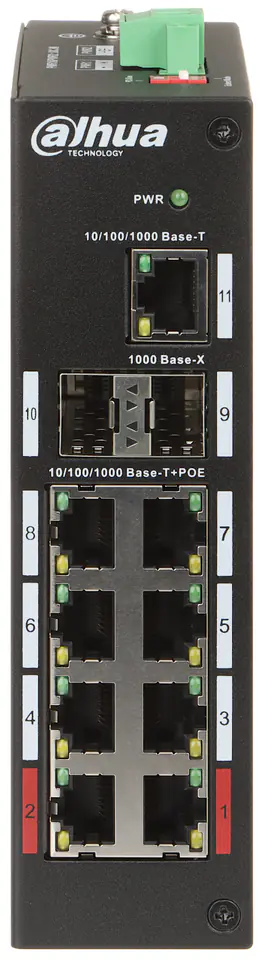

Lan ports:: | 8 x RJ45 ( 10/100/1000 Base-T, 6 PoE (802.3af/at) + 2 PoE (802.3bt) / Hi-PoE / PoE (802.3af/at) ) 2 x Uplink ( SFP port - 1000 Base-X ) 1 x Uplink ( RJ45 - 10/100/1000 Base-T ) |
Leds:: | Power, Link/Act, PoE |
Manufacturer / brand:: | DAHUA |
Maximum output power:: | 30 W / PoE port 802.3af/at 90 W / PoE port 802.3bt |
Maximum total power:: | 120 watts (Printing) |
Operating modes:: | Extend On : 250 m, 10 Mbps Extend Off : 100 m, 100 / 1000 Mbps |
Operating temperature:: | -30 °C ... 65 °C |

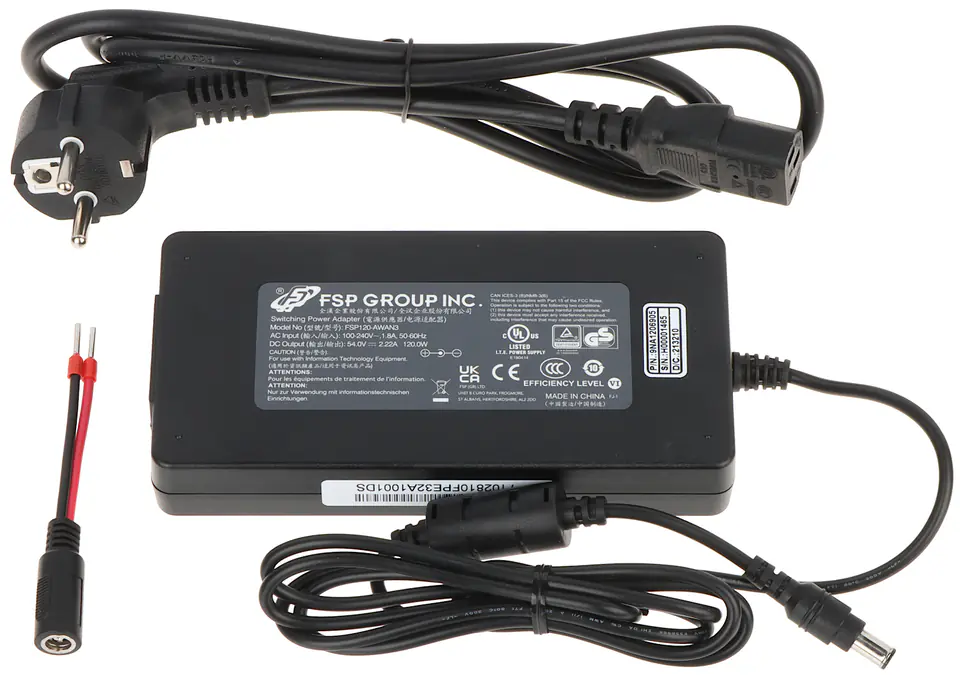

Power:: | 48 ... 57 V DC (power supply included) |
Scales:: | 0.68 kg |

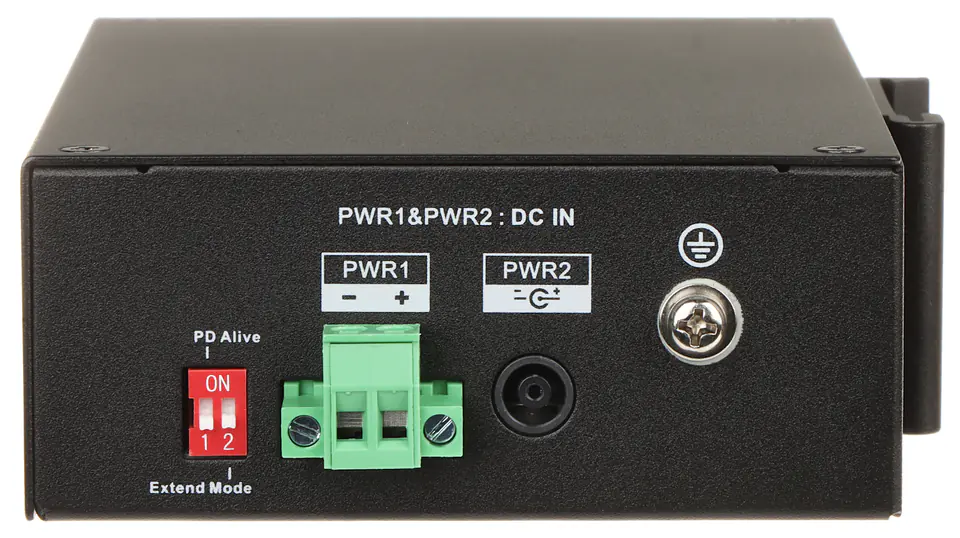

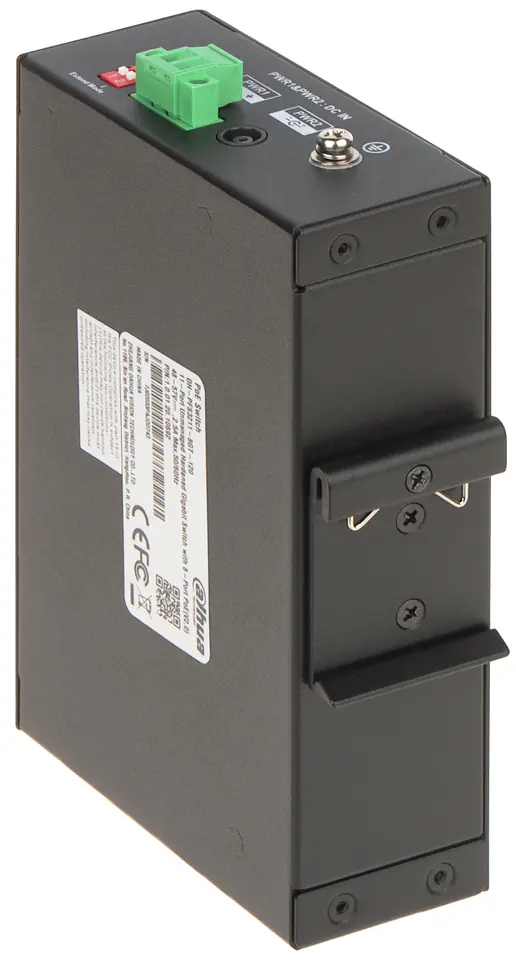

Selected features:: | DIN rail mounting, TS-35 Data flow control protection protection against lightning and potential differences between devices Designed for industrial applications in a wide temperature range. Intelligent power output management of PoE (802.3af), PoE (802.3at), Hi-PoE, PoE (802.3bt) PoE Watchdog mode / PD Alive mode - monitoring of ports that power PoE devices and automatic restart by cutting off power when an unresponsive device detects Possibility to connect two power supplies - redundant power Supply The device supports 8 -pin power supply |
Warranty:: | 3 years |
PoE Switch PFS3211-8GT-120-V2 is an industrial type device that provides smooth network transmission at 10 / 100 / 1000 Mbps
Remark! The SFP port requires the purchase of an SFP module, which is available in our offer
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
