| Baud:: | 10 / 100 Mbps : 2 LAN Ports + 4 LAN & PoE Ports |
|---|---|
| Certificates:: | CE, FCC |

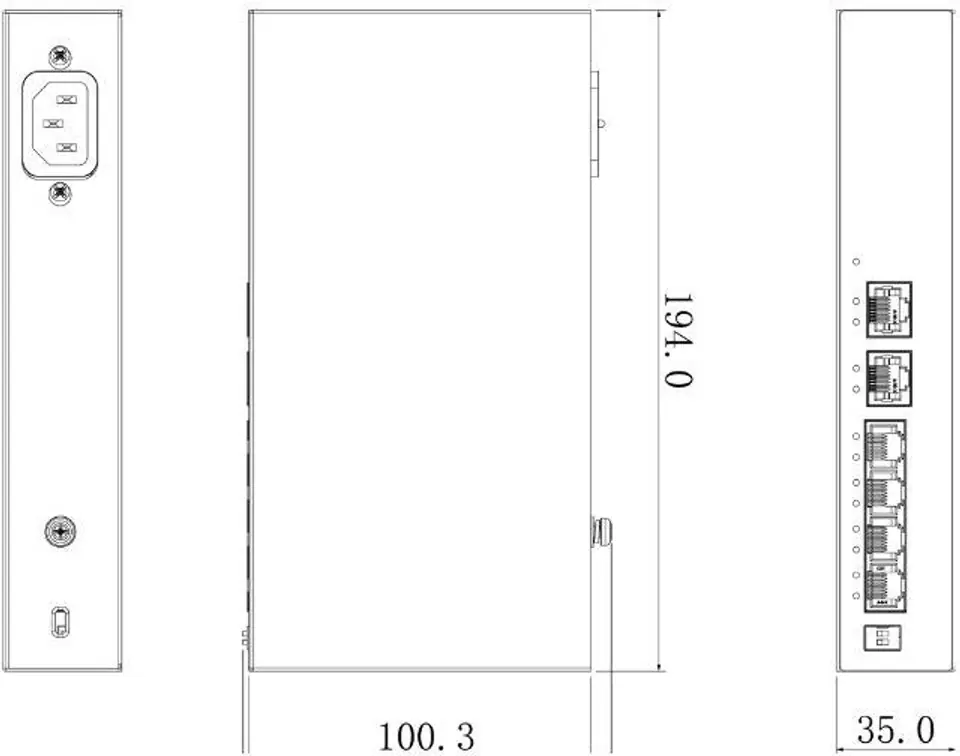

| Dimensions:: | 194 x 108 x 35 mm |

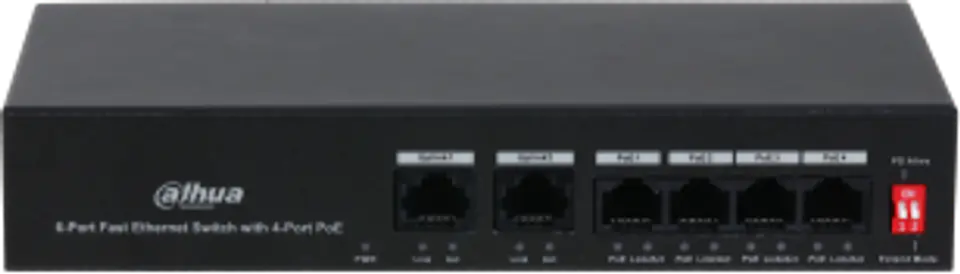

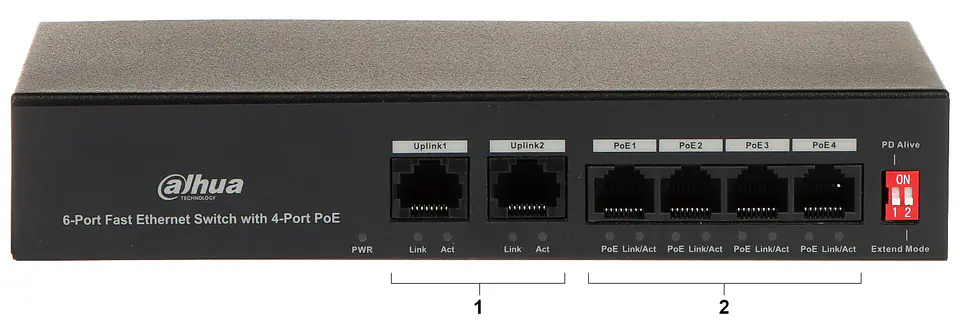

| Lan ports:: | 2 x RJ45 10/100 Base-TX - Uplink, 4 x RJ45 10/100 Base-TX ( 4 x PoE (802.3af/at) ) |
| Leds:: | Power, Link/Act, PoE |
| Mac address table:: | 2k |
| Manufacturer / brand:: | DAHUA |
| Maximum output power:: | 30 W/ PoE port |
| Maximum total power:: | 36 watts (Printing) |
| Operating modes:: | Extend On : 250 m, 10 Mbps Extend Off : 100 m, 100 Mbps |
| Operating temperature:: | -10 °C ... 55 °C |

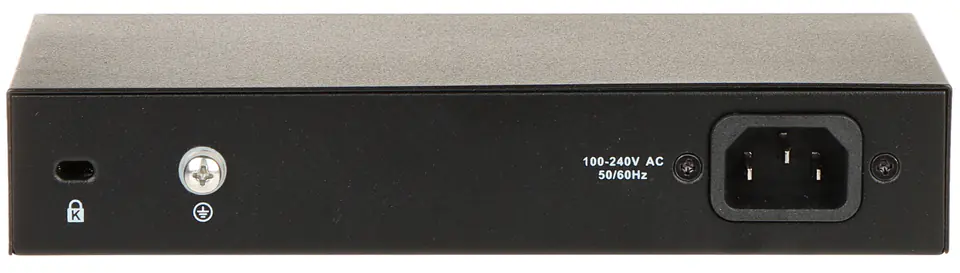

| Power:: | 100 V ... 240 V AC |
| Scales:: | 0.56 kg |
| Selected features:: | PoE Power Mode : The device supports 8-pin power extend mode - PoE1, PoE2, PoE3, PoE4 ports support transmission up to 250 m Watchdog PoE / PD Alive mode - monitoring of ports that power PoE devices and automatic restart by cutting off the power when an unresponsive device is detected protection against lightning and potential differences between Kensington Lock devices |
| Warranty:: | 3 years |

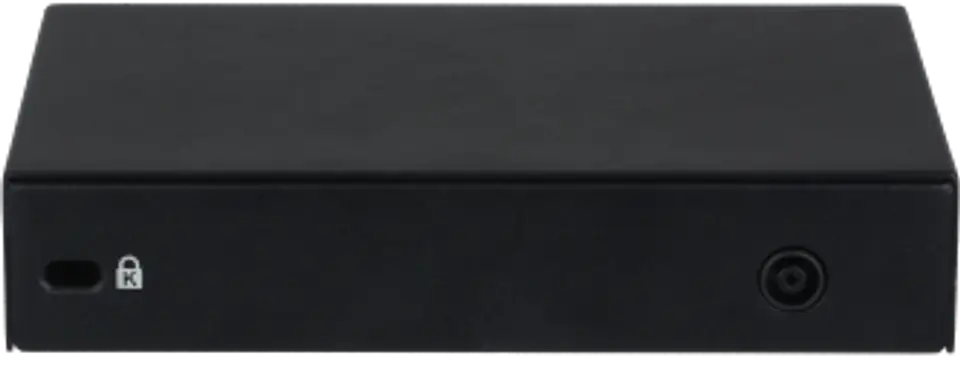

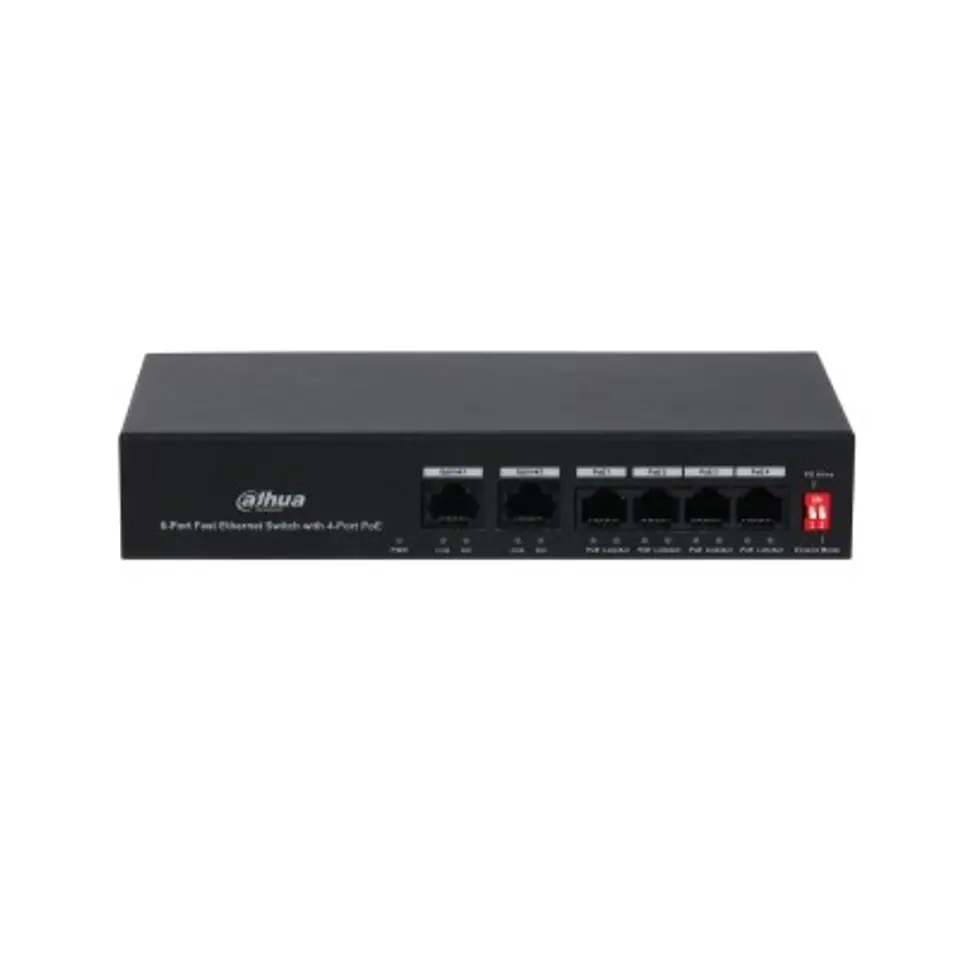

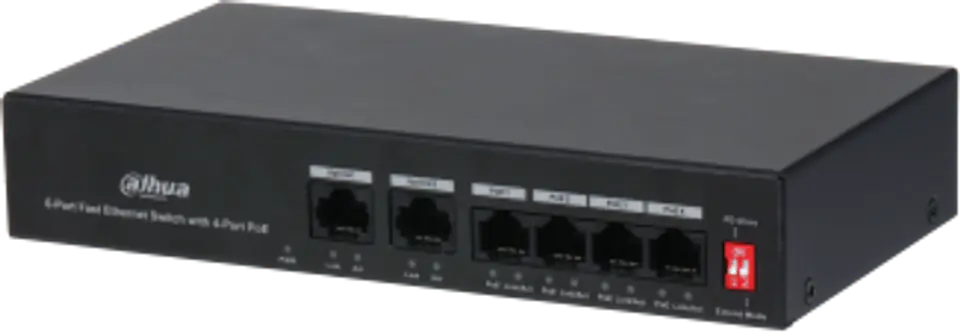

With reliability and high transmission quality, the PFS3006-4ET-36 10/100 Mbps 4-port PoE switch is ideal for home or office network expansionHour ports support Power over Ethernet (PoE)
Remark! Enabling the Extend function increases the PoE range to 250m and reduces the transmission speed to 10 Mbps
