| Baud:: | 10 / 100 Mbps : 1 LAN Port + 5 LAN & PoE Ports |
|---|---|
| Dimensions:: | 158 x 118 x 77 mm |
| Lan ports:: | 1 x RJ45 10/100 Base-T - Uplink 5 x RJ45 10/100 Base-T - PoE (802.3af/at) / Passive PoE |
| Leds:: | Power, LAN |
| Manufacturer / brand:: | ATTE |
| Maximum output power:: | 40W @ Passive PoE - 1 Ports ... 5. 30 W @ PoE (802.3at) - 1 ports ... 5 15.4 W@PoE (802.3af) - 1 ports ... 5 |
| Maximum total power:: | 90 watts (Printing) |
| Power:: | 180 ... 240 V AC - Built-in switching power supply |
| Scales:: | 0.43 kg |
| Selected features:: | Supported PoE devices: 802.3af/at, Passive PoE Cascading capability Efficiency : 93 % @ 90 W 5 polymer fuses - PoE Ability to power other devices powered from 55 V (screw connector) Thermal protection of the power supply Short-circuit protection Overload protection Possibility to independently turn on and off the PoE power supply for each of the LAN ports 1 ... LAN 4 Switch has a built-in 55 V DC power supply with a power of 90 W Protection class: IP55 |
| Warranty:: | 3 years |

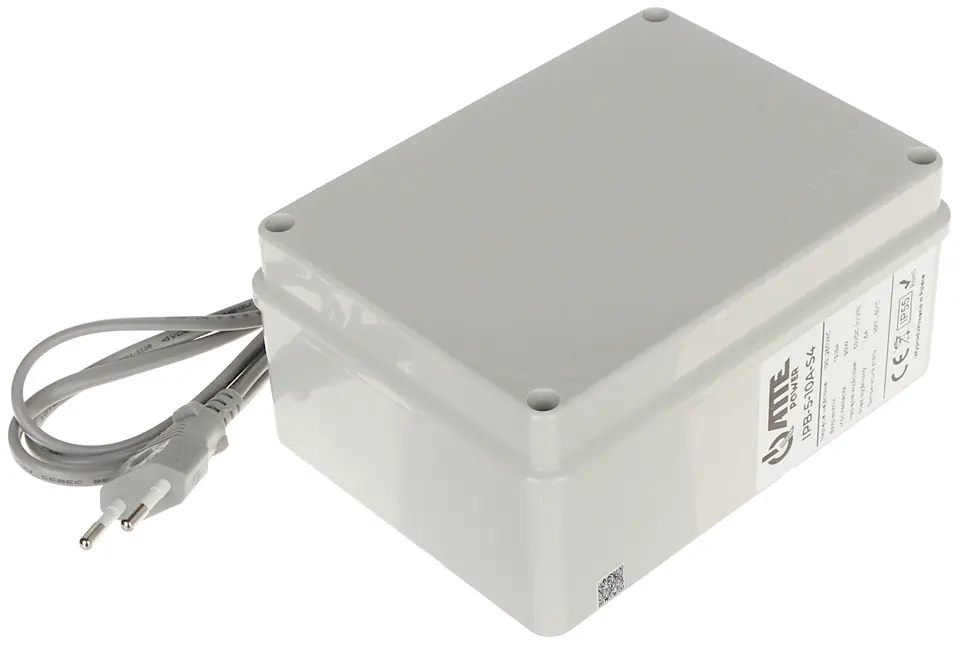

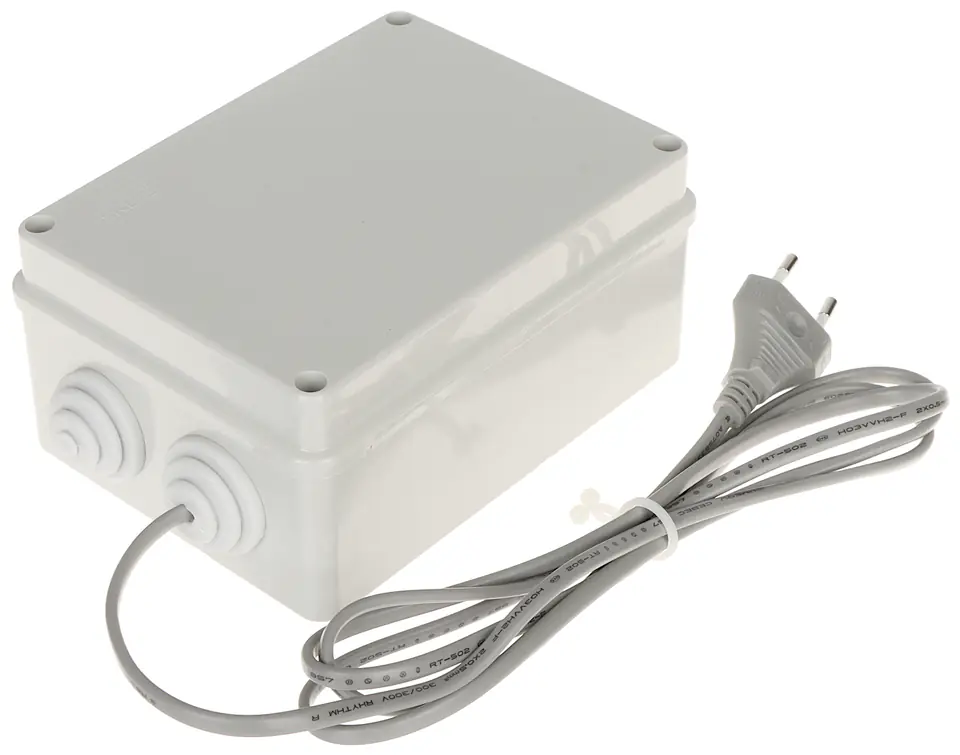

The IPB-5-10A-S4 switch is designed as a complete, integrated power solution for small CCTV systems (e.g. 5 IP cameras)
PoE power supply in accordance with 802.3af/at makes the device even more versatile and easier to install5 ports support Power over Ethernet (PoE)
