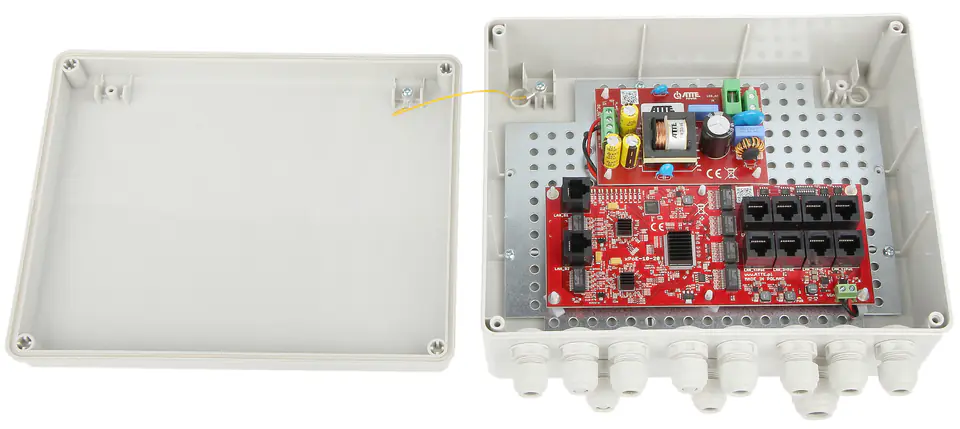

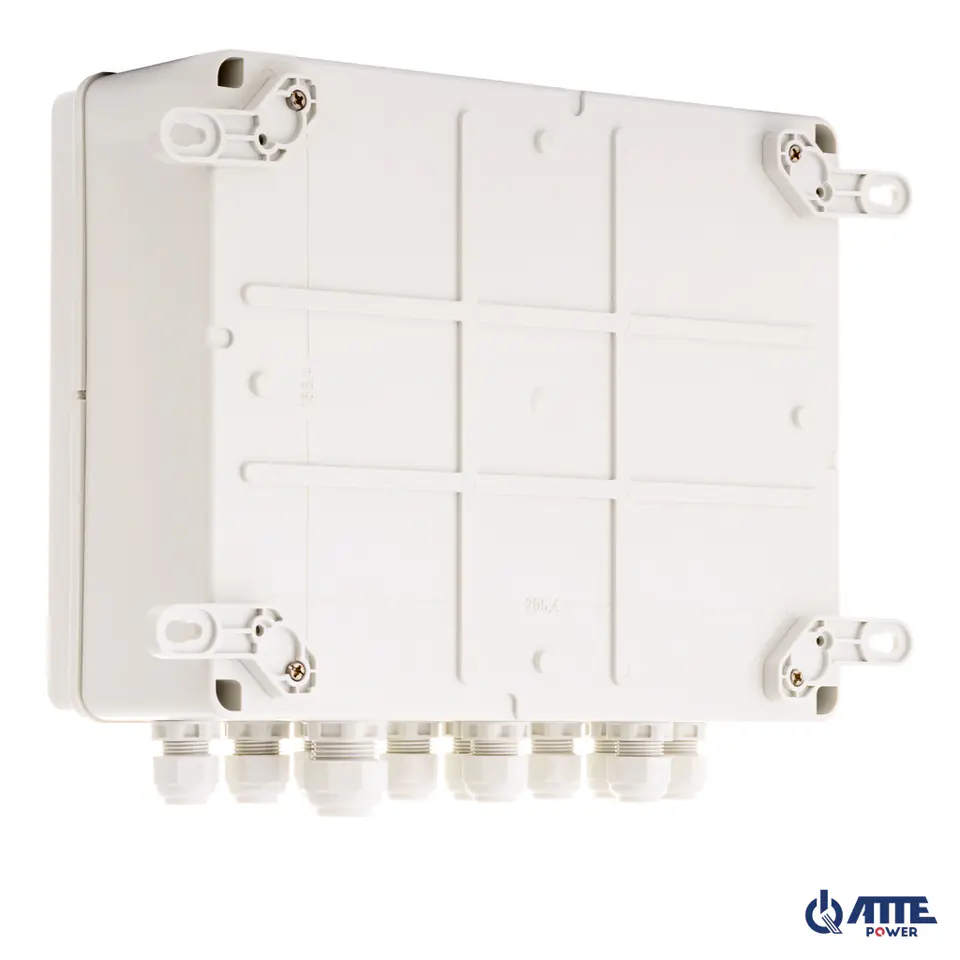

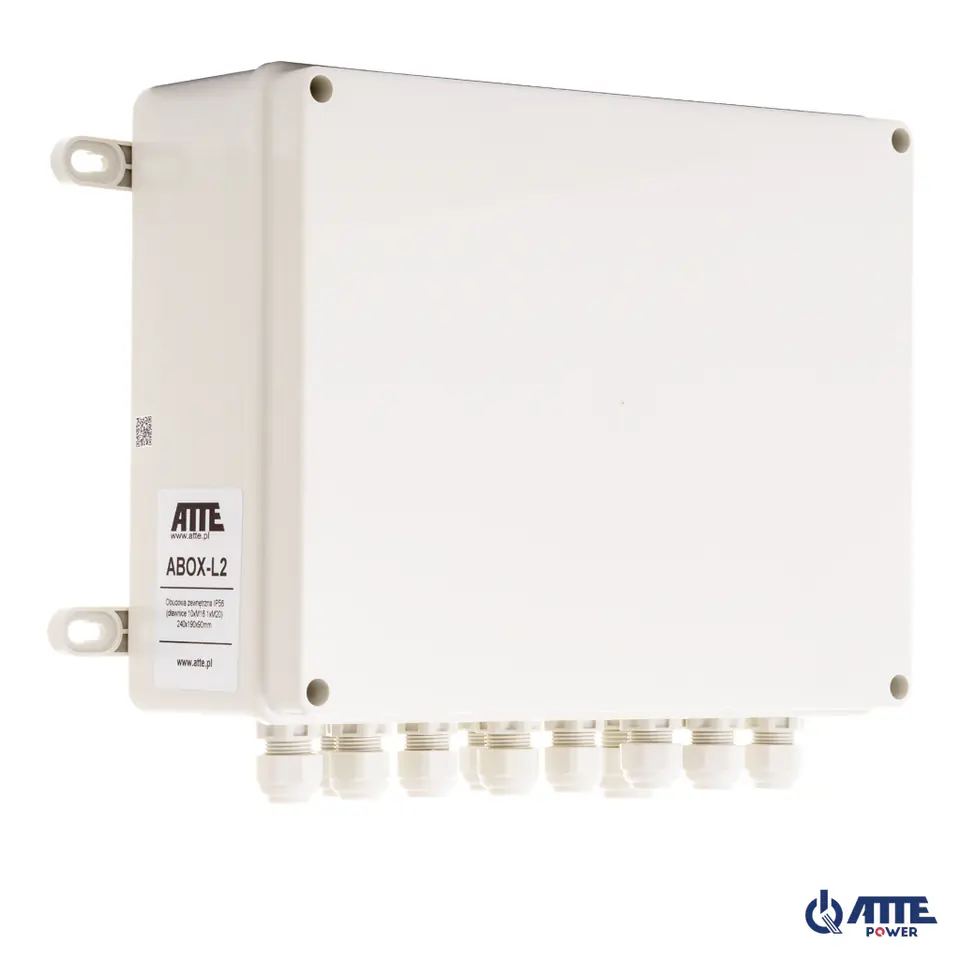

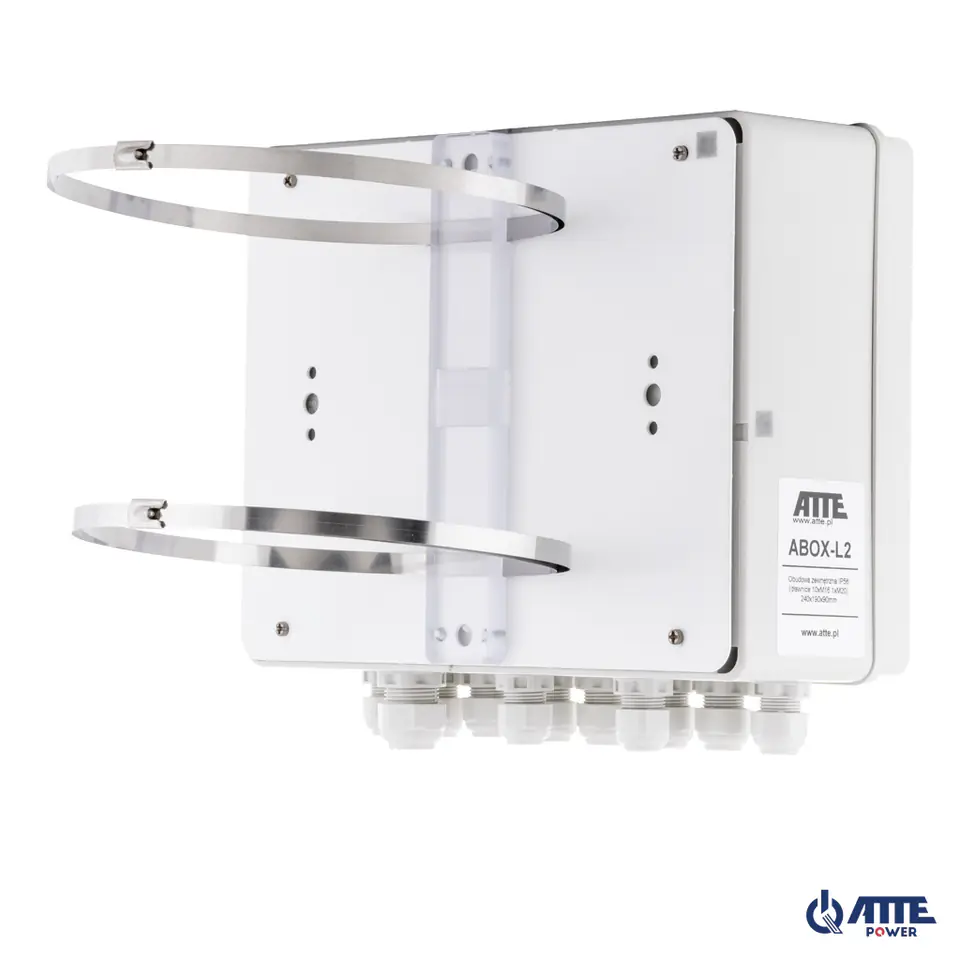

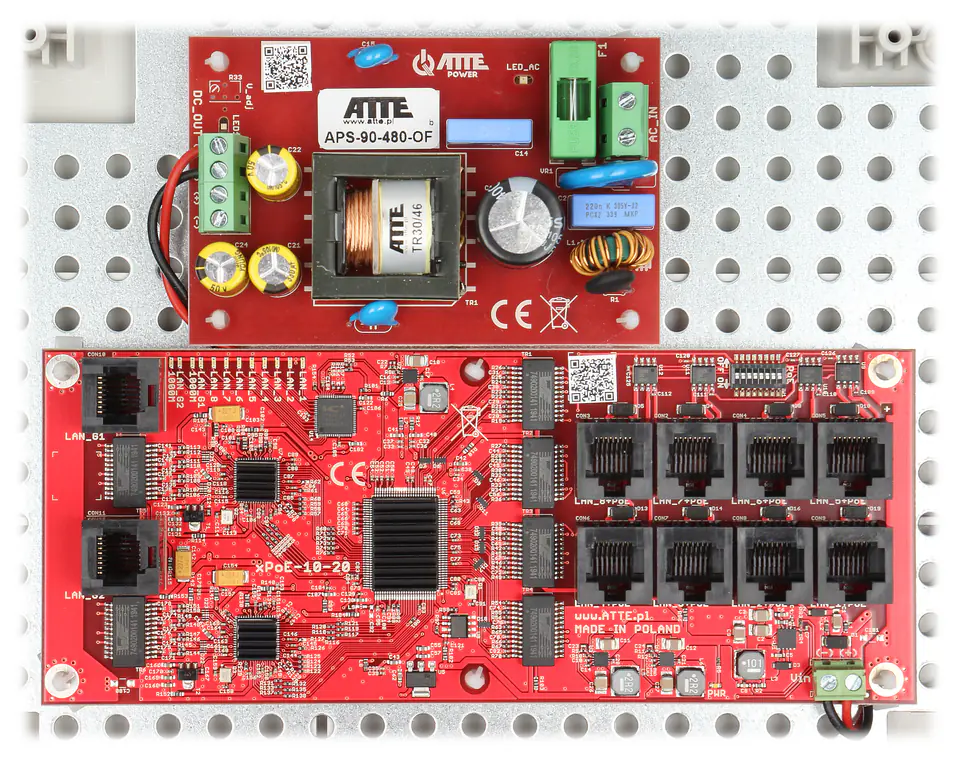

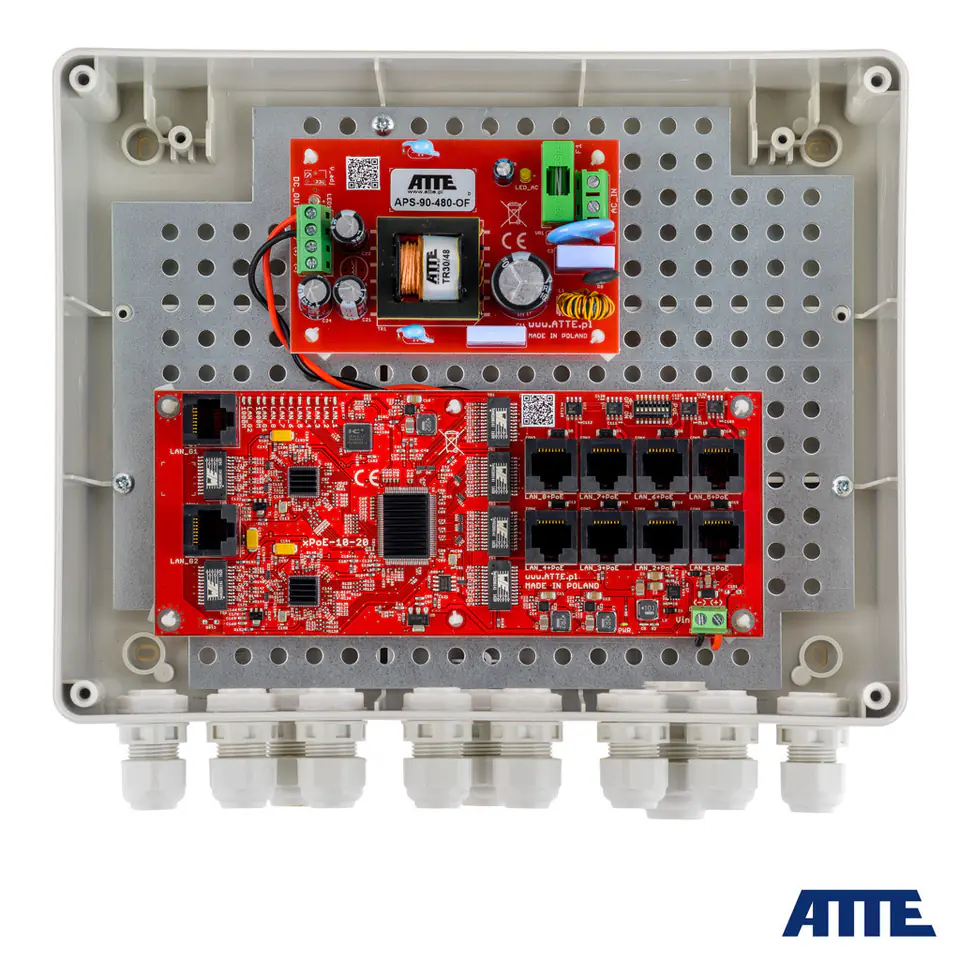

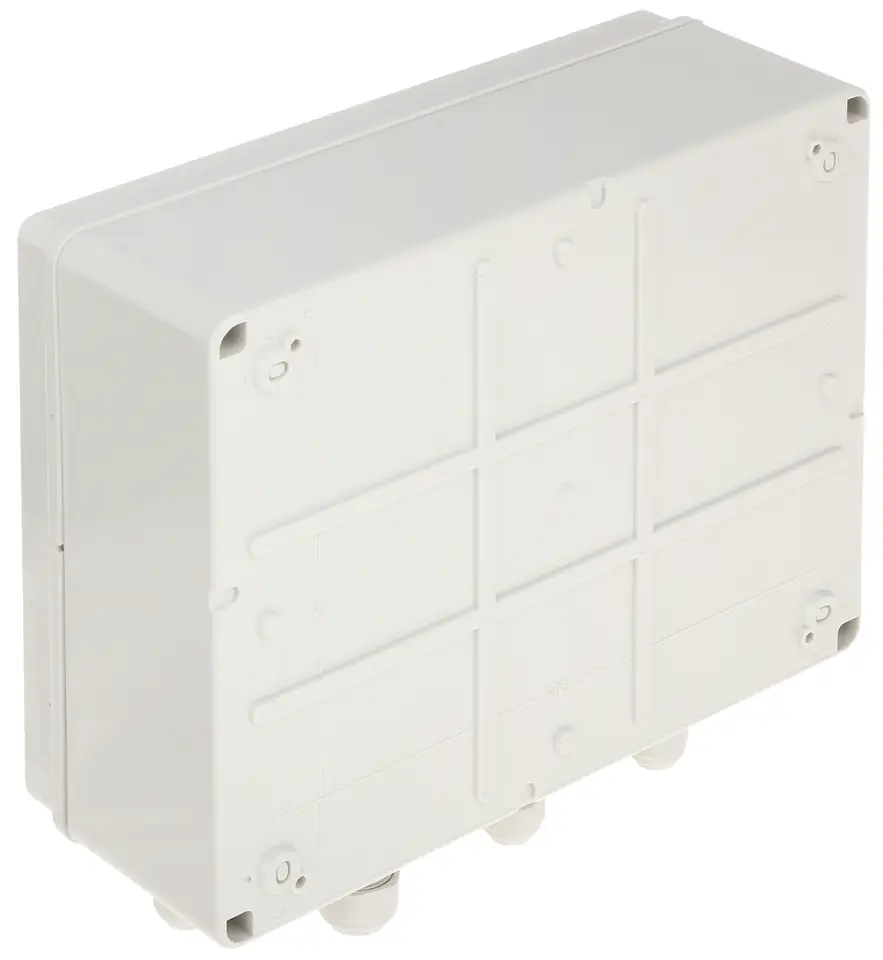

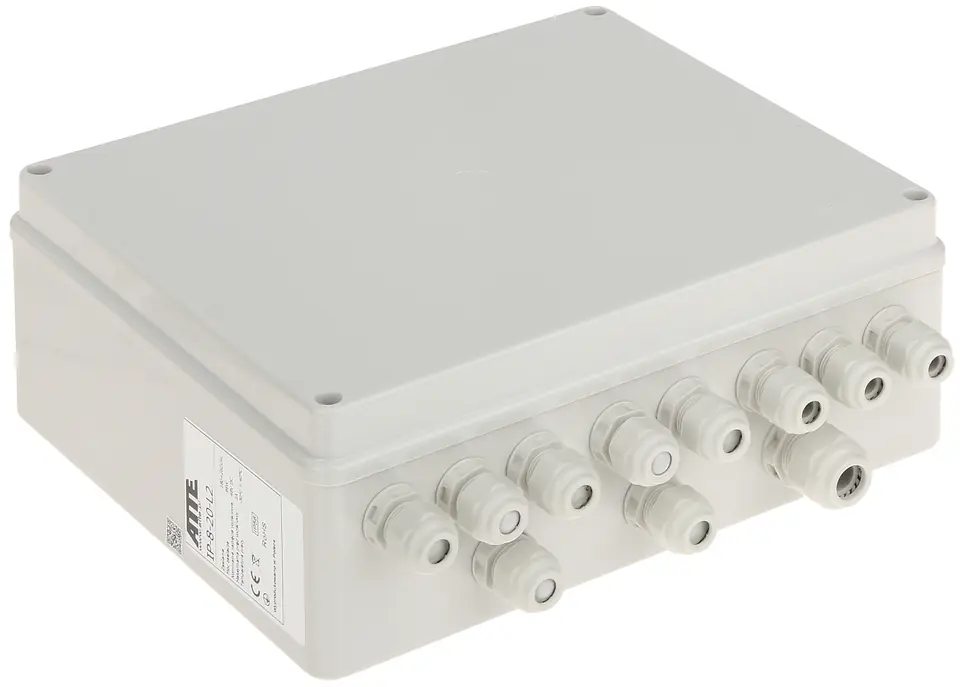

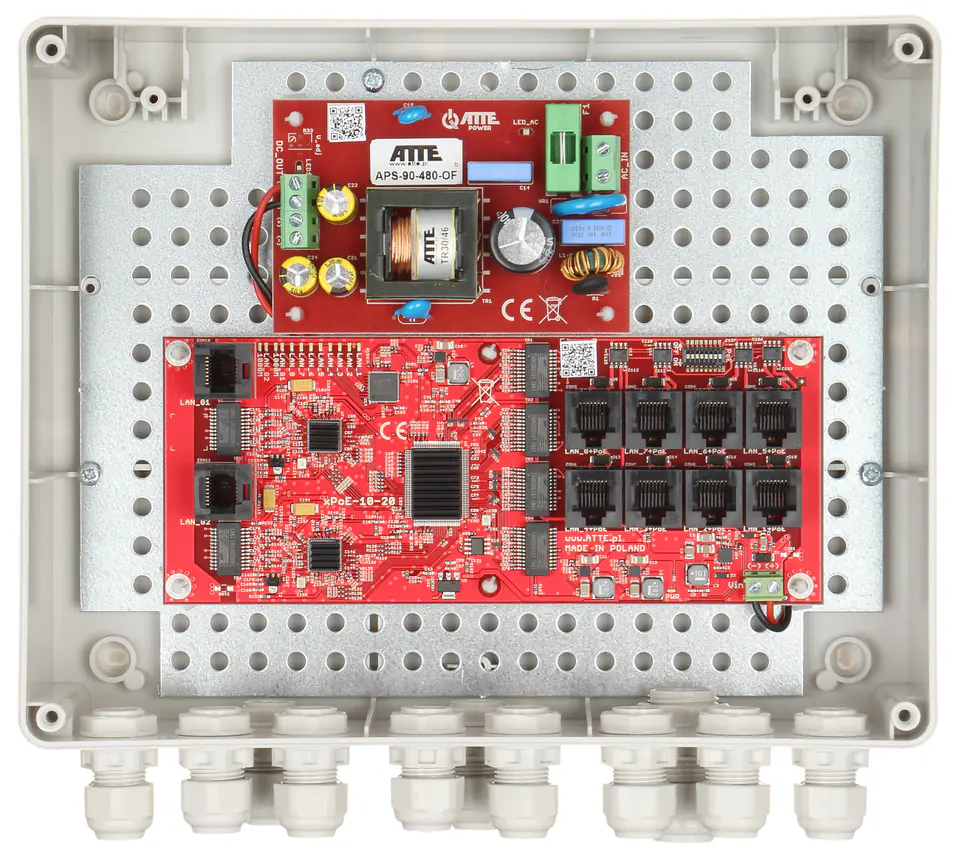

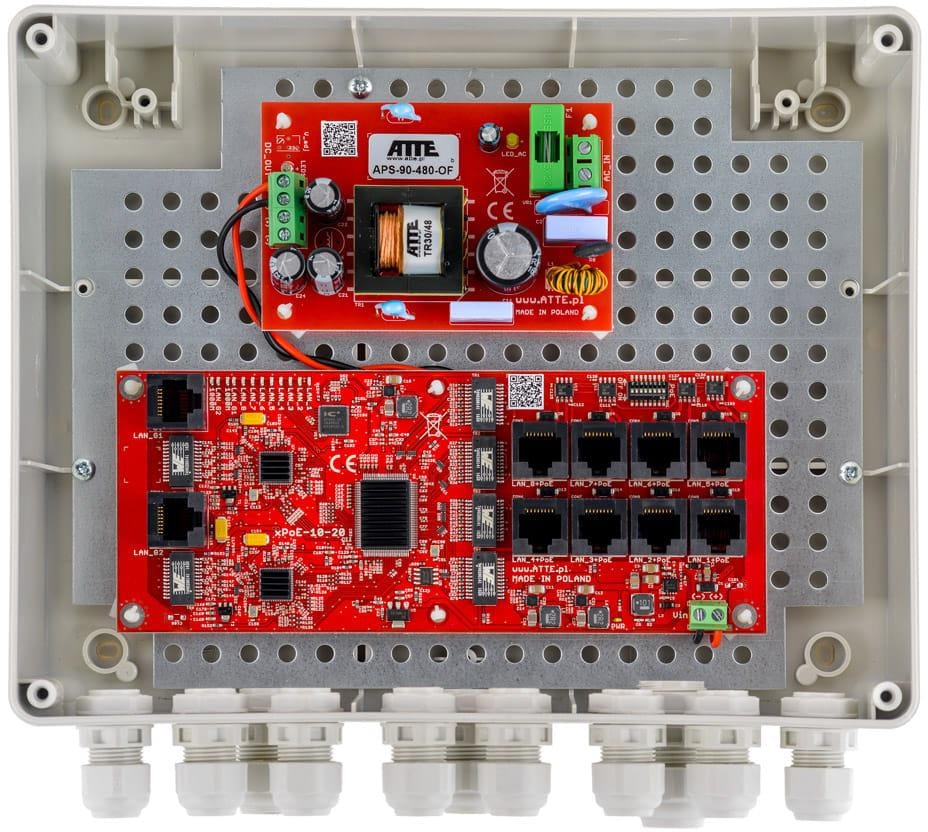

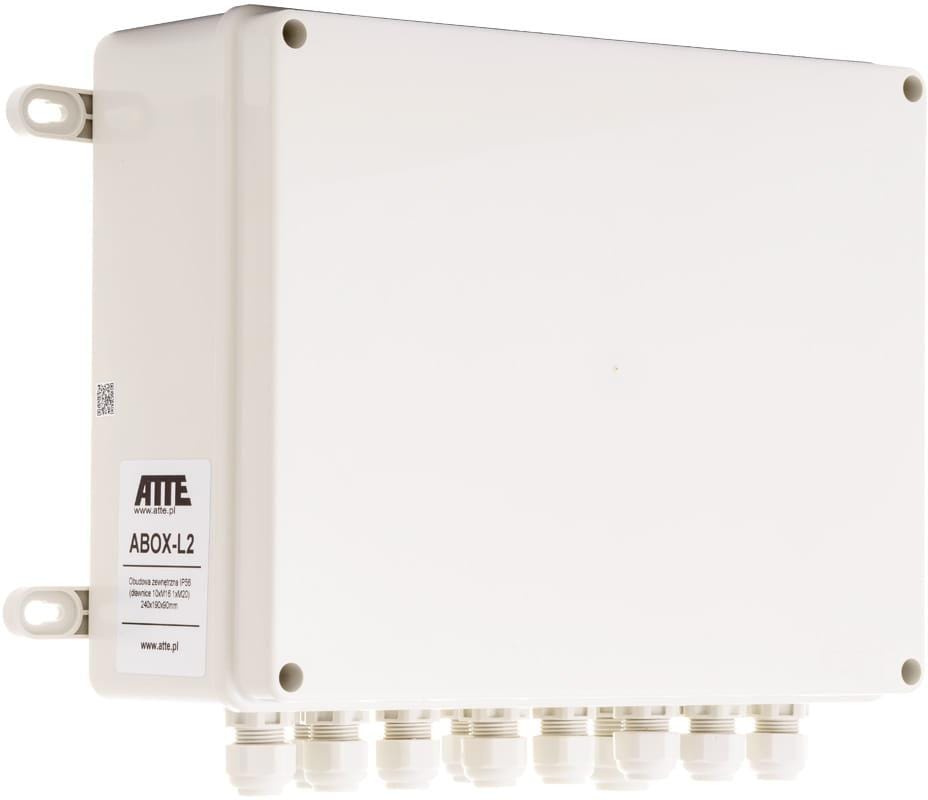

The IP-8-20-L2 set consists of the XPOE-10-20-OF switch module and the APS-90-480-OF switch-mode power supply enclosed in an ABOX-L2 outdoor housing with IP56 protection class
POE SWITCH IP-8-20-L2 8-PORT ATTE
€235.27
Shipping from warehouse: H7
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ATTE
- Product code:
- IP-8-20-L2 / 5902143690306
Share this product:
Specification
| Baud: | 10 / 100 Mbps : 8 LAN & PoE, 10 / 100 / 1000 Mbps ports : 2 LAN ports |
|---|---|
| Dimensions: | 248 x 198 x 96 mm |
| Lan ports: | 2 x RJ45 10/100/1000 Base-TX - Uplink, 8 x RJ45 10/100 Base-TX + PoE (802.3af/at) / Passive PoE |
| Leds: | Power, LAN |
| Maximum output power: | 40W @ Passive PoE - 1 ports ... 8.30W @ PoE (802.3at) - 1 ports ... 8.15.4 W @ PoE (802.3af) - 1 ports ... 8 |
| Maximum total power: | 96 watts (Printing) |
| Power: | 190 ... 260 V AC - Built-in switching power supply APS-90-480-OF |
| Producer / brand: | ATTE |
| Scales: | 1.04 kg |

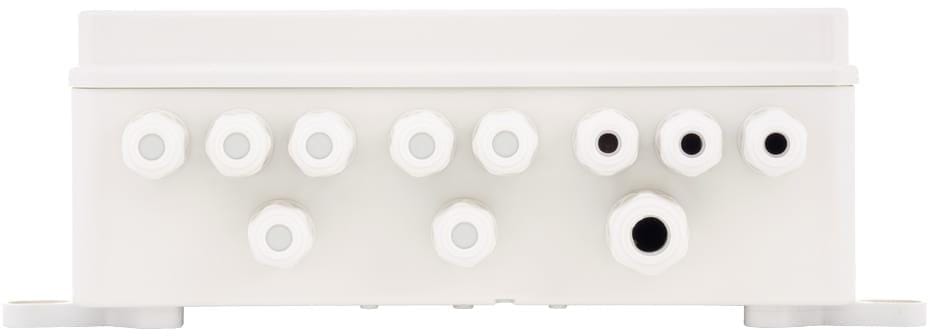

| Selected features: | Supported PoE devices: 802.3af/at, Passive PoE Stackable @ 90W Built-in switching power supply: 48 V DC / 96 W Efficiency : 92 % Thermal protection of the power supply Short-circuit protection Overload protection Possibility of independent switching on and off of PoE power for each of the LAN ports 1 ... LAN 8 Electronic fuse independently for each PoE channel Modular design streamlines service tasks and enables quick, easy system expansion Raster module mounting system makes it easy to expand the device with new modules The ABOX-L2 mounting housing is equipped with 11 cable glands in the 10 x M16 + 1 x M20 system Protection class: IP56 |
| Warranty: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
