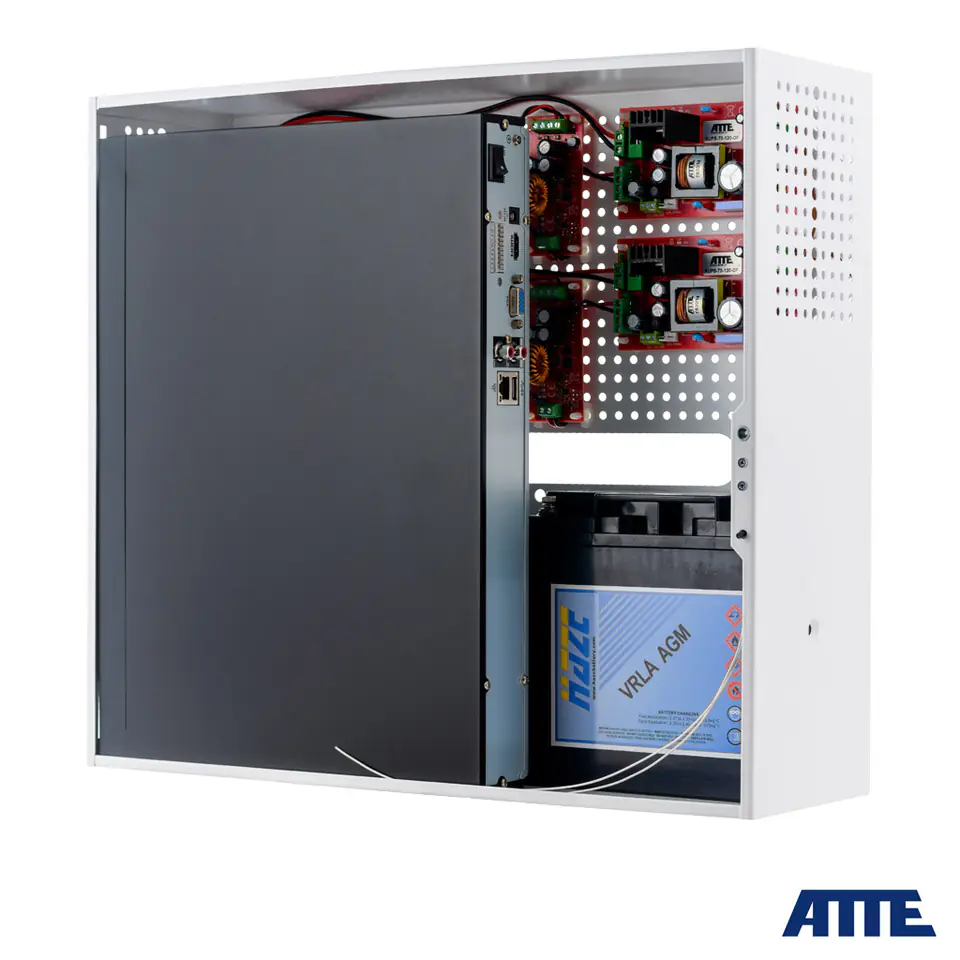

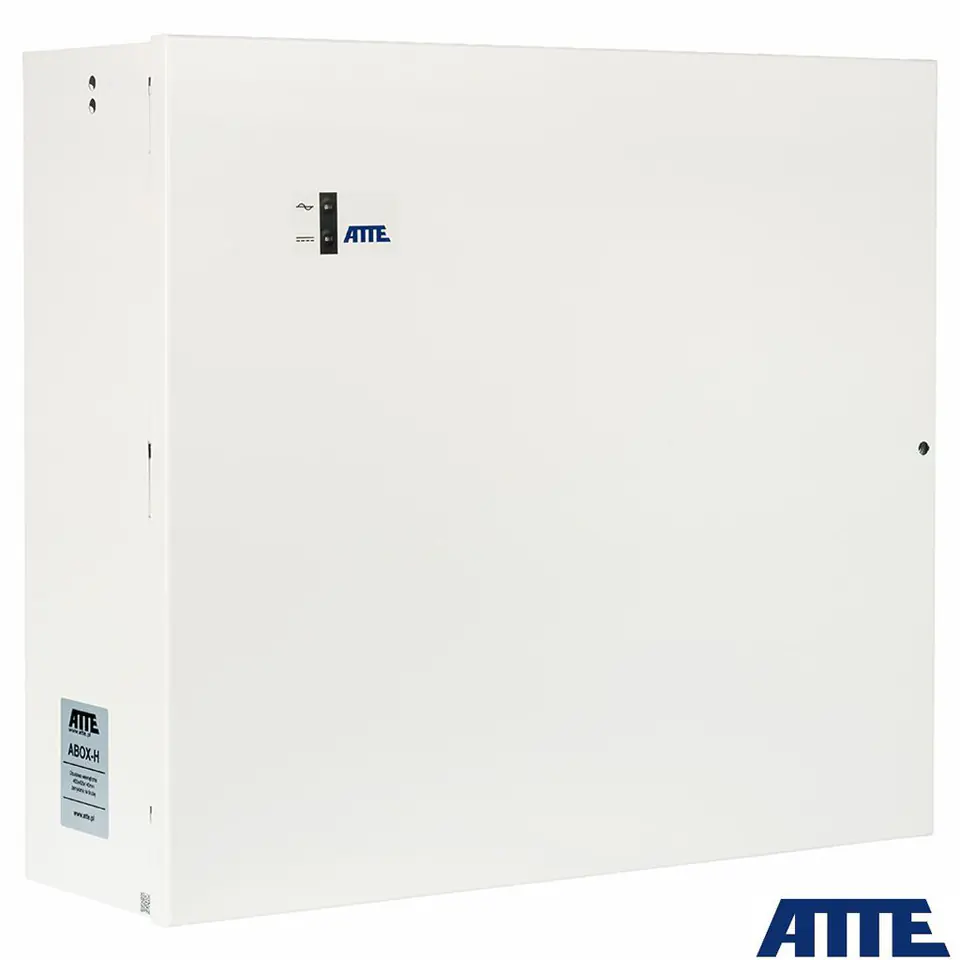

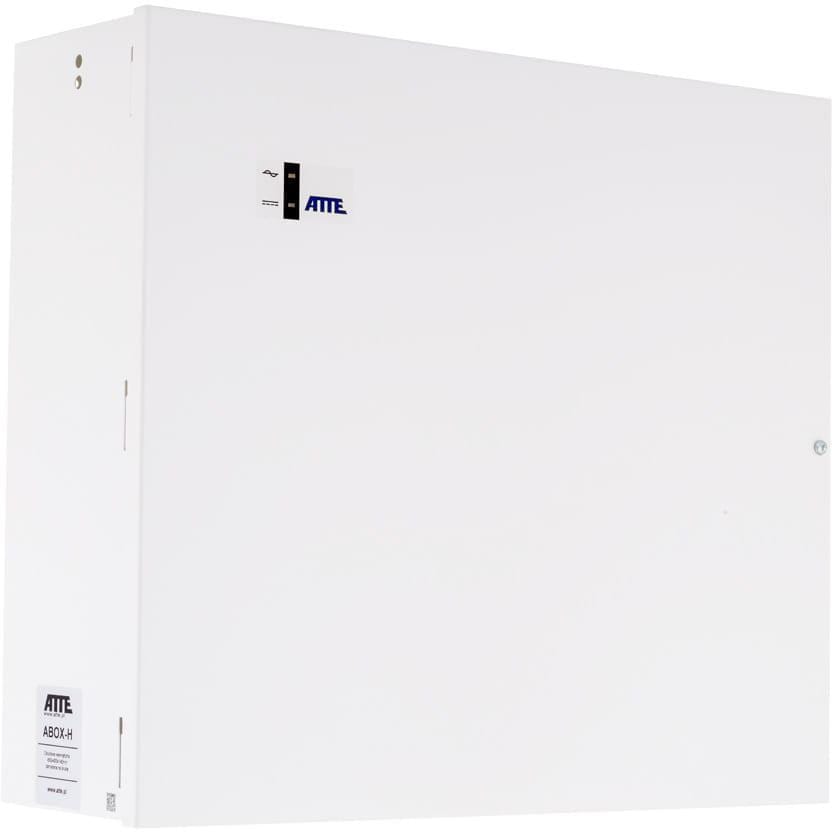

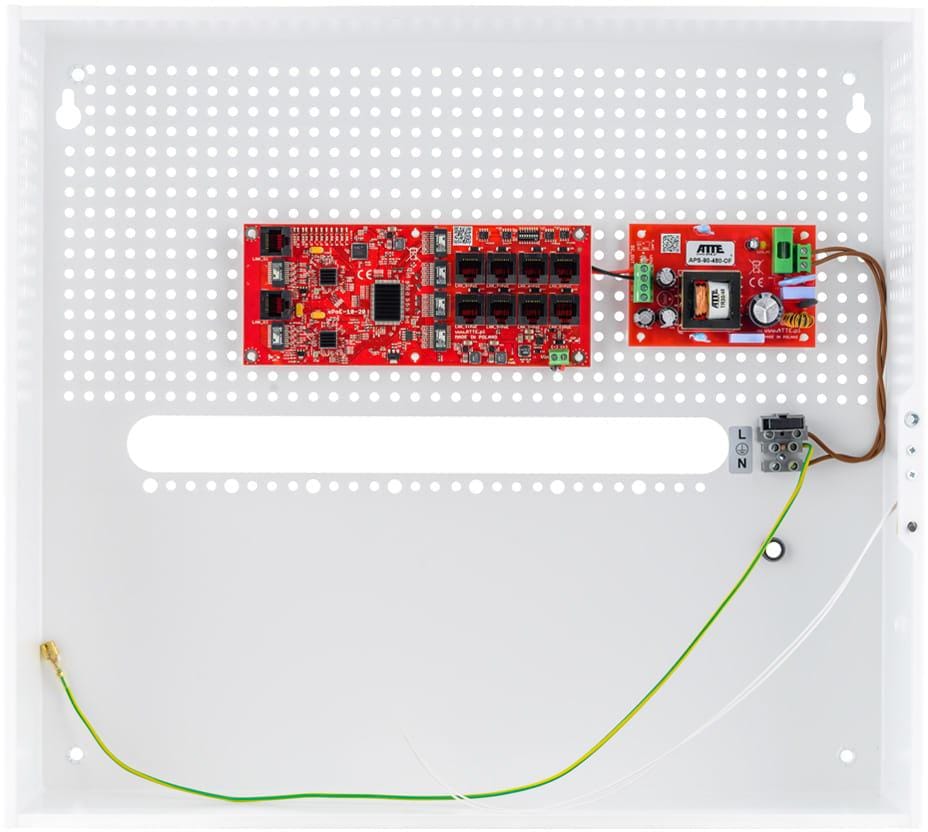

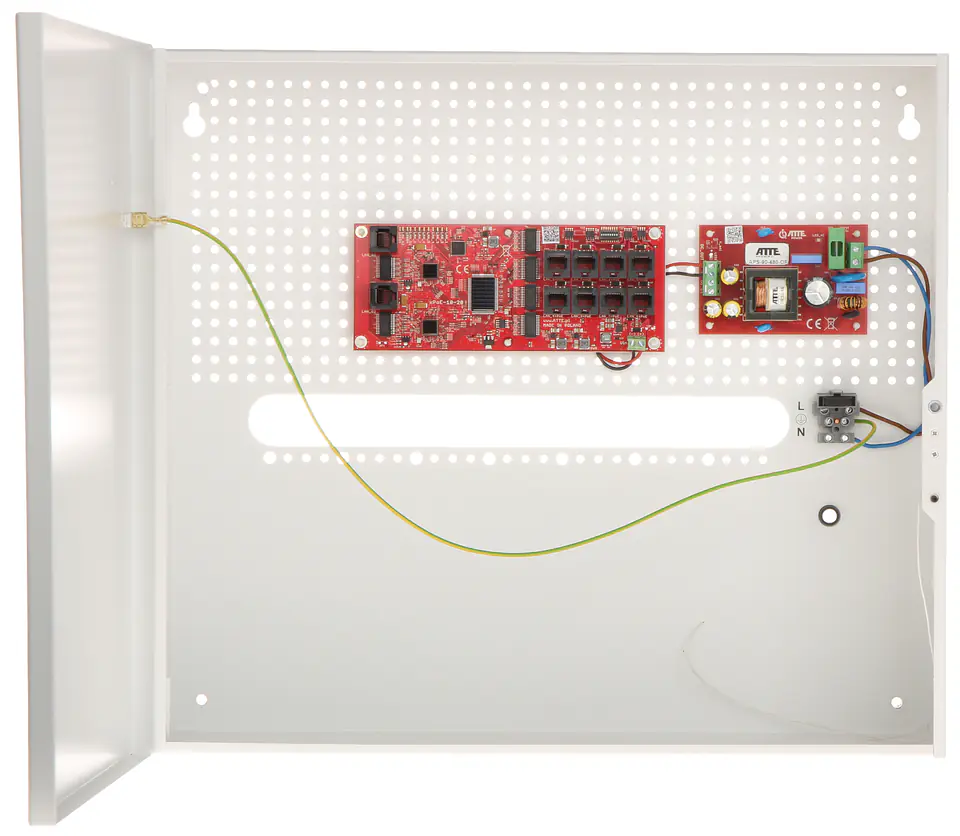

The IP-8-20-H set consists of the XPOE-10-20-OF switch module and the APS-90-480-OF switch-mode power supply enclosed in an ABOX-H internal housing with space for the recorder
POE SWITCH IP-8-20-H 8-PORT ATTE
€339.37
Shipping from warehouse: D4
Estimated shipping: Tue, Feb 25 - Fri, Feb 28
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ATTE
- Product code:
- IP-8-20-H / 5902887061257
Share this product:
Specification
| Baud: | 10 / 100 Mbps : 8 LAN & PoE ports 10 / 100 / 1000 Mbps : 2 LAN ports |
|---|---|
| Dimensions: | 400 x 450 x 140 mm |
| Lan ports: | 2 x RJ45 10/100/1000 Base-TX - Uplink 8 x RJ45 10/100 Base-TX + PoE (802.3af/at) / Passive PoE |
| Leds: | Power, LAN |
| Maximum output power: | 40W @ Passive PoE - 1 ports ... 8.30W @ PoE (802.3at) - 1 ports ... 8.15.4 W @ PoE (802.3af) - 1 ports ... 8 |
| Maximum total power: | 96 watts (Printing) |
| Power: | 180 ... 240 V AC - Built-in switching power supply |
| Producer / brand: | ATTE |
| Scales: | 4.33 kg |
| Selected features: | RJ-45 connector pin numbers: 1/2, 3/6 - Data transmission over wires; 4/5, 7/8 - Power supply Cascadable Efficiency: 92 % @ 90 W Built-in switching power supply: 48 V DC / 96 W Thermal protection of the power supply Short-circuit protection Overload protection Switch indicating the opening of the enclosure TAMPER Possibility to independently turn the PoE power on and off for each of the LAN ports 1 ... LAN 8 Electronic fuse independently for each PoE channel Modular design streamlines service tasks and enables quick, easy system expansion Raster module mounting system makes it easy to expand the device with more modules Main cable pass-throughs on the back of the housing Tightness class: IP20 |
| Warranty: | 3 years |
