| Baud: | 10 / 100 Mbps : 1 LAN + 5 LAN & PoE ports |
|---|---|
| Dimensions: | 248 x 198 x 96 mm |
| Lan ports: | 1 x RJ45 10/100 Base-T - Uplink, 5 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE |
| Leds: | Power, LAN |
| Maximum output power: | 40 W @ Passive PoE - LAN1 Ports... LAN4, 60 W @ Passive PoE - LAN5 port, 30 W @ PoE (802.3af/at) - LAN1 ports ... LAN5 |
| Maximum total power: | 60 watts (Printing) |
| Operating modes: | Standard : 100 m @ 10/100 Mbps - LAN1 ports ... LAN6 Long Range: 280 m @ 10 Mbps - LAN1 ports ... LAN4 ; 100 m @ 10/100 Mbps - LAN5, LAN6 ports |
| Power: | 190 ... 260 V AC - cable terminals |
| Producer / brand: | ATTE |
| Scales: | 1.02 kg |

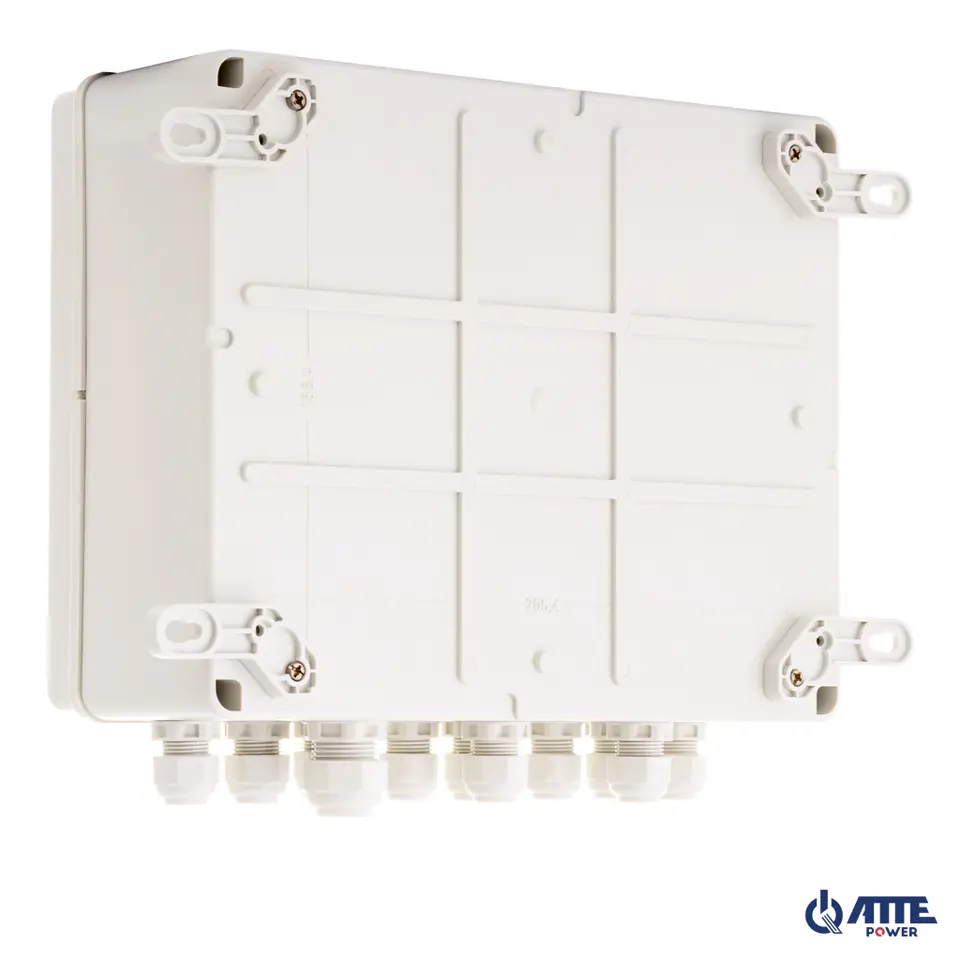

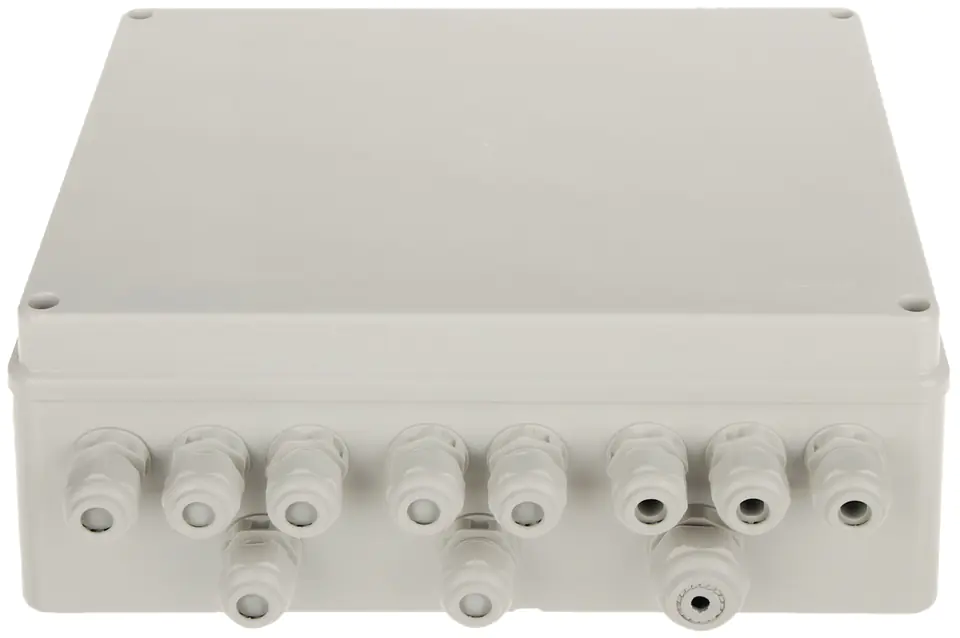

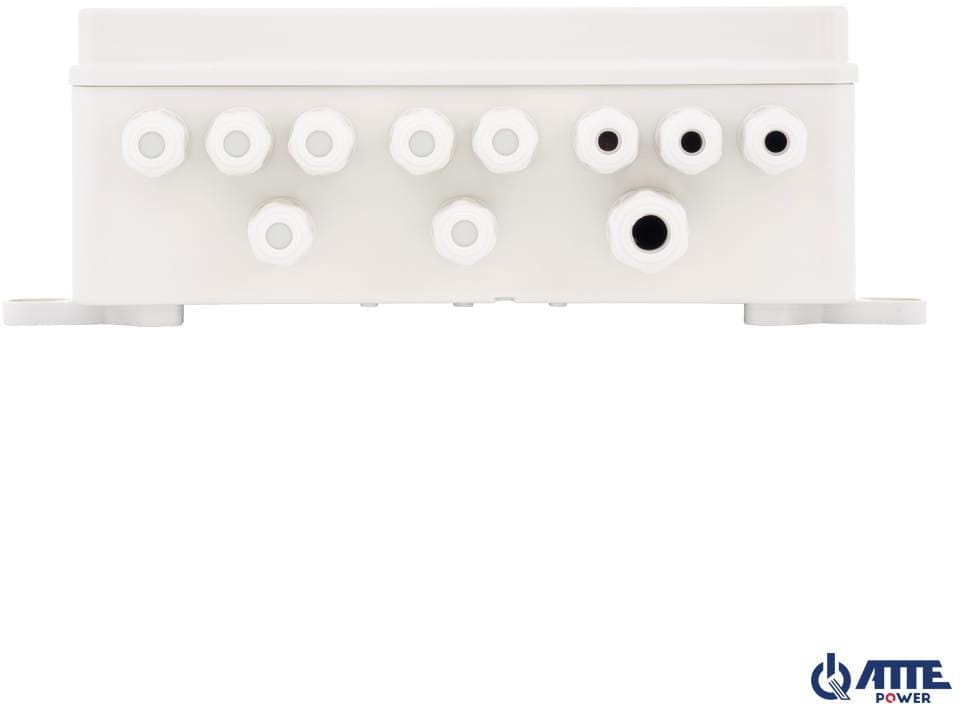

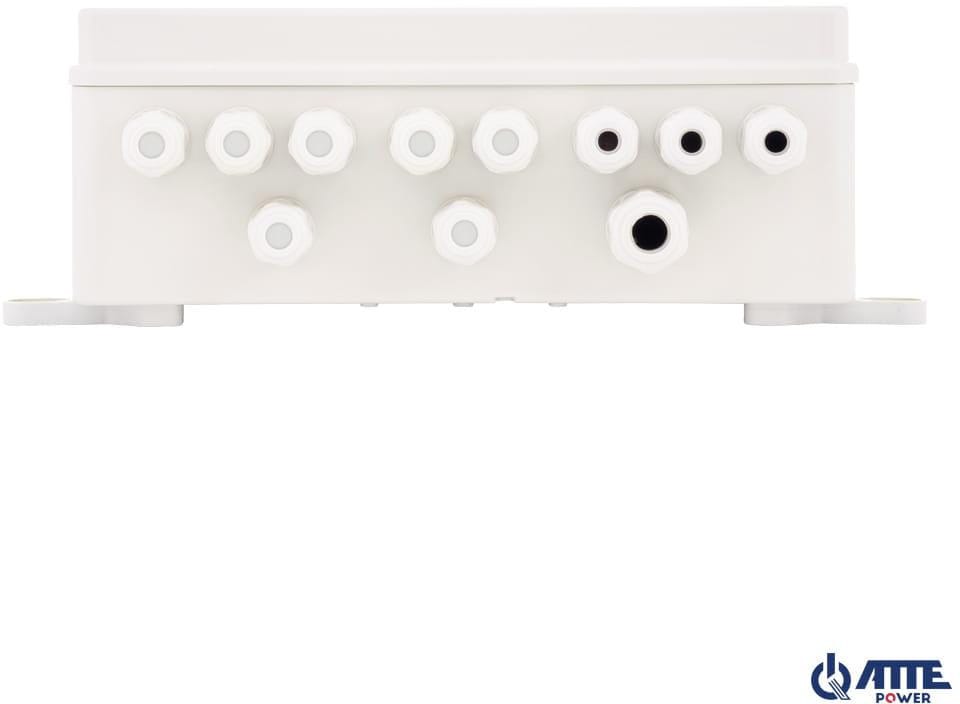

| Selected features: | Cascading devices (power transfer between devices via Passive PoE via LAN port 5) PoE output voltage is equal to input voltage Ability to independently turn PoE power on and off for each of the LAN ports 1 ... LAN 5 Modular design streamlines service tasks and enables quick, easy system expansion Raster module mounting system makes it easy to expand the device with new modules The ABOX-L2 mounting housing is equipped with 11 cable glands in the 10 x M16 + 1 x M20 system Protection class: IP56 |
| Warranty: | 3 years |

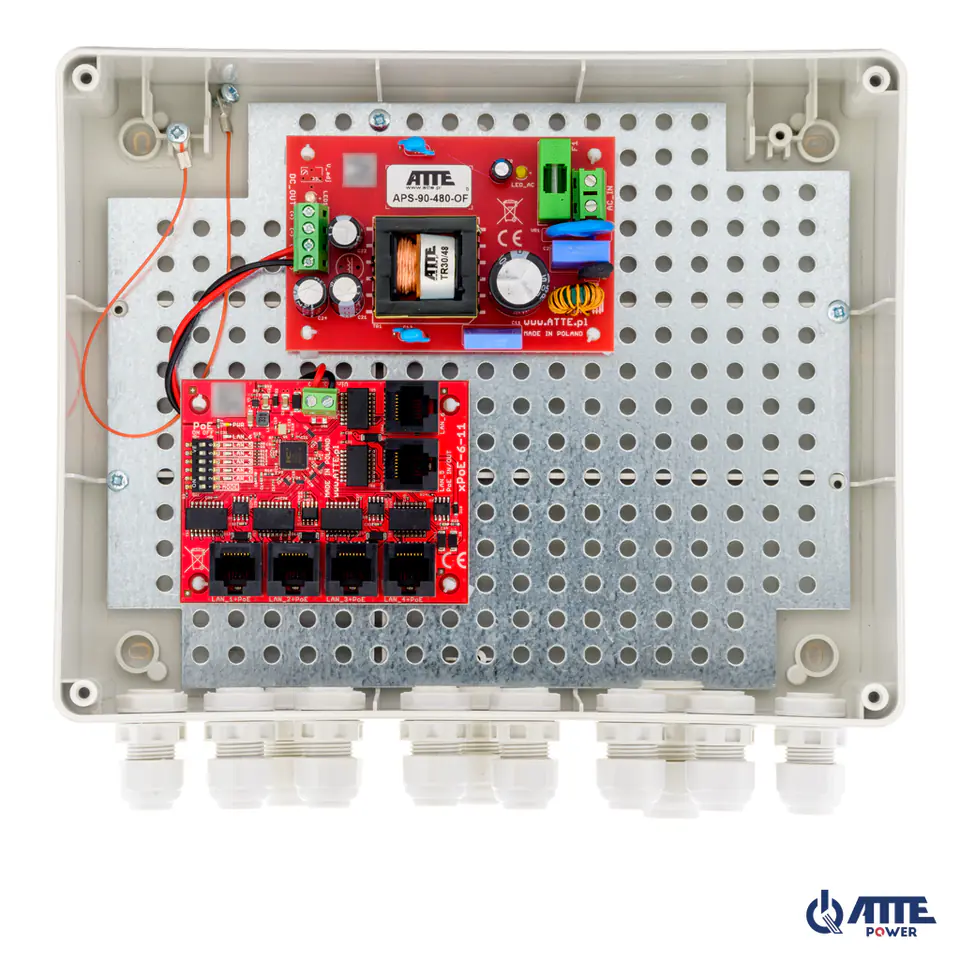

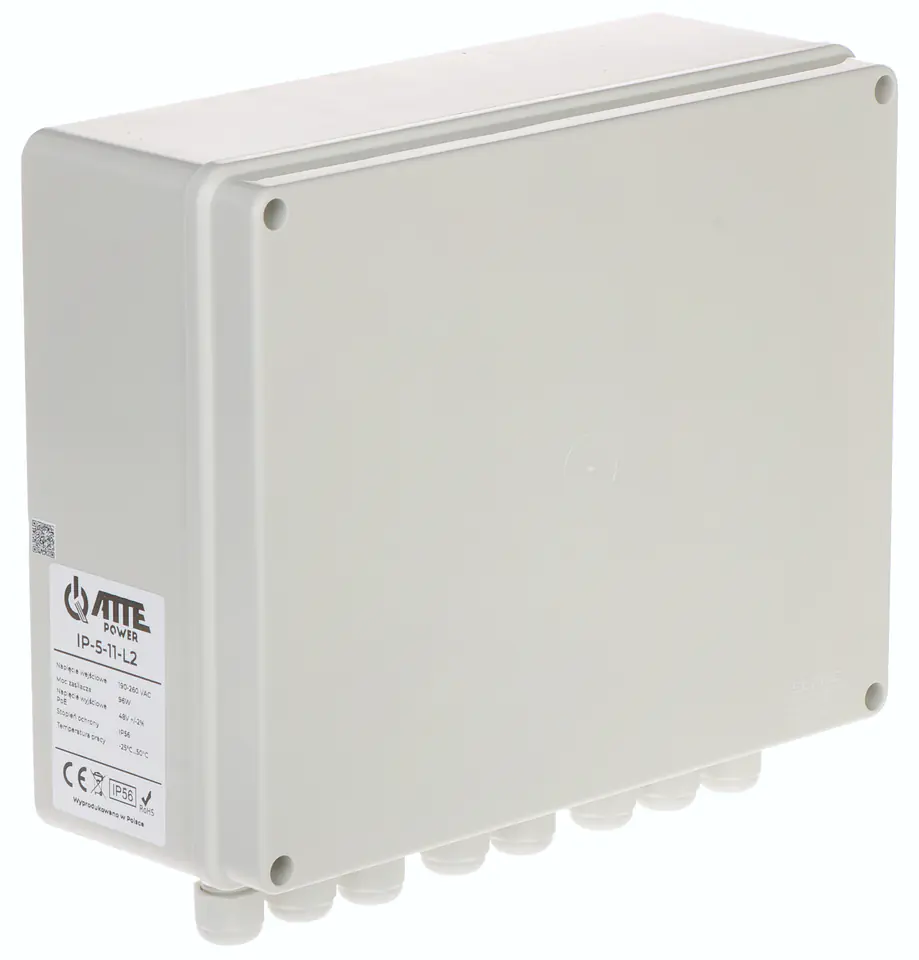

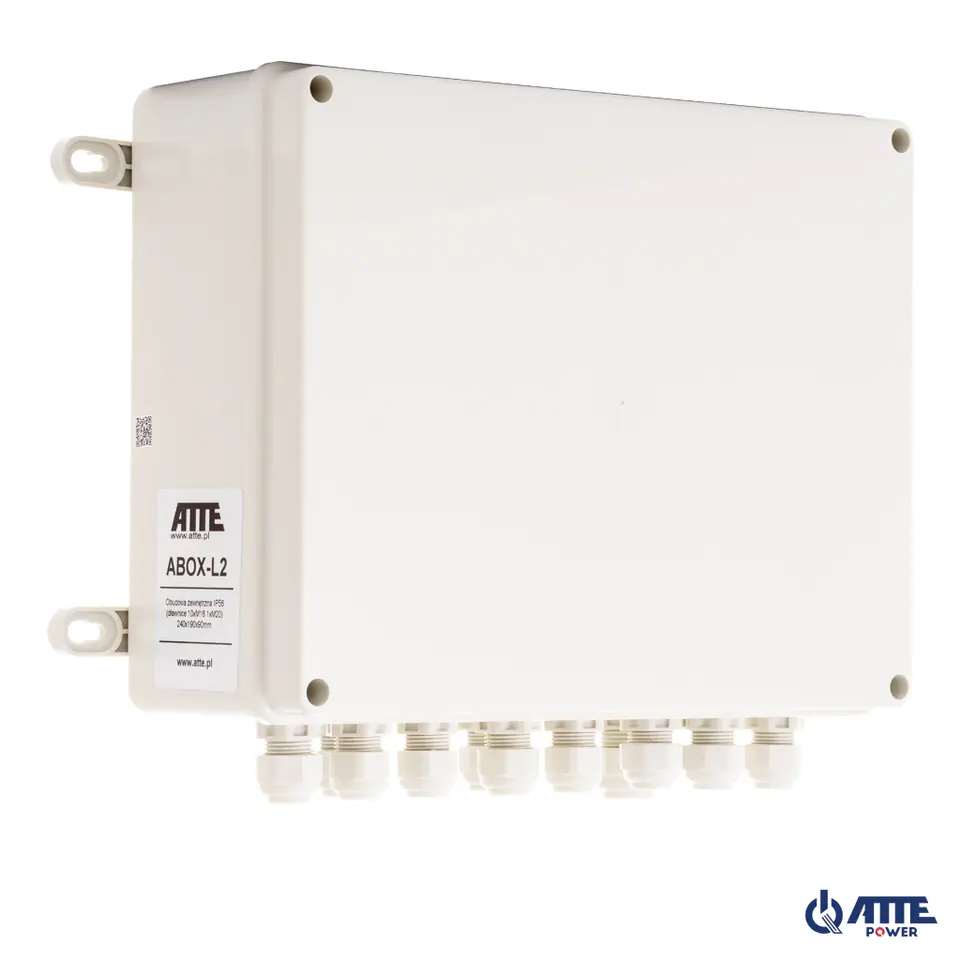

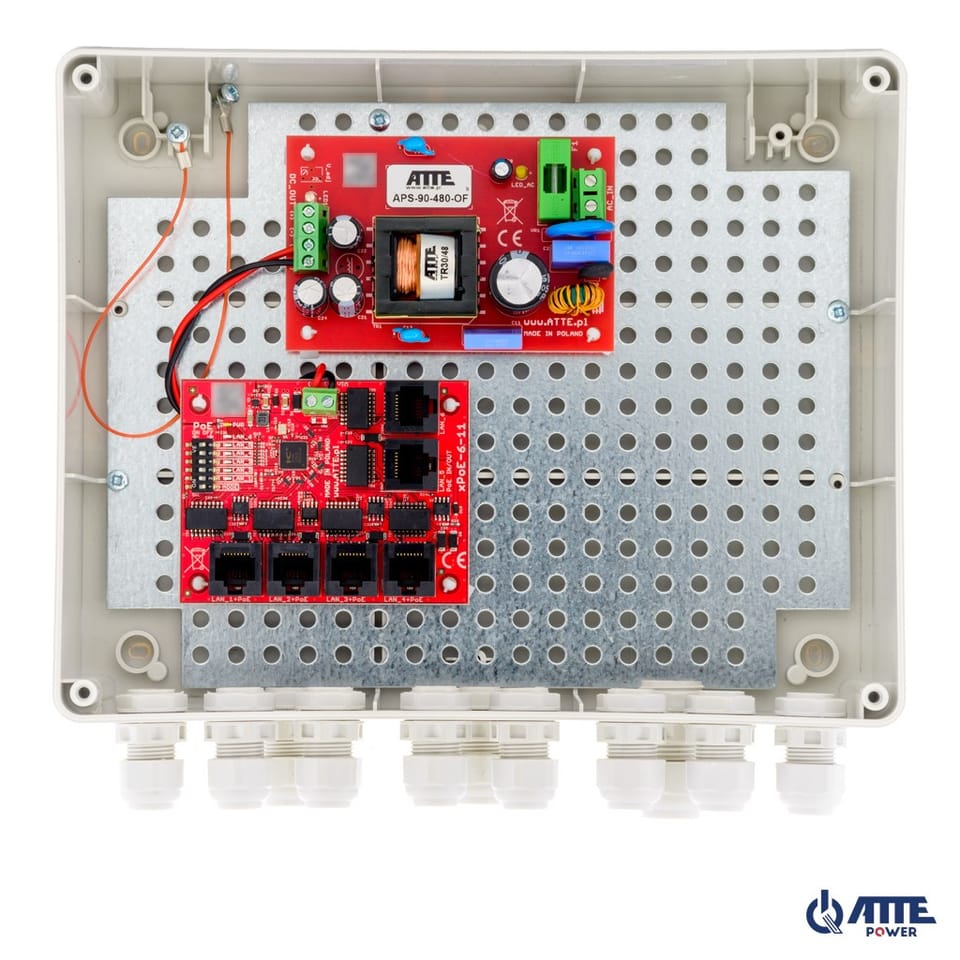

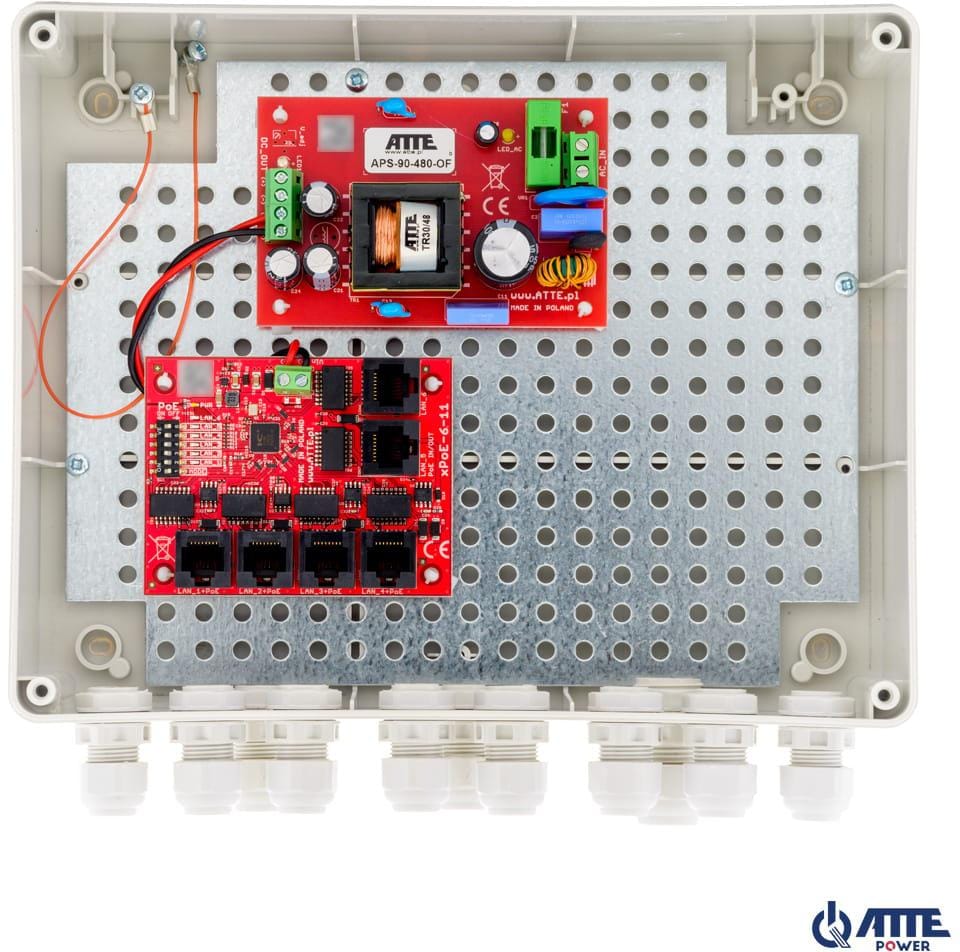

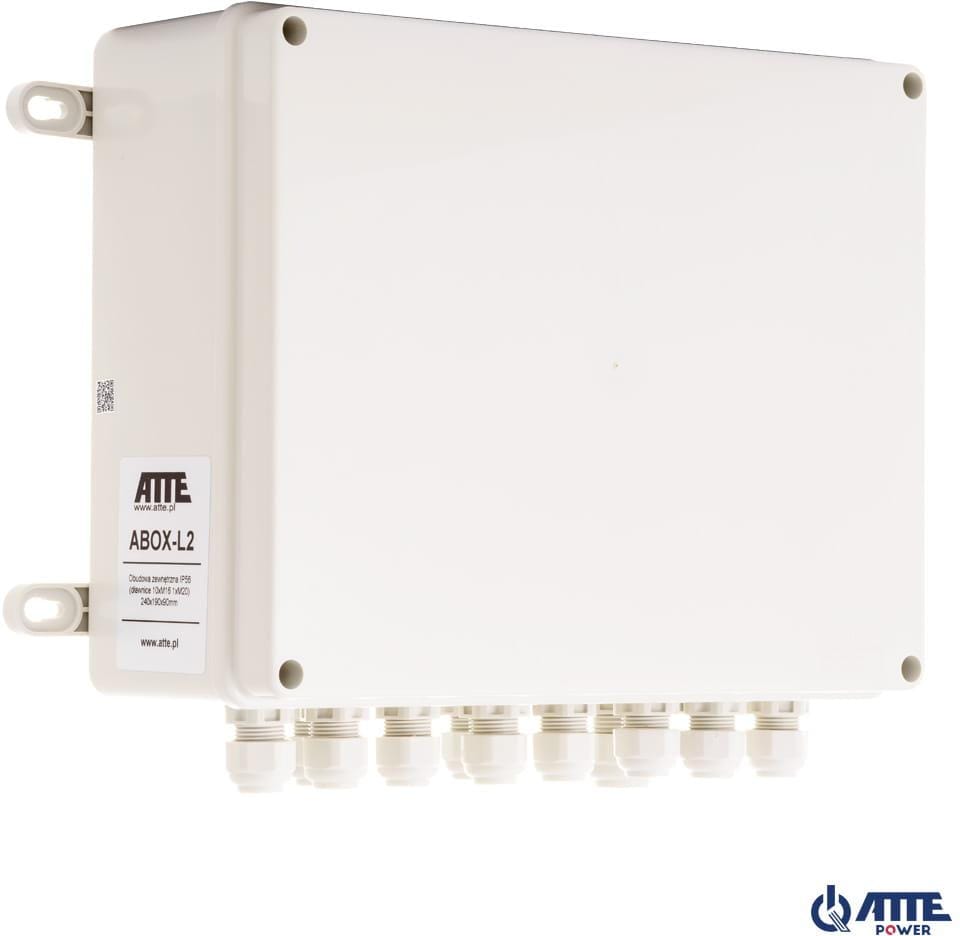

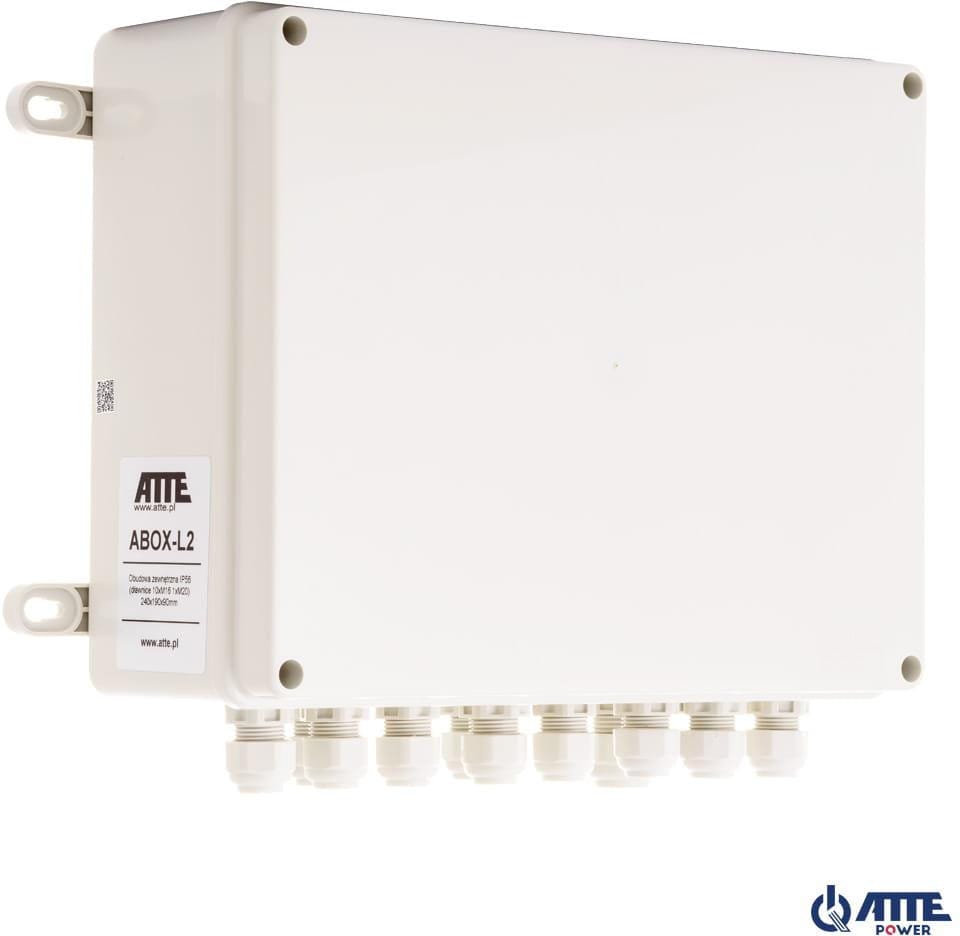

The IP-5-11-L2 set consists of the XPOE-6-11-OF switch module and the APS-90-480-OF switch-mode power supply enclosed in an ABOX-L2 external housing with IP56 protection class
LONG RANGE mode allows you to extend the range of power and data transmission for LAN ports 1 ... LAN 4 up to 280m with 10Mbps network bandwidth limit for these ports
