| Baud:: | 10 / 100 Mbps : 2 x LAN - Uplink + 8 x LAN & PoE Port |
|---|---|
| Certificates:: | CE, FCC Class B |
| Dimensions:: | 210 x 150 x 35 mm |
| Lan ports:: | 8 x RJ45 ( 1 x Hi-PoE + 7 x PoE (802.3af/at) ), 2 x RJ45 - Uplink |

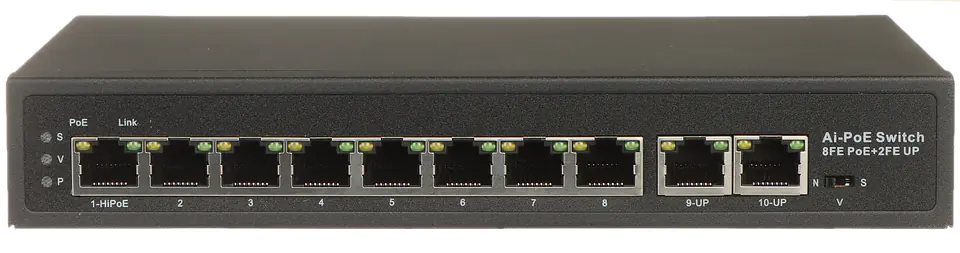

| Leds:: | Power, V - VLAN (Port Isolation), S - Extend, PoE, Link/Act |
| Mac address table:: | 1k |
| Maximum output power:: | 60 W / Hi-PoE port - Port 1 30 W / PoE port - 2 ports ... 8 |
| Maximum total power:: | 120 watts (Printing) |
| Operating modes:: | N - Normal - the device works like a normal PoE switch V - VLAN (Port Isolation) - ports 1 ... 8 are isolated from each other and separately work with ports 9, 10 S - Extend - Range : 250 m @ 10 Mbps |
| Operating temperature:: | -10 °C ... 45 °C |
| Power:: | 100 ... 265 V AC |
| Scales:: | 0.76 kg |
| Security:: | Surge ± 4 kV |
| Selected features:: | Auto detection MDI/MDI-X - automatically detects the data transmission mode Full Duplex: IEEE802.3x,Half Duplex: Back Pressure Support for Auto-learning and Auto-aging MAC addresses PD Mode Alive - monitoring of ports that power PoE devices and automatic restart by cutting off the power when a non-responding MTBF device is detected (mean time between failures) : 50000 h |
| Warranty:: | 2 years |
With reliability and high transmission quality, the GTX-A1-10-82 8-port PoE switch is the ideal solution for IP CCTV applicationsThe ability to power PoE in accordance with the 802.3af/at standard makes the device even more versatile and easier to install
Remark! Enabling the Extend function increases the PoE range to 250m and reduces the transmission speed to 10 Mbps
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
