| Baud:: | 10 / 100 Mbps : 2 x LAN - Uplink + 4 x LAN & PoE Port |
|---|---|
| Certificates:: | CE, FCC Class B |
| Dimensions:: | 190 x 130 x 35 mm |
| Lan ports:: | 4 x RJ45 ( 1 x Hi-PoE + 3 x PoE (802.3af/at) ), 2 x RJ45 - Uplink |
| Leds:: | Power, V - VLAN (Port Isolation), S - Extend, PoE, Link/Act |
| Mac address table:: | 1k |
| Maximum output power:: | 60 W / Hi-PoE port - Port 1 30 W / PoE port - 2 ports ... 4 |
| Maximum total power:: | 65 watts (Printing) |
| Operating modes:: | N - Normal - the device works like a normal PoE switch V - VLAN (Port Isolation) - ports 1 ... 4 are isolated from each other and separately work with ports 5.6 S - Extend - Range : 250 m @ 10 Mbps |
| Operating temperature:: | -10 °C ... 55 °C |
| Power:: | 100 ... 265 V AC |
| Scales:: | 0.6 kg |
| Security:: | Surge ± 3 kV |
| Selected features:: | Auto detection MDI/MDI-X - automatically detects the data transmission mode Full Duplex: IEEE802.3x,Half Duplex: Back Pressure Support for Auto-learning and Auto-aging MAC addresses PD Mode Alive - monitoring of ports that power PoE devices and automatic restart by cutting off the power when a non-responding MTBF device is detected (mean time between failures) : 50000 h |
| Warranty:: | 2 years |

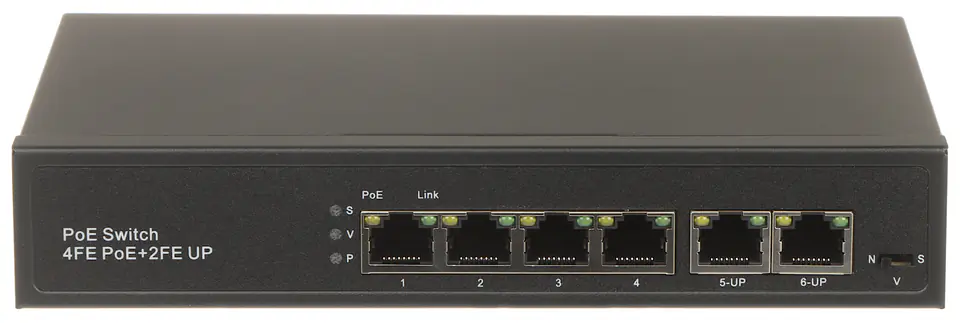

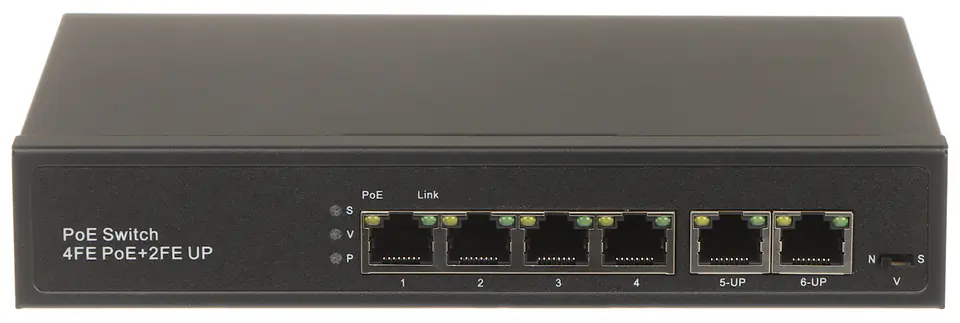

With reliability and high transmission quality, the GTX-A1-06-42 4-port PoE switch is the ideal solution for IP CCTV applications The ability to power PoE in accordance with the 802.3af/at standard makes the device even more versatile and easier to install
Remark! Enabling the Extend function increases the PoE range to 250m and reduces the transmission speed to 10 Mbps
