With reliability and high transmission quality, the BCS-B-SP08G02G 8-port PoE Switch is the ideal solution for IP CCTV applicationsThe ability to power PoE according to 802.3af / 802.3at makes the device even more versatile and easier to install

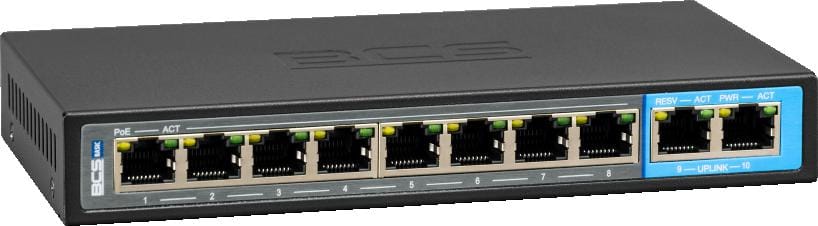

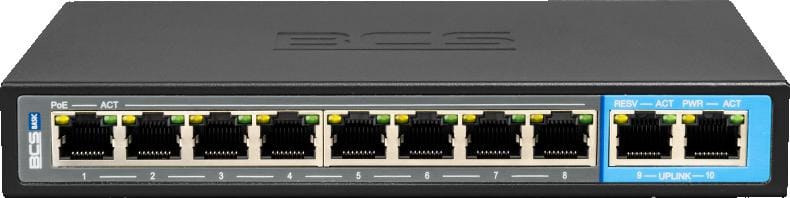

POE SWITCH BCS-B-SP08G02G 8-PORT BCS BASIC
€122.67
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- BCS BASIC
- Product code:
- BCS-B-SP08G02G / 5904890705807
Share this product:
Specification
| Baud:: | 10 / 100 / 1000 Mbps - 8 LAN & PoE Ports, 10 / 100 / 1000 Mbps - 2 Uplink Ports |
|---|---|
| Certificates:: | CE |
| Dimensions:: | 184 x 94 x 27 mm |
| Lan ports:: | 2 x RJ45 - Uplink 8 x RJ45 ( 8 x PoE (802.3af / at) ) |
| Leds:: | Power, Link/Act, PoE |
| Manufacturer / brand:: | BCS BASIC |
| Maximum output power:: | 30 W/ PoE port |
| Maximum total power:: | 96 watts (Printing) |
| Power:: | 52 V / 1.85 A (power supply included) |
| Scales:: | 0.46 kg |

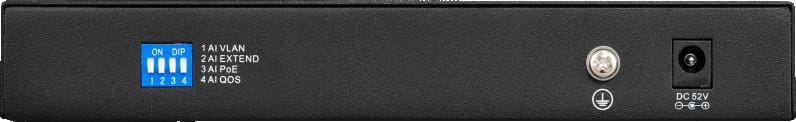

| Selected features:: | 2 x Uplink Port 4 operating modes: AI VLAN, AI EXTEND, AI PoE, AI QoS - switch-selectable AI VLAN mode - ports 1, 2, 3, 4, 5, 6, 7, 8 are isolated from each other, have a connection only to the Uplink port AI EXTEND mode - ports 1, 2, 3, 4, 5, 6, 7, 8 support transmission up to 250 m (cat5e, cat6) AI QOS (Quality Of Service) mode – prioritization of video packets AI PoE mode – monitoring of ports that power PoE devices and automatic restart by cutting off power when an unresponsive device is detected Auto MDI/MDI-X detection – automatically detects data transmission mode Metal housing |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
