Thanks to its reliability and high transmission quality, the 8-port BCS-B-SP08G-2SFP PoE switch is an ideal solution for IP CCTV applicationsThe PoE power supply capacity in accordance with the 802.3af / 802.3at standard makes the device even more versatile and easier to install

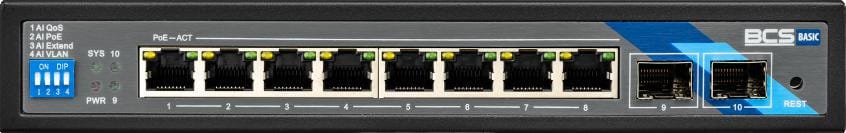

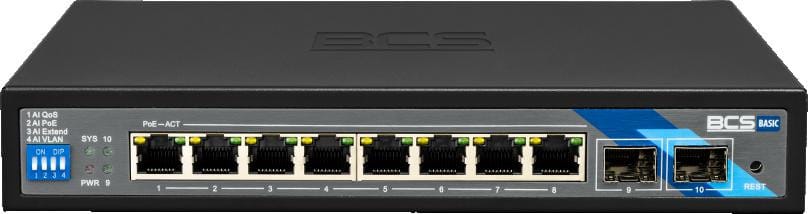

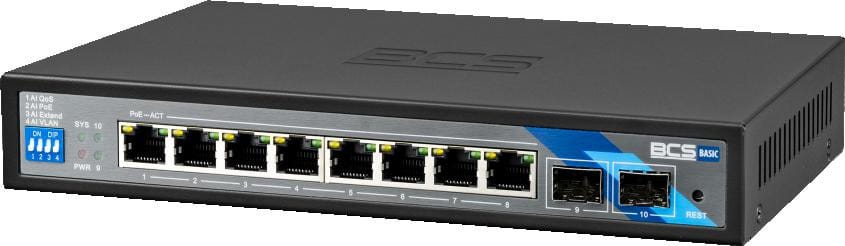

POE SWITCH BCS-B-SP08G-2SFP 8-PORT SFP BCS BASIC
€163.19
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- BCS BASIC
- Product code:
- BCS-B-SP08G-2SFP / 5904890705814
Share this product:
Specification
| Baud: | 10 / 100 / 1000 Mbps - 8 LAN & PoE, 1000 Mbps - 2 SFP ports |
|---|---|
| Certificates: | CE |
| Dimensions: | 225 x 120 x 35 mm |
| Lan ports: | 2 x SFP 8 x RJ45 ( 8 x PoE (802.3af/at) ) |
| Leds: | Power, Link/Act, PoE, System, SFP |
| Maximum output power: | 30W/PoE port |
| Maximum total power: | 96 watts (Printing) |

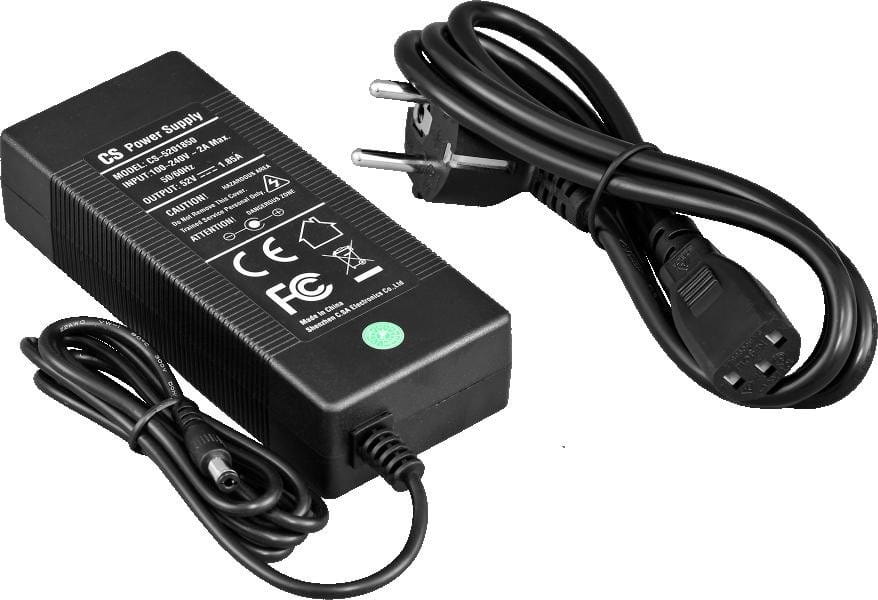

| Power: | 48 volts ... 56 V DC 52 V / 1.85 A (power adapter included) |
| Producer / brand: | BCS BASIC |
| Scales: | 0.68 kg |
| Selected features: | 2 x SFP (Uplink) ports 4 operating modes: AI VLAN, AI EXTEND, AI PoE, AI QoS - switch-selectable AI VLAN mode - ports 1, 2, 3, 4, 5, 6, 7, 8 are isolated from each other, they are connected only to the Uplink port AI EXTEND mode - ports 1, 2, 3, 4, 5, 6, 7, 8 support transmission up to 250 m (cat5e, cat6) AI QOS (Quality Of Service) mode – prioritization of video packets AI PoE mode - monitoring ports that supply PoE devices and automatic restart by cutting off power when an unresponsive ICMP device is detected DoS Attack Protection DHCP snooping support Advanced ACL hardware features to support L2~L4 data stream classification Port mirroring IGMP port forwarding Snooping V1/V2802.1p/DSCP Spanning Tree traffic prioritization STP/RSTP/MSTP Multicast System Logs RESET button Metal housing |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
