| Baud:: | 10 / 100 Mbps : 2 LAN Port + 8 LAN & PoE Ports |
|---|---|
| Certificates:: | CE |
| Dimensions:: | 185 x 95 x 28 mm |

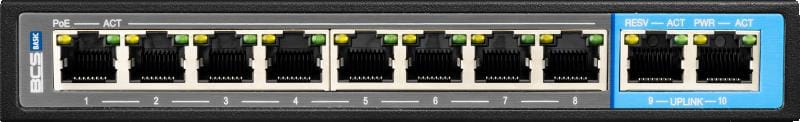

| Lan ports:: | 10 x RJ45 ( 8 x PoE (802.3at) ) |
| Leds:: | Power, Act, PoE |
| Manufacturer / brand:: | BCS BASIC |
| Maximum output power:: | 36 W/PoE port |
| Maximum total power:: | 96 watts (Printing) |

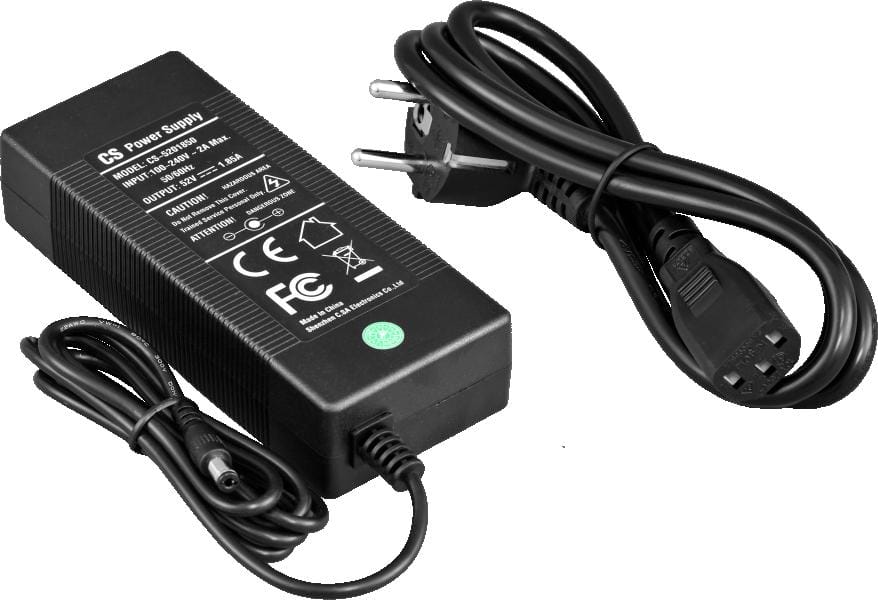

| Power:: | 52 V DC / 1.85 A (power supply included) |
| Scales:: | 0.41 kg |

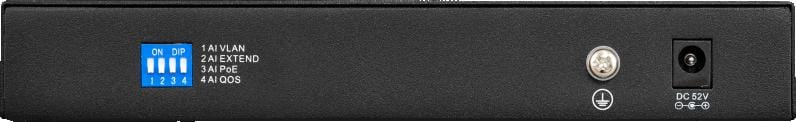

| Selected features:: | 2 x Uplink Port 4 operating modes: AI VLAN, AI EXTEND, AI PoE, AI QoS - switch-selectable AI VLAN mode - ports 1, 2, 3, 4, 5, 6, 7, 8 are isolated from ports 9, 10 AI EXTEND mode - ports 1, 2, 3, 4, 5, 6, 7, 8 support transmission up to 250 m (cat5e, cat6) AI QOS (Quality Of Service) mode - prioritization of video packets AI PoE mode - monitoring of ports that power PoE devices and automatic restart by cutting off the power when an unresponsive device is detected |
| Warranty:: | 2 years |

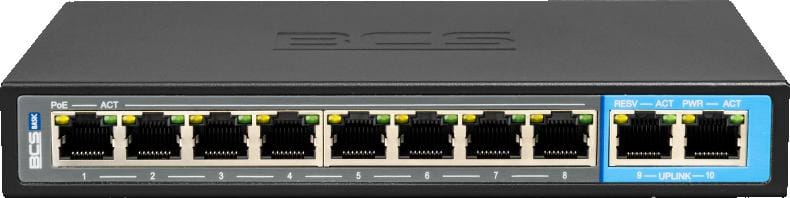

With reliability and high transmission quality, the BCS-B-SP0802 10/100 Mbps 8-port Desktop PoE Switch is ideal for home or office network expansionHh ports support Power over Ethernet (PoE)The ability to power PoE according to 802.3af / 802.3at makes the device even more versatile and easier to install
Remark! Enabling the VLAN function increases the PoE range to 250m and reduces the transmission speed to 10 Mbps
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
